Product Description
Natural flake graphite after screening as acid cleaning and in treatment, the treated graphite expansion more than 100 times, flotation was pressed into the graphite paper, that is, flexible graphite
flexible graphite is mainly used for sealing industry, flexible graphite sheet is mainly used for electric power, petroleum, chemical industry, flexible graphite paper in these industries is mainly used in machine, pipe, pump, valve seal
Graphite foil is a new sealing material foundation, has high temperature resistance, corrosion resistance, radiation resistance, good the electrical conductivity and thermal conductivity, good compression rate, rebound rate and low stress relaxation rate characteristics

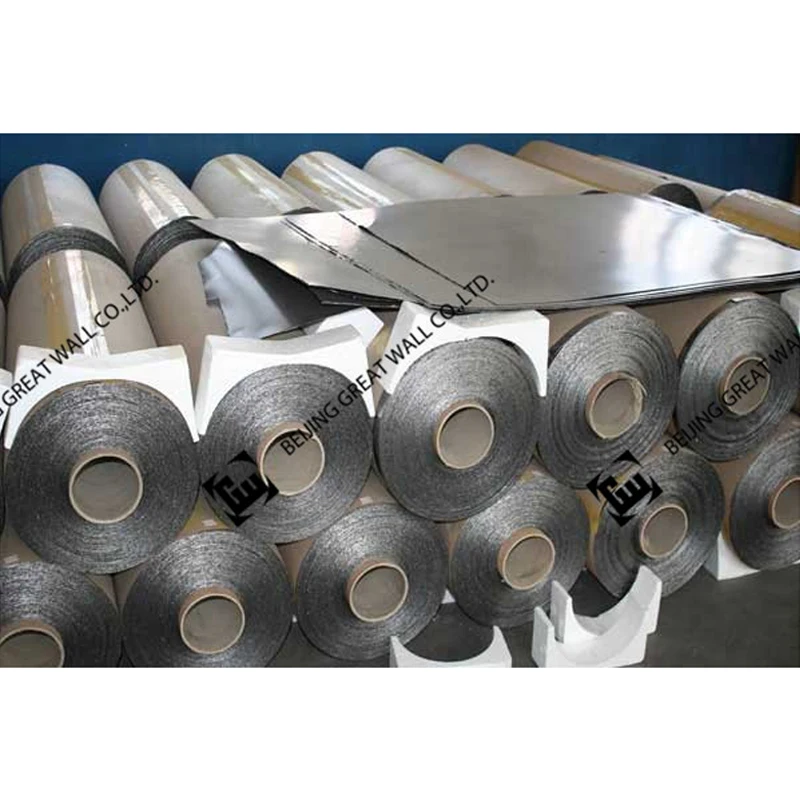

Graphite foil:
graphite foil and graphite sheet is used for machine sealing,.
Graphite tape:
graphite tape is used for thread sealing and sealing flange.
Graphite foil with glue:
graphite foil and tape with glue mainly used for thread and flange sealing.
| Parameters | Item | ||
|---|---|---|---|
| Graphite foil | Graphite strengthed sheet 304 | Graphite strengthed sheet 316 | |
| Carbon content (%) | 95~99.9 all available | ≥99 | ≥99 |
| Specific Resistance (μΩ-m) | 3~7 | 3~7 | |
| Sulfur content (ppm) | 0~1200 all available | ≤1100 | ≤1200 |
| Chlorin content (ppm) | ≤35 | ≤50 | ≤40 |
| Compressive Strength (Mpa) | ≥160 | ||
| Flexural Strength (Mpa) | ≥4.5 | ||
| TensileStrength (Mpa) | ≥40 | ≥40 | |
| Density (g/cm3) | 1 +- 0.05 | 1.25 +- 0.05 | 1.25 +- 0.05 |
| Compressing modulus | ≥40% | 30~35% | 30~35% |
| Rebounding modulus | 10~12% | 19% |
