Кран для туалета и кухни TB6120, латунный, 1/2 градусов
US $1.52-$1.64

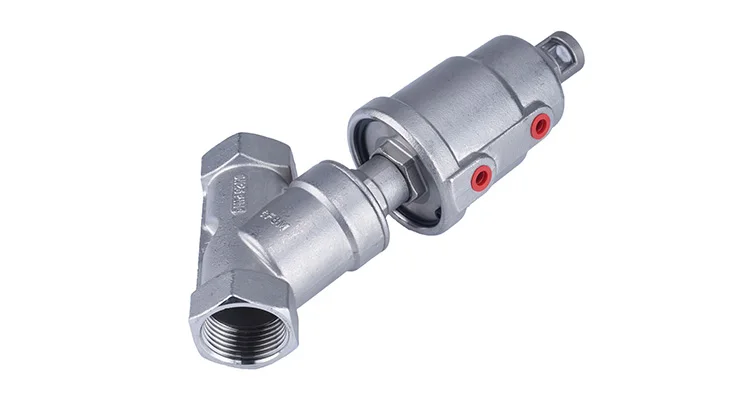

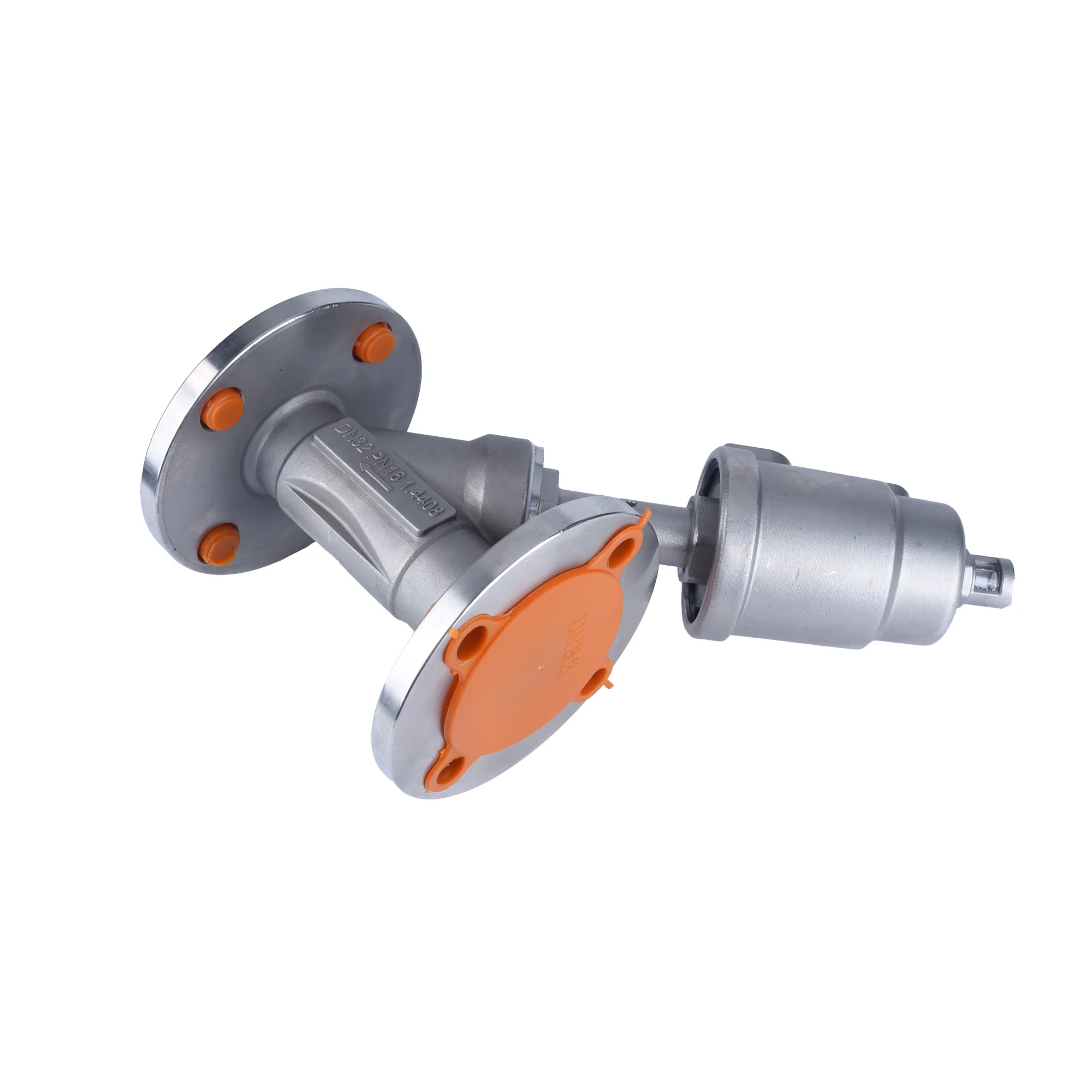

Воздушный пневматический угловой клапан из нержавеющей стали
- Категории: Valve >>>
- Поставщик: ZHEJIANG,HEARKEN,FLOW,EQUIPMENT,CO.,LTD
Поделиться:
Описание и отзывы
Характеристики
Technical Parameters
* Medium temperature:-20℃~+180℃
* Ambient temperature:-20℃~+60℃
* Nominal pressure:1.6Mpa * Control gas,gas,air
* Air pressure:0.3~0.8Mpa * Specification:DN15-DN100
* The valve body material:304/316 * Seat material:PTFE
*Stem material:304 *Sealing ring material:NBR
* Nominal pressure:1.6Mpa * Control gas,gas,air
* Air pressure:0.3~0.8Mpa * Specification:DN15-DN100
* The valve body material:304/316 * Seat material:PTFE
*Stem material:304 *Sealing ring material:NBR
Model | L | T | A | H | D | E | Actuator |
DN15 | 68 | 11 | 133 | 126 | 1/2" | 62 | ᴓ50 |
DN20 | 75 | 14 | 137 | 131 | 3/4" | 62 | ᴓ50 |
DN25 | 90 | 15 | 174 | 165 | 1" | 62 | ᴓ50 |
DN32 | 115 | 17.5 | 188 | 175 | 1 1/4" | 76 | ᴓ63 |
DN40 | 115 | 17.5 | 190 | 178 | 1 1/2" | 76 | ᴓ63 |
DN50 | 135 | 20 | 215 | 225 | 2" | 76 | ᴓ63 |
DN65 | 185 | 30 | 252 | 280 | 2 1/2" | 96 | ᴓ80 |
DN80 | 208 | 33 | 280 | 320 | 3" | 114 | ᴓ100 |
DN100 | 235 | 33 | 300 | 320 | 4" | 114 | ᴓ100 |
Model | L | T | f | D | C | B | A | H | E |
N-ᴓd | Actuator | DN15 | 120 | 14 | 2 | 95 | 65 | 40 | 185 |
145 | 62 | 4-ᴓ14 | ᴓ50 | DN20 | 130 | 14 | 2 | 105 | 75 |
50 | 188 | 155 | 62 | 4-ᴓ14 | ᴓ50 | DN25 | 140 | 14A16 | 2 |
115 | 85 | 60 | 208 | 165 | 62 | 4-ᴓ14 | ᴓ63 | DN32 | 150 |
16 | 2 | 135 | 100 | 70 | 225 | 195 | 76 | 4-ᴓ18 | ᴓ63 |
DN40 | 180 | 16 | 2 | 145 | 110 | 80 | 240 | 205 | 76 |
4-ᴓ18 | ᴓ63 | DN50 | 195 | 16 | 2 | 160 | 125 | 92 | 265 |
228 | 76 | 4-ᴓ18 | ᴓ80 | DN65 | 230 | 18 | 2 | 185 | 145 |
115 | 290 | 264 | 96 | 4-ᴓ18 | ᴓ80 | DN80 | 250 | 18 | 2 |
Q: What is your main products?
A: Our main products are Pneumatic Actuators, Electric Actuators And Valve Accessories.
Q: Are you a trader or manufacturer? Do you have factory ?
A: We are the actuator manufacturer,we have ability to do the customization products with experienced team, And we have own factory and production line.
Q: How do your make the quality guarantee?
A: We have our own quality control ,every product will be under controlled and tested before delivery ,and we also provide 18 months guarantee.
Q: When can I receive the Price ?
A: We will give the Quotation Within 24 hours after we get your inquiry .Or Your can call us if its quite urgently.
Q: How to order our valve actuators ?
A: Please send us your inquiry by Email, Whatsapp,WeChat etc. we need to know the following information before giving the formal Quotation.
1) Product information in details, Quantity, Other requirements .
2) Delivery time required .
Q: How can I get a sample to check your quality ?
A: Contact with our sales expert to arrange the sample delivery. Please send us the details of the sample before placing the order.
Q：Shall we pay the sample cost and transportation cost ?
A: We will provide the sample by free of charge. Your will bear the freight cost.
Q: How long to prepare the sample ?
A: Most of our products are under regular production and some of them we keep in stocks.
Q: How to delivery the sample to our place?
A: Your can provide your forwarders contact if any, or we will arrange it.
Q: What about the delivery date if we place the formal order ?
A: Usually it takes 15~20 days on the production .We know that on-time delivery is very crucial to our customers to meet dead-lines.
We monitor and expedite our supply chain to ensure that we delivery our products to our customers on-time . All the time.
Q: What is your main products?
A: Our main products are Pneumatic Actuators, Electric Actuators And Valve Accessories.
Q: Are you a trader or manufacturer? Do you have factory ?
A: We are the actuator manufacturer,we have ability to do the customization products with experienced team, And we have own factory and production line.
Q: How do your make the quality guarantee?
A: We have our own quality control ,every product will be under controlled and tested before delivery ,and we also provide 18 months guarantee.
Q: When can I receive the Price ?
A: We will give the Quotation Within 24 hours after we get your inquiry .Or Your can call us if its quite urgently.
Q: How to order our valve actuators ?
A: Please send us your inquiry by Email, Whatsapp,WeChat etc. we need to know the following information before giving the formal Quotation.
1) Product information in details, Quantity, Other requirements .
2) Delivery time required .
Q: How can I get a sample to check your quality ?
A: Contact with our sales expert to arrange the sample delivery. Please send us the details of the sample before placing the order.
Q：Shall we pay the sample cost and transportation cost ?
A: We will provide the sample by free of charge. Your will bear the freight cost.
Q: How long to prepare the sample ?
A: Most of our products are under regular production and some of them we keep in stocks.
Q: How to delivery the sample to our place?
A: Your can provide your forwarders contact if any, or we will arrange it.
Q: What about the delivery date if we place the formal order ?
A: Usually it takes 15~20 days on the production .We know that on-time delivery is very crucial to our customers to meet dead-lines.
We monitor and expedite our supply chain to ensure that we delivery our products to our customers on-time . All the time.
