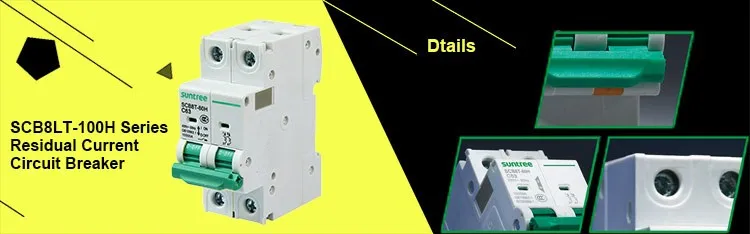

Автоматический выключатель цепи утечки переменного тока 2 полюса


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description




1.with short circuit/ overload protection and isolating function
2.When the grid Leakage current is over setting range, the RCBO will trip to cut off power within very short time to ensure personal safety and Avold accidents due to leakage
3.using with prepaid energy meter together, it will be turn off automatic when own cost and turn on by manual after recharge



Product Parameters


Type
SCB8LT-100H
Pole
1P+N,2P
Rated Current
6A-100A
Rated Voltage
230V
Rated breaking vapacity
6KA/10KA
Rated residual action current
0.03A/0.05A/0.1A
Rated residual making and breaker capacity
2000A
Delay time for control signature
1s<t<4s
Re-closing time
t<30s
Electrical Life
4000Times
Mechanical
20000Times
Certificates
TUV,CE,IEC,GB
Standard
GB16917.1
Material
thermosetting
Installation
On symmetrical DIN rail 35mm / Panel mounting


Product Details Show






Related Products




Company Information


Wenzhou Xinchi International Trade Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

Main Products:DC-Fuse, Solar system parts,Solar Panel/Inverter/Cable/Connector, AC&DC Circuit Breakers, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box,DC combiner box, etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT, CCC etc.
Main markets:Australia,New Zealand,&other worldwide markets.

Business strategies &Characristic:Stability, expertise and technological innovation are the corner stones of our company's business strategy.
We are trying to develop XinChi into a world-class Electrical manufactures





FAQ


Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.

Q:What's the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:Can I get a sample for test before place order?

A:Of course!

Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
