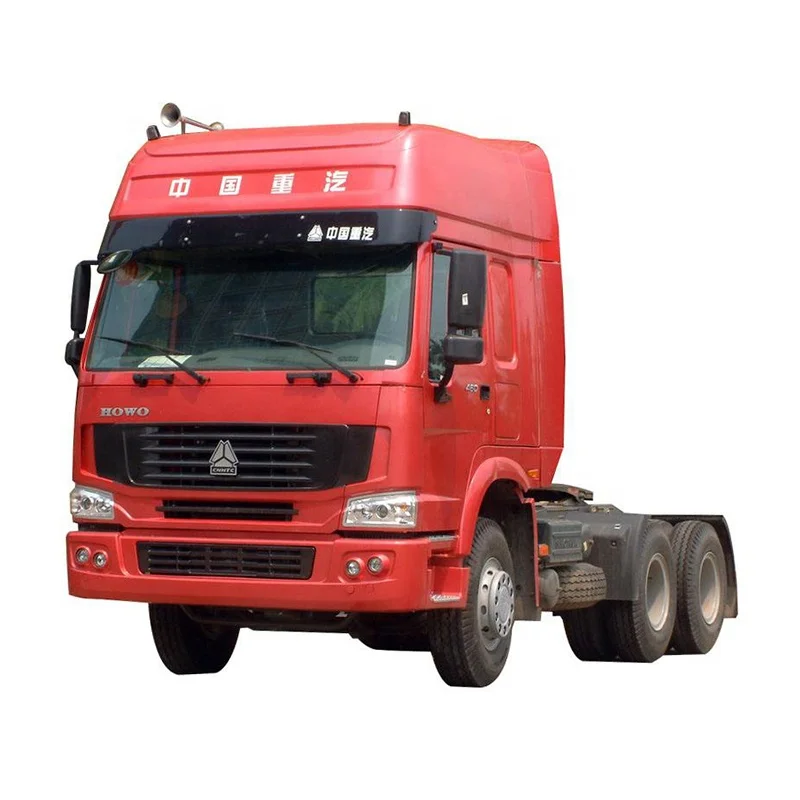

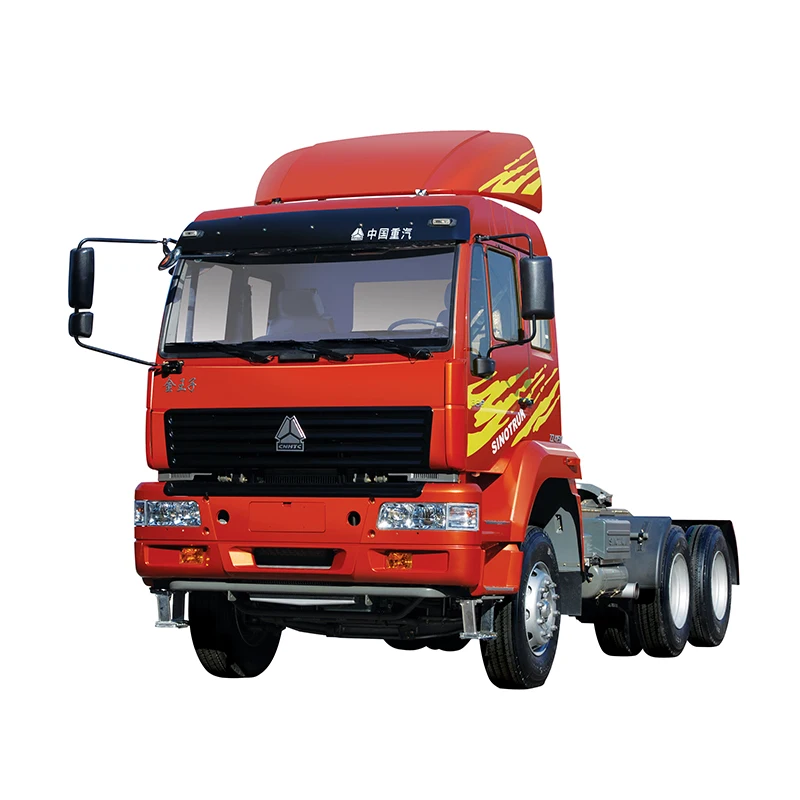

Typical truck model
|
ZZ4257N3241W
|
ZZ4257S3241W
|
ZZ4257V3241W
|
Cab
|
Model
|
HW76
|
Type
|
HW76 extend cab,one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper
system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid
adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor,
and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse
stabilizer, safety belt.
|
Engine
|
Model
|
WD615.69
|
WD615.47
|
D12.42-20
|
Rated power
|
336HP(247Kw/rpm)
|
371HP(273Kw/rpm)
|
420HP(309Kw/rpm)
|
Displacement
|
4 stroke direct injection diesel engine
|
Type
|
6 cylinder in-line with water cooling, turbo-charging & intercooling
|
Wheelbase
|
3200+1400mm
|
Clutch
|
Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance
|
Transmission
|
SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse
|
Front axle
|
Steering axle with double T-cross section HF7/HF9
|
Drive axle
|
Pressed axle housing, central single reduction ST16/MCY(Q)/HC16/AC16
Ratio:3.93 4.42 4.8 5.73
|
Chassis
|
Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap
|
Steering
|
Germany , hydraulic steering with power assistance
|
Brakes
|
Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
|
Wheel & Types
|
Rims: 8.0-20, 10 hole-steel
Types 11.00-20 tube;
Option: 12.00-20 tube, 12.00R20 tube
|
Electrics
|
Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW
Alternator: 28V, 1540W; Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
|
