Product Description

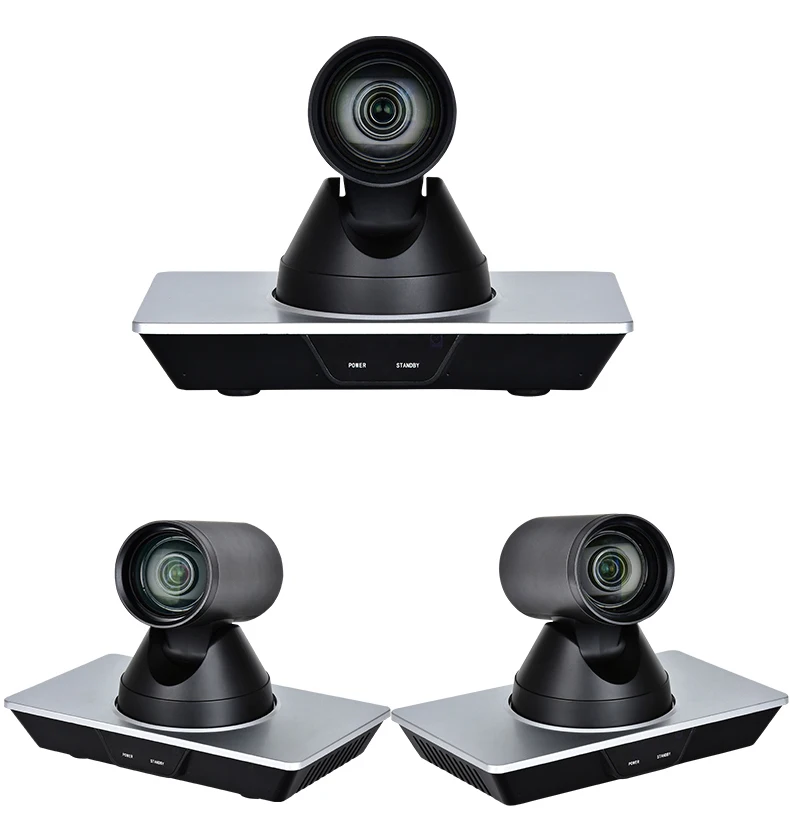

4K Ultra HD video conference camera, 12x optical zoom and wide angle
Technical parameter
specifications | HSD-4K90 | |
The sensor | CMOS, 1/2.5 of an inch, effective pixels: 8.51 million | |
Scanning way | Line by line | |
The shutter | 1/30S~1/10000S | |
Signal to noise ratio | ≥55dB | |
Horizontal viewing Angle | 71*~8.2° | |
The vertical field of view Angle | 42.79~4.5* | |

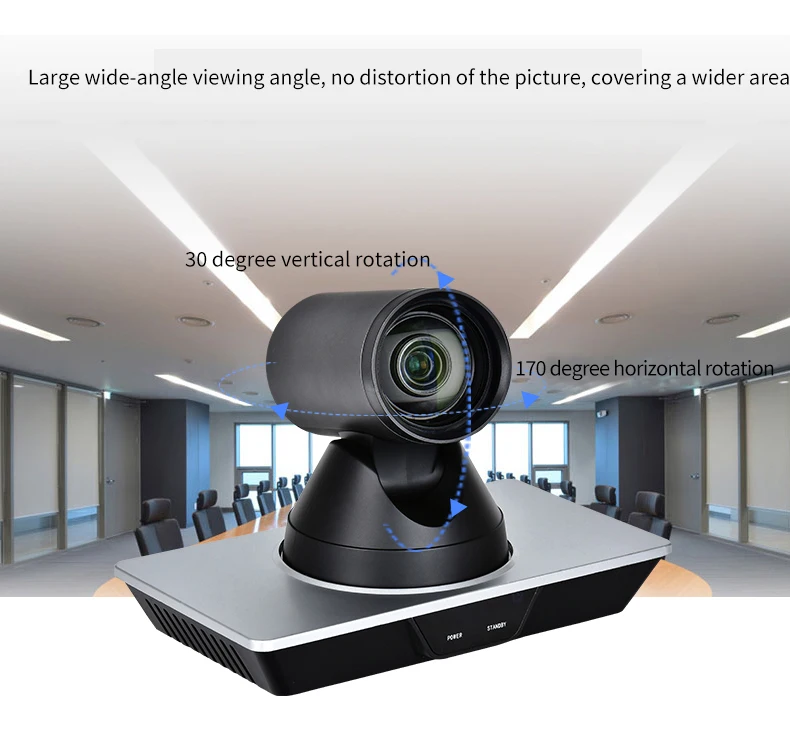

Horizontal rotation range | 士170° | |
Vertical rotation range | 士30° | |
The image is frozen | support | |
The network features | ||
Video coding standard | H.264/MJPEG | |
Video bit rate | 32Kbps-20480Kbps | |
Frame rate | 50Hz:1fps~25fps,60Hz:1fps~30fps | |
Audio compression standard | 48Kbps,96Kbps,128Kbps | |
Audio compression bit rate | 9 PELCO protocol support 256 remote control | |

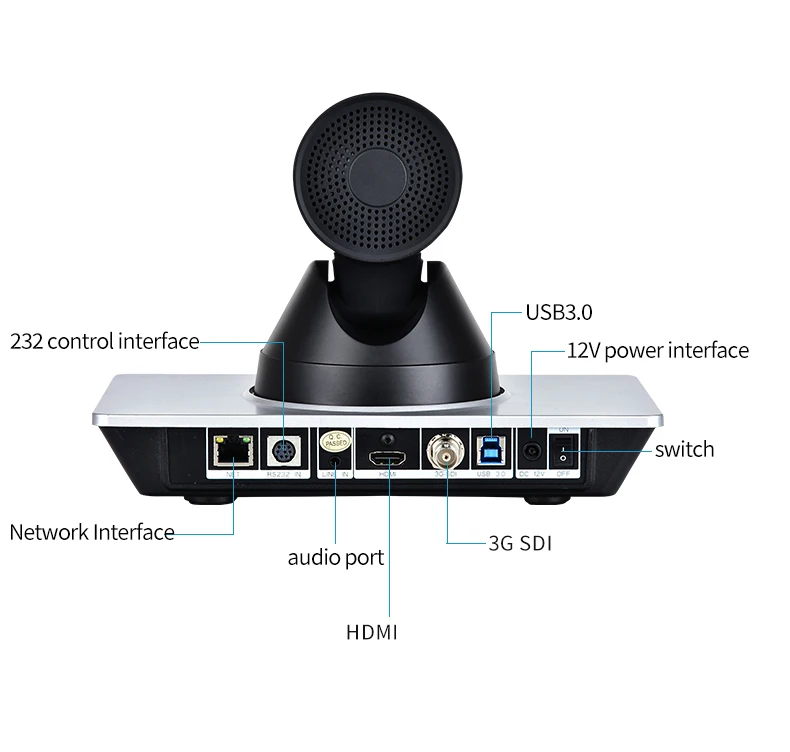

Input/output interface | ||
Hd output | 1 road, HDM, version 1.4 | |
The network interface | 1 road, RJ45:10 m / 100 m / 1000 m adaptive Ethernet front-end ports | |
The USB interface | 1, see: type B | |
Audio interface | 1 road, LineIn, 3.5 mm audio interface | |
Communication interface | 1 road, RS232In: 8 pin mini DIN, (Max) distance: 30 m, VISCA/Pelco - P protocol | |
The power interface | JEITA type (DCIN12V) | |
General specification | ||
The input voltage | DC12V/POE(802.3af) | |
Input current | 1.0A(Max) | |
Power consumption | 12W(Max) | |
Working temperature | -10°~40° | |
Storage temperature | -40*~60° | |
The average time between failures | 30000 hours or more | |
size | 200mmx176mmx130mm | |
The net weight | 1.355kg | |
Selling Points
1.4K,8.5Megapixels
Real 4K, can Ultra-high quality image
2.Lens
12x zoom, wide angle:72.5 degree

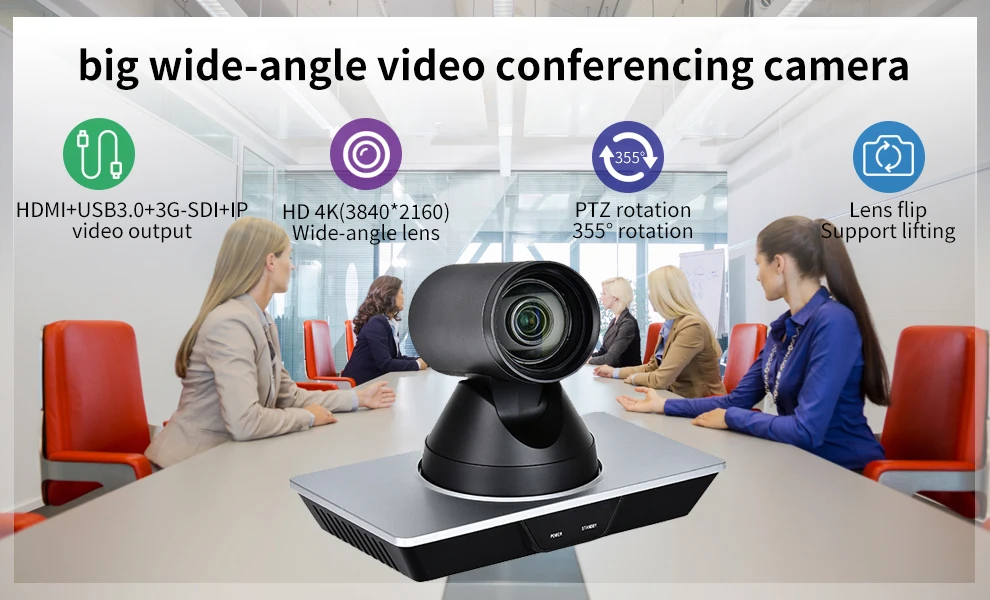

3.Abundant Outputs:
HDMI+USB2.0+3G-SDI+IP(Audio in/out)
UVC control and POE power supply for option
4.Dual IP Stream(H264/MJPEG)
H.264 and MJPEG compression enabling Full HD video stream by ultra low bandwidth over RTSP, TCP/IP, HTTP, etc
5.Control:
Sup[port visca over ip control , RS232/RS485/ IR remote control
6. Wall mounting, desktop or ceiling mounting
7. Suitable for huddle, medium size and large conference room
1.4K,8.5Megapixels
Real 4K, can Ultra-high quality image
2.Lens
12x zoom, wide angle:72.5 degree
3.Abundant Outputs:
HDMI+USB2.0+3G-SDI+IP(Audio in/out)
UVC control and POE power supply for option
4.Dual IP Stream(H264/MJPEG)
H.264 and MJPEG compression enabling Full HD video stream by ultra low bandwidth over RTSP, TCP/IP, HTTP, etc
5.Control:
Sup[port visca over ip control , RS232/RS485/ IR remote control
6. Wall mounting, desktop or ceiling mounting
7. Suitable for huddle, medium size and large conference room
Related Products
Packaging & Shipping
Title goes here.
1.We have samples in stock,same day shipping. For big orders we ship within 3-7 business days.
2.We can ship to you by DHL/FEDEX/UPS/TNT/EMS or other shipping way as your instruction with fastest delivery ,cheapest price in
the safe way.
2.We can ship to you by DHL/FEDEX/UPS/TNT/EMS or other shipping way as your instruction with fastest delivery ,cheapest price in
the safe way.
Company Information
Title goes here.
Shanghai Shidao Electronic Technology Co., Ltd.LIMITED established in 2012, which specialize in video conference research and development, OEM/ODM service, commit to supply Hi-tech, High-quality and Humanized products.
We regard "find and meet customers' different requirements" as our duty, continuously innovating, refining and changing. We try to stimulate our customers' infinite reverie, and meet their great eagerness. Relying on abundant strength and good reputations, our products are widely used in such fields as Finance, Postal service, Telecommunication, etc.
Our main products including 4K cameras, SD/HD/USB PTZ video conference cameras, HD IP cameras, keyboard controller, microphone, etc. They are widely used in Meeting, Medical, Telecommunication, Long distance education, School, Government, church, Skype, recording and broadcasting and so on, they are popular all over the world.
HOSODOhigh-definition(HD) video conference PTZ camera and ultra high definition(4K) video conference cameras provide in credible video, along with the sophisticated MPEG-4 AC audio that takes your visual communication experience to a new level.
We regard "find and meet customers' different requirements" as our duty, continuously innovating, refining and changing. We try to stimulate our customers' infinite reverie, and meet their great eagerness. Relying on abundant strength and good reputations, our products are widely used in such fields as Finance, Postal service, Telecommunication, etc.
Our main products including 4K cameras, SD/HD/USB PTZ video conference cameras, HD IP cameras, keyboard controller, microphone, etc. They are widely used in Meeting, Medical, Telecommunication, Long distance education, School, Government, church, Skype, recording and broadcasting and so on, they are popular all over the world.
HOSODOhigh-definition(HD) video conference PTZ camera and ultra high definition(4K) video conference cameras provide in credible video, along with the sophisticated MPEG-4 AC audio that takes your visual communication experience to a new level.
Certifications
Why choose us?
Title goes here.
1. The MOQ is 1 unit.
2. We accept OEM, ODM orders.
3.We ship the sample order out as soon as we receive the payment.
4. 3 years warranty time. Low Repair Rate is our best reward during the past days.
5. After Sale System which makes to solve the problem quickly once met problems.
6. 14 years professional video conference supplier with superior quality & competitive prices.
7. Our QS department checks the video conference camera and speakerphone one by one strictly before sending out.
2. We accept OEM, ODM orders.
3.We ship the sample order out as soon as we receive the payment.
4. 3 years warranty time. Low Repair Rate is our best reward during the past days.
5. After Sale System which makes to solve the problem quickly once met problems.
6. 14 years professional video conference supplier with superior quality & competitive prices.
7. Our QS department checks the video conference camera and speakerphone one by one strictly before sending out.
common problem
Title goes here.
Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video
conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and
boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:Can I bring more than one person into a call at the same time?
A:Yes. We currently offer group calling for up to 500 different participants,which could be 500 people dialing in from their
laptops ,pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video
conferencing systems.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HD-SDI,DVI,YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.
Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232,
and support IR remote control.
Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh,WebEx, easy meeting, Vidtel and working
with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video
conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and
boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:Can I bring more than one person into a call at the same time?
A:Yes. We currently offer group calling for up to 500 different participants,which could be 500 people dialing in from their
laptops ,pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video
conferencing systems.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HD-SDI,DVI,YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.
Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232,
and support IR remote control.
Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh,WebEx, easy meeting, Vidtel and working
with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
