Voltage | DC12V DC24V AC110V, AC220V | ||
Product Size | 11.5x21mm | ||
Material | PVC Silicone | ||
Bending Direction | Horizontal Bending | ||
Beam Angle | 160°/180°/360° | ||

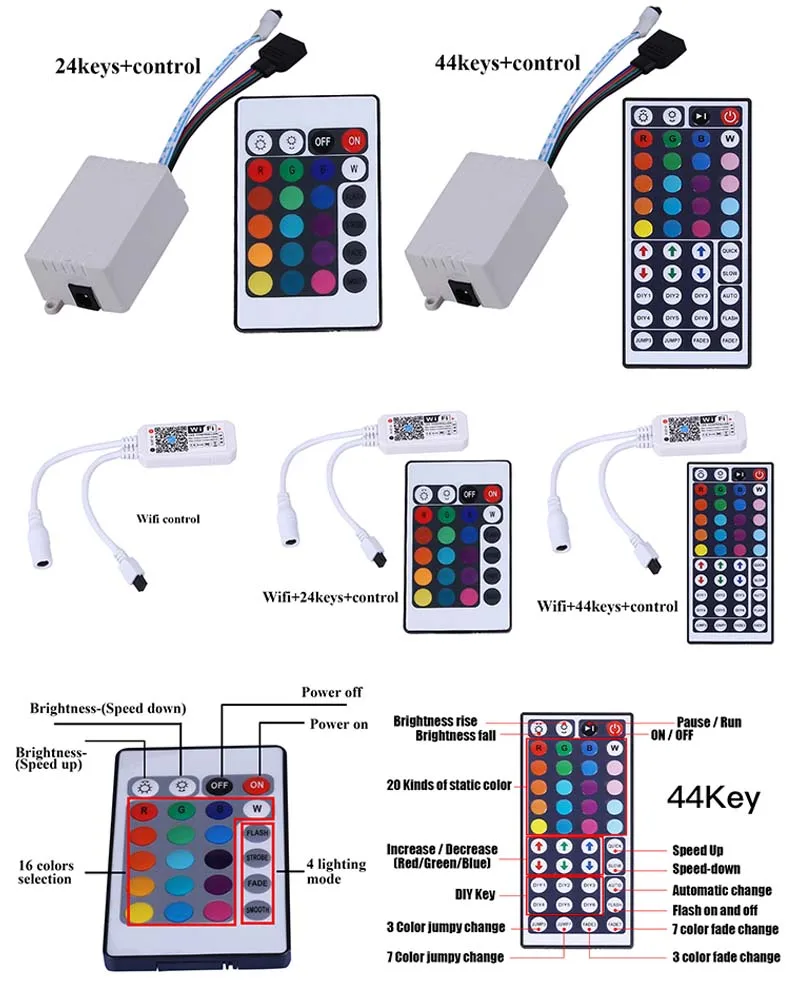

Functions | Color Change | ||
CRI /SDCM | Ra≥80, Ra≥90; SDCM<3 | ||
LED Qty /M | 60pcs | ||
Min. Cutting | 6 LEDs /10cm | ||
Housing Color | white | ||
IP Rating | IP65 /IP67 /IP68 optional | ||
Packing | 50meters /reel /carton | ||
Carton Info. | 35x35x35cm; 21KG | ||
Model. | BS-FR-F15A-60-RGB-CV24 | BS-FR-F15A-60-RGBW-CV24 | BS-FR-F15A-60-RGBW-CC24 |
LED Color | RGB | RGBW | RGBW |
Working Mode | Constant Voltage | Constant Voltage | Constant Current |
Rated Power /M | 10W | 13.5W | 13.5W |
Max. Running by single-end | 10m | 8m | 12m |
Max. Running by double-ends | 20m | 16m | 24m |
FAQ
Q1. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly
based on our sample.
Q3: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective
rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you
