Поделиться:

Цена:31 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Products Description






screen printing machine
A5
A5

Screen Frames
Min Size
370 X 470mm
Max Size
737 X 737mm
Thickness
25~40mm


PCB
Min Size
50 X 50mm
Max Size
400 X 340mm
Thickness
0.4~6mm
Warpage
＜1%
Transport Height
900±40mm
Transport Direction
Left-Right; Right-Left; Left-Left; Right-Right
Transport Speed
Max 1500mm / S Programmable
PCB Board Location

Support System
Magnetic Pin/Up-down table adjusted/supportblock by hand
Clamping System
side clamping,vacuum nozzle
Print head
Two independent motorised printheads


Squeegee
Speed
6~200mm/sec
Pressure
0~15Kg
Angle
60°/55°/45°
Type
Stainless steel (Standard), plastic
Stencil Separation Speed
0.1~20mm/sec Programmable
Cleaning System
Dry、Wet、Vacuum (Programmable)
Table Adjustment ranges
X:±10mm;Y:±10mm;θ:±2°
Repeat Position Accuracy
±0.01mm
Printing Accuracy
±0.025mm
Cycle Time
<7s (Exclude Printing & Cleaning)
Product Changeover
<5Min
Air Required
4.5~6Kg/cm2
Power Input
AC:220±10%,50/60HZ 1Φ 3KW
Control Method
PC Control
Machine Dimensions
1220(L)X1355(W)X1500(H)mm
Machine Weight
Approx:1000Kg










Contact Us




Recommend Products




About Us




COMPANY PROFILE
Shenzhen Tajee Technology Co., Ltd. is a group enterprise, In 2004, SMT business first. In 2010, Starting PCB assembly
manufacturing with own SMT machines. In 2011, Purchasing injection mold & molding assembly factory. With the increasing development, our company has been strengthened from a trade company to a versatile corporation. We set up a team for domestic marketing, a team for oversea purchasing, a team for engineering and a team for service after sales SMT Branch: We can provide you with stable marketing resource for second-hand SMT equipments, because we have a splendid team for oversea purchasing & domestic market. We possess resource for SMT equipments world-wide. We have a large quantity of SMT equipments and spare parts in stock, no matter second-hand or original new spare parts.

At the same time, we always purchase spare parts & used SMT machines with high quality. We are indeed a large international company for SMT equipments and spare parts Our business scope: SMT/AI equipment: PANASONIC, FUJI, YAMAHA, JUKI, AOI, SPI sales,leasing, acquisition, maintenance,maintain and other engineering services. Specially supply PANASONIC equipment and Feeder original parts, FUJI equipment andFeeder original parts, YAMAHA YS series original parts. Our company can provide a one-stop base and a full set of SMT / AI solutions for your SMT business development. We currently have more than 10 listed company customers.

If you are interested in our products or have any doubts, please feel free to contact with us. We are looking forward to
establish a good relationship with you in the near future. Your satisfaction is our greatest pursuit.Our technical strength and professional services deserve your trust!

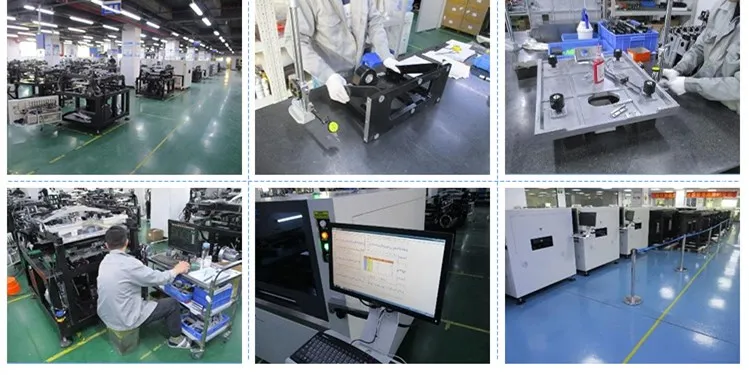

Our Factory




Our Team




Package&Shipment




FAQ
