Автоматическая упаковочная машина для взвешивания сухих фруктов и сахарных семян 1 кг 1000
- Категории: Упаковочная линия >>>
- Поставщик: Qingdao,Yilong,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Main Features
1.Stable & Easy:More stable with faster speed even running at 50 bags per minute Easy to operate with touch screen and maintain. About only 10 minutes to change the bag sizes.
2.Save Engergy & Material:Low engergy consumption. PLC control if there is no open bag, there is no fill. If no fill then no seal.
3.Remote Control & Customized Service:Remote control and help for the software program part. Customized professional solutions and service for clients.
We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.
Just Tell us : Weight or Bag Size required.
Machine Description
Application
*Solid type:All kinds of grains and solids material,nuts,chips,fried food,frozen food, pet food etc.
*Granules type: oats, seeds sugar,salt,cereal, rice etc.
*Power type:All kinds of powder material,milk powder, washing powder,protein powder, flour etc.
*Liquid and sauce type: All kinds of liquid material,detergent, sauce,tomato sauce, bean sauce etc.
Bag Type
* Various bag types are available:3 side bag ,4 side bag ,Stand up pouch ,Stand up pouch with hole,Spout pouch ,Gusset pouch ,Shaped bag ,Stand up pouch with zipper etc.
The Main Technical Parameters | ||||||||
Power supply | 380V 3phase 50Hz, 220V 3Phase 60hz | |||||||
Compressed air | about 5～8kgf/cm²，0.4m³/min | |||||||
Drive method | Cam | |||||||
Fill station | Max 3 | |||||||
ealing style | straight/net type | |||||||
Workstation | 6/8/10 station | |||||||
Min bag width | 80mm | |||||||
Max bag width | 305mm | |||||||
Noise from running machine | within 75db (1m away from the machine) | |||||||
bag type | Stand up pouch,Flat pouch,Gusset pouch，Zipper pouch，Retort pouch | |||||||
Capacity | 15-90 bag/min According to the product character 15ml liquid max about 75-85bags/min For example, 750g detergent about 25-30bags/min 500g powder about 25-30 bags/min 500g pet food about 30-35 bags/min 2.5kg pet food about 18-20 bags/min (The actual speed needs to be confirmed by samples) | |||||||
custom | We can customize the suitable one for you according to your requirements. Just Tell us : Weight or Bag Size required. | |||||||
Parts of Machine | ||||||||
Parts | PLC | Touch Screen | Frequency Conveter | Vacuum Pump | ||||
Brand | SIEMENS | SIEMENS | Danfoss | ORION | ||||
Oringin | Germany | Germany | Holland | Japan | ||||
Parts | Main Motor | Temperature Controllor | Pneumaticelements | AC contactor | ||||
Brand | SEW EURODRIVE | OMRON | SMC | Schneider | ||||
Oringin | Germany | Japan | Japan | France | ||||
Machine Detail

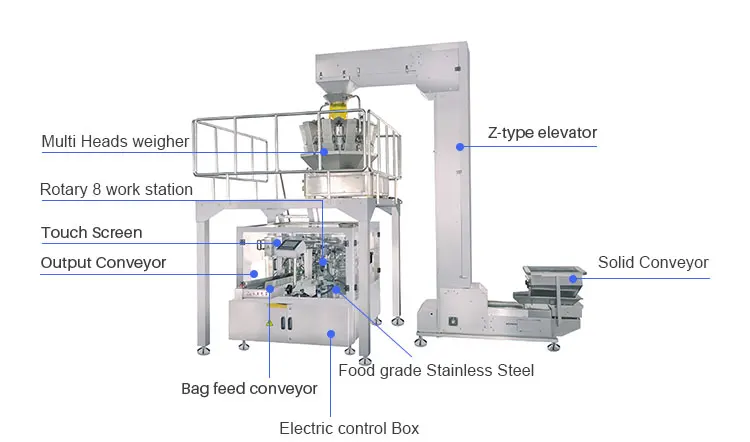

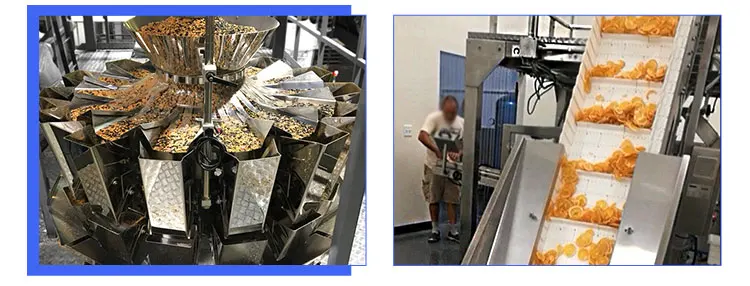

Compatible and flexible with multihead weigher and conveyors

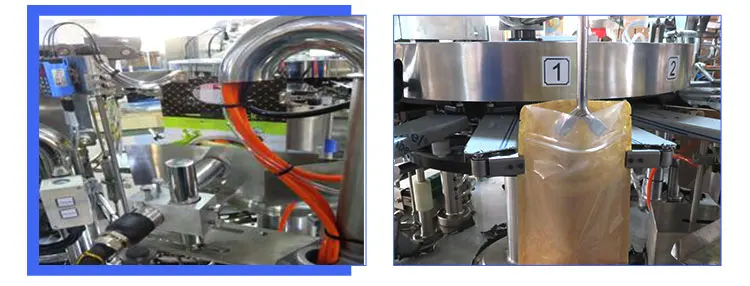

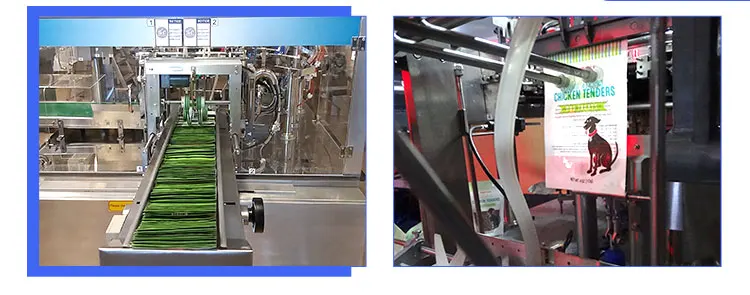

Bag Feeding

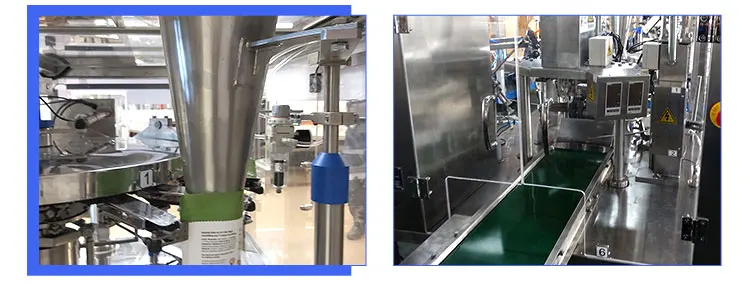

Product Feeding and Outpout

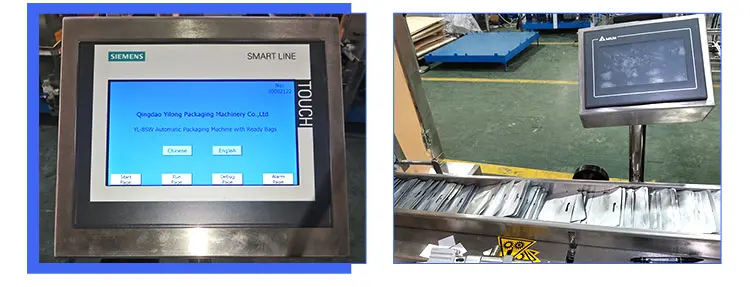

Easy control touch screen

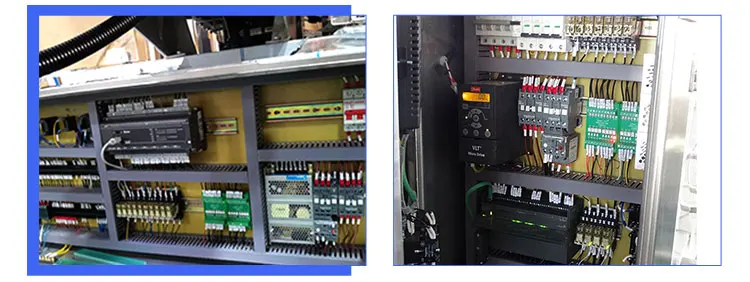

Electric Box
Option date print or nitrogen flush

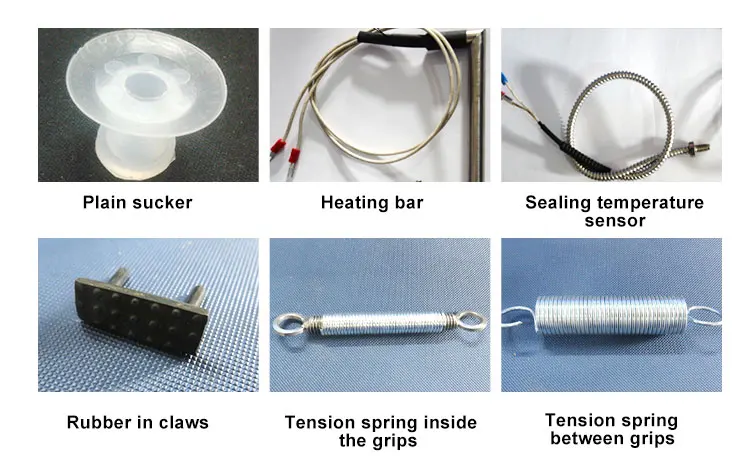

Free spare parts with the machine delivery
Our Service
Pre-sale Service
1. Inquiry and consulting support, professional packing solution for free.
We will be a consultant for clients about the technical problem before order, provide drawing specification, design customized project, analyze and solve technical problem.
2. Machine videos for your reference.
3. Sample packing testing support.
4. View our Factory.
We will be a consultant for clients about the technical problem before order, provide drawing specification, design customized project, analyze and solve technical problem.
2. Machine videos for your reference.
3. Sample packing testing support.
4. View our Factory.
After-sales Service
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Our engineers & technician are available send to your countries for services if you agree pay the expenditure.
Oversea service for our engineer is available. Clients need to afford the visa, tickets, accommodation, hotel and 120 USD per day.The problem components are free during the warranty time。
4. Technical support
We will keep your machine's detailed file in the computer, such as the machine info, product info, your requirement and
suggestion, technician's advice and so on. And we will follow up and make feedback about the machines performance regularly. We guarantee that we will solve your problems as soon as possible.
5.Training
We can provide training service for you in machines' installation and commissioning. After all required production materials are ready in your factory, we will send technician to adjust the machine in good performance. As per the technician's instruction, the workers can learn how to connect power line, commissioning, machine working principles
and the maintenance during operation and so on. So they will be more familiar with the operation of packing machine by training.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Our engineers & technician are available send to your countries for services if you agree pay the expenditure.
Oversea service for our engineer is available. Clients need to afford the visa, tickets, accommodation, hotel and 120 USD per day.The problem components are free during the warranty time。
4. Technical support
We will keep your machine's detailed file in the computer, such as the machine info, product info, your requirement and
suggestion, technician's advice and so on. And we will follow up and make feedback about the machines performance regularly. We guarantee that we will solve your problems as soon as possible.
5.Training
We can provide training service for you in machines' installation and commissioning. After all required production materials are ready in your factory, we will send technician to adjust the machine in good performance. As per the technician's instruction, the workers can learn how to connect power line, commissioning, machine working principles
and the maintenance during operation and so on. So they will be more familiar with the operation of packing machine by training.
Company Profile
Since 1997 we always focus on pouch packaging machines. Pack what you want to pack, including solid,liquid,powder,small granules,sauce,etc into pouches or bags.
1.Are you a trading company or manufacture?
We are a professional manufacturer with experiences over 23 years. We started this rotary fill and seal machine since 1997.
2.Why choose us?
We are a professional manufacturer of packaging machinery.With a strict and effective quality control system, our products are CE approved, and we have ISO9001 Certificate.With numerous in-house service technicians and engineers, we are ready to assist when you need dedicated and knowledgeableexpertise.
3.What is your delivery time?
Normally 30-45 working days upon order confirmation and down payment.
4.What kind terms of payment can be accepted?
Normally TT. Or L/C if customers order amount is more than 150K USD.
5.What about the warranty time?
1).Our packing machine is 12 months under warranty. Artificial and thunder strike damage is out of the scope of the warranty.Spare parts are not in the warranty time.
2).Maintenance after warranty period
Any machine problems after warranty period, we will provide you same quality spare parts and maintenance service with the best favorable price.
We are a professional manufacturer with experiences over 23 years. We started this rotary fill and seal machine since 1997.
2.Why choose us?
We are a professional manufacturer of packaging machinery.With a strict and effective quality control system, our products are CE approved, and we have ISO9001 Certificate.With numerous in-house service technicians and engineers, we are ready to assist when you need dedicated and knowledgeableexpertise.
3.What is your delivery time?
Normally 30-45 working days upon order confirmation and down payment.
4.What kind terms of payment can be accepted?
Normally TT. Or L/C if customers order amount is more than 150K USD.
5.What about the warranty time?
1).Our packing machine is 12 months under warranty. Artificial and thunder strike damage is out of the scope of the warranty.Spare parts are not in the warranty time.
2).Maintenance after warranty period
Any machine problems after warranty period, we will provide you same quality spare parts and maintenance service with the best favorable price.
6. How about your service?
We have service all over the word. We could send engineers from China who is English speaking or help the customer with our distributors from his country. We can provide the customer with the user training for better operation and maintenance of the machine.
7. What information should we need?
1)products details, e.g.solid products specific sizes, weights of each piece, powder density.
2)Bag sizes and types with pictures or samples
3)Packing weight
4)Packing speed, accuracy required
5)Special requirements, such as second fill, Nitrogen flash, zipper close, date printing
6)Power supply voltage, Frequency etc
We have service all over the word. We could send engineers from China who is English speaking or help the customer with our distributors from his country. We can provide the customer with the user training for better operation and maintenance of the machine.
7. What information should we need?
1)products details, e.g.solid products specific sizes, weights of each piece, powder density.
2)Bag sizes and types with pictures or samples
3)Packing weight
4)Packing speed, accuracy required
5)Special requirements, such as second fill, Nitrogen flash, zipper close, date printing
6)Power supply voltage, Frequency etc
7)Factory workshop space, Height etc.
