Высокоскоростной четыре ЗИП-влажные салфетки упаковки и делая
- Категории: Оборудование для производства домашних изделий >>>
- Поставщик: Henan,Honest,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Technical Parameter
Model | SY-250R | SY-350R | SY-250W | |||||
Speed | 60-120 bags/min | 80-120 bags/min | ||||||
Bag size range | (L)40-125mm (W)40-100mm | (L)40-175mm (W)40-100mm | the size can adjust L: 40-140mm W: 40-110mm | |||||
material | 30-80g/m2 airlay paper,wet strength paper,spunlace nonwoven fabric | 30-80g/m2 air laid paper, nonwoven, spunlace nonwoven fabric etc | ||||||
Packing material | Lamination film,paper,aluminium | Lamination film,paper, aluminium | ||||||
Outer Dia. Of Tissue Roll | 1000mm | 1000mm | ||||||
Outer Dia. Of Packaging Film Roll | 350mm | 350mm | ||||||
Folding option | Max 10 folding vertical,4 folding horizontal | Max 10 folding vertical, and 4 folding horizontal | ||||||
Liquid range | 0-10ml | 0-5ml accuracy +0.01ml | ||||||
Air consumption | 300-500m/min, 0.6-1.0Mpa | 0.6-1.0Mpa | ||||||
Total Power | 2.8KW | 4. 8KW | ||||||
Power Supply | 220/380V 50/60HZ | 220/380V 50/60HZ | ||||||
Machine Weight | 1100kg | 1200kg | 1200kg | |||||
Machine dimension | L3300xW2300xH1600mm | L3300xW2300xH1600mm | L3300*W2200*H1600mm | |||||
Products Description

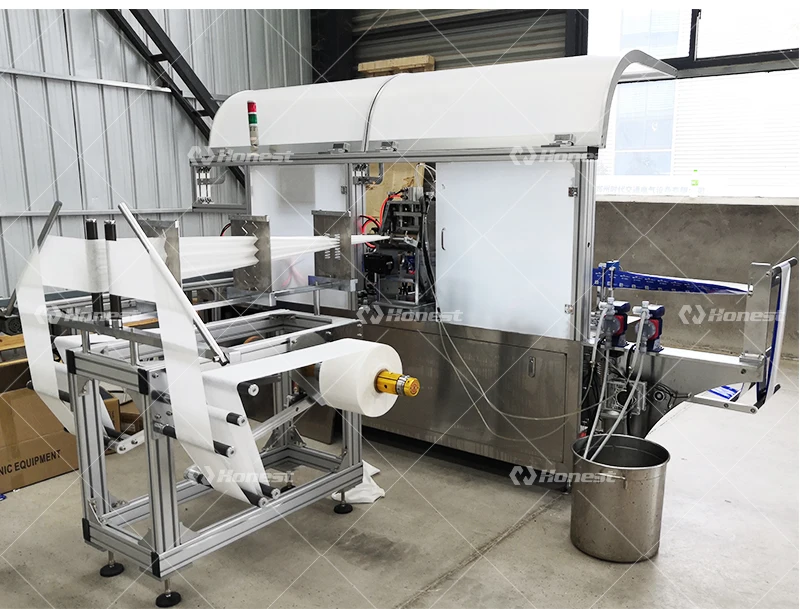

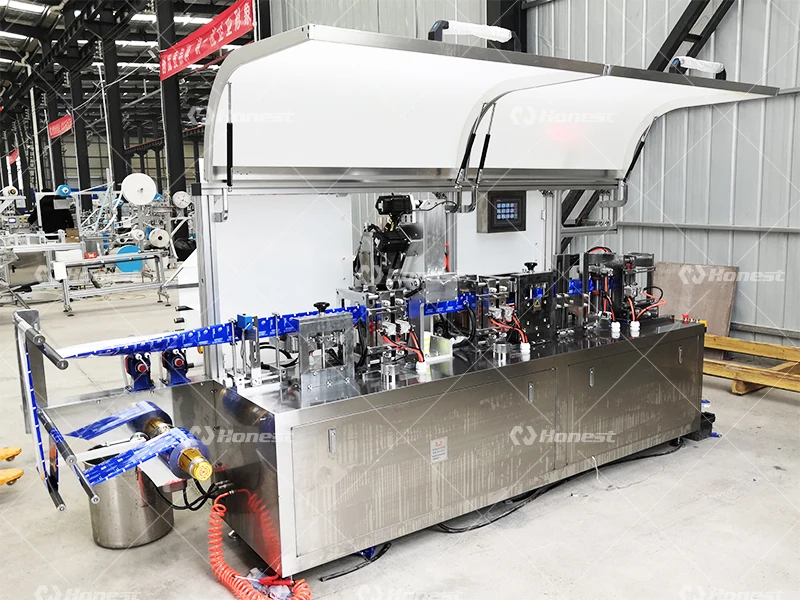

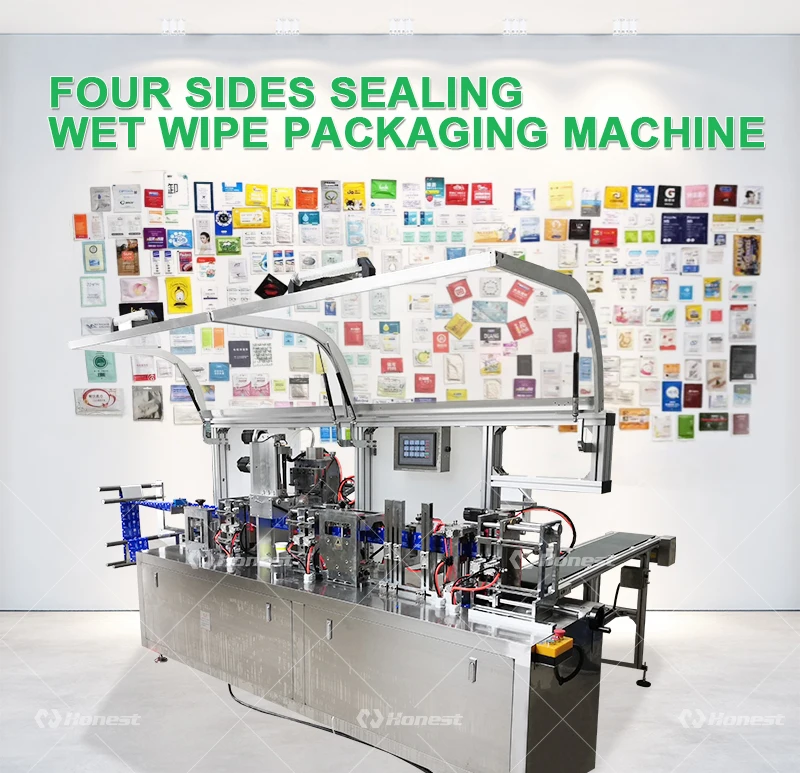

Four Sides Sealing Wet Wipe Packaging Machine is designed as automatic production solutionfor sanitary wet wipes and make-up removing wet wipe and personal care wet wipe. lt can beadjustable to fit to various packaging sizes,a perfect choice for OEM and ODM factory whoproduce different sizes of wet wipe products on one machine.

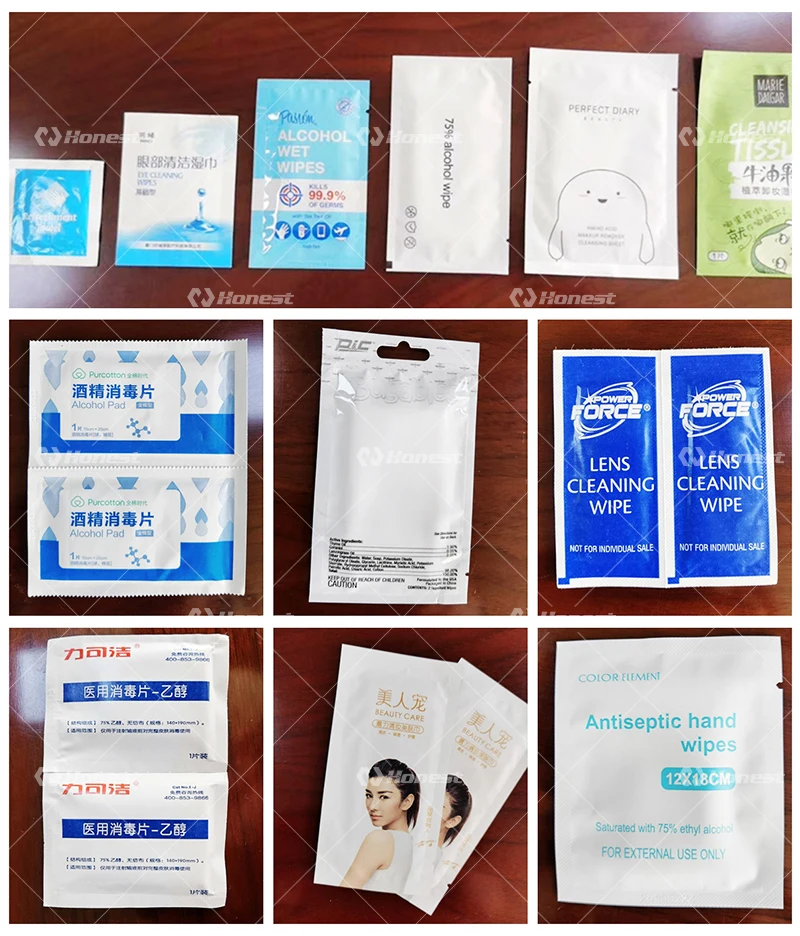

FINISHED PRODUCT
Packaging speed is 60-120 pieces/minute, and packaging size can be adjusted, with length40-175mm and width 40-110mm.Composite film and paper-aluminum film can be selected aspackaging raw materials,with hot-melt edging around them, and the edging form can be "or "v".

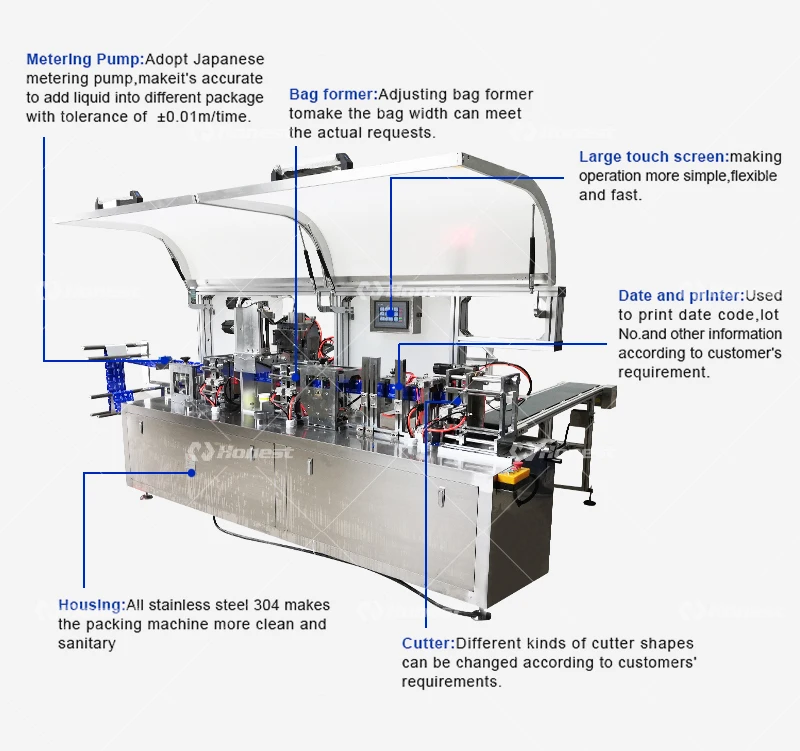

Product Structure

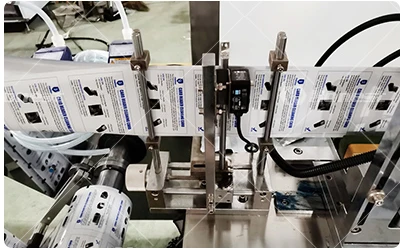

Name : Fold and draw of film
Name : Cutting non-woven fabric
Name : Fold and fill
Name : Adjustable mould, Sealing
Name: Touch screen
Function: Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and
fault forming
fault forming

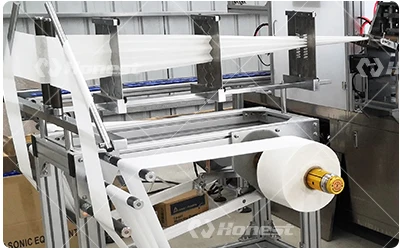

Name : Aluminium alloy Wet wipes folding shelf
Function : Fold non-woven fabric according to customer's requirements (Max 10
folding vertical,and 4 folding horizontal)
folding vertical,and 4 folding horizontal)

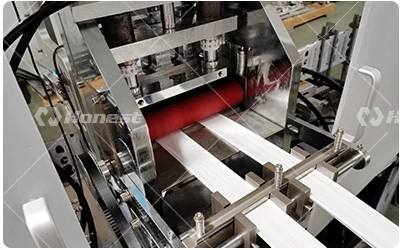

Name : Cutting non-woven fabric
Function : Cut according to the size required by the customer.

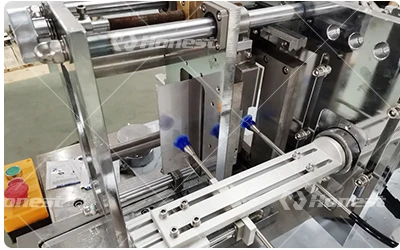

Name : Fold and fill
Function : Servo control fold into the bag and add liquid to the bag (the part contacting the material is
316 stainless steel), Metering pump imported from Japan, accuracy +0.01ml
316 stainless steel), Metering pump imported from Japan, accuracy +0.01ml

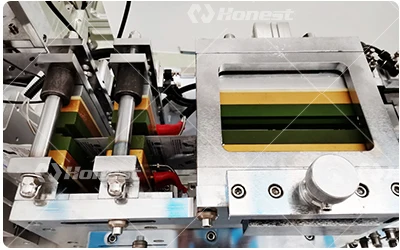

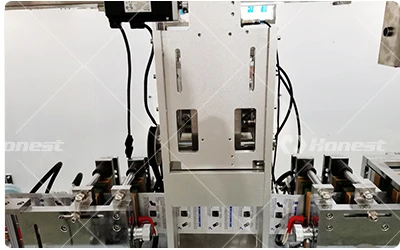

Name : Adjustable mould, Sealing
Function : Bag mouth sealing (hot sealing),The user can change the steel letters to control the
Date and codes print on the products the tear mouth have two types for select 'V' or "-“
Name : Conveyor belt,finished product output
Date and codes print on the products the tear mouth have two types for select 'V' or "-“
Name : Conveyor belt,finished product output
Function : The finished product is discharged by manipulator, Count, place and transmit

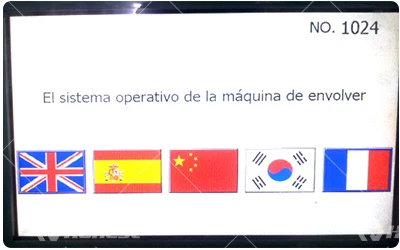

Name: Touch screen
Function : The touch screen can be made in your local language(so you can your staff can operate it easily)
Feature
Fold non-woven fabric according to customer's requirements (Max 10 folding vertical, and 4 folding horizontal)
Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and fault forming
Fix the size of non-woven fabric after folding, servo control the paper feeding station. Cut according to the size required by the
customer
customer
Servo control fold into the bag and add liquid to the bag (the part contacting the material is 316 stainless steel). Metering pump is imported from Japan, accuracy + 0.01ml.
Bag mouth sealing (hot sealing). The user can change the steel letters to control the Date and codes print on the products the tear mouth have two types for select "V' or ''—",
The finished product is discharged by manipulator, Count, place and transmit.
The PLC control touch screen can be made in your local language(so you can your staff can operate it easily).
Quality Assurance
Company Show
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
