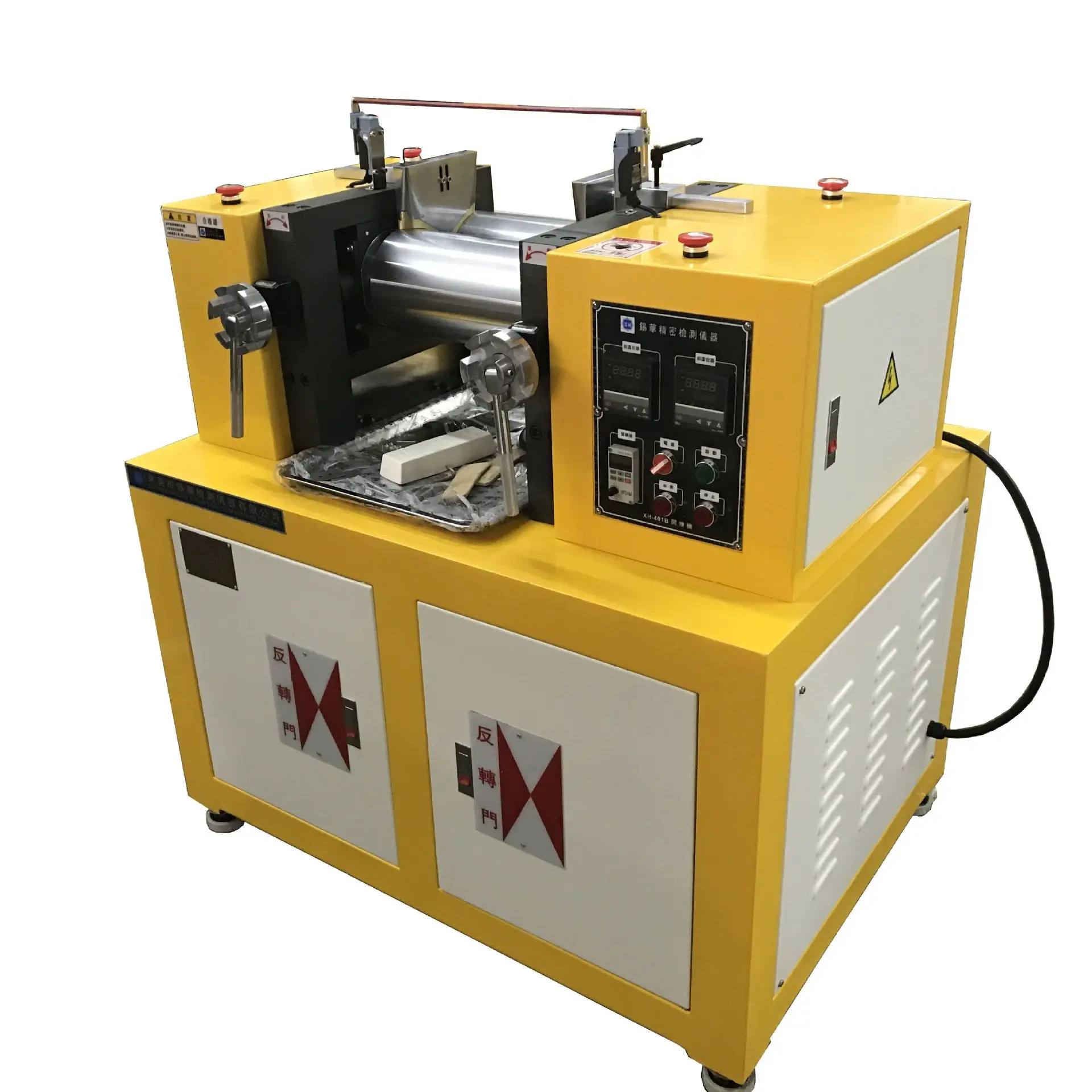

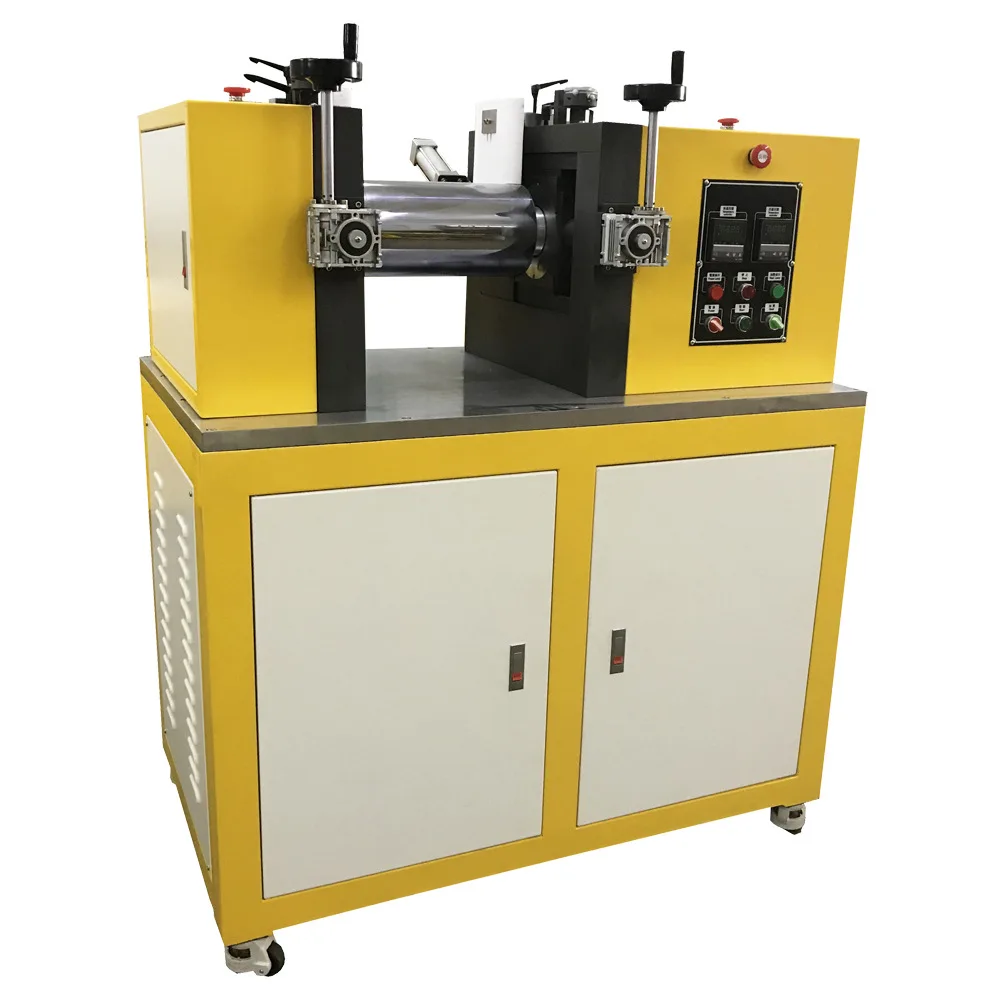

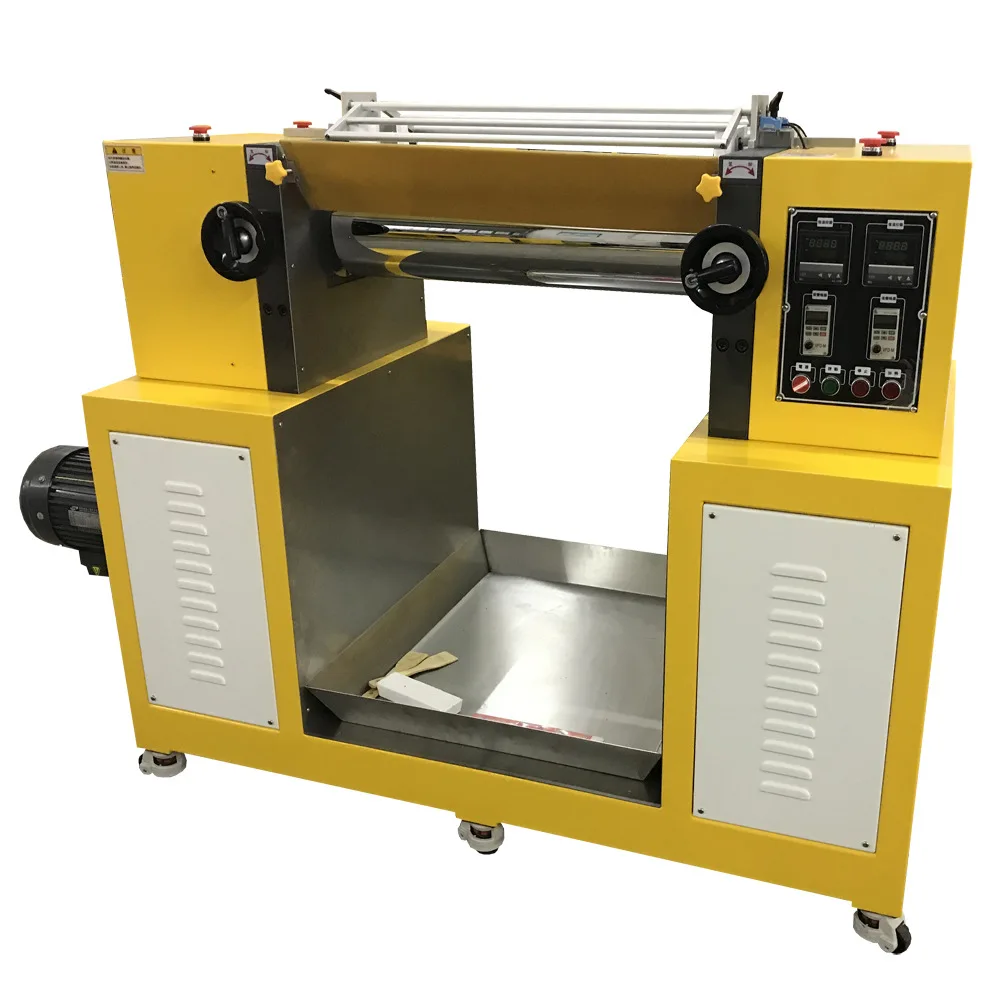

Лабораторный маленький резиновый пластиковый двухвалковый разогреваемый смеситель с открытой
- Категории: Оборудование для обработки резины >>>
- Поставщик: Xiamen,Crtop,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Parameter
| Model | OLT-76 | OLT-120 | OLT-160 | OLT-200 | OLT-230 | OLT-300 | OLT-400 |
Diameter of roll(mm) | 76 | 120 | 160 | 200 | 230 | 300 | 400 |
Length of roller face(mm) | 300 | 350 | 350 | 500 | 650 | 650 | 900 |
| Mixing Capacity(kg) | 0.002-0.6 | 0.002-2 | 0.002-2.8 | 0.002-5 | 0.005-10 | 1-15 | 5-30 |
Front roll surface speed(rpm) | 19 | 19 | 19 | 19 | 19 | 19 | 19 |
| Friction ratio | 01:01.3 | 01:01.4 | 01:01.4 | 01:01.4 | 01:01.3 | 01:01.3 | 01:01.3 |
| Roll gap range(mm) | 0-3 | 0-6 | 0-6 | 0-8 | 0-12 | 0-12 | 0-15 |
| Driving Power(kw) | 1 | 1.5 | 2.2 | 7.5 | 11 | 30 | 37 |
| Heating Mode | Electricity heating , Oil Heating ( option) | ||||||
| Cooling Mode | Water Cooling ( option) | ||||||
| Roll Temperature | Room temperature -- 300℃ | ||||||
| Roll Hardness | HRC 50 ~ 60 | ||||||
| Temperature Accuracy | ± 2 ℃ (we adopt the high accuracy PID micro computer controller) | ||||||
| Safety device | It have 6 safety buttons and safety guard is option | ||||||
| Machine weight(kg) | 160 | 460 | 660 | 860 | 1960 | 2960 | 3800 |
Overall dimension(mm) | 1100*400 *1180 | 1100*550 *1380 | 1200*650 *1380 | 2200*750 *1380 | 2200*950 *1580 | 2600*950 *1580 | 5295*1789 *170 |
| Power | 380V 3 phase 50-60hz | ||||||
Feature:
1. Construction of mill rolls: drilled roll, bored roll, grooved roll.
2. We can design speed ratio as per customers' formula and processing requirements.
3. Frame, frame cap and base are welded and treated by annealing for stress relieving.
4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.
5. Brake and emergency stop device can ensure the safety of personnel and equipment.
6. Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.
7. Human nature designed controlling system ensure labor safety.
8. Methods of adjusting roll nip: manual or electric.
1. Construction of mill rolls: drilled roll, bored roll, grooved roll.
2. We can design speed ratio as per customers' formula and processing requirements.
3. Frame, frame cap and base are welded and treated by annealing for stress relieving.
4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.
5. Brake and emergency stop device can ensure the safety of personnel and equipment.
6. Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.
7. Human nature designed controlling system ensure labor safety.
8. Methods of adjusting roll nip: manual or electric.
Intelligent control panel and PLC control system:
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current,
torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet
communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current,
torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet
communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
Factory Information
Packing & Delivery
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
