Product Description
Product Features and Benefits:
- Designed and manufactured based on 14 years industry experience
- Selected most competitive components to ensure good performance and long term usage
- Compact design to save space and easy for transportation
- Necessary safety detection device to ensure safe operation
- Flexible adjustment according to customer requirements
- Quick & convenient installation
- Easy operation & maintenance
- Best price VS value
Application:
| fleet refueling | mining |
| general purpose | tank terailer unloading |
| industrial usage | bus station/port/factory/logistic company |

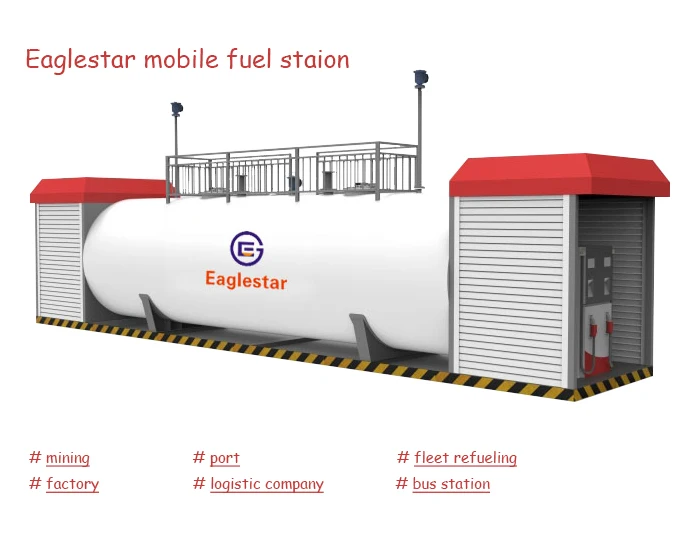

mobile gas station type:
| model | volume (L) | length (mm) | width (mm) | heigth (mm) | weight(empyt) (KG) |
| EG-2.30QC-2.4-3A | 30,000 | 11,720 | 2,480 | 2,720 | 11,520 |
| EG-2.40QC-2.4-3B | 40,000 | 13,460 | 2,680 | 2,950 | 130,000 |
| EG-2.50QC-2.4-3A | 50,000 | 13,460 | 2,820 | 3.020 | 170,000 |
| power supply: | AC380V±10% | working power: | 7.5-13KW | ||
| ambient temp: | -20℃-50℃ | relative humidity: | ≤95% | ||
| oil unloading connector: | DN65 male coupling | breathing pressure: | -295-355Pa | ||
Structure schematic and configuration:
| Basic configuration | |||
| station base | protective housing | inner tank | fuel dispenser |
| control room:(unloading pump inside) | Ex-proof electrical system | magnetic level gauge | pinelines & valves |
| Safety Detection Device including: pressure relief device, leakage detection device, fire extinguishing device, emergency cut-off device,static electricity grounding alarm device sound light alarm device etc | |||
| other accessories:handrail,canopy,ladder,lights etc. | |||
Optional configuration: | |||
Auto tank gauge system | Centrailized automation system | Oil vapor recovery | office compartment on one side |
Technical parameter
| model | volume (L) | length (mm) | width (mm) | heigth (mm) | weight(empyt) (KG) |
| EG-2.30QC-2.4-3A | 30,000 | 11,720 | 2,480 | 2,720 | 11,520 |
| EG-2.40QC-2.4-3B | 40,000 | 13,460 | 2,680 | 2,950 | 130,000 |
| EG-2.50QC-2.4-3A | 50,000 | 13,460 | 2,820 | 3.020 | 170,000 |
| power supply: | AC380V±10% | working power: | 7.5-13KW | ||
| ambient temp: | -20℃-50℃ | relative humidity: | ≤95% | ||
| oil unloading connector: | DN65 male coupling | breathing pressure: | -295-355Pa | ||
Clients Case
FAQ
Q1: Are you a trading company or manufacturer?
A: Both. Our factory is located in Xingyang,Zhengzhou City,Henan Province.
Q2: Could your company accept my customization?
A: Of course. We can design fuel dispenser according to your demand.But we must assure its usability.
Q3: Do you have foreign local office?
A: Yes. We have local office in some countries, Nigeria, Ghana, Tanzania, Myanmar, Philippines. Contact us and get in touch !!!
Q4: How can i get your quick feedback?
A: IF we are offline, Send inquiry or leave us a message with your specification and detailed requirement, like your whatsApp number and email address, the amount of the product, nozzle amount, petrol type, usage, when you need them, who are you getting them for etc. More specification, quicker feedback.
Q5: Do you have related certification?
A: Yes,we do! OIML,ISO9001 etc.
