Product Description
Classic Locksets Zinc Alloy Hardware Door Locks Hot Sale Key Lock Door
Welcome a trial order!
Contact us at any time
General specification
| Model No.: | DJ668 |
| Application: | Many kinds of wooden door and metal doors. |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Mortise Lock: | All main components are made by stainless steel for heavy-duty purpose, big deadbolt with anti-saw function. |
| Backset of Mortise Lock Case: Standard 2-3/8”(60mm), Customized 2-3/4”(70mm). | |
| Anti-panic function. | |
| Easily reversible for left and right handing. | |
| Cylinder: | The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function. |
| Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner’s key + 1 pc construction key) | |
| Customized keyway | |
| Supplying function: | Entrance, Dummy, Two-open Door. |
| Available type of inside trim: | Type A, Type B, Type C, Type D. |
| Door thickness: | Standard 35-54mm |
| Supplying finish: | AB,AC,AN,DAB,DAC,DSN,GP,OAC,ORB,ORBH,SG,SN |
| Package: | High quality color box. |
| Carton: | 6 sets/carton |

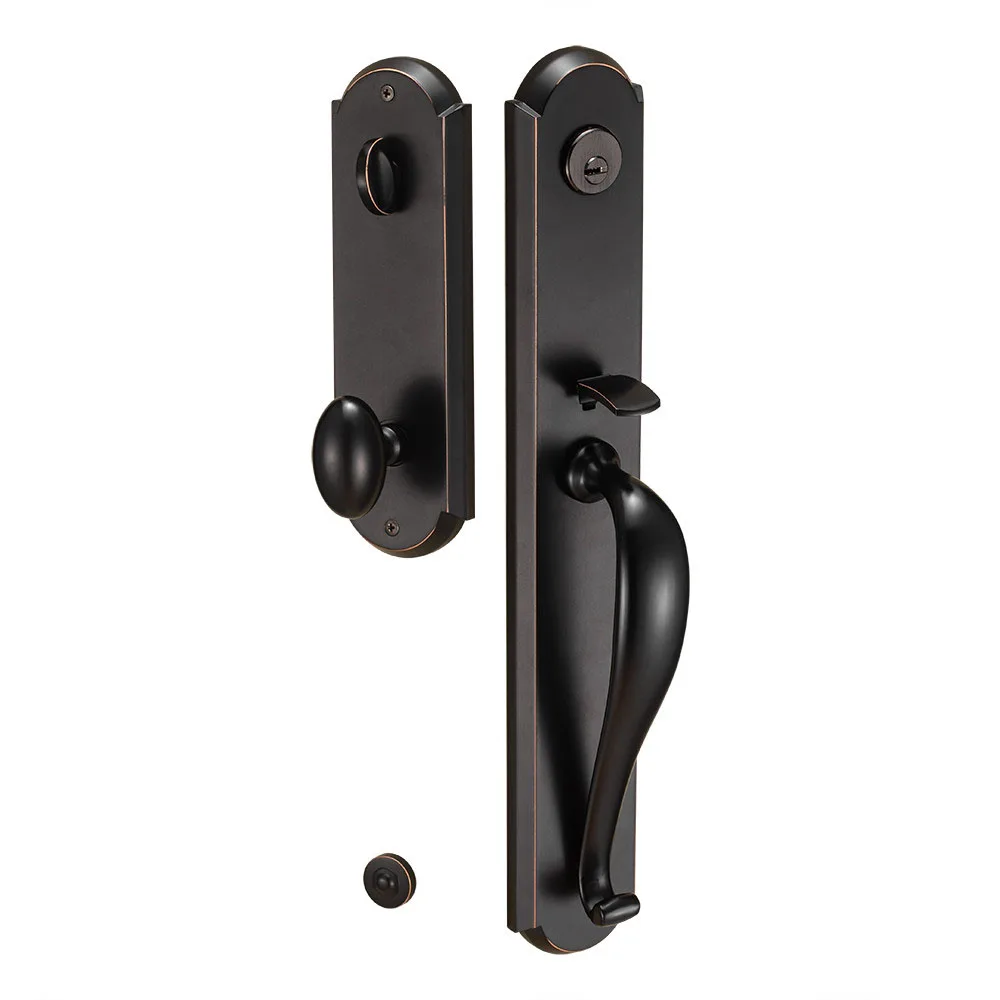

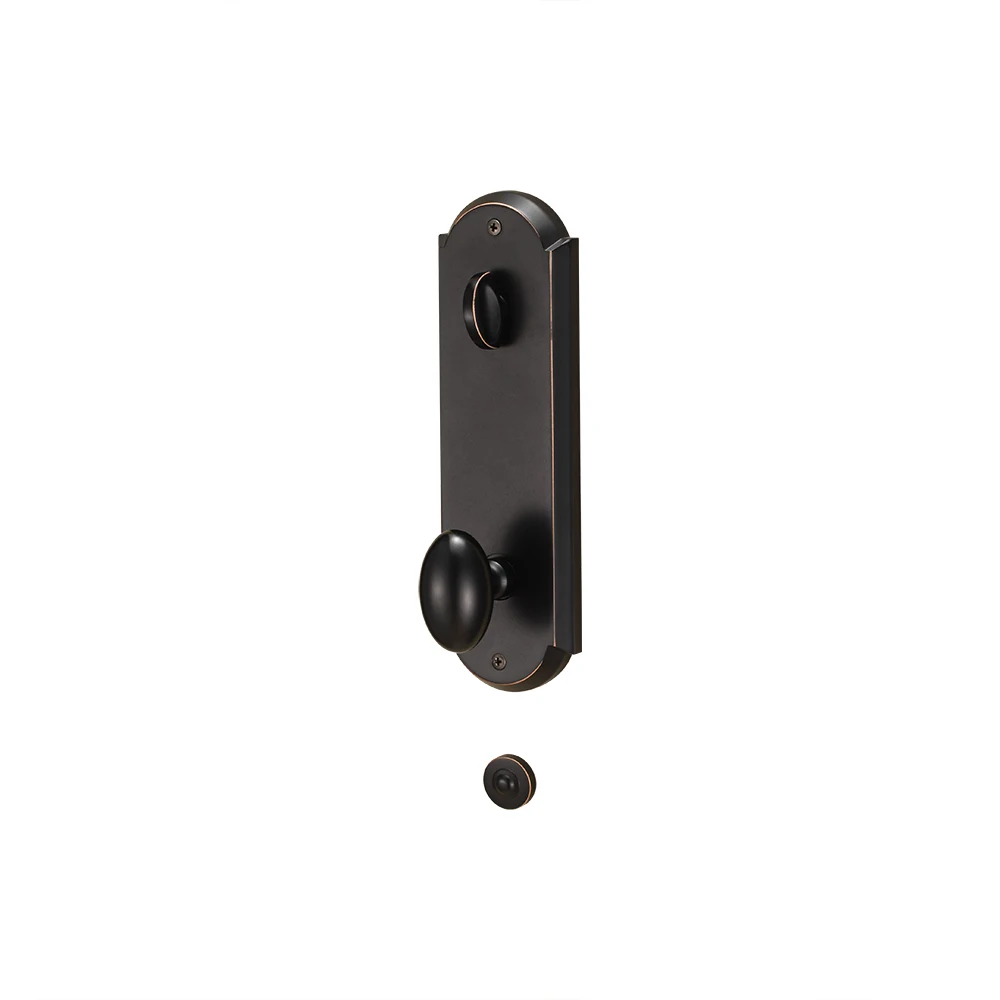

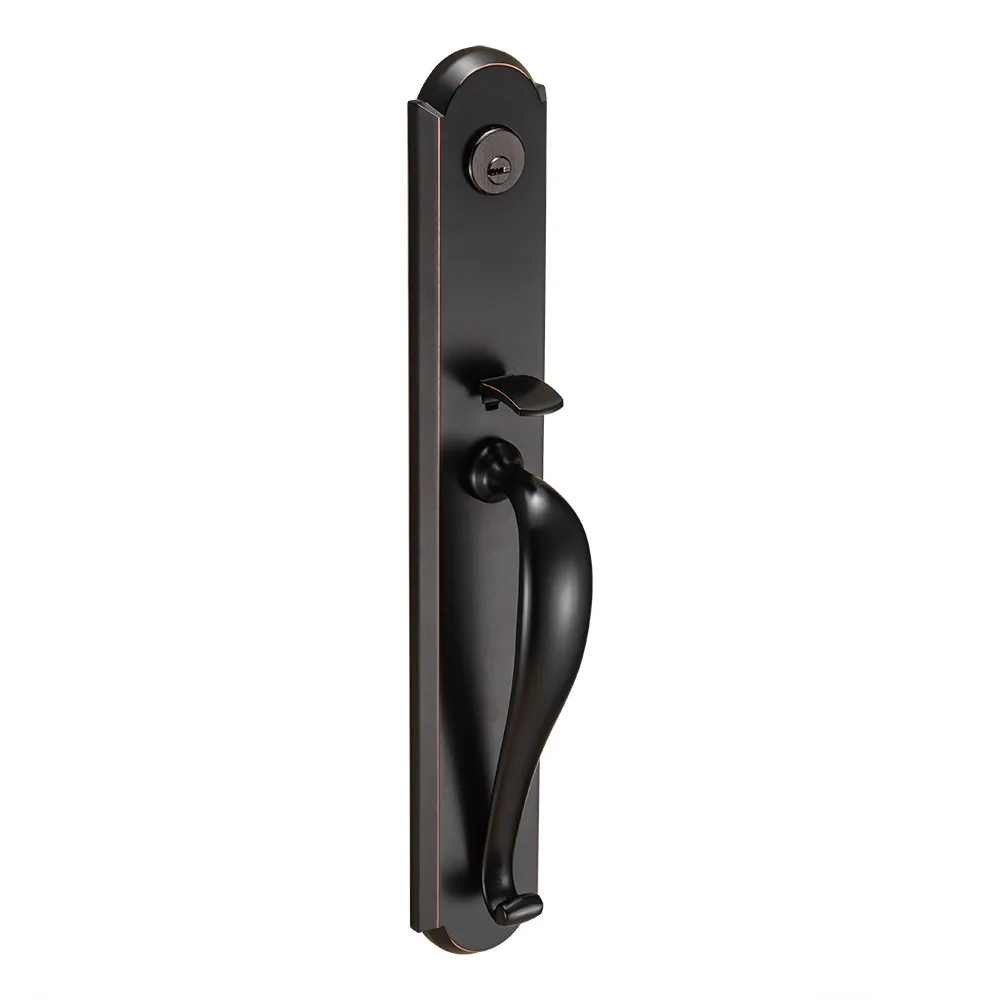

Product Picture

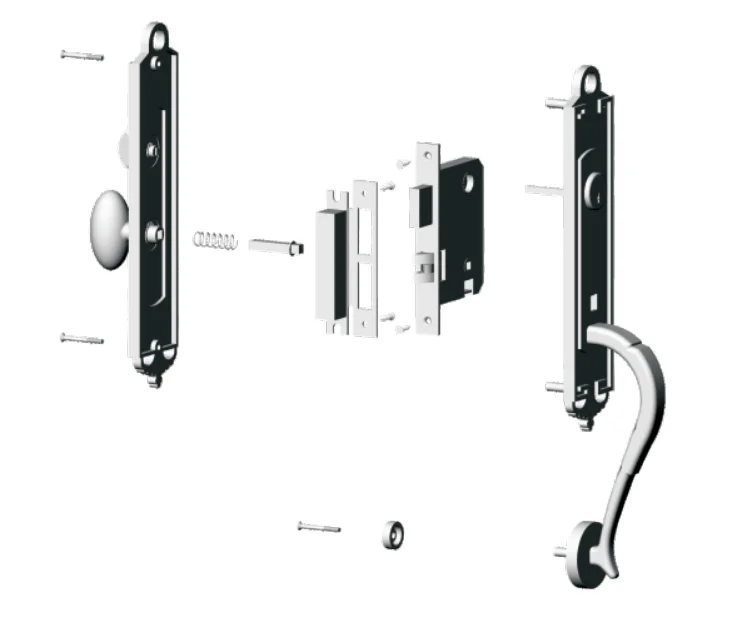

Assembly illustration:

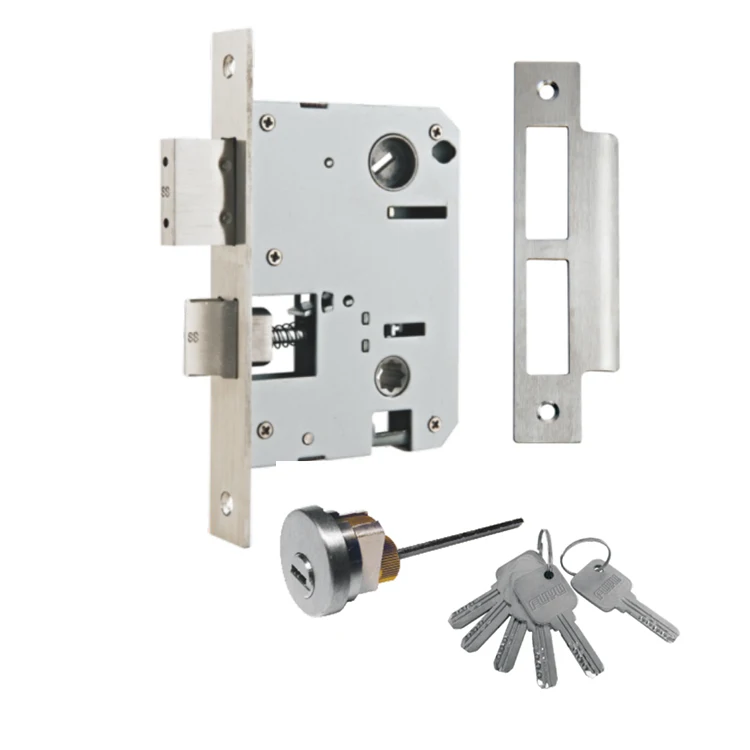

The 5th Generation Mortise Lock Case:
Rotor:Solid investment-casting stainless steel 304,anti-rust,stronger and more durable than brass and zinc alloy.
Cam:Solid investment-casting stainless steel 304,anti-rust,stronger and more durable than brass and zinc alloy.
Casing:High class imported EGI(electric galvanized)steel,higher grade fingerprint resistant,thickness 1.5mm.
Latch:Solid investment-casting stainless steel 304,anti-rust,stronger and more durable than brass and zinc alloy,easily reversible for left and right handing.
Deadbolt:Solid stainless steel 304, reinforced with two hardened steel inserts,anti-saw,anti-rust,stronger and more durable than brass and zinc alloy,offering maximum protection and security.
Forend(thickness 3.0mm)/Strike plate (thickness 1.5mm):Solid stainless steel 304 or brass.

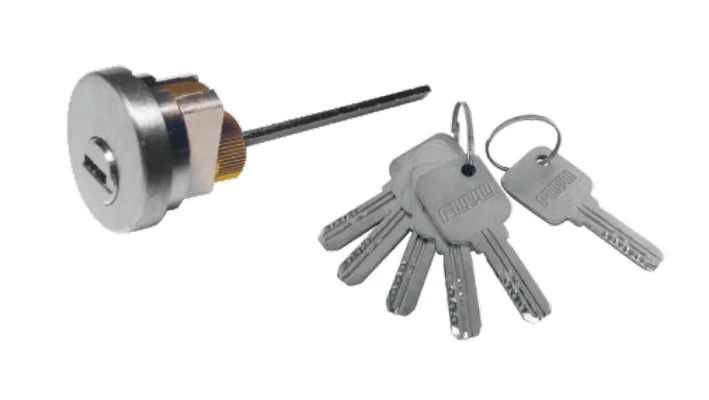

The 3rd Generation high-tech cylinder:
High-tech solid brass cylinder(Brass for housing,core/plug,pins and cut).
Machined by pricise CNC (Computer Number Control) equipments according to the most strict QA standard.
Keyway:Double-Row-Pin technology,10 pins,pin-combinations are much more than international standard ,extremely security.
Construction key function available:Each cylinder with 5 pcs OWNER keys + 1 pc CONSTRUCTION key ,all keys are made by solid brass ,thickness 2.5mm.
Hardened process for tail-piece,stronger and more durable.

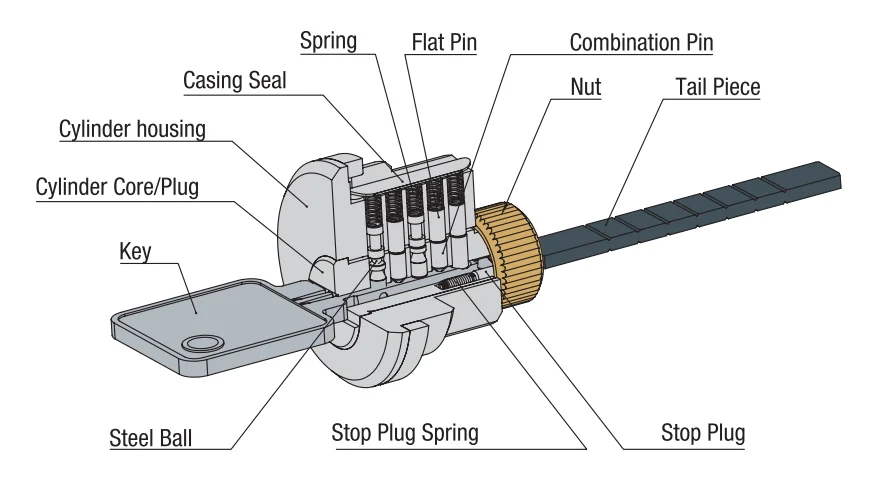

The Structure Of 1 Series Cylinder:

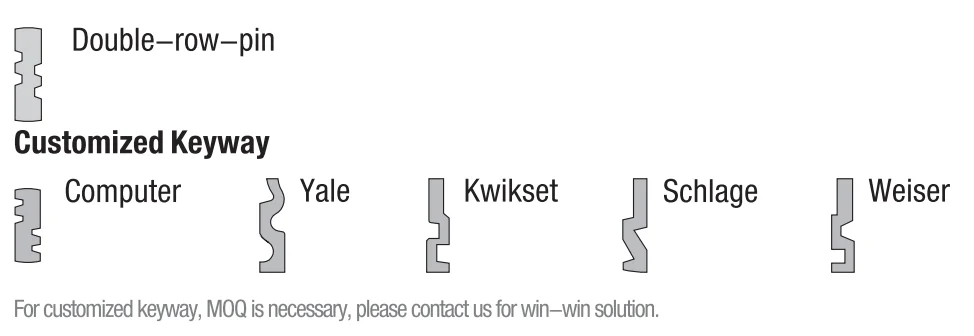

Supplying keyway
Standard

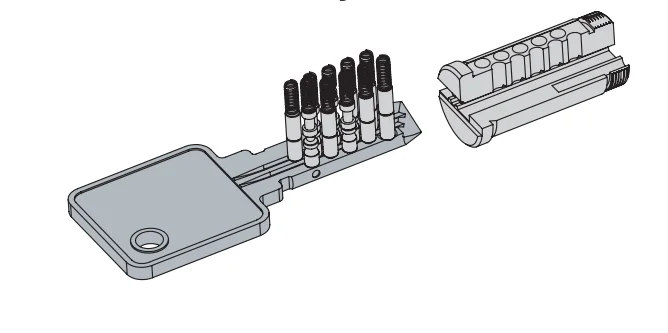

Double-row-pin With Construction Key Function:

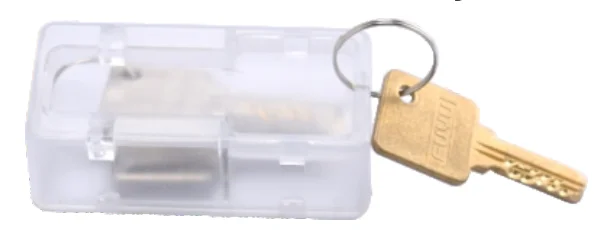

Plastic Box For Owner Keys
The owner keys are sealed inside the plastic box,you could not get the owner keys unless make the box broken ,offering maximum security.
Company Information
Show room:
Product Process:
Multiple Cycle Test For Complete Set(Max.test 16 sets at the same time)
FAQ
Q: What's the MOQ for the first purchasing?
If make logo and brand package, MOQ is 1000 sets; If there is no need for brand logo and package, MOQ is 50 ctns per size.
Q: What will be the delivery time?
Normally is 30-40 days after order confirmed by both parties.
Q: Before purchasing, how can we get to know the quality?
We can send sample to you to check. Also cusomer can appoint some agent to inspect the mass production quality in our factory to make sure the quality.
Q: What's the payment terms?
TT / LC
Q: What's the price term?
EXW/FOB/CNF/CIF depends on customer's requirement.
Q: What should we do if goods are received with some quality problems?
All goods have been inspected during the assembling and packing, the chance to get defective slide is very rare. If there are some quality problems, such as finish problem, damaged problem, please kindly take some photos and show to us proof, also please show us the carton imge to locate the quality supervisor. After we verified the problem, we will give refund or resend the goods
