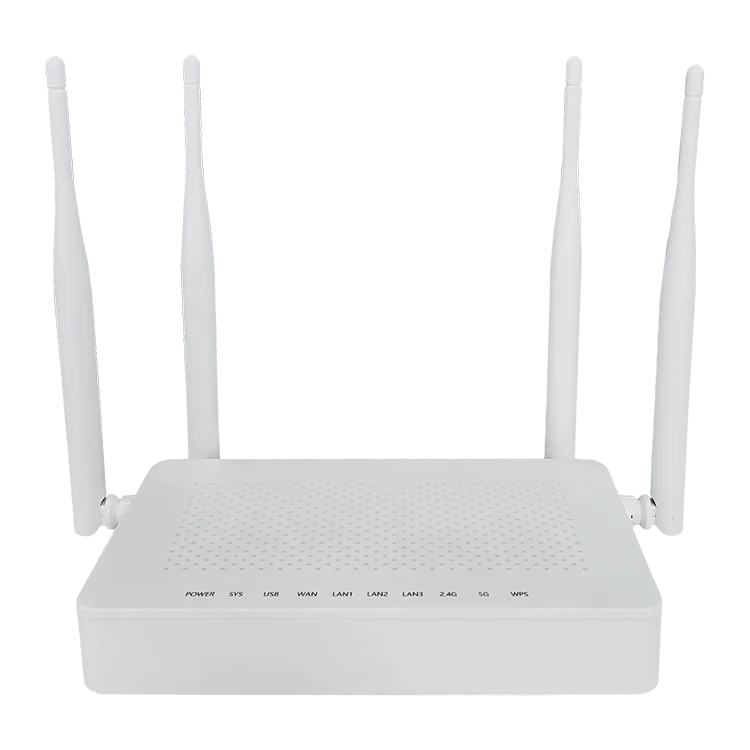

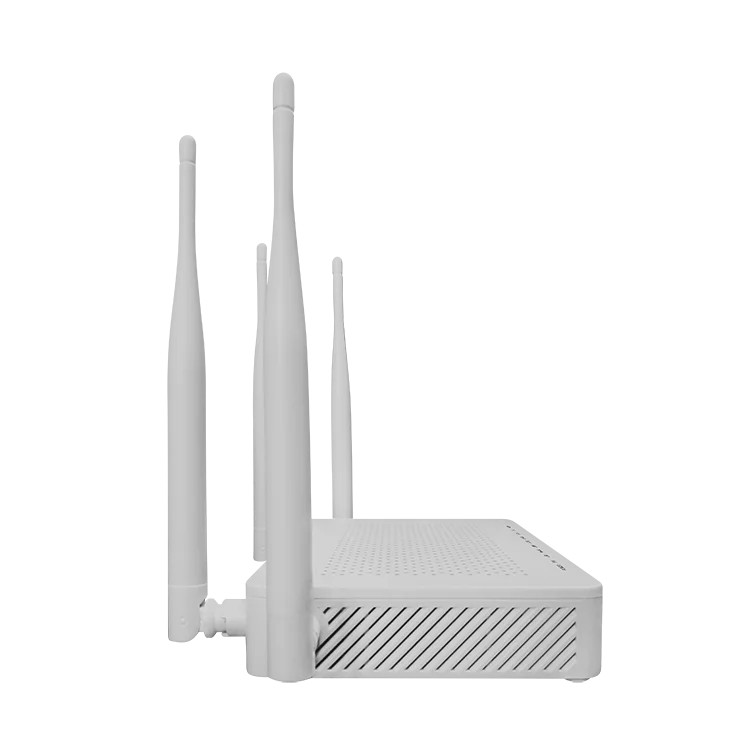

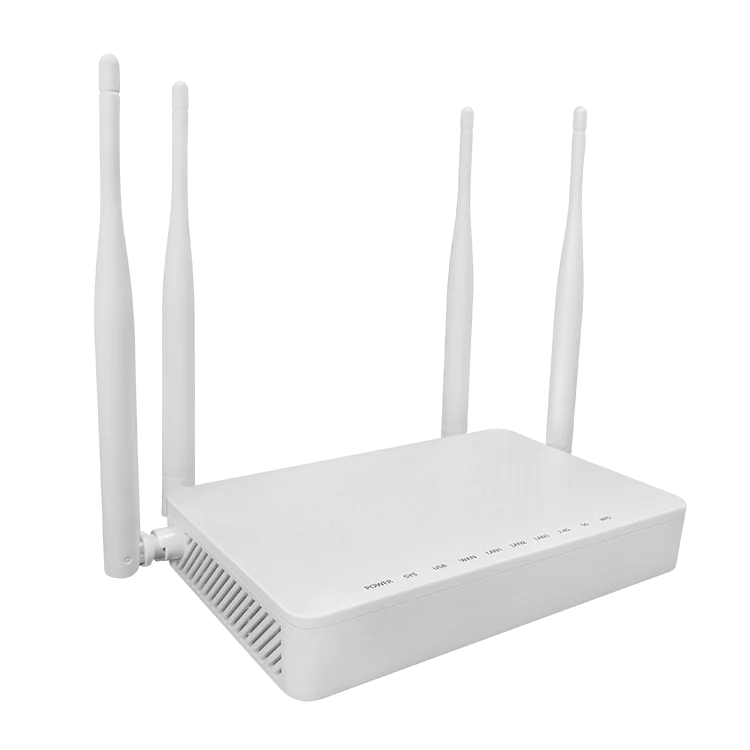

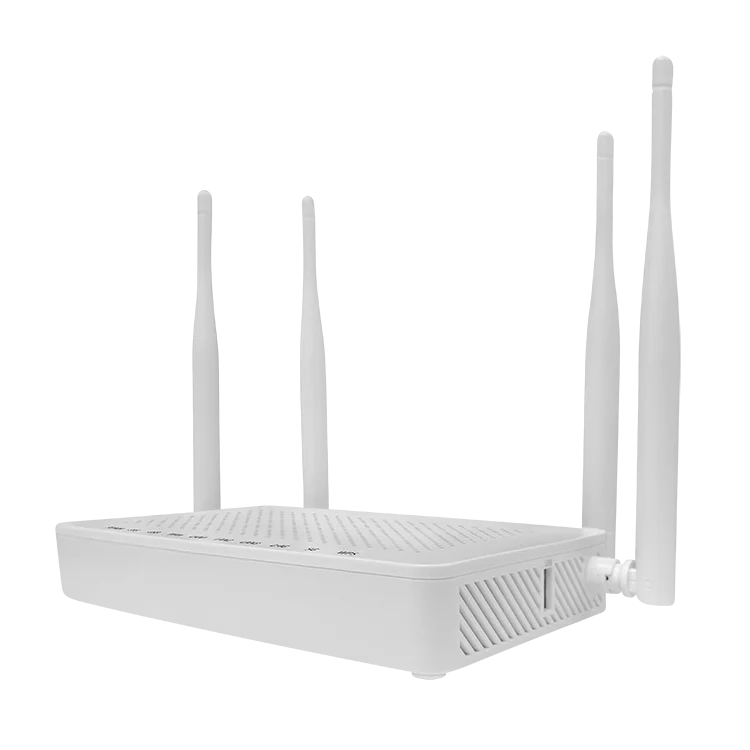

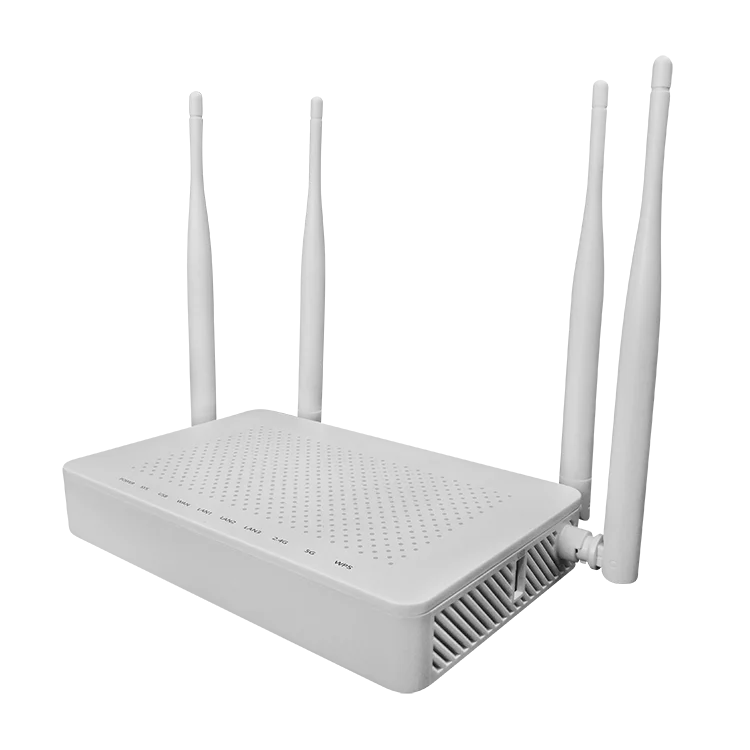

Китайские производители прямые продажи сетчатый Wi-Fi роутер высокого
- Категории: Wireless Routers >>>
- Поставщик: Richer,Link,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
S503W-DGB product specifications and environmental indicators
| parameter | Nominal value |
| Net size | 235mm×140mm×30mm (Wide * deep * high) |
| net weight | 0.3kg |
| Typical power consumption | <10W |
| noise | no |
| Cooling method | Natural heat dissipation |
| Power | DC rated voltage 12V-1A |
| Installation method | Support the desktop, wall and installed in the information box |
| working environment | Working temperature: 0 ℃ ~ 45 ℃; |
| working humidity 10% ~ 90% non-condensing | |
| Atmospheric pressure | 70~106Kpa |
| MTBF | 50,000h |
| MTTR | 30min |
S503W-DGB Product WIFI key technical indicators
Standard | IEEE 802.11 ac/b/g/n | |
WiFi parameter
| Frequency | 2.4~2.4835GHz 5GHz: Low frequency 5.15GHz~5.25GHz, Middle frequency 5.25GHz~5.35GHz, High frequency 5.725GHz~5.825GHz |
Transmission speed
| 2.4GHz Frequency: IEEE 802.11b :11/5.5/2/1M(Auto) IEEE 802.11g:54/48/36/24/18/12/9/6(Auto) IEEE 802.11n:270/243/216/162/108/81/54/27Mbps,up to 300Mbps | |
5GHz Frequency: IEEE 802.11n:Highest transmission speed up to 300Mbps IEEE 802.11ac :Highest transmission speed up to 867Mbps | ||
Channel number | 2.4GHz :13 5GHz:4 | |
Spread-spectrum Technique | DSSS(Direct sequence spread spectrum) | |
Data Modulation | DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM) | |
Sensitivity@PER (Package error rate) | 270M:-68dBm@10% PER;130M: -68dBm@10% PER; 108M:-68dBm@10% PER;54M:-68dBm@10% PER 11M:-85dBm@8% PER;6M:-88dBm@10% PER 1M:-90dBm@8% PER; | |
Transmission distance | Indoor Maximum 120 meters;Outdoor Maximum 360 meters(The distance depends on the environment) | |
RF power | 24dBm EIRP for 2.4G +26dBm EIRP for 5G | |
Antenna | 5dBi Antennas | |
