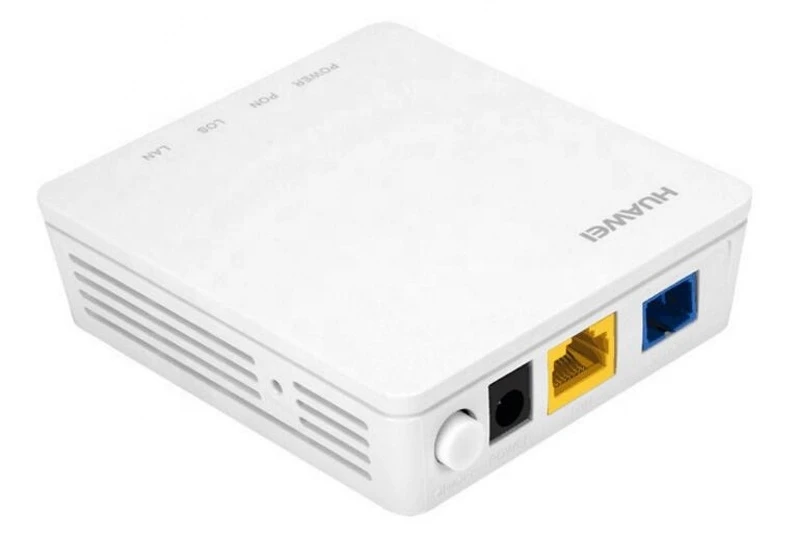

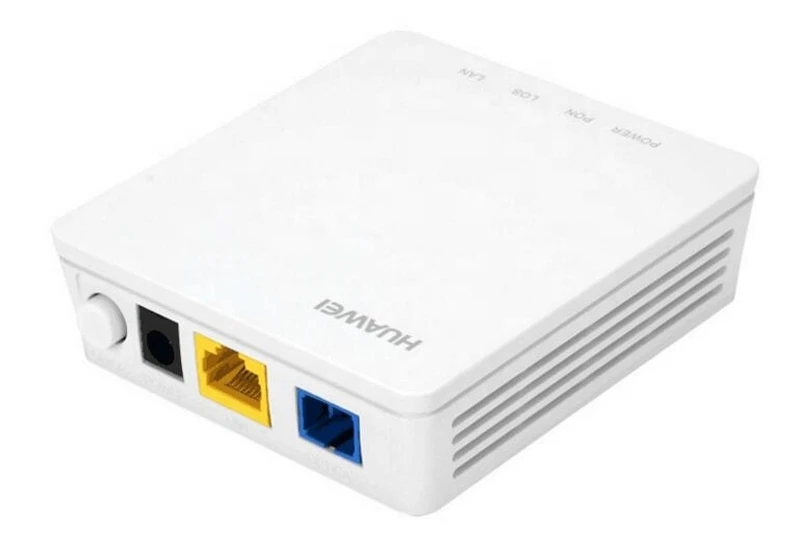

The HG8310M subscriber terminal is used as a client device for the construction of FTTH networks and is designed to provide broadband access services based on GPON technology in residential buildings and small offices. This terminal supports one PON connection at a distance of up to 20 km. Terminal EchoLife HG8310M is equipped with PON and Ethernet GE ports with auto-negotiation for high-speed forwarding.

Dimensions (H x W x D)	(115 x 94 x 27)mm (V300R015C00 and earlier) (82 x 90 x 27)mm (V300R015C10)
Weight	about :500g
Operating humidity	5% RH to 95% RH (non-condensing)

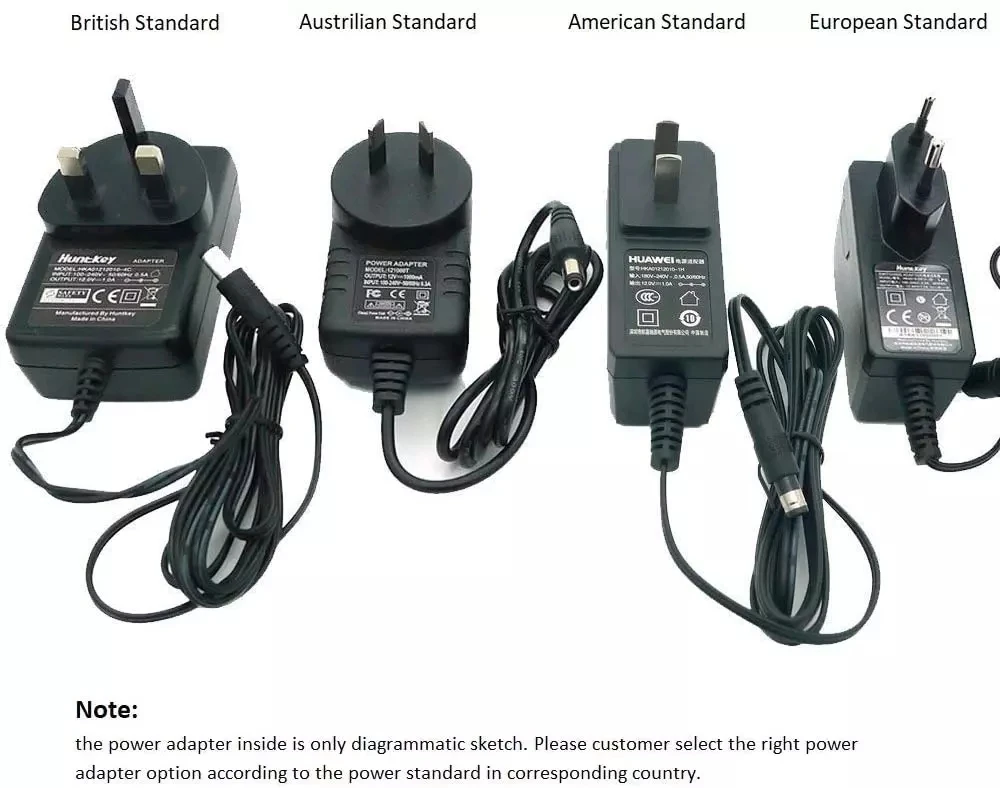

Power adapter input	100-240 V AC, 50-60 Hz
System power supply	11-14 V DC, 1A
Static power consumption	3W
Maximum power consumption	3.5W
Ports	1GE
Indicators	POWER/PON/LOS/LAN



ONT

10G PON ONT :

HN8055Q : NNI: XG-PON, SFP+ • UNI: 4GE+1*10GE+2USB+2WiFi • 2.4GHz: 11n 3x3 MIMO • 5GHz: 11ac 3x3 MIMO •238 mm x 190 mm x 26 mm (Without the base)

HN8245Q : NNI: XG-PON, SFP+ • UNI: 2POTS+ 4GE+2USB+2WiFi • 2.4GHz: 11n 3x3 MIMO • 5GHz: 11ac 3x3 MIMO •238 mm x 190 mm x 26 mm (Without the base)

HN8255Ws : NNI: XGS-PON, SFP+ • UNI: 2POTS+ 4GE+1*10GE+2USB+2WiFi • 2.4GHz: 11n 3x3 MIMO • 5GHz: 11ac 4x4 MU-MIMO • 197 mm x 305 mm x 82 mm

Gateway ONT without WiFi

EG8040P : NNI: GPON • UNI: 4GE (PoE) • 254 mm x 140 mm x 42 mm

EG8240P : NNI: GPON • UNI: 2POTS + 4GE (PoE) • 254 mm x 140 mm x 42 mm

EG8020P :  NNI: GPON • UNI: 2GE • Faceplate: 125 mm x 86 mm x 30 mm • Base: 68.5 mm x 46.5 mm x 33 mm



Bridge ONT

EG8010H : NNI: GPON • UNI: 1GE • 83 mm x 69 mm x 28 mm

EG8040H : NNI: GPON • UNI: 4GE • 176 mm x 138.5 mm x 28 mm

EG8240H : NNI: GPON • UNI: 2POTS + 4GE • 176 mm x 138.5 mm x 28 mm

EG8242H : NNI: GPON • UNI: 2POTS + 4GE + 1RF • 220 mm x 160 mm x 32 mm



WiFi ONT

EG8045H : NNI: GPON • UNI: 4GE+1USB+WiFi • 11n 2x2 MIMO • 176 mm x 138.5 mm x 28 mm (Without an external antenna)

EG8145V5 : NNI: GPON • UNI: 1POTS+4GE+1USB+2WiFi • 2.4GHz: 11n 2x2 MIMO • 5GHz: 11ac 2x2 MIMO • 173 mm x 120 mm x 30 mm (Without an external antenna)

EG8245H : NNI: GPON • UNI: 2POTS+4GE+1USB+WIFI • 11n 2x2 MIMO • 176 mm x 138.5 mm x 28 mm (Without an external antenna)

HG8245Q2 : NNI: GPON • UNI: 2POTS+4GE+1USB+2WiFi • 2.4GHz: 11n 3x3 MIMO • 5GHz: 11ac 3x3 MIMO • 176 mm x 265 mm x 82 mm

EG8245Q : NNI: GPON • UNI: 2POTS+4GE+1USB+2WiFi • 2.4GHz: 11n 3x3 MIMO • 5GHz: 11ac 3x3 MIMO • 188 mm x 143 mm x 32 mm (Without an external antenna)

EG8245H5 : NNI: GPON • UNI: 2POTS+4GE+1USB+WiFi • 11n 2x2 MIMO • 168 mm x 115 mm x 30 mm (Without an external antenna)

EG8247W : NNI: GPON • UNI: 2POTS+4GE+1USB+1RF+2WiFi • 2.4GHz: 11n 3x3 MIMO • 5GHz: 11ac 4x4 MIMO • 184 mm x 295 mm x 82 mm

EG8247H : NNI: GPON • UNI: 2POTS+4GE+1USB+1RF+WiFi • 11n 2x2 MIMO • 220 mm x 160 mm x 32 mm (Without an external antenna)

EG8247Q : NNI: GPON • UNI: 2POTS+4GE+2USB+1RF+2WiFi • 2.4GHz: 11n 3x3 MIMO • 5GHz: 11ac 3x3 MIMO • 219 mm x 159 mm x 32 mm (Without an external antenna)

EG8247H5 : NNI: GPON • UNI: 2POTS+4GE+1USB+1RF+WiFi • 11n 2x2 MIMO • 199 mm x 135 mm x 30 mm (Without an external antenna)



Specifications	HG8010H	HG8040H	HG8110H	HG8240H	HG8242H	HG8045Q
Dimensions  (H x W x D)	90 mm x 82 mm x 27 mm	176 mm x 138.5 mm x 28 mm	134 mm x 115 mm x 27 mm	176 mm x 138.5 mm x 28 mm	220 mm x 160 mm x 32 mm	230 mm x 190 mm x 30 mm
Network-side Ports	GPON	GPON	GPON	GPON	GPON	GPON
User-side Ports	1 GE	4 GE	1 GE + 1 POTS	4 GE + 2 POTS	4 GE + 2 POTS + 1 CATV	4 GE + 1 USB + 2.4G and 5G Wi-Fi
Specifications	HG8245H	HG8245Q	HG8247H	HN8055Q	HN8245Q
Dimensions  (H x W x D)	176 mm x 138.5 mm x 28 mm	285 mm x 174 mm x 70 mm	220 mm x 160 mm x 32 mm	238 mm x 190 mm x 26 mm	238 mm x 190 mm x 26 mm
Network-side Ports	GPON	GPON	GPON	XG-PON	XG-PON
User-side Ports	4 GE + 2 POTS + 1 USB + Wi-Fi	4 GE + 2 POTS + 2 USB + 2.4G and 5G Wi-Fi	4 GE + 2 POTS + 1 USB + Wi-Fi + 1 CATV	4 GE + 1 x 10 GE + 2.4G and 5G Wi-Fi + 2 USB	4 GE + 2 POTS + 2.4G and 5G Wi-Fi + 2 USB
