Product Description

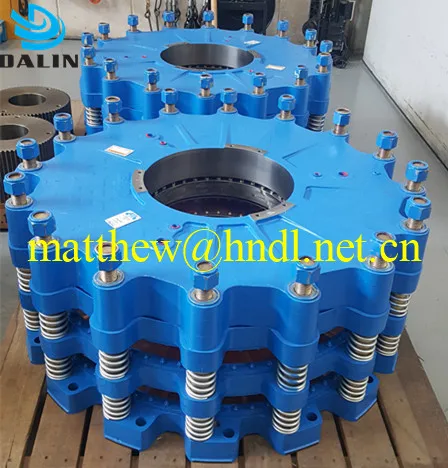

The Airflex WCB2 water-cooled tensioner is designed for constant tension applications. It is exceptionally well suited for high inertia stopping and rapid heat dissipation. The design of the WCB2 tensioner permits mid-shaft or end-shaft mounting. The rugged construction ensures long, trouble free service.


How it works
Air pressure is applied through the ports in the cylinder causing the piston an pressure plate assembly to move towards the mounting flange, compressing the release springs. As the applied pressure increases, the friction discs are clamped between the pressure plate and the mounting flange, stopping or controlling the shaft the discs are mounted on. Modulation of air pressure then controls applied torque of the tensioner. Multiple disc brakes utilize reaction plates between discs. The release springs assist in disengegement and retraction of the piston, pressure plate, and reaction plates, if applicable. High heat dissipation is accomplished by passing water through a special cavity behind the copper alloy wear plates.


Specification


8WCB2
14WCB2
18WCB2
24WCB2
36WCB2
48WCB2






Typical application
Forestry
Logging equipment
Anchor handling
Towing winches
Mooring winch systems
Petroleum drilling equipment


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile




Henan Dalin Rubber and Telecommunications Apparatus Co.,ltd specializes in designing and manufactuering of pneumatic clutches and brakes since 1975, our main products are CB CLUTCH, VC CLUTCH, DISC PNEUMATIC CLUTCH , also spare parts such as clutch air tube, clutch FSA, clutch male drum and female drum, friction disc, pressure plate, drive plate, water jacket, drive plate assembly, Seal, cyliner, pressure plate, wear plate etc. All of them can be 100% interchanged with Eaton Airflex, Gummi, WPT.


Certifications




Details Information


Parts
124WCB2
224WCB2
324WCB2
424WCB2
Description
Part No.
Part No.
Part No.
Part No.
Mounting Flange Sub Assy
513348-01
513348-01
513348-01
513348-01

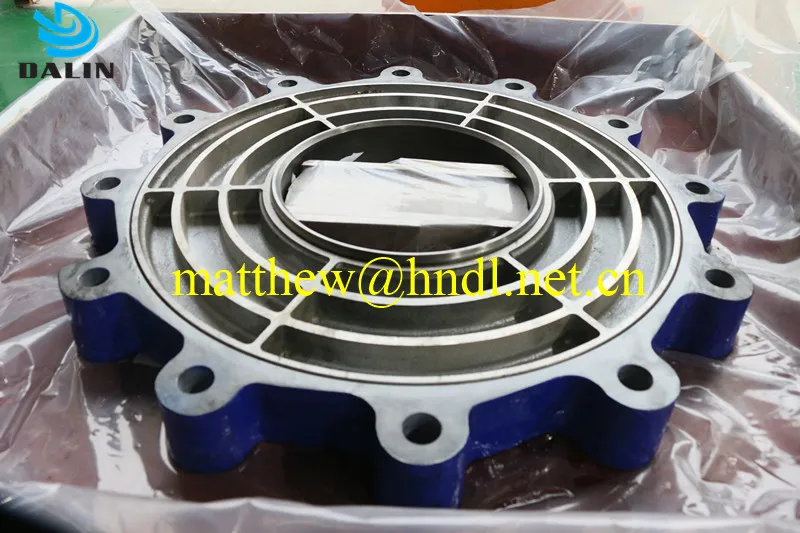

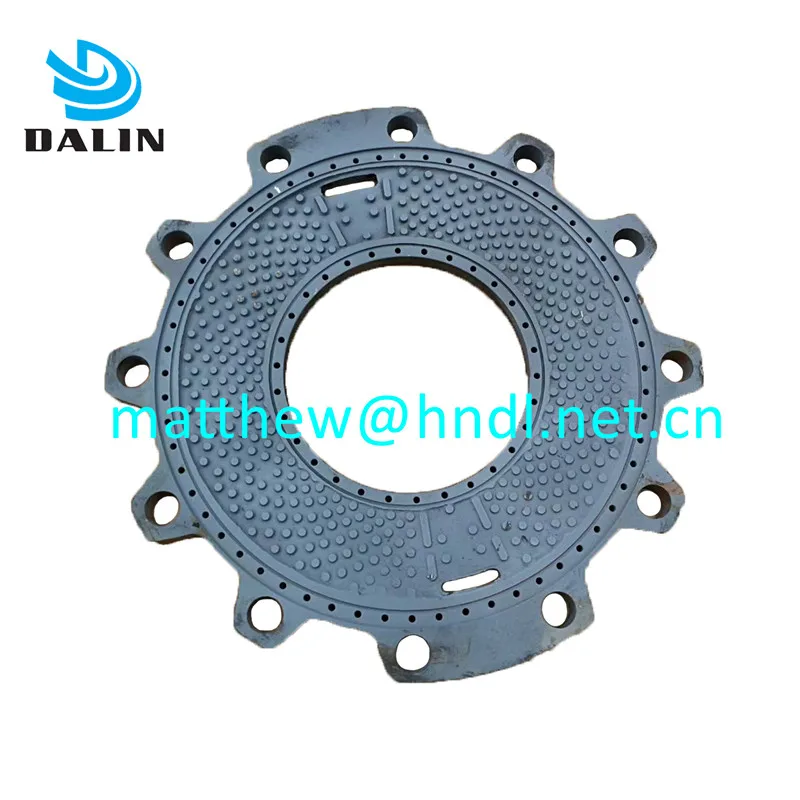

Mounting Flange
513337
513337
513337
513337

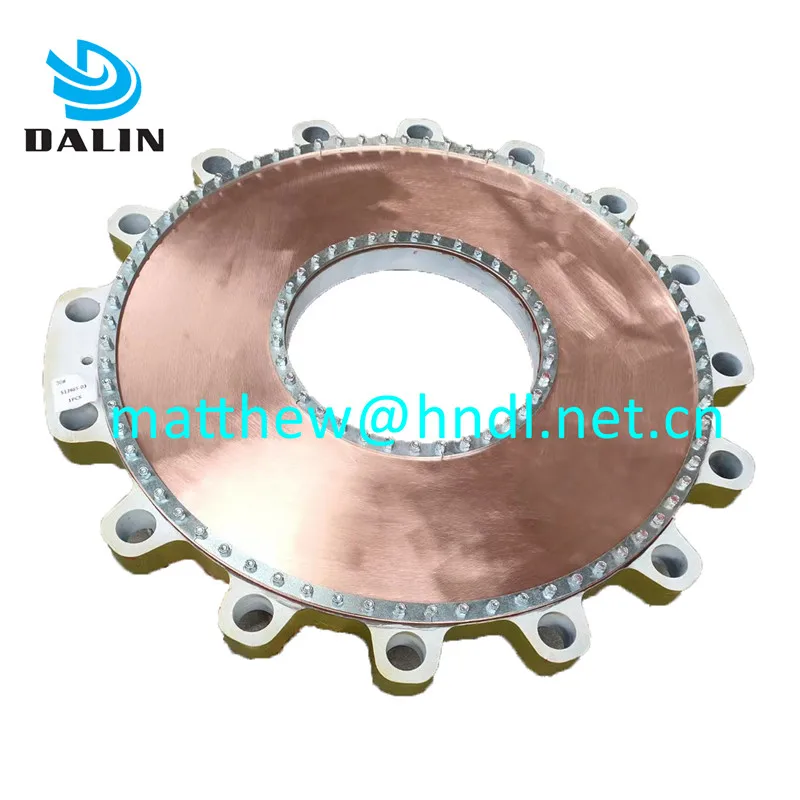

Wear Plate
508459
508459
508459
508459
Stud
000245*0069
000245*0071
000245*0081


000245*0082

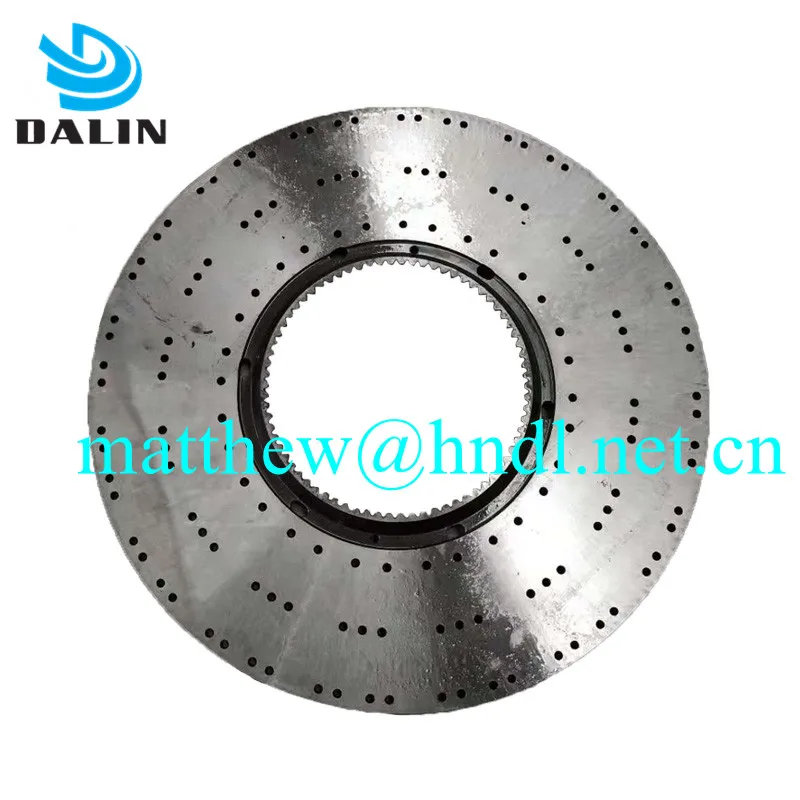

Friction Disc
508725
508725
508725
508725
Friction Disc Core
510745
510745
510745
510745
Clamp Tube
306542-05
306542-20
306542-23
306542-24
Pressure Platesub Assy
513348-03
513348-03
513348-03
513348-03
Pressure Plate
513345
513345
513345
513345
Flat Washer
000153*0641
000153*0641
000153*0641
000153*0641
Locknut
000110*0073
000110*0073
000110*0073
000110*0073
Cylinder
513264
513264
513264
513264

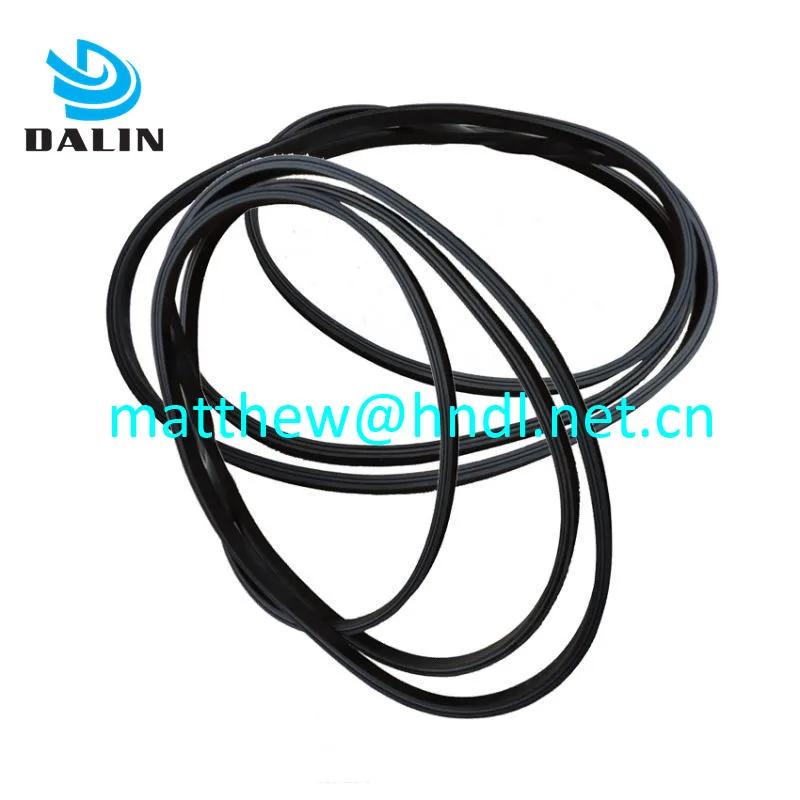

Polypak Seal
000402*0023
000402*0023
000402*0023
000402*0023
Polypak Seal
000402*0024
000402*0024
000402*0024
000402*0024
Gear (not included with assembly)
411672
410970
412433
413195
Wear Spacer
308396
308396
308396
Reaction Plate Sub Assy
513348-02
513348-02
513348-02
Reaction Plate
513343
513343
513343
Piston
513317
513317
513317
513317
Release Spring
416751-02
416751-02
416751-02
416751-02
Inner Support Ring
413107
413107
413107
413107
Outer Support Ring
413108
413108
413108
413108
Flat Head Screw
000294*407
000294*407
000294*407
000294*407
Pipe Plug
000077*0021


000077*0021



000077*0021



000077*0021
