Product Description
1. Introduction
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
2.Material specification: | ||
Name | Specification | |
Fiber type | Single mode or Multi mode | |
Applicable for | Indoor or Outdoor FTTH | |
Cable diameter | 2*3mm | |
Diameter of Cermic core | 2.499±0.002mm | |
Concentricity of Ceramic core | ≤0.5um | |
Material of plastic parts | PBT(Main-body); PEI(Inner- core);Dust Cap(PE) | |
Spring material | 304 | |
3. Inserted end face | ||||||
1. Plug end face inspection method: 400# end inspection instrument 100% test 2. Regional sketch map 3. End face requirement | ||||||
Region Defect | Region A (0~25um) | Region B (25~125um) | Region C (125~250um) | |||
Scratch | Allow one scratch no more than the fiber core and width≤1um | Allow two scratchs and the width≤2um | Allow five scratchs and width ≤ 2um | |||
Speckle | Allow one speckle no more than the fiber core and diameter≤1um | Allow two speckles and the diameter≤2um | Allow two speckles and the diameter ≤ 5um | |||
Apron | Between area B and area C,allow apron which aperture width less than 5um;and the length of the apron is less than 30% of the perimeter of the fiber end | |||||
4. Fiber cutting length | ||||||
4.1 Annex one,Environmental testing | ||||||
Project | Test condition | Index | Monitoring proportion | |||
High temperature | 85℃,96H | ΔIL ≤ 0.2dB | Random monitoring of WIP 5pcs | |||
Low temperature | -25℃,96H | ΔIL ≤ 0.2dB | ||||
Loop | -25~+85℃,3.5H/Cycle,40times loop | ΔIL ≤ 0.2dB | ||||
Hot and humid | 110℃,90%RH,2 atmospheric pressure, 96H | ΔIL ≤ 0.2dB | ||||
Immersion | 43ºC, PH5.5,168H | ΔIL ≤ 0.2dB | ||||
4.2 Annex two,Mechanical test | ||||||
Project | Test condition | Index | Monitoring proportion | |||
To attack | 1.8m, three axial, 8 times / axial | ΔIL ≤ 0.2dB | Random monitoring of WIP 5pc | |||
Vibration | 10 to 50HZ, 45 times /min, amplitude 0.75mm, three axial. Each axial 30min | ΔIL ≤ 0.2dB | ||||
Reverse | Distance machine 20 to 28cm, + 180 degrees, 6s/ times, 25 times | ΔIL ≤ 0.2dB | ||||
tensile | The distance from the plug is 20 to 28cm, 1min, and the load is 50N | ΔIL ≤ 0.2dB | ||||

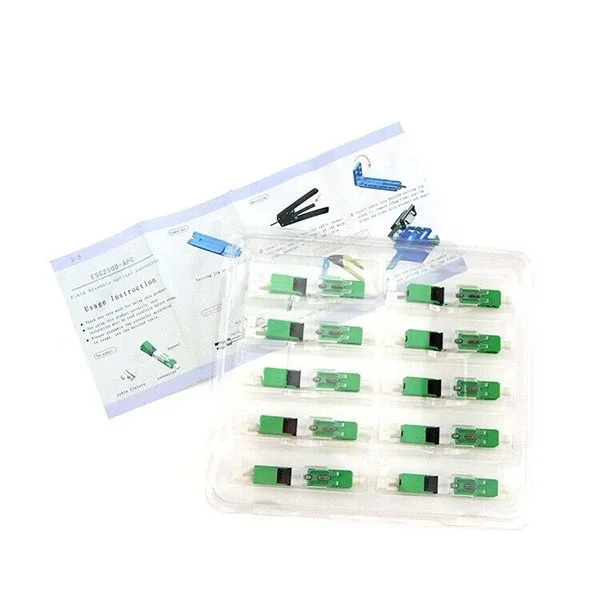

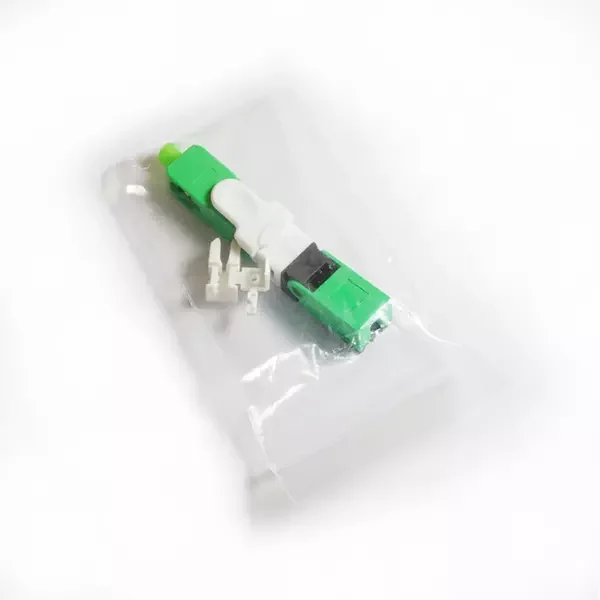

Packing & Delivery
Packaging Details:\tStandard package
Company Profile

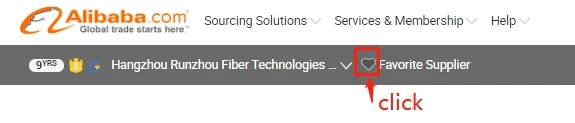

if you are interested in our company, click here, so that you can find us directly in your favorities.
Our advantage:
1. Competitive price
2. Fast delivery
3. Free sample provided
4. Long time warranty
5. Reliable quality, OEM service available
6. Professional product and technical support
7. Prompt answer for any question or inquiry
6. Professional product and technical support
7. Prompt answer for any question or inquiry
FAQ
Q1: What is the Warranty for the Fiber optic cable ?
A1:For the Fiber optic cable.we have 30 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement
Q2: How many exports a year?
A2:An annual export volume of 1700000 core kilometers
Q3. How many staff in company R&D(research and development)team?
A3:We have an engineer who has more than ten years experienee in researching and designing and 3 engineers who have more than five years experience in researching and designing.Totally 8 staff in R & D team.
Q4 How many staff that have more than three years experienee in producing?
A4:Our total production line has 53 employees for more than three years.
Q5: How many test that products will go through?
A5:All cable will test strictly in accordance with standard IEC-60794-1, which include Tensile test,Crush test, Impact test, Torsion test, Repeated bending test, Temperature cycling test, Water penetration test, Dnp test etc.
Q6: Is there cheap shipping cost to import to our country?
A6:For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders.we suggest
via air to airport plus our ship partner send to your door.
Q7: Can we get support if we have our own market position?
A7:Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the
best solution for you
