Однолучевой мостовой кран
US $5000-$20000
Однолучевой промышленный мостовой кран 10 тонн от
- Категории: Мостовые краны >>>
- Поставщик: Henan,Mine,Crane,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCTS DESCRIPTION

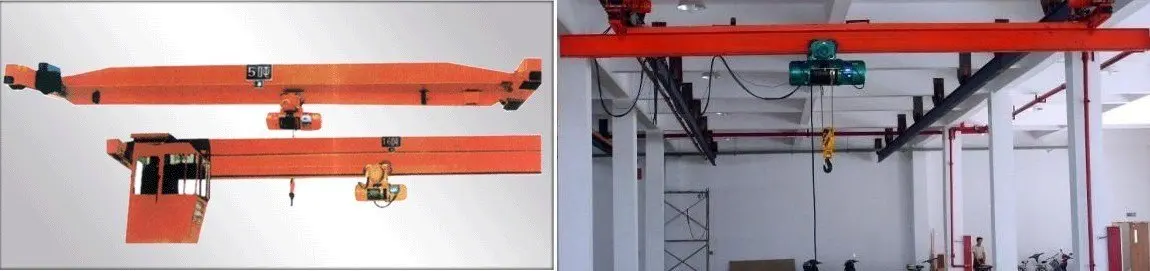

10ton Mono Rail Single Beam Industrial Overhead Bridge Crane Manufacturer

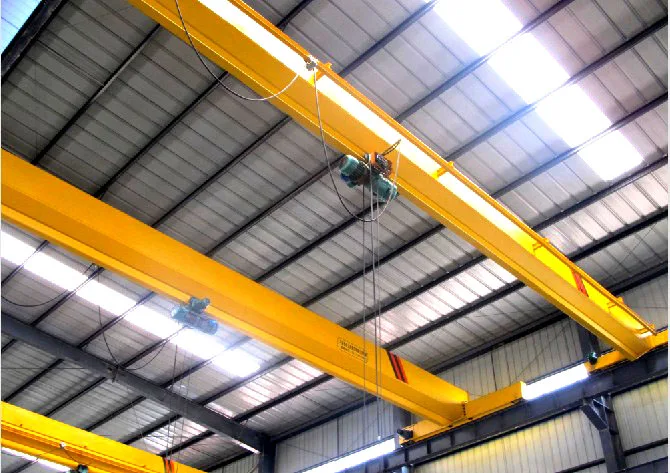

LDA Single Girder Overhead Crane is widely used in plants warehouses, steel industries machine shops, material stocks to lift goods all across the world. It is prohibited to use the equipment in the combustible, explosive or corrosives environment (Click here to learn more about explosion proof overhead crane). It has two operational methods, ground or operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, side way and ends in order to satisfy the users' choice users' different conditions.
LDA single girder overhead crane is designed to cover a wide range of modern industrial demands, providing excellent value for money with no compromise on performance.
FEATURES AT A GLANCE
1). Light structure, easy installation and maintenance; low cost maintenance, long working life;
2). Standard components and controls to ensure reliability;
3). Reasonable structure, strong bearing capacity (Load tested up to 125% from tests undertaken in our own workshops)
4). Low noise, soft starting and stopping
5). Reduced scheduled maintenance and emergency downtime
2). Standard components and controls to ensure reliability;
3). Reasonable structure, strong bearing capacity (Load tested up to 125% from tests undertaken in our own workshops)
4). Low noise, soft starting and stopping
5). Reduced scheduled maintenance and emergency downtime
10). High quality structural assembly ensures compliance with ISO Standard.
PRODUCT CONFIGURATION
1). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control;
2). Heavy duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth
running.
3). Siemens main electric parts are used for durable and safe operation
2). Heavy duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth
running.
3). Siemens main electric parts are used for durable and safe operation
Main Girder
Structure: Welding structure of steel plate and I-steel
Technology: One-off forming U shaped groove.
Hook
Capacity: 1-450t Type: Single hook, double hook
Material: forging
Usage: Lifting various objects
Usage: Lifting various objects
Wireless Remote Control
Model: F21 F23 F24
Speed: Single speed, double speed. VFD control
Usage: For overhead crane, gantry crane, electric hoist etc.
PRODUCT SPECIFICATIONS
Safety device:
1.Weight overload protection device.
2.Top quality long time bearing polyurethane materials buffer.
3.Lifting limit switch and traveling limit switch.
4.Emergency stop system.
5.Zero voltage protection.
6.Phases protection device and so on.
1.Weight overload protection device.
2.Top quality long time bearing polyurethane materials buffer.
3.Lifting limit switch and traveling limit switch.
4.Emergency stop system.
5.Zero voltage protection.
6.Phases protection device and so on.
Lifting Capacity | Item | T | 1/ 2 / 3 / 5 / 10 ton | 16 / 20 ton | |||
Span | Power | m | 7.5~22.5m | 7.5~31.5 | |||
Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 | ||
3 | Operating weight | CD1 hoist | m/min | 8 (7) | 3.5 | ||
4 | Max. tractive force | Traveling of electric hoist | m/min | 20 | 20 | ||
5 | Traveling of crane | m/min | 20/30 | ||||
Wheel diameter | mm | Φ270 | |||||
Width of trail | Engine displacement | mm | 37~70 | ||||
Operational Model | Remote control / Ground handle | ||||||
Working Duty | Max. torque | A3 | |||||
Power Supply | According to your demands | ||||||
COMPANY PROFILE
The 2,700-plus-member factory covers over 680,000 square meters and has a total asset of 660 million CNY. The 1,200-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.
PRODUCT PACKING
Fast Delivery
Henan Mine has sound production security system and experienced workers to ensure timely or early delivery period.
Package
By national station exporting standard plywood box, wooden pallet or in 20ft & 40ft container. Or as your demands.
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
welcomed to our factory to make the inspections.
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
welcomed to our factory to make the inspections.
