Product Description
Visfish5L

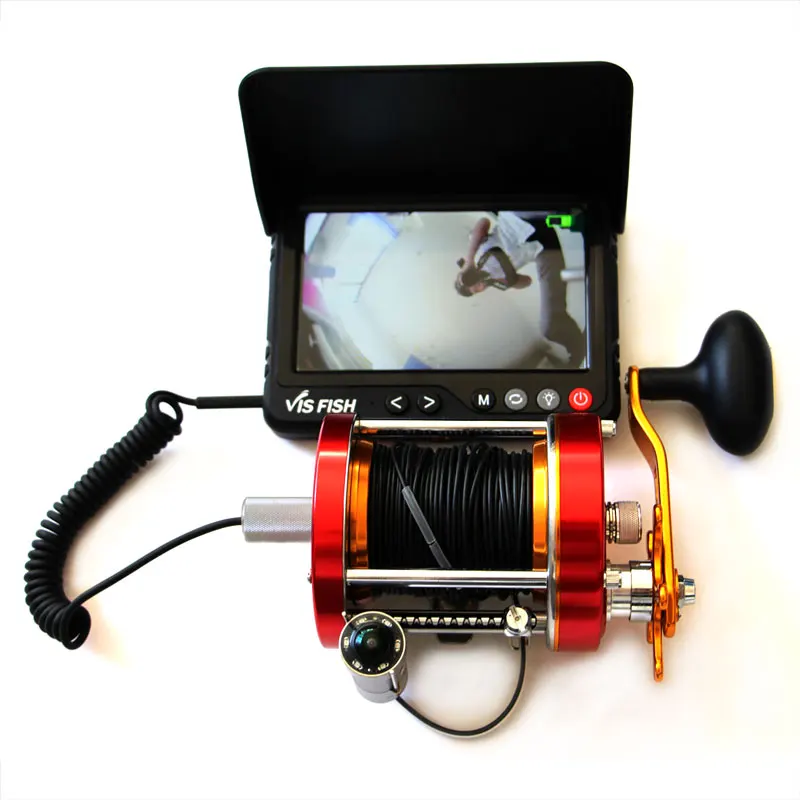

720P fish finder 5inch TFT monitor 220degree wide angle ice underwater fishing camera
Fishing Camera with monitor Description:
This fishing camera kit is the latest popular, fashion, good looking and convenient Underwater Video Camera System.
The fishing camera adopts HD Sony Sensor with AHD video input to the AHD 5 inch screen.
The screen supports 180 degree flip for better view when you fishing.
The 5 inch screen main menu supports:
(Back Light,LED bright,Brightness,Contrast,Saturation,Language,Reset)
Attention: The monitor cannot support Record , take photo function.
Camera has 220 deg view and can see clear in clear water.
When you fishing in the muddy water, it was performance well if the water is not that deep.
Application field: Fishing ,monitoring aquaculture, underwater exploration, Ocean/Ice/Lake fishing swimming/diving/snorkeling are all available.
new fish finder 720P AHD 220 degree wide angle 0.0001Lux star level underwater mini fishing camera
Product Paramenters
Image Sensor | 2MP SONY Image Sensor | |

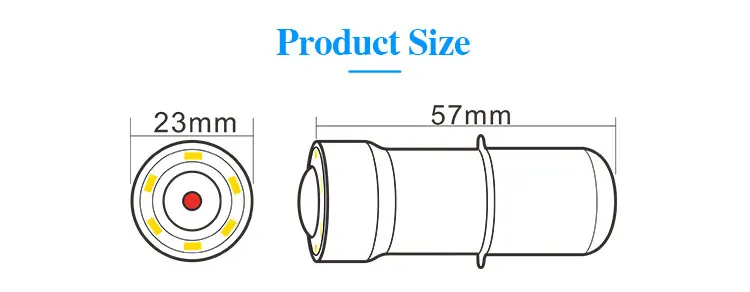

Size | ø23mm*57mm | |
Camera | Lens View angle | 220 degree |
Light source | 6pcs IR940 | |
LED Control | 8-grade LED/IR Brightness Control | |
Weight | 28g | |
DVR | Size of the screen | 5’’ LCD screen/’’ TFT screen |
Control function | brightness control | |
DVR | Port | USB 2.0, DC,AV-OUT, TF slot |
Battery | 8000mAh | |
Power Supply | Volt/Current:DC 5-12V/2A | |
Resolution | 800X480 | |
multi-language | support | |
Operation temperature | - 10° C ~ +80°C | |

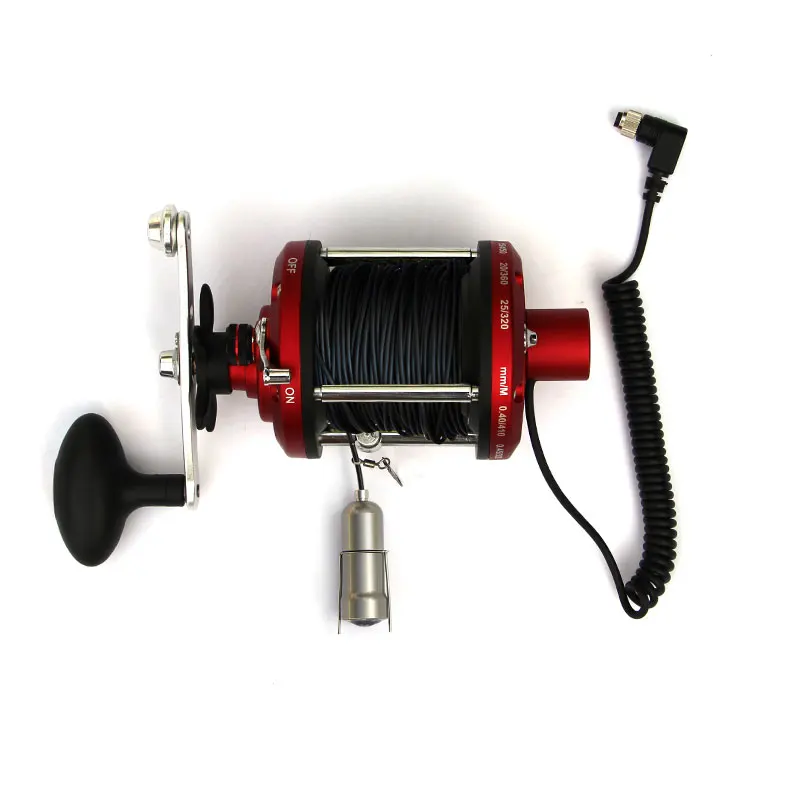

Cable | Length | 30m |
Pull range | 50KG |
Details Images

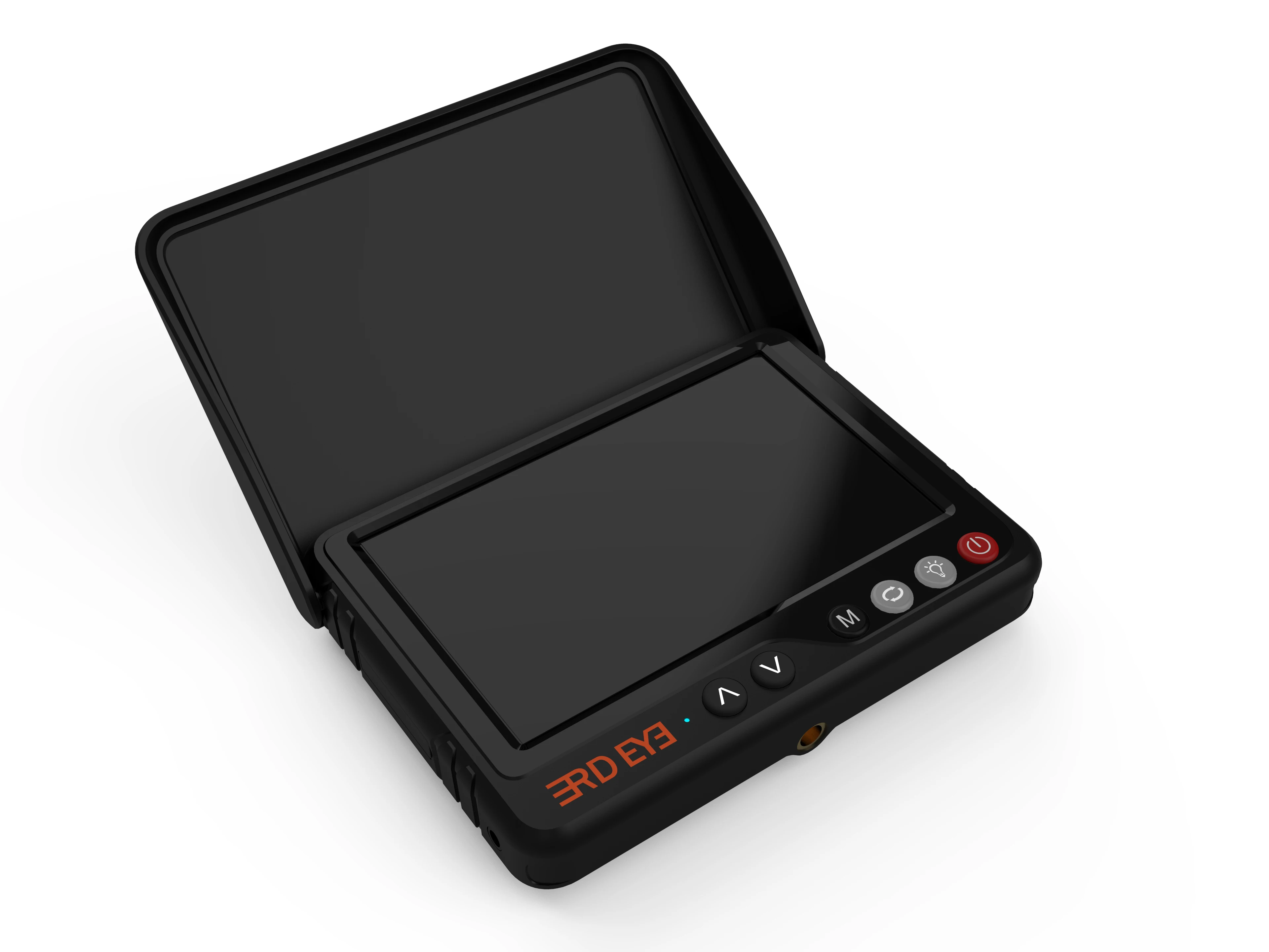

5‘’ Fishing monitor
Display Size: 5 inch, resolution 800*480 pixel
Screen brightness 1500
Monitor Input Voltage: 5-12V DC 2A
Built-in 8000mAh rechargeable Li-battery
Video in port: 3.5mm AV-IN
Menu function: (Back Light,LEbright,Brightness,Contrast,Saturation,Language,Reset)
Languages: Simplified Chinese/Traditional Chinese/English/Russian/French/German/Korean/Italian/Portuguese
Support 180 deg image flip when monitoring
Display Size: 5 inch, resolution 800*480 pixel
Screen brightness 1500
Monitor Input Voltage: 5-12V DC 2A
Built-in 8000mAh rechargeable Li-battery
Video in port: 3.5mm AV-IN
Menu function: (Back Light,LEbright,Brightness,Contrast,Saturation,Language,Reset)
Languages: Simplified Chinese/Traditional Chinese/English/Russian/French/German/Korean/Italian/Portuguese
Support 180 deg image flip when monitoring
Camera:
Image Sensor 2MP SONY Image Sensor
Effective Pixels 1280*720Piex，
Min. Illumination 0.0001Lux@F1.2,
Shutter Time: 1/25(1/30) s to 1/50,000 s
Angle of View: 220 ° wide view angle , Light : 6pcs ir940 Invisible light
HD Video Output: support AHD
Dimension: 23*57mm weight : 28g
Waterproof rate: IP68 ,S/N Ratio 65dB
CVBS Video Output: 1.1Vp-p Composite Output(75Ω/BNC)
Support AGC,Auto White Balance, Auto D/N Mode
Operating Conditions: -20 °C - 60 °C , Power Supply: DC5-12V
The camera can withstand 100m water pressure
Image Sensor 2MP SONY Image Sensor
Effective Pixels 1280*720Piex，
Min. Illumination 0.0001Lux@F1.2,
Shutter Time: 1/25(1/30) s to 1/50,000 s
Angle of View: 220 ° wide view angle , Light : 6pcs ir940 Invisible light
HD Video Output: support AHD
Dimension: 23*57mm weight : 28g
Waterproof rate: IP68 ,S/N Ratio 65dB
CVBS Video Output: 1.1Vp-p Composite Output(75Ω/BNC)
Support AGC,Auto White Balance, Auto D/N Mode
Operating Conditions: -20 °C - 60 °C , Power Supply: DC5-12V
The camera can withstand 100m water pressure
