Product Overview

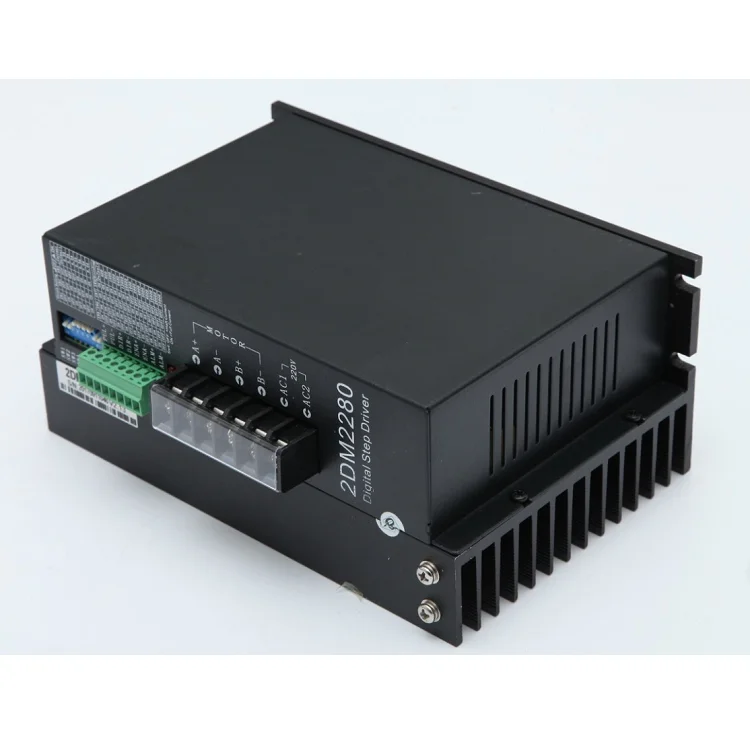

Stepper driver 2DM2280 2 phase hybrid 110-220VAC 8.2A stepper driver for
nema 42 52 stepper motor
Title goes here.
*Voltage 110-220V
*Peak Current 8.2A
* Parameter auto-tuning, motor adaptive
* Built-in high segmentation
* Low vibration, low heat generation, stable running at low speed
* Medium and high torque compensation
* Current vector control, high current efficiency
* Built-in acceleration and deceleration control to improve start-stop smoothness
* Single and double pulse control mode can be selected
* Motor running position memory
* Input signal differential optocoupler isolation, compatible with 5V-24V
* User-defined segmentation
* Convenient current and subdivision setting
* Green light means running while red light means protection or off line
* Built-in high segmentation
* Low vibration, low heat generation, stable running at low speed
* Medium and high torque compensation
* Current vector control, high current efficiency
* Built-in acceleration and deceleration control to improve start-stop smoothness
* Single and double pulse control mode can be selected
* Motor running position memory
* Input signal differential optocoupler isolation, compatible with 5V-24V
* User-defined segmentation
* Convenient current and subdivision setting
* Green light means running while red light means protection or off line
Driver Parameters 2DM2280
Below only for the representative product, if you have other requirements, please contact me.
Current Selection | ||||||
SW1 | SW2 | SW3 | ||||
Default | 0 | 0 | 0 | |||
2.2A | 1 | 0 | 0 | |||
3.2A | 0 | 1 | 0 | |||
4.5A | 1 | 1 | 0 | |||
5.2A | 0 | 0 | 1 | |||
6.3A | 1 | 0 | 1 | |||
7.2A | 0 | 1 | 1 | |||
8.2A | 1 | 1 | 1 | |||
Microstep Selection | ||||||
SW5 | SW6 | SW7 | SW8 | |||
Default | 1 | 1 | 1 | |||
400 | 0 | 1 | 1 | |||
800 | 1 | 0 | 1 | |||
1600 | 0 | 0 | 1 | |||
3200 | 1 | 1 | 0 | |||
6400 | 0 | 1 | 0 | |||
12800 | 1 | 0 | 0 | |||
25600 | 0 | 0 | 0 | |||
1000 | 1 | 1 | 1 | |||
2000 | 0 | 1 | 1 | |||
4000 | 1 | 0 | 1 | |||
5000 | 0 | 0 | 1 | |||
Company Information
Our services
1) There is a different type of stepper motor and driver for your choose.
2)The product of our company has high working efficiency, low energy consumption and low noise. You can buy it without worry for the good quality. Customers can request the design and production of products; OEM and ODM orders are warmly welcomed.
Company Introduction
Henan Lunyee Industries Co. Limited company is the recognized top manufacturer of industrial humidification system in China. Our factory has three large workshops, covering 3,000 square meter area. We have more than 100 employees, equipped with a professional R&D team, reliable workers and efficient sales service team. Lunyee focuses on research and development and manufacture. We promise excellent quality, reasonable prices, value service, look forward to your guidance and sincere cooperation.
We offer:

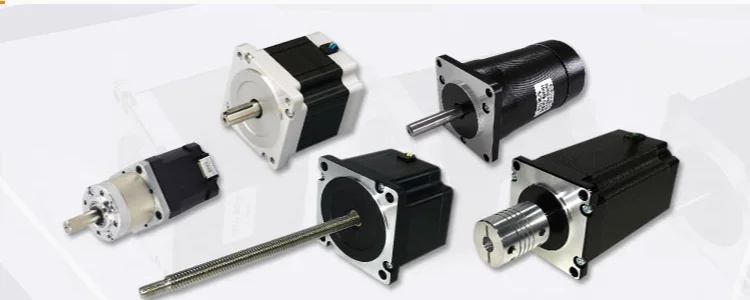

1) stepper motor ;stepper driver; closed loop stepper motor; high precision planetary gearbox; AC/DC gear motors, spindle motor ; inverter (VFD) and so on.
2) Linear bearings, guides & blocks for linear motion system.
3) Precision locking nuts and couplings in FA rotary/transmission parts.
We offer:
1) stepper motor ;stepper driver; closed loop stepper motor; high precision planetary gearbox; AC/DC gear motors, spindle motor ; inverter (VFD) and so on.
2) Linear bearings, guides & blocks for linear motion system.
3) Precision locking nuts and couplings in FA rotary/transmission parts.
Application
Our products are widely applied to machine tools, industrial robot,textile machine,packing machine,food machine, medical appliance,CNC system and air condition and so on!
Packaging & Shipping
* When packaging, put the product in a custom sponge pad, pack it in a carton, and then wrap it with tape
* It can also be packaged according to customer requirements
Related Products
FAQ
Q1: Do you offer customized products?
A: Yes, customized orders are welcomed.
Q2: What kind of payment methods do you accept?
A: We accept Alibaba trade assurance, T/T, Western Union 100% payment in advance for order less $10000, large amount needed to be negotiated.
A: Yes, customized orders are welcomed.
Q2: What kind of payment methods do you accept?
A: We accept Alibaba trade assurance, T/T, Western Union 100% payment in advance for order less $10000, large amount needed to be negotiated.
Q3: What information do we provide when sending inquiry?
A: For AC or DC motors, it is necessary to tell us rated power, voltage, output speed, holding torque.
Q4: What about your warranty?
A: Following the user manual,1 year for conventional products. customized product requires negotiation.
A: For AC or DC motors, it is necessary to tell us rated power, voltage, output speed, holding torque.
Q4: What about your warranty?
A: Following the user manual,1 year for conventional products. customized product requires negotiation.
