Product description
Advantage of grain chiller
· * It allows the grain to store for a very long time without any problems by cooling the grain temperature below 13 degrees and it prevents the pests by cooling.
* You can cool your product in all weather conditions such as high humidity, high humidity, rain, snow, fog.
* The product does not dry your grain because it is cooled with cold and damp (65%) air. The water leading to the air due to ventilation prevents the loss of steam (2-3%). It allows you to get more efficiency from your product. For example, if you vent 10 thousand tons of goods for a long time, the product humidity drops by 2 - 3 points. Ventilation with fans is dry and results in direct weight loss. The total weight of the goods will be reduced by 200-300 tons which is a very serious loss.
* The device targets to cool the grain temperature by 10 degrees and can reduce about 500 tonnes per day by 10-13 degrees.
* With the help of a cooler you can store 15 - 16 - 17 moisture of grain and store them for a very long time without any problems in combination with your dry products.
* You will end all losses which standard fans have caused by drying their heads.
* You will not need fumigation because the grain temperature level falls down to 10-13 degrees.
* Cooler is mobile so there is no requirement to buy 1 for each silo.
* The Cooler works fully when you press the Start button, there is nothing else to do.
* You can cool your product in all weather conditions such as high humidity, high humidity, rain, snow, fog.
* The product does not dry your grain because it is cooled with cold and damp (65%) air. The water leading to the air due to ventilation prevents the loss of steam (2-3%). It allows you to get more efficiency from your product. For example, if you vent 10 thousand tons of goods for a long time, the product humidity drops by 2 - 3 points. Ventilation with fans is dry and results in direct weight loss. The total weight of the goods will be reduced by 200-300 tons which is a very serious loss.
* The device targets to cool the grain temperature by 10 degrees and can reduce about 500 tonnes per day by 10-13 degrees.
* With the help of a cooler you can store 15 - 16 - 17 moisture of grain and store them for a very long time without any problems in combination with your dry products.
* You will end all losses which standard fans have caused by drying their heads.
* You will not need fumigation because the grain temperature level falls down to 10-13 degrees.
* Cooler is mobile so there is no requirement to buy 1 for each silo.
* The Cooler works fully when you press the Start button, there is nothing else to do.
Product Application
The Cooling storage system may be used with the following products: | ||||
Wheat | Oat | Barley | ||
Soya | Sunflower | Corn | ||

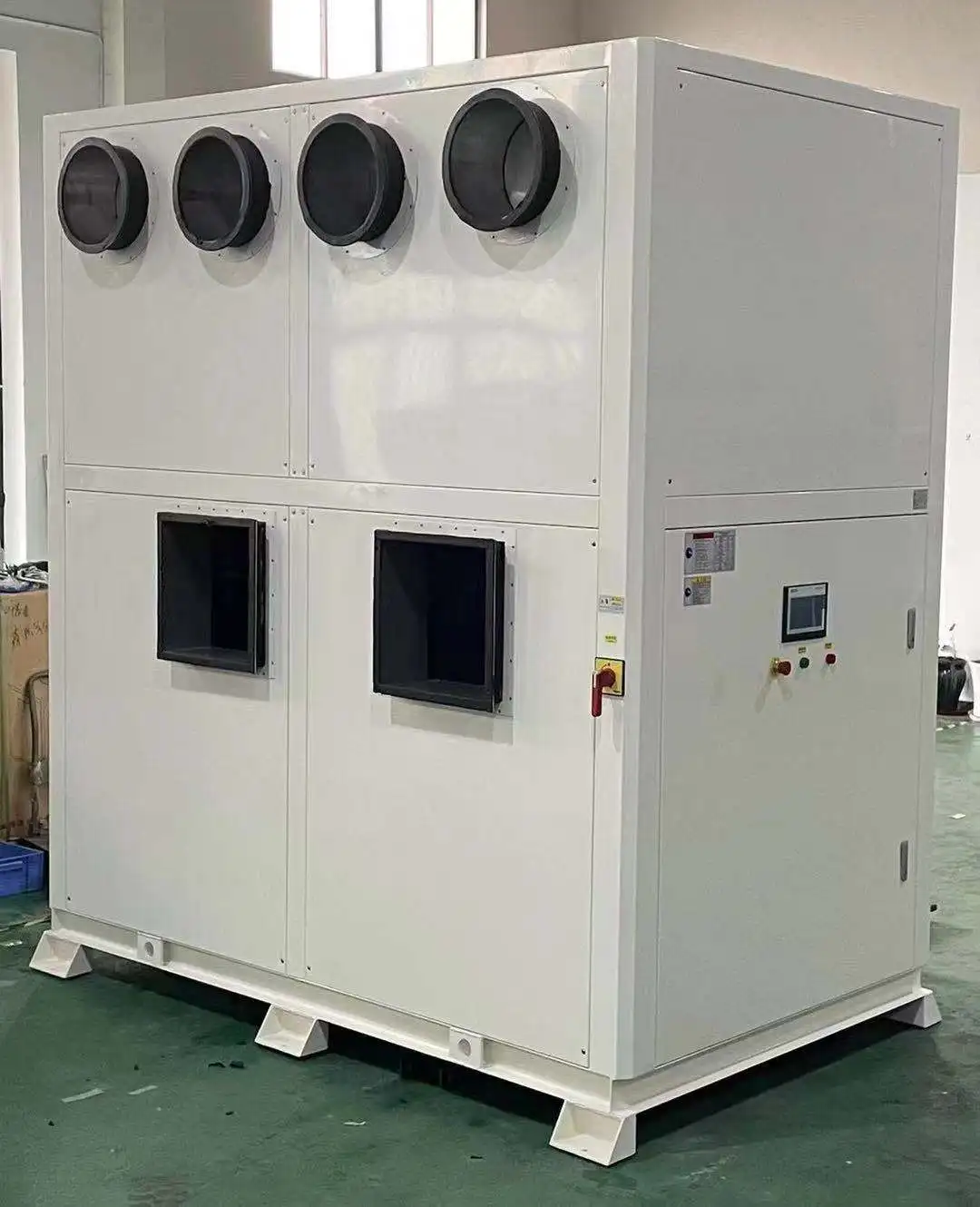

Product Display
MAIN COMPONENTS OF INDIVIDUAL UNITS
* Load-bearing frame made of galvanized steel profiles, casing in epoxy resin coated sheet metal, aluminium profiles
* Liquid separator fitted with safety valve
* Inspectable filter with replaceable cartridge filters in cooling circuit
* Optical indicator of liquid flow
* Manual shut-off valve for main components of circuit
* BITZER compressor
* SIEMENS computer
* SIEMENS TOUCH SCREEN control panel
AIR TREATMENT SECTION
* No. 1/2 centrifugal fans with inverted blades, high pressure and single intake, assembled in a cage frame.
* No. 1/2 B3 type 15 kW electric motors, each 2-pole, directly coupled to the fan axis
* Evaporation/Post-Heating coil made of copper tubes with aluminium finning
* Coolant distributor
* Thermostatic injection valve
* Filtering section, classification EN 779 class G4 Am 95%, limitations of use 80°C RH 90% made of regenerable corrugated
synthetic fibre filtering cells in a steel frame in electric welded galvanized steel wire mesh; plastic micro-mesh with
electrostatic induction effect
* Condensate collection pan in AISI 304 stainless steel
* Air flow control system by way of an electronically controlled damper driven by a servomotor
MOTOR-DRIVEN CONDENSING SECTION
* Blitzer motor-driven compressor, complete with: intake shut-off valve, integrated differential pressure check valve for
electric motor with PTC sensor for temperature control, module to check: missing phase, phase sequence, motor thermistor,
compressed gas temperature and compressor start delay, terminal block with IP54 protection
* Unladen and step start devices
* Condensing coil made of copper tubes with aluminium finning
* No. 2/4 fans diam. 630, with external 4-pole rotary motors, complete with nozzles and protective grilles
* Anti-vibration connection to coolant compression circuit in AISI 304 stainless steel
* Gas absorption heat pump defrosting systems
* Load-bearing frame made of galvanized steel profiles, casing in epoxy resin coated sheet metal, aluminium profiles
* Liquid separator fitted with safety valve
* Inspectable filter with replaceable cartridge filters in cooling circuit
* Optical indicator of liquid flow
* Manual shut-off valve for main components of circuit
* BITZER compressor
* SIEMENS computer
* SIEMENS TOUCH SCREEN control panel
AIR TREATMENT SECTION
* No. 1/2 centrifugal fans with inverted blades, high pressure and single intake, assembled in a cage frame.
* No. 1/2 B3 type 15 kW electric motors, each 2-pole, directly coupled to the fan axis
* Evaporation/Post-Heating coil made of copper tubes with aluminium finning
* Coolant distributor
* Thermostatic injection valve
* Filtering section, classification EN 779 class G4 Am 95%, limitations of use 80°C RH 90% made of regenerable corrugated
synthetic fibre filtering cells in a steel frame in electric welded galvanized steel wire mesh; plastic micro-mesh with
electrostatic induction effect
* Condensate collection pan in AISI 304 stainless steel
* Air flow control system by way of an electronically controlled damper driven by a servomotor
MOTOR-DRIVEN CONDENSING SECTION
* Blitzer motor-driven compressor, complete with: intake shut-off valve, integrated differential pressure check valve for
electric motor with PTC sensor for temperature control, module to check: missing phase, phase sequence, motor thermistor,
compressed gas temperature and compressor start delay, terminal block with IP54 protection
* Unladen and step start devices
* Condensing coil made of copper tubes with aluminium finning
* No. 2/4 fans diam. 630, with external 4-pole rotary motors, complete with nozzles and protective grilles
* Anti-vibration connection to coolant compression circuit in AISI 304 stainless steel
* Gas absorption heat pump defrosting systems
Our Company
MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality
A STRATEGIC LOCATION
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China.
QUALITY CERTIFICATES
Since 2004 UNI EN ISO 9001:2008 Quality System
Since 2005 UNI EN ISO 14001:2004 Environmental Management System
Since 2005 UNI EN ISO 14001:2004 Environmental Management System
Packing and delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
