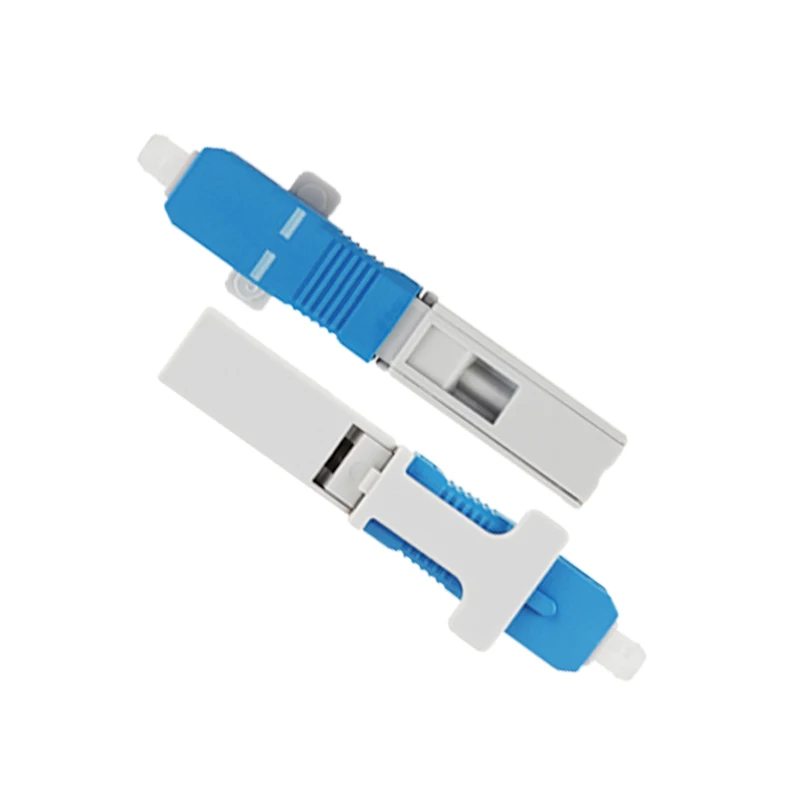

Защелкивающийся волоконный полевой быстрый разъем SC/APC UPC для FTTH

Описание и отзывы

Характеристики

snap-in fiber field fast connector SC/APC UPC field quick connector for FTTH drop cable









Mecable is a professional FO cable, patch cords, pigtails, adapters and other accessories manufacturer with a history of more than 20 years!

Quality-oriented is our company priority!

Samples are available if leaving a message!

Welcome to visit our factory before any order if possible.

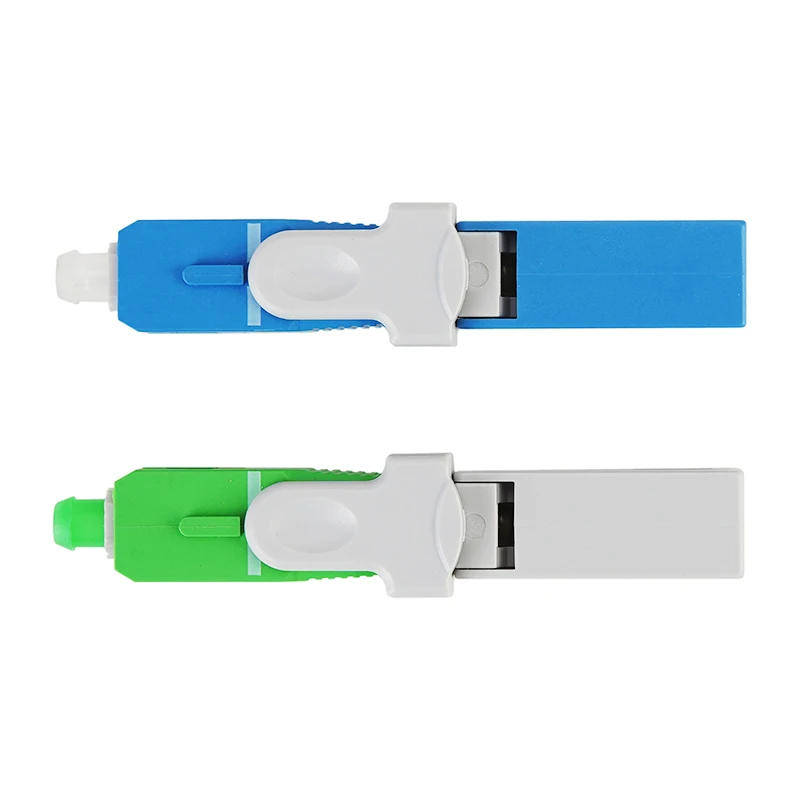

snap-in fiber field fast connector SC/APC UPC field quick connector for FTTH drop cable





Product Description

The snap-in fiber  fast Connector which is also called Field Assembly Connector, Field terminated  fiber connector or quickly assembly Fiber connector is a revolutionary field  installation optic fiber connector that requires neither epoxy nor polishing.  The unique design of the patented mechanical splice body incorporates a  factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this  onsite assembly optical connector, it is possible to improve the flexibility of  optical wiring design as well as reducing the time required for fiber  termination. The Fast connector series has already been a popular solution for  optical wiring inside buildings and floors for LAN, CCTV applications &  FTTH.



Product standard



They comply with  below international standards:

• 1.ITU-T and IEC and China standards:


• <YDT  2341.1-2011 Field Assembled Optical Fiber Active Connector Part 1: Mechanical Type>


• <China  Telecom fast Connector Standard [2010] No. 953>


• <01C  GR-326-CORE (Issue 3, 1999) General requirements forsingle-mode  optical connectors and jumpers>


• <YD/T  1636-2007 Fiber to the Home (FTTH) Architecture and General Requirements> Fiber Optic Cable Connector Part 4: Sectional Specification Optical Fiber  Optical Cable Mechanical Connector

Technical Parameters



Item	Parameter
Cable Scope	3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop    Cable
Size	51*9*7.55mm
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(excluding fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -50dB for UPC, ≤ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test	IL ≤ 0.3dB





•   Applied to open FTTH fiber terminal


•   Used  in closure boxes, cabinets, terminal boxes, etc.


•   Recovery  and maintenance in fiber breakage and other accidents


•   LAN,  WAN, data and video transmission


•   Construction  and maintenance of fiber access for end users


•   Fiber  entry for mobile base stations

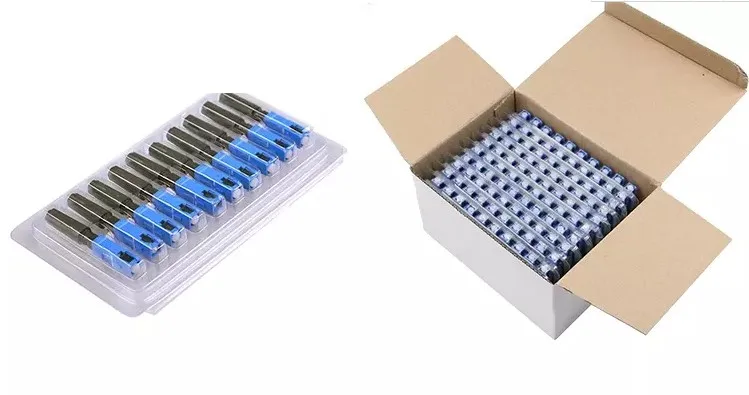

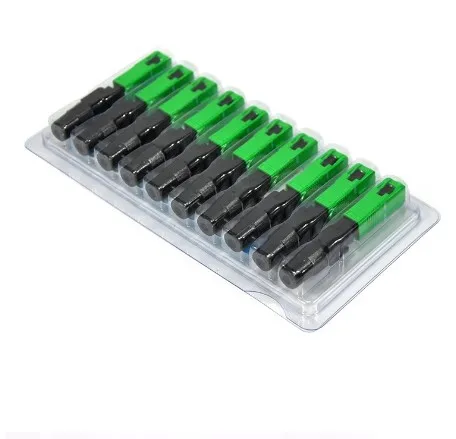

Package:
