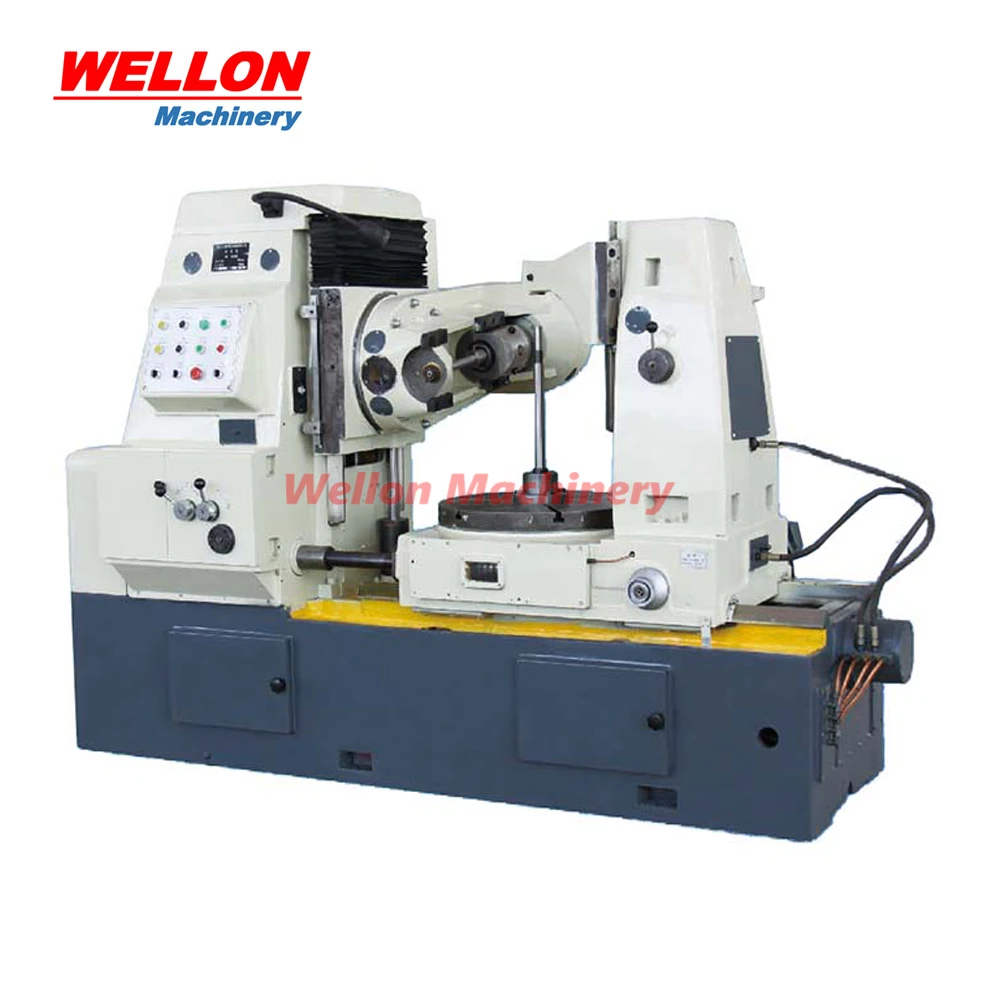

Высокая точность Зубофрезерный станок цена

Категории: Gear Cutting Machines >>>
Поставщик: Tengzhou,Wellon,Machinery,Co.,Ltd.

Цена:16 000,00 $ - 18 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Features:

1.The machine is suitable for large batch and single production of cylindrical spur and helical gears, worm gears and sprocket.

2.The machine is characterized by good rigidity, high strength, high working accuracy, and easy in operation and maintain.
3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.

Technical Parameter :

Item	Y3180E
Max workpiece dia	with rear column:550m
Max workpiece dia	without rear column:800mm
Max module	10mm
Max workpiece width	300mm
Min number of teeth of workpiece	12
Tool head max vertical travel	350mm
Distance from hob cutter center to worktable face	max585mm
Distance from hob cutter center to worktable face	min235mm
Spindel taper	morse5
Hob cutter	max dia 180mm
Hob cutter	max length 180mm
Arbor dia	22 27 32 40
Distance from hob cutter axes center to worktable axes center	max 550mm
	min 50mm
Worktable hydraulic move distance	50mm
Worktable aperture	80mm
Worktable dia	650mm
Spindle rotate step,range	8step 40-200r/min
Worktable move speed	less than 500m/min
Main motor power and rotate speed	N=5.5KW 1500r/min
Machine weight	5500kg
Machine size	2752X1490X1870mm
