Зубчатая машина высокого качества

Категории: Gear Cutting Machines >>>
Поставщик: Tengzhou,Wellon,Machinery,Co.,Ltd.

Цена:14 000,00 $ - 15 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

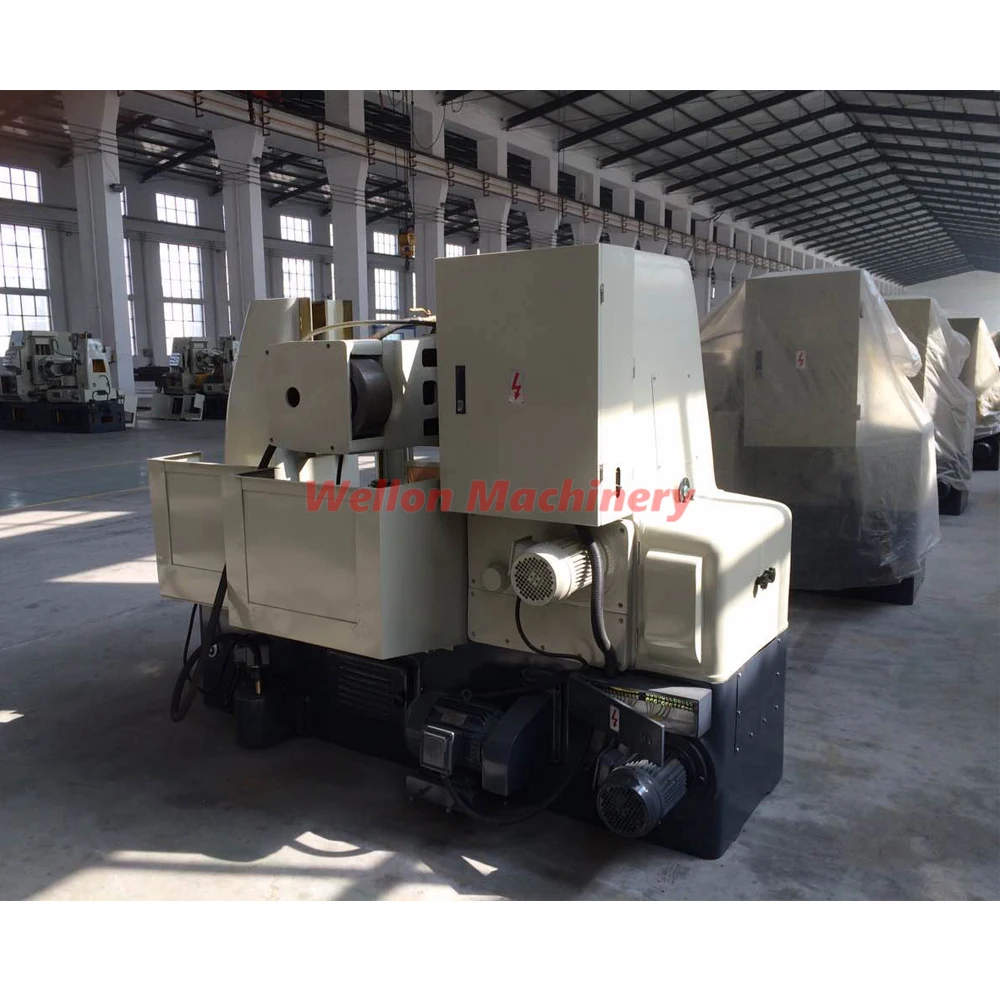

Good Quality Gear Hobbing Machine Y3150E

Feature:

1. The machine is suitable for large batch and single production of cylindrical spur and helical gears, worm gears and sprocket.

2. The machine is characterized by good rigidity, high strength, high working accuracy, and easy in operation and maintain.
3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.

Technical Parameter :

INDEX	UNIT	Y3150E
Max work piece diameter	mm	500
Max modulus	mm	8
Max machining width	mm	250
Min machining num. of teeth		6
The largest machining spiral Angle	°	±45
Scope of main tool turning speed and grade	rpm/grade	40-250/9
Max turning angle of tool		240 ±
Max tool loading dimensions(diameter × length)	mm	160 ×160
Main motor	k w	6.45
Spindle taper		Morse 5
Max axial amount of movement of tool	mm	50
Distance between axis line of tool and worktable face	mm	235-535
Min distance between tool axis and worktable axis	mm	30
Distance between back rest under face and worktable face	mm	380-630
Machine size(length× width× height)	mm	244013701800
Weight	kg	About 4500
