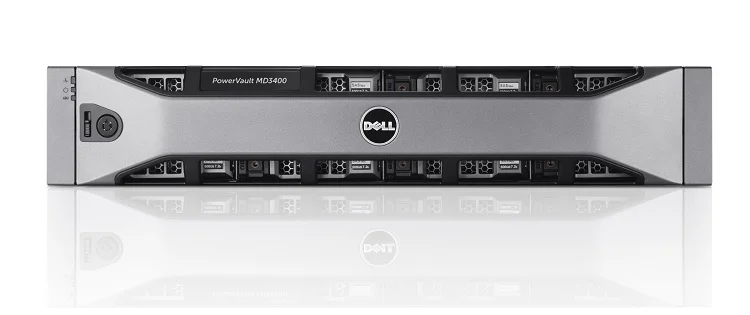

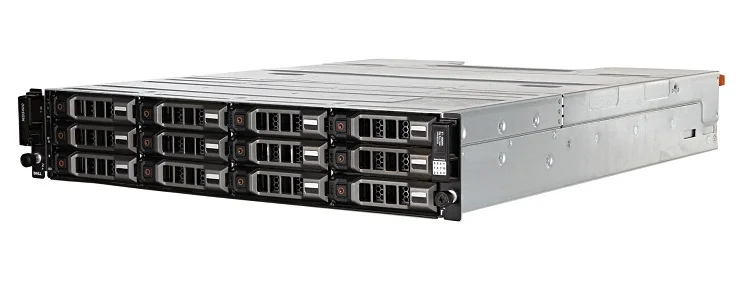

Dell EMC PowerVault 12 * 4TB 7.2k SAS DAS Direct-attached MD3400 Network Nas

model

Dell MD3400

PERC H800

PCI-E 2.0 Host-RAID adapter with two external x4 SAS ports, standard 12Gb

Controller

Two

Drives

Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, and 15K
rpm and SAS Solid State Drives (SSDs)

Drive Performance and Capacities

2.5” SAS HDDs in 3.5” carrier, 10,000 RPM 6Gb/s SAS drives available in 300GB and 600GB
2.5” SAS SSDs in 3.5” carrier, 3Gb/s SSD available in 149GB

Maximum Capacity

24TB using twelve (12) 2TB 7,200 RPM 6Gb/s SAS disk drives

Expansion Capabilities

PERC H830 HostRAID adapter enables expansion to 8 enclosures (4 enclosures per port)

Unified Mode

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC
H830 (4 enclosures per port, single path)

Split-Mode/Dual-Host Access

Split mode with dual Enclosure Management Modules providing direct connectivity
to drives 0 though 5 and a separate connectivity to drives 6 through 11

Enclosure Management

2 EMM provide redundant enclosure management capability

RAID Levels

PERC H830 supports RAID levels 0, 1, 5, 6, 10, 50, and 60

Host Connectivity

1 SAS (SFF 8088) IN connector for connection to the host

Expansion Connectivity

1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure

Service Management

1 6-pin UART mini-DIN connector (for factory use only)

Wattage

600 W

Height x Width x Depth

8.7cm (3.39 inches) x 48.2cm (18.8 inches) x 59.4cm (23.17 inches)

Weight

28.39 kg
