Textile cleaning equippment cloth dewatering drying machine
Product Description
The industrial centrifugal dewatering machine is designed according to the unified standard of the original Ministry of Textile Industry. It has the advantages of simple and reasonable structure, high efficiency, low wear, low noise, safety and reliability.
It is mainly used for dewatering and drying all kinds of textile (knitting) fabrics, clothing, chemical raw materials, latex products, etc. after washing,
It is widely used in enterprises and institutions such as textiles, printing and dyeing, clothing, hotels, hospitals, chemicals, food and latex products.
It is mainly used for dewatering and drying all kinds of textile (knitting) fabrics, clothing, chemical raw materials, latex products, etc. after washing,
It is widely used in enterprises and institutions such as textiles, printing and dyeing, clothing, hotels, hospitals, chemicals, food and latex products.
Specification
Model | ASS-500 | ASS-600 |
Power | 1500W | 2200W |
Weight | 250kg | 450kg |
Size | 1000×1000×650mm | 1250×1250×700mm |
Hopper diameter | 500mm | 600mm |
Hopper hight | 300mm | 300mm |
Rotate speed | 960r/min | 960r/min |
Max capacity | 25kg | 45kg |

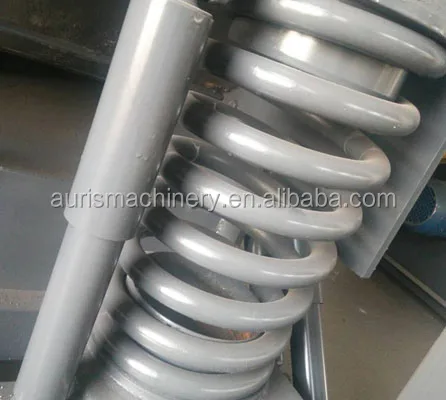

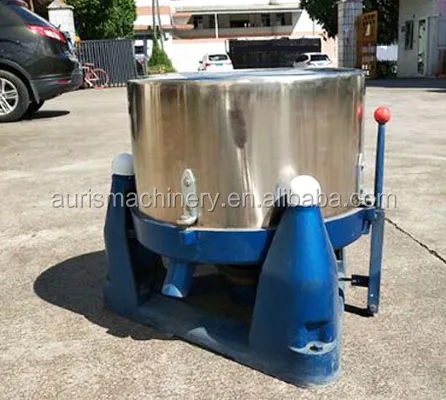

1. Industrial centrifugal dehydrators are all three-legged pendulum structures, which can effectively reduce the foot vibration caused by the unbalanced load in the rotating hub during operation.

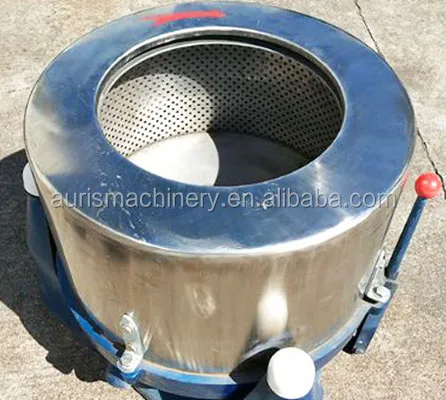

2. The shell is made of stainless steel or steel material, the rotating hub is made of stainless steel plate, the cage base and the chassis are all cast iron materials, and the water outlet pipe is under the chassis.
3. The main shaft is made of high-quality steel after heat treatment.

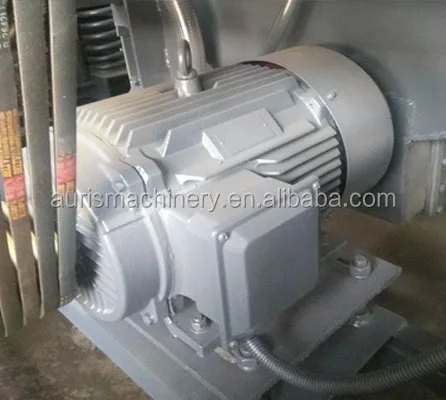

4. The transmission part adopts triangular belt transmission, and the motor directly drives the centrifugal starting wheel, which can make the machine start slowly and gradually reach the design speed to ensure the smooth operation of the machine.
5. There is a brake opening and closing arm in the machine, which has good braking performance and can stop the machine quickly.
2. The shell is made of stainless steel or steel material, the rotating hub is made of stainless steel plate, the cage base and the chassis are all cast iron materials, and the water outlet pipe is under the chassis.
3. The main shaft is made of high-quality steel after heat treatment.
4. The transmission part adopts triangular belt transmission, and the motor directly drives the centrifugal starting wheel, which can make the machine start slowly and gradually reach the design speed to ensure the smooth operation of the machine.
5. There is a brake opening and closing arm in the machine, which has good braking performance and can stop the machine quickly.
Pictures
Operating instructions
1. Put the laundry to be dehydrated into the rotating hub evenly and evenly, paying attention to balance and not overloading.
2. After starting the motor for about 90 seconds, the machine reaches the normal operating speed, and the water outlet pipe starts to flow out a large amount of washing liquid.
3. The machine stops for about 8-10 minutes, and there is basically no washing liquid outflow from the outlet pipe. You can cut off the power supply. After 1-2 minutes, slowly brake the opening and closing arm several times and the machine stops.
1. Put the laundry to be dehydrated into the rotating hub evenly and evenly, paying attention to balance and not overloading.
2. After starting the motor for about 90 seconds, the machine reaches the normal operating speed, and the water outlet pipe starts to flow out a large amount of washing liquid.
3. The machine stops for about 8-10 minutes, and there is basically no washing liquid outflow from the outlet pipe. You can cut off the power supply. After 1-2 minutes, slowly brake the opening and closing arm several times and the machine stops.
Packing & Delivery
