Complete Yogurt Production Line Yogurt Production Machine
Product Description
1. Our company's equipment is made of high-quality SUS304 stainless steel (thickness 2mm), and the sterilization temperature and speed can be set according to the process requirements.
2. Good sterilization effect, low noise, adjustable speed, durable, safe and reliable, temperature can be automatically controlled, and easy maintenance.
3. The tank is divided into three layers, the outermost layer is an insulation layer, the middle is a hot water sterilization layer, and the inner layer is milk.
4. There is a stirring device above the milk tank, and the milk is stirred by the stirring device to heat the milk evenly.
5. Pasteurized milk should be stored at a temperature of about 4℃, and can only be stored for 3-7 days.
Technical Parameter
200L process:
The production processor yogurt: raw material storage tank -filtration -heating -homogenization -sterilization- fermentation-filling
Auxiliary equipment: refrigeration tank-single filter-preheating tank -homogenizer- pasteurization tank- fermentation tank- filling machine.
Model:HT-MK200 | ||
Machine Name | Capacity | Specification |
Refrigeration Tank | 200L | Material: SUS304 Power : 2kw With stirring Speed :36r/min Insulation layer 5mm Polyurethane foaming liquid |
Preheating Tank
| 200L | Dimension:1020*870*1530mm Voltage :380V Rated Power:6kw Stirrer Speed:36r/min Stirring Motor Power (kw):0.55 Material: SUS304 Equipped with power: 0.75 kw Speed: 36 rpm 12kw heating tube |
Homogenizer Machine
| 500L/h | Materials Inlet and Outlet(mm):40 Rated Milk Flow:500kg/h Maximum pressure :25P (MPa) Weight :500kg Dimension :1010*616*975mm Power: 4kw
|
Pasteurization Tank | 200L | Dimension :1020*870*1530mm Heating cycle :25-35 minutes Sterilization temperature :60-99 adjustable Material: 304 stainless steel Equipment Weight: 100kg Material: SUS 304 Power:0.75 kw Rotating Speed: 36r/min 12kw electric heating tube Warm water circulation at room temperature |
Disc paper cup filling machine | 800 cups/hour | Quantitative:50-1000ml Dimension :1200*1200*1400(mm)
|
Fermenter Tank | 200L | Dimension :1020*870*1530 Capacity:0-200kg/times Heating cycle: 25-35 minutes Sterilization temperature: 0-60 adjustable Material: 304 stainless steel Equipment weight: 100kg
|
Milk pump
| 3t/h | Material: 304 stainless steel Size: 400*180*240mm Material: SUS304 Carbide mechanical seal Equipped with power: 1.5kw Import and export Φ38 |
Single filter | Single | Material: SUS304 |

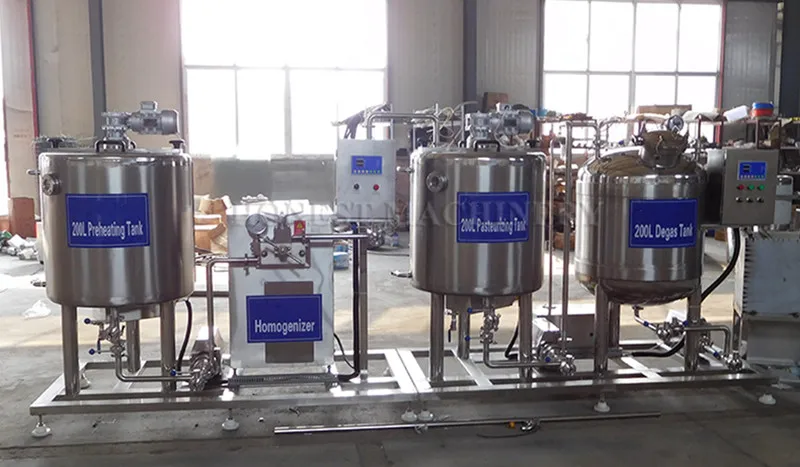

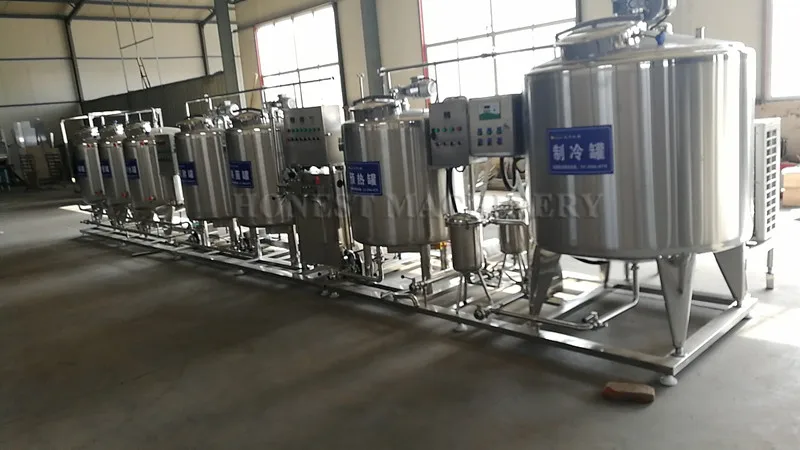

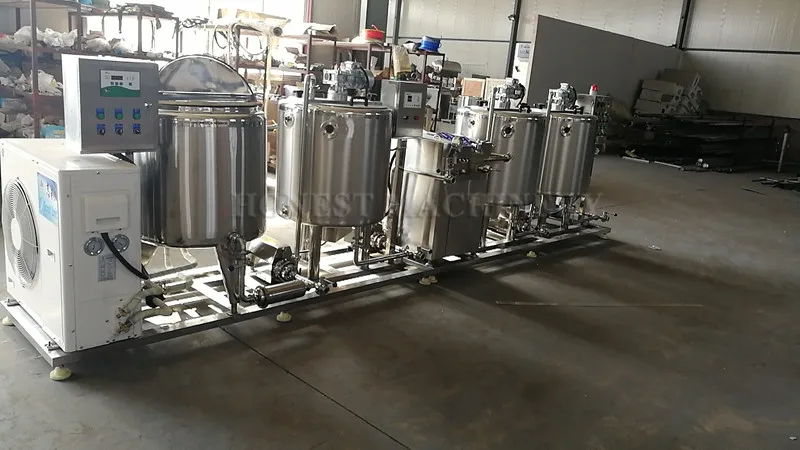

Product Picture
Company Certificate
Our Customers
Contact us
If you need further information, please contact us freely, we will do our best to cooperate with you.
