Хит продаж, высокопрочный насос для бетонных насосов
US $4800-$5300
Бетононасос XCMG Schwing HB37V Китай 2 оси 37 м небольшой гидравлический бетононасос
- Категории: Бетонные насосы >>>
- Поставщик: Xcmg,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Характеристики
Products Description

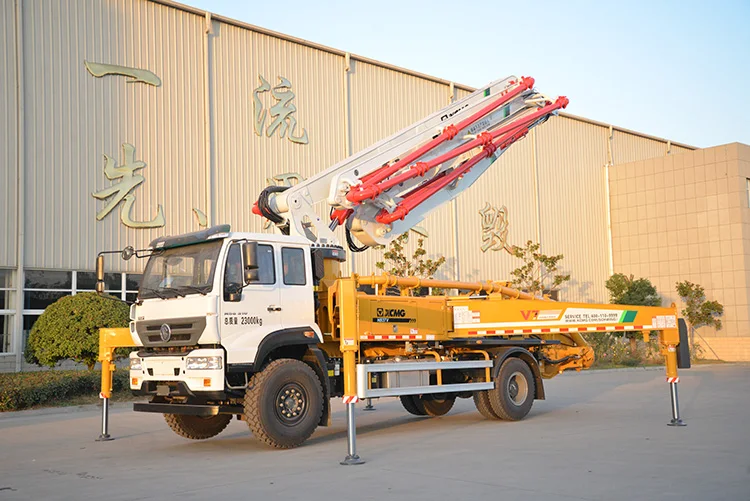

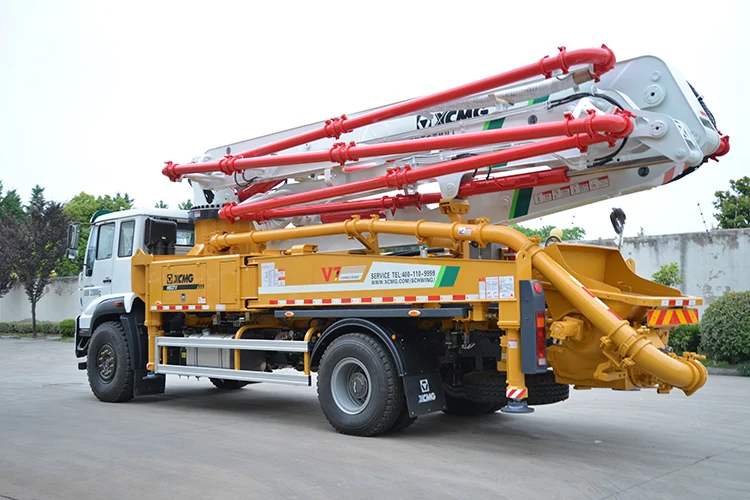

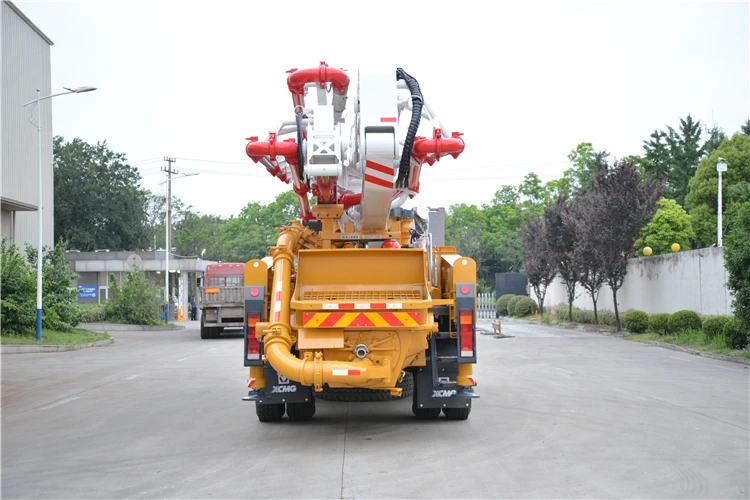

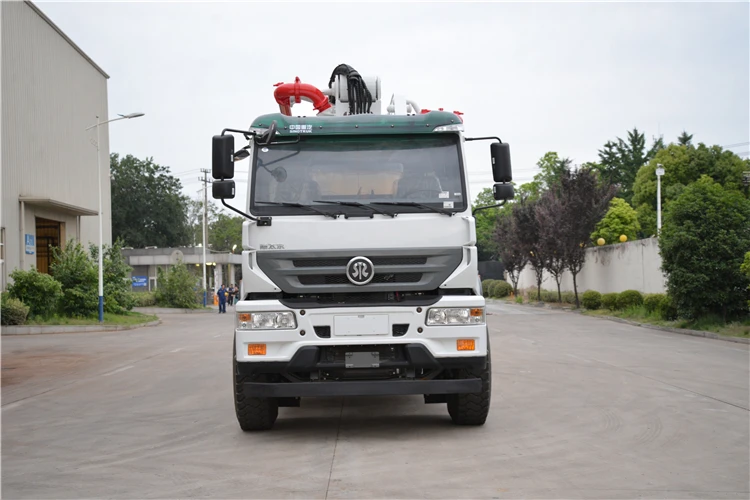

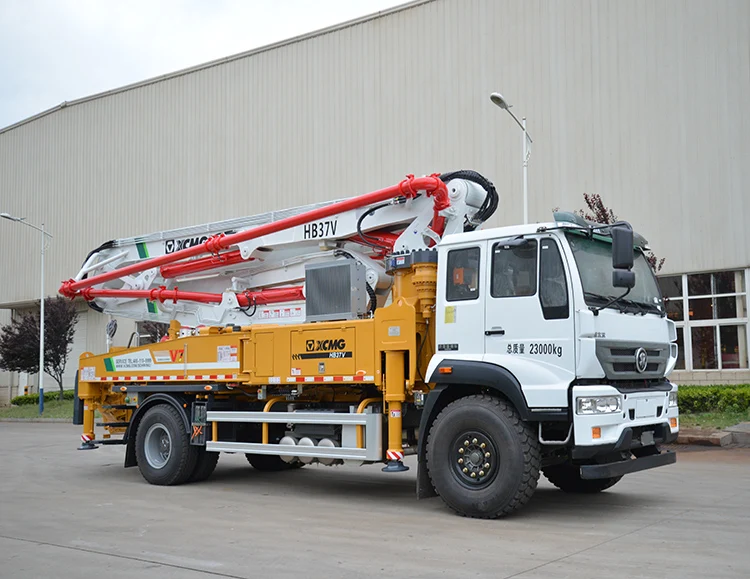

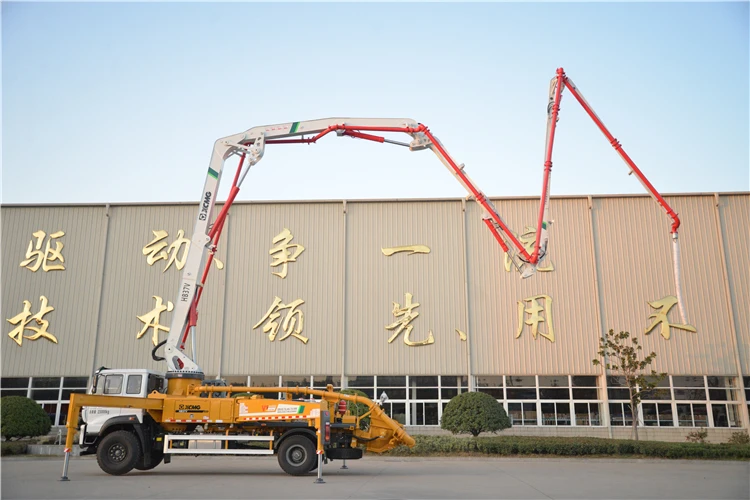

XCMG Schwing HB37V Concrete Truck China 2 Axle 37m Small Hydraulic Concrete Pump Truck.
The XCMG HB37V concrete pump truck is equipped with more efficient skirt valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.
It adopts Sinotruk sitrak chassis, which complies with China 6 emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.
Advantages and highlights:
1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Specification
Category | Item | Unit | HB37V | ||
Overall | Outline dimension | mm | 10080×2525×3750 | 9900×2525×3750 | |
Overall weight | kg | 22870 | 23000 | ||
Chassis | Brand | / | Sinotruck Sitrak | ||
Model | / | ZZ5237N521GF1/PAD752 | ZZ5231N521GE1 | ||
Wheelbase | mm | 5200 | |||
Max.power | kW | 228 | 225 | ||
Emission standard | / | China VI | China V | ||
Pumping system | Theoretical | m³/h | 120/80 | ||
Concrete pumping pressure | MPa | 8.7/13 | |||
Placing boom | Reach height | m | 36.5 | ||
Reach depth | m | 24.9 | |||
Slewing radius | m | 32.5 | |||
Others | Transfer | / | S valve | ||
Product Show
Online Service Team
Packaging & Shipping
Company Profile
FAQ
