Китай 200 тонн морской подъемный

 1. Name:  200 ton marine travel lift crane

2. Key words: boat hoist, boat crane, small boat crane, 200t yacht boat hoist crane

3.  Port Used Small Boat Crane features:

•  Capacity:  30 tons ~ 500 tons

•  Size requirements:  needed to be dsigned as customer's boat size

•  MBH or Mobile Boat Hauler

•  Hydraulic & Electric drive

•  Full frequency conversion

•  Cabin & Remote control

•  360 degree concentric steering

•  Usage for boat, yacht transfer

•  In repair yard, Shipyard, Dock

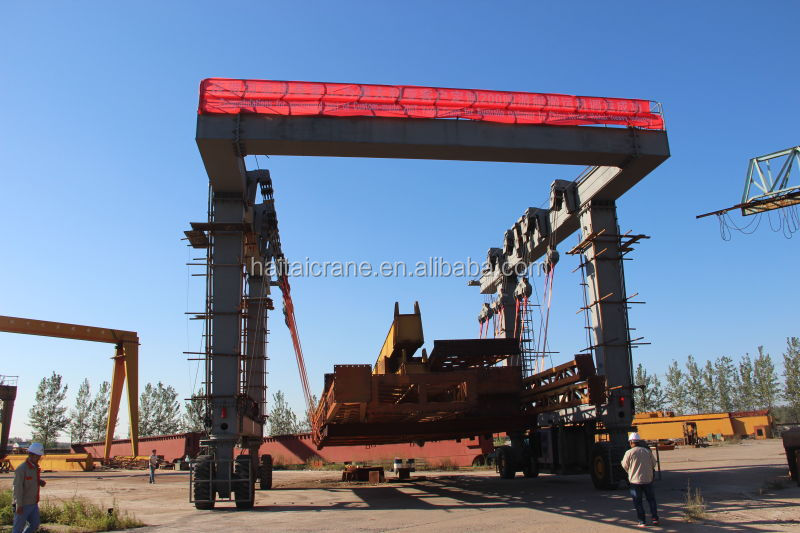

Name: 200 ton marine travel lift crane

1. Loading capacity: 80t ( 20m outreach)
2. Fly jib load: 10t
3. Outreach: 18m to 50m
4. Load capacity: 25t ( 50m outreach)
5. Lifting height: 45m above rail, 10m below rail.
6. Distance between the rails: 9m( 5m-16m)
7. Type: four-bar portal boom or Single girder
8. Structure: box type boom or frame type
9. Industry working voltage: Local (User)
10. Color: Red, yellow, white or blue etc
11. Power Supply: 3-Phase
12. Working duty: A7
13. Standrad: GB/T 24001-2004
14. Steel track recommended: P48

1. For the crane traveling, it can move in diagonal direction, it also can steer in 90 degree or do pivot steering,it also can put the boat in any designated position according to requirements

2. Main girder can adjust the span according to the boat width for handling different width boat.

3. Low expenses, high performance, easy to operate and maintenance etc

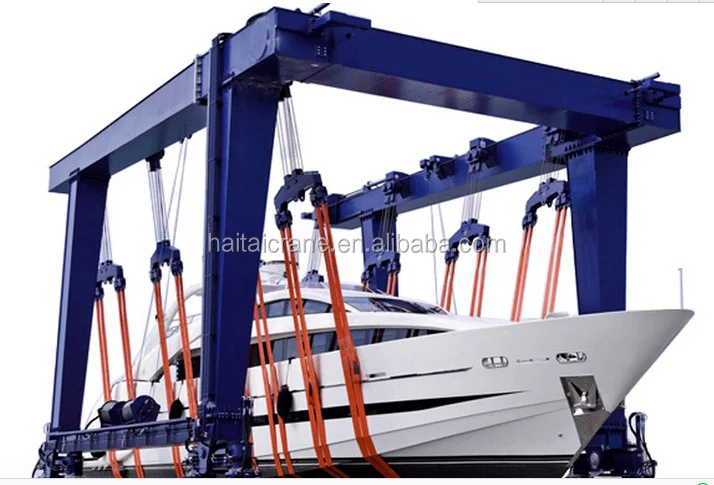

4. Low cost on the daily operation, it adopts the soft&firm belt to ensure no harm to the boat when hoisting

5. It can make the boat in order quickly, it also can adjust the gap between each boat according to different condition, reducing the wasted space.

Delivery Time

• Boat Hoist delivery :

• 180days for production, the port loading and custom cost about 6 days,
• the sea transportant takes 15days to 35days, the loading, transport and installation takes about 10days to 20days

• Total time: 210days to 241days

• 14 months warranty when products leave the factory, or 12 months warranty after installation and

     commissioning in addition to the human damage factors.

•  2 years spare-parts provided for better maintenance.

•  Professional technical staffs provide installation, commissioning and training services.

•  Delivery with English user manual, parts manual, product certification and other relevant

    certificates.

        •  Technical advisory for any time and Engineers available to service machinery overseas

What specifications you need to tell us when you make an inquiry:
•  Lifting Load capacity
•  Lifting Height: ( how height?)

• Span:

• the max. seize of boat you are going to lift:
Or Just tell me where you will use, then it is my turns.
