Новая дробилка с двойным зубчатым валиком используемая при дроблении многих видов

Product introduction

Screening typed double tooth roll crusher is a new conceptual screening crusher which is developed by us through introducing the technology of the same kind of products. It breaks materials by the co-effect of shearing and stretching which is totally different from the traditional roll crusher crushing materials by impact and extrusion force.

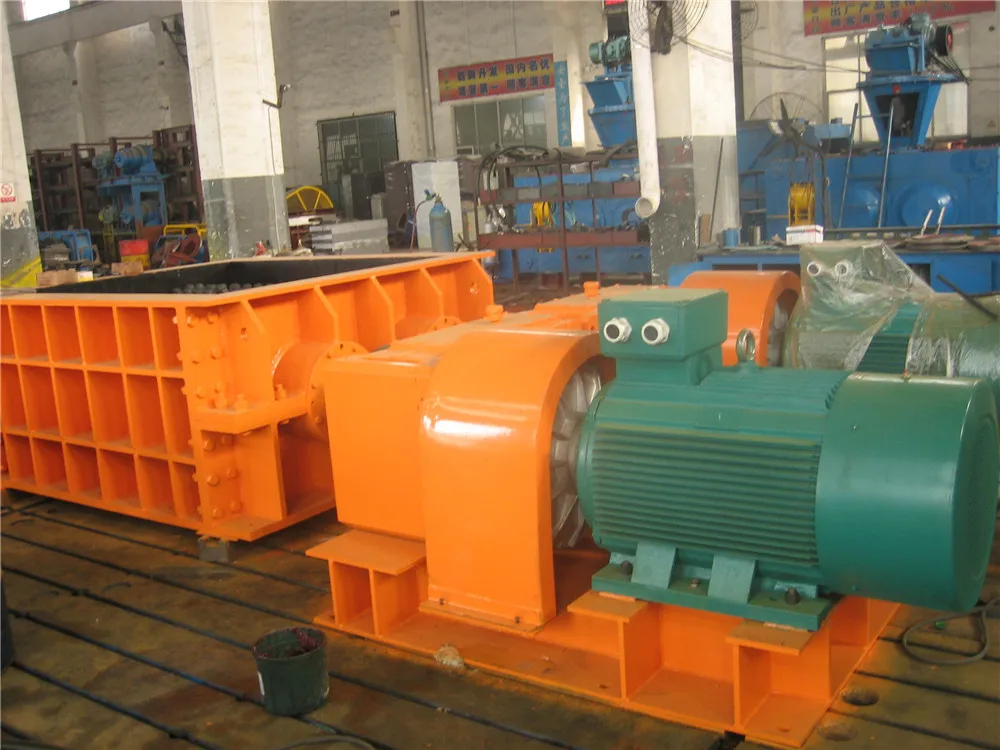

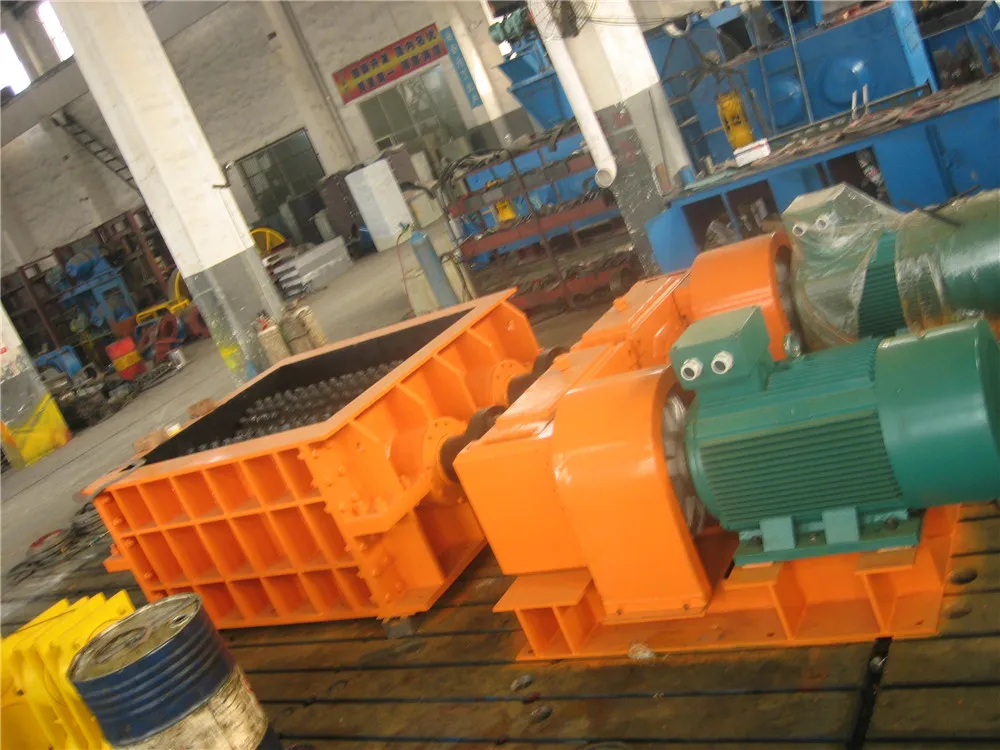

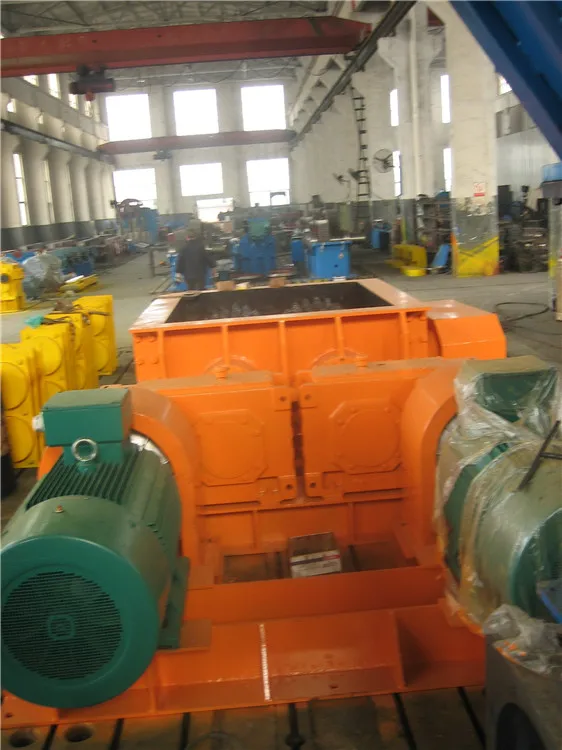

There are two parallel toothed rollers horizontally mounted in the crushing cavity of screening typed double tooth roll crusher. The crushing teeth are distributed on the rollers’ surface. The two rollers are rotate oppositely driven by driving motion (single or double motor). Crushed by shear and pull force of the teeth, materials are finally broken off. If smaller particles needed, an adjustable toothed stick can be installed under the rollers. There are three phases of crushing. Firstly, gear rollers clamp materials. The second happens when materials go through the two rollers. Then the adjustable crushing stick works together with the gear teeth to do the further crush, which is called the third stage crushing.

After years of development, the screening typed double toothed roll crusher produced by our company has developed into five series in a variety of specifications. As for its excellent function, the crusher works efficiently to break all kinds of wet, dry, sticky, soft, hard ore and rock smoothly. In terms of structure, performance, quality and life time, it has met the international advanced level of similar models, and also can completely replace the imported products. Now it has been widely used in crushing many kinds of ore, such as the aluminous ore, limestone, lateritic-nickel ore, coal and oil shale.

Advantages and features

1.      Because of the theoretical breakthrough, 2PCQ has more advantages over other similar products with the same output, such as compact structure, lighter weight and also lower investment costs.

2.      2PCQ is completely different from the conventional double roller crusher. The ore is crushed by pull and shear force, which reduces the powder content and products evener product.

3.      The teeth are larger. The design of teeth location and space between teeth guarantees the small particles directly go through without crushing, which can lower the consumption of crusher power. The unique characteristic makes it a very high processing capacity even at low speed and low wear.

4.      When dealing with wet and adhesive material, combs can be installed at both sides of the crushing rollers, which can lean up among teeth, avoiding material adhering to the teeth.

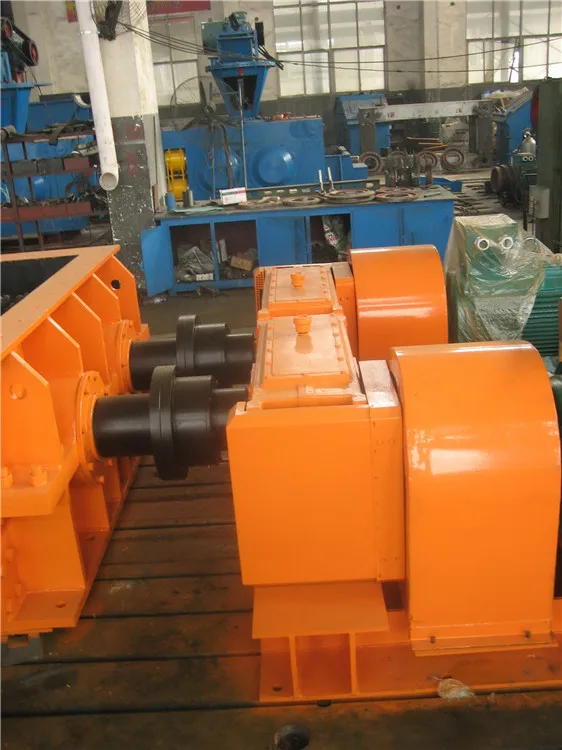

5.      Driving motion uses fluid coupling and harden-gear speed reducer. The fluid coupling makes drive steady and provides protection against overload. The harden-gear reducer had characteristics of high efficiency, long service life and compact structure.

Q1 Why choose us ?

We have a professional rich experiences stuffs;
We have the largest factories and production capacity since 1986;
The ZHONGYUAN euqipment, worthy of your trust!

Q2Does the equipment have any special Advantages?

1.The application of high pressure grinding roll can improve the productivity of the powder grinding system by 20%-30%.Power consumption of grinding system can decrease by 25-50% compared with the traditional grinding method.

2.The machine is equipped with sealing cap for rollers which can control the harmful dust spread to create a better production environment.

3.The machine has following advantages such as compact structure, less space-occupation, high reliability. Its operation efficiency can be up to approx.95%.

4.It is lower energy-consumption, less pollution which is the energy conservation and emission reduction and environmental protection product.
