Brief Introduction
Thank you so much for choosing our machine, we’ll continue improve our machine
and provide decent after sale service as much as we can. Read this manual before
you using this machine will save you a lot of time and effort, so you can quickly
understand all about this machine.
and provide decent after sale service as much as we can. Read this manual before
you using this machine will save you a lot of time and effort, so you can quickly
understand all about this machine.

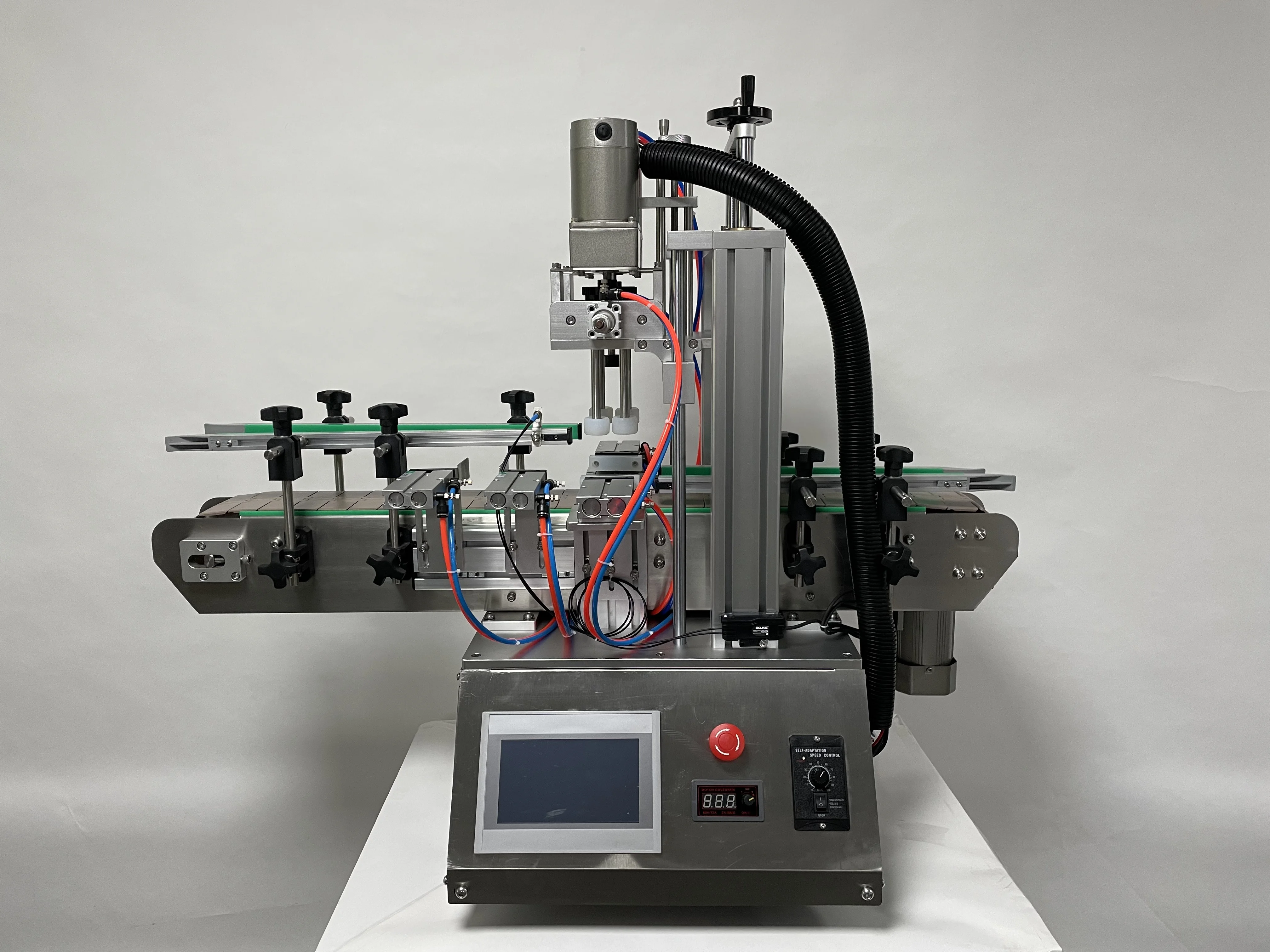

This is basically a semi-automatic capping machine which tightens or secures a cap
on a round bottle. You’ll find a lot similar product in the market, but ours are more
compact which sits on a regular table, and we build this machine with three main
purpose in mind:
1. More secure and stable machine structure.
2. More friendly touch screen interface with no machine translated nonsense.
3. More friendly electrical & air circuit for easy replace or repair.
on a round bottle. You’ll find a lot similar product in the market, but ours are more
compact which sits on a regular table, and we build this machine with three main
purpose in mind:
1. More secure and stable machine structure.
2. More friendly touch screen interface with no machine translated nonsense.
3. More friendly electrical & air circuit for easy replace or repair.
Parameters of machine
Model Name | YTK-CM120 |
Voltage Supply | 110V/220V 50/60Hz |
Power | 400w |
Product Yield | 20~40 Pcs/min |
Machine Size | 1100*550*865mm |
Machine Weight | 74KG |
Package Size | 1180*710*1000mm |
Package Form | Wooden Crate with Pallet |
Package Volumetric Weight | 168KG |
Conveyor Type | Plastic Plate Conveyor Belt |
Conveyor Length | 1100mm |
Conveyor Speed | 18m/min |
Bottle Height | 40~200mm |
Bottle Body Diameter | 20~120mm |
Bottle Cap Diameter | 20~60mm |
Cap Turning Torque | 3 N*m |
Product Features
1. Electrical control movement, stability.
2. A positioning device, capping standard, easy to operate.
3. Lock over wide range of different shapes sizes lockable caps.
4. Solve the nozzle, pump head, spray pumps, hand gun spin button
cover difficult problem.
5. Capping speed adjustable.
6. Can be adjusted depending on the tightness of the cap.
1. Electrical control movement, stability.
2. A positioning device, capping standard, easy to operate.
3. Lock over wide range of different shapes sizes lockable caps.
4. Solve the nozzle, pump head, spray pumps, hand gun spin button
cover difficult problem.
5. Capping speed adjustable.
6. Can be adjusted depending on the tightness of the cap.
System Checking
1. Find an even, steady, stable surface and put this machine on it.
2. Plug in power and connect the inlet hose to your air compressor.
3. Flip the power switch and push the blue collar to let the air flow through.
• Once the power switch is on, it should boot up the system and touch screen lit up.
• Once air flow through, all the cylinders should be reset to its original position.
4. In the touch screen, go to the Manual Mode and press each button to check all the functions are behaving correctly.
5. Bottle sensor checking
• In the Main Screen, in the middle bottom part is the bottle sensor indictor.
• Normally, the indictor is red, if you block the sensor with your hand/bottle, the indicator should turn green. This means your bottle sensor is behaving right.
• If it behaves oppositely, please goto the FAQ part of this manual to see how to set the sensor correctly.
2. Plug in power and connect the inlet hose to your air compressor.
3. Flip the power switch and push the blue collar to let the air flow through.
• Once the power switch is on, it should boot up the system and touch screen lit up.
• Once air flow through, all the cylinders should be reset to its original position.
4. In the touch screen, go to the Manual Mode and press each button to check all the functions are behaving correctly.
5. Bottle sensor checking
• In the Main Screen, in the middle bottom part is the bottle sensor indictor.
• Normally, the indictor is red, if you block the sensor with your hand/bottle, the indicator should turn green. This means your bottle sensor is behaving right.
• If it behaves oppositely, please goto the FAQ part of this manual to see how to set the sensor correctly.
Application of machine
Lock covers of various shapes and sizes：nozzles, pump heads, spray pumps and
other covers, suitable for all kinds of cosmetics, pharmaceuticals, chemicals, nozzles,
pump heads, spray pumps, pistol cover lock buttons cover machinery
Lock covers of various shapes and sizes：nozzles, pump heads, spray pumps and
other covers, suitable for all kinds of cosmetics, pharmaceuticals, chemicals, nozzles,
pump heads, spray pumps, pistol cover lock buttons cover machinery
More details of machine
FAQ
Bottle cap is not fully tightened
• The four rollers is not positioned right to get contacted with the cap.
• The cap screw duration is not long enough.
• The turning rubber is worn, replace with new one
Cylinders aren’t working
• Check the air inlet and make sure the blue collar switch is on.
• Check the electromagnetic valve inside the machine.
• Check to see if any specific air pipe line is twisted.
Conveyor or capping motor isn’t working
• Check the relay inside the machine.
• Check the speed regulator.
• The four rollers is not positioned right to get contacted with the cap.
• The cap screw duration is not long enough.
• The turning rubber is worn, replace with new one
Cylinders aren’t working
• Check the air inlet and make sure the blue collar switch is on.
• Check the electromagnetic valve inside the machine.
• Check to see if any specific air pipe line is twisted.
Conveyor or capping motor isn’t working
• Check the relay inside the machine.
• Check the speed regulator.

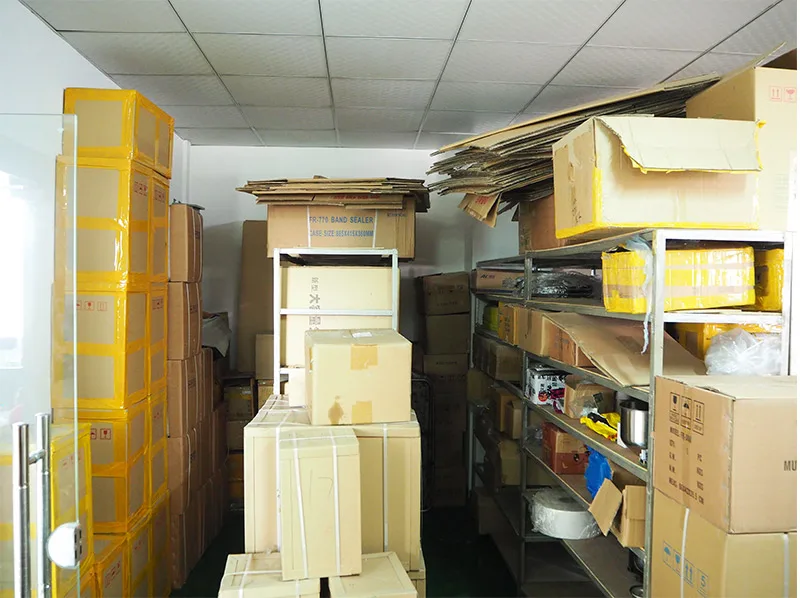

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Our company is a professional manufacturer of packing machines and packing materials. On the basis of advanced equipment and workmanship, we have excellent production technicians and an efficient distribution team, as well as good service staff members, so that we can undertake your orders very efficiently and offer services very effectively. When we have the confidence on the high quality of our products, we offer very competitive prices at the same time. Our business depends on your business and our purpose is "supporting you". We mainly provide popular products with high quality at home and abroad and create competitive advantages for our customers for their own competition. In addition, you can suggest any design or give any special requirement for our products and we will do our best to settle them for you. We believe our honesty and sincerity will make any cooperation agreeable. We look forward to long-term and prosperous cooperation with customers around the world. If you have any inquiry, please don't hesitate to contact us and we are on duty during the whole 24 hours. Your satisfaction is exactly what we pursue. Best wishes for your business along with our sincere gratitude for your attention.
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Eastern Europe(00.00%),Southeast Asia(00.00%),Eastern
Asia(00.00%),Western Europe(00.00%),South Asia(00.00%),Africa(00.00%),North America(00.00%),Oceania(00.00%),Mid
East(00.00%),Southern Europe(00.00%),Northern Europe(00.00%),South America(00.00%),Central America(00.00%). There are total about
11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

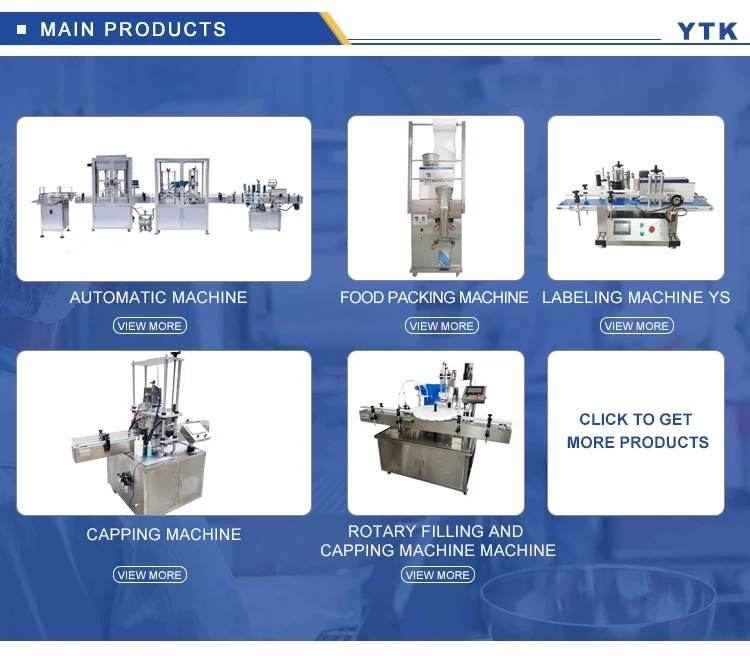

3.What can you buy from us?
