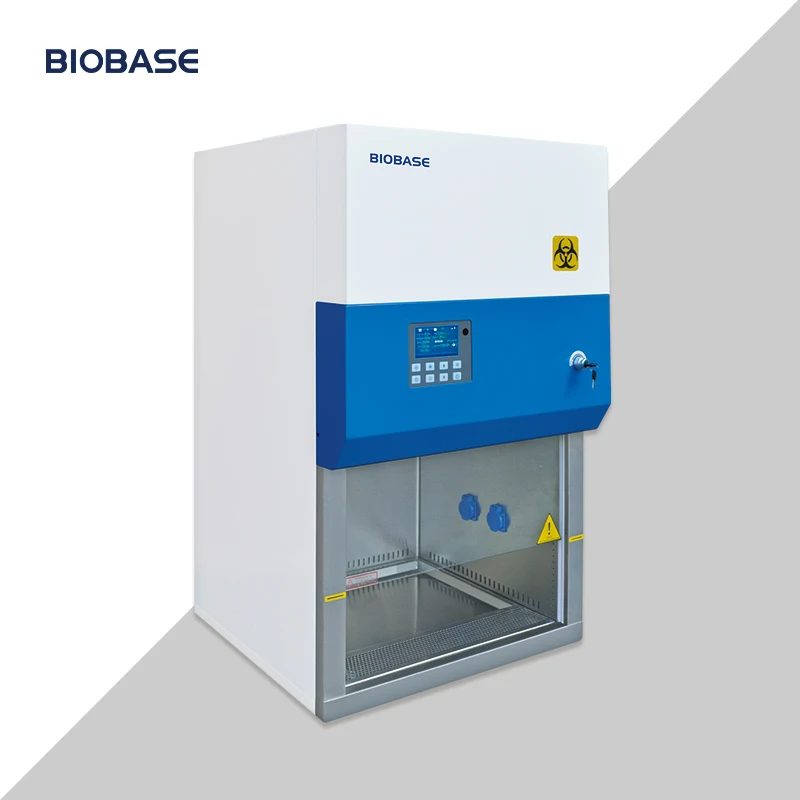

Three protection: operator, sample and environment. Airflow system: 70 % air recirculation, 30% air exhaust A2 Cabinet is suitable for working with microbilogical research in the absence of working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Features: 1. Small dimension, save space. 2. Centrifugal fan, speed adjustable; H14 HEPA filter. 3. Motorized front window: The front window is motorized for convenient, one-hand operation. 4. Audio and visual alarm: Abnormal airflow velocity, Filter replacement, Front window at unsafe height. 5. Time reserve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment. 6. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency. 7. Large LCD display: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc. 8. With memory function in case of power-failure
Specification
Model
11231BBC86
External Size (W*D*H)
700*650*1230 mm
Internal Size (W*D*H)
600*500*540mm
Tested Opening
Safety Height 200 mm(8’’)
Max Opening
370mm(15’’)
Inflow Velocity
0.53±0.025 m/s
Down flow Velocity
0.33±0.025 m/s
HEPA Filter
Two, 99.999% efficiency at 0.3μm. Filter life indicator.
Front Window
Motorized. Toughened glass . Anti UV.
Noise
EN1249 ≤ 58 dB / NSF49 ≤ 61dB

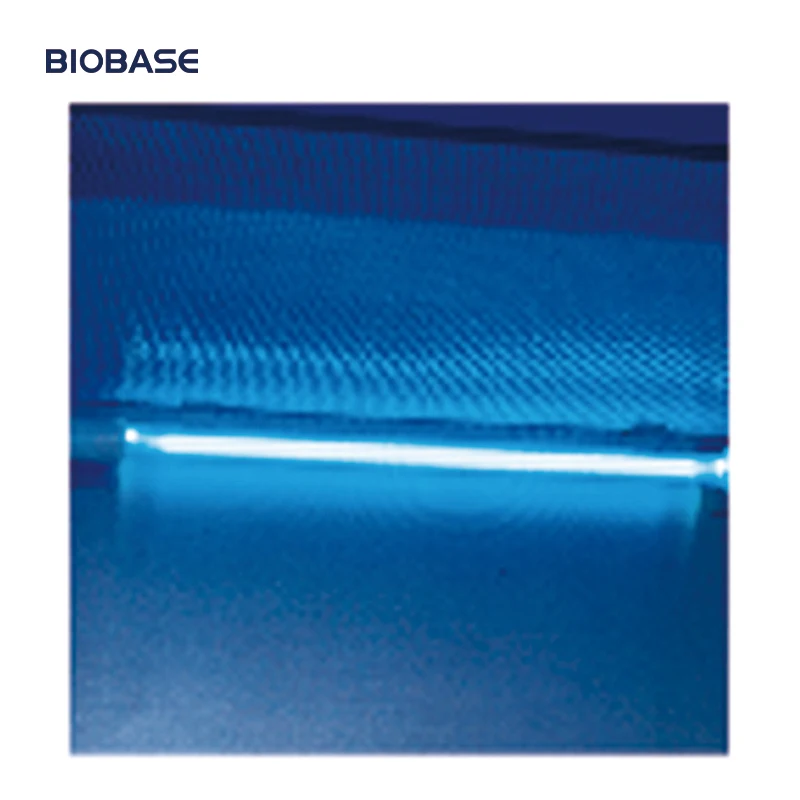

UV Lamp
30W*1
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
LEDLamp
8W*2
Illumination
≥1000Lux
Consumption
500W
Sockets
Two, total load of two sockets: 500W
Display
LCD display
Control System
Microprocessor
Airflow System
70% air recirculation,30% air exhaust
Visual and AudioAlarm
Filter replacement, window over height, abnormal air flow velocity
Material
Work Zone: 304 stainless steel.
Main Body: Cold-rolled steel with anti-bacteria powder coating

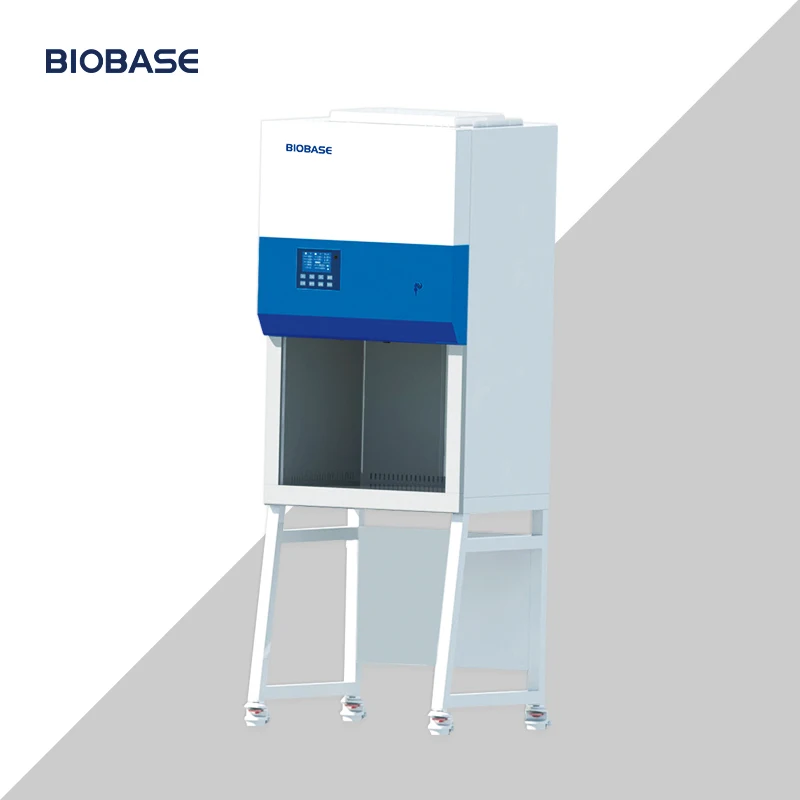

Base stand, Universal caster with brake and leveling feet, SS Water tap*1, Gas tap*1
Gross Weight without Base Stand
Wooden Box:164kg Carton:121kg
Gross Weight with Base Stand
Wooden Box:196kg
Package Size without Base Stand(W*D*H)
Wooden Box: 860*800* 1450 mm Carton:820*760*1430mm
Package Size with Base Stand(W*D*H)
Wooden Box: 860*960* 1450 mm
Packing & Delivery
Packaging
-Cartons packaging
-Customized packaging can be available.
Shipping
- International Express such as DHL, TNT, EMS, FedEX and so on .
- Sea Transportation. -
Air Transportation.
-Choose your own shipping agent is welcomed.
