Product Description

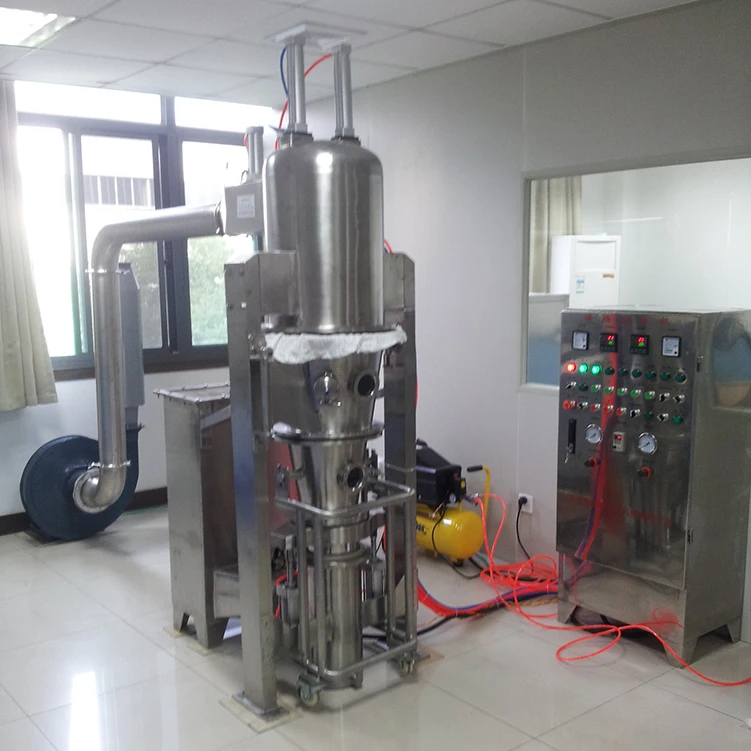

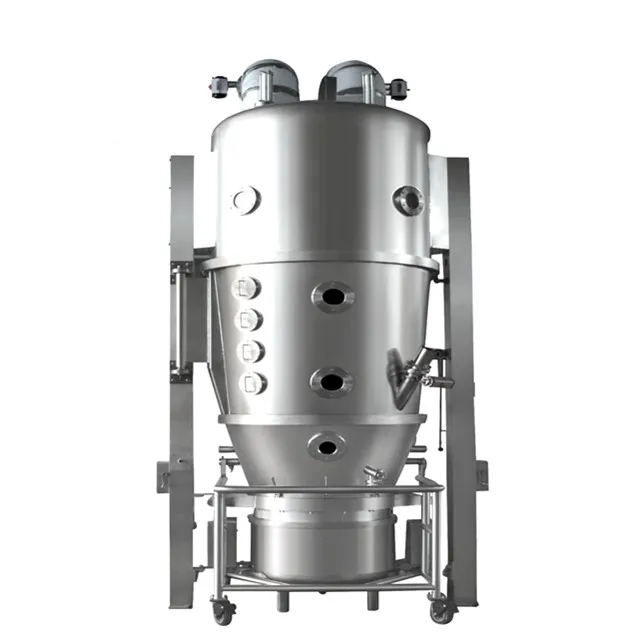

Our FL Series Fluid Bed Granulator is suitable for tablet, capsule, low sugar or sugar granule of Chinese medicine.
1.The flow ability is improved and the dust is reduced.
2.The operation is safe.
3.No need corner. Therefore the loading and unloading are quick, light and clean
4.It's safe for operator because the anti static filtering cloth is adapted.
5.It meets the requirements of GMP.




Product Paramenters


Model
Unite
Model
60
120
200
300
500
Container of raw material
Diameter
min
1000
1200
1400
1600
1800
Volume
L
220
420
670
1000
1500
Hopper dimension (W*D) (mm)
Min.
Kg/batch
30
80
100
150
250
Max.
Kg/batch
72
140
240
360
600
Fan
Amount of compressed air
M3/min
3000
4500
6000
7000
8000
Air pressure
MmH2O
950
950
950
950
950
Power of fan
Kw
11
18.5
22
30
45
Steam
Consumption
Kg/batch
141
211
282
366
465
Pressure
Mpa
0.3-0.6
0.3-0.6
0.3-0.6
0.3-0.6
0.3-0.6
Compresssed air expenditure
M3 /min
0.9
0.9
1.1
1.5
1.5
Weight of the main body
Kg
1100
1300
1500
1800
2000
Temperature
°C
Adjustable from room temperature
Field
%
≥99
Noise
Db
≤75(When installation, main machine is separated from fan)




Outline dim.
m
1.85*1.25*3
2.2*1.65*3.3
2.34*1.7*3.8
2.8*1.9*3.8
3*2.25*4.2


Features


1. Through powder granulation, improved the fluidity and reduced dust;
2. through powder granulation, improved solving propety;
3. Mixing, Granulating and drying is finished inside the machine;
4. the operation of equipment is safe because adopted the machine;
5. The operating personnel can not be damaged if explosion take place because there is releasing hole.


Application


1. Pharmacy industry; tablet price, the particle of drinking preparation, capsule pharmaceutical particle;
2. Food industry: Cocoa, coffee, milk power, particle fruit juice, flavoring, etc.;
3. Other trades: pesticide, fodder, chemical fertilizer, pigment, dyestuffs chemical industry, etc.;
4. The wet supplies of written complaint of powdery, particle are dry.


Company Profile


Xiamen CRTOP Machine Co., Ltd. is a comprehensive company specializing in R&D, production, sales, teaching and chemical and biological pharmaceutical equipment. The main products are spray dryers, freeze dryers, rotary evaporators, jacketed glass reactors, single-layer glass reactors, tablet presses, circulating water vacuum pumps, cryogenic reaction tanks (tanks), cryogenic cooling liquid circulating pumps (chillers) , vacuum drying box, blast drying box, water/oil bath, granulator, magnetic heating stirrer, overhead stirrer, ultrasonic cleaning machine, lifting platform, etc. Our products are sold to the United States, Australia, Asia, Brazil, Egypt and other countries, and our customers have been fully affirmed.




Packing & Delivery
