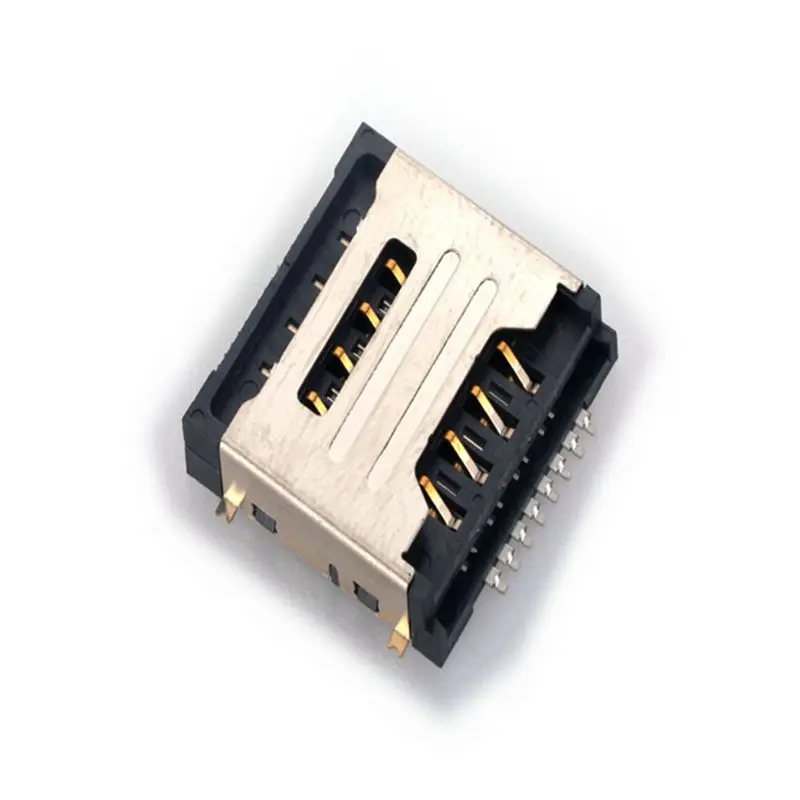

MUP hot sale SIM card connectors 8+8 Pin Adapter reader SMT type Mobile sim holder socket molex
- Категории: Sockets for ICs >>>
- Поставщик: Shenzhen,Mup,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Original manufacturer MUP SIM card connectors 8+8 Pin H3.0mm SMT type Mobile sim card holder reader socket molex replaceable
Technical characteristics
1.General characteristics
Dimensions:17.10L*16.80W*3.70H mm
Weight:0.45g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(post optional)
Durability:1500 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic
3.Electrical characteristics
Number of contacts(optional:6pins
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
4.Solderability
Wave:not applicable
Vaporphase:215oC,30sec Max
IR reflow:230oC,15sec Max
Manual soldering:not applicable
5.Environmental characteristics
Operating temperature:-25oC≈ +70oC
Operating humidity:10%≈+95%RH
temperature:-40oC≈+85oC
Storage humidity:10%≈+95%RH
Thermal shock: -40oC+85oC,5cycles
Damp Heat:40oC,90%RH,10days
Salt-mist:35oC,5%Nacl,24H
Company profile
Company Profile
Manufacturing Line
Product Application
Certification &Exhibition
Delivery
Service
| Price Term | ♦ FOB Shenzhen /EXW |
| Payment Terms | ♦ T/T, Paypal |
| Delivery | ♦ UPS, DHL, FEDEX,TNT |
| ♦ Select the most economic and efficient way. | |
| ♦ Sent the tracking number to u after delivery. | |
| Samples | ♦ Free samples will be sent on request. |
| ♦ The samples lead time is within 3-5 days after u confirmed. |
