Product Description
Specification
Function:
1. Support DVB-S/S2/S2X, AVS+,VCM/ACM/multi-stream/T2MI.2.Support BISS auto roll, Full PowerVu, DRE &Biss key.
3.Support Unicable,DiSEqC1.0/1.1/1.2/USALS Motor fully support.
4.Support Full speed USB 3/4G dongle and USB wifi dongle.
5.Support Online Movie(Youtube,Youporn).
6.Support Cccam, Newcam.
7.Technical support website : www.freesat.cn
1. Support DVB-S/S2/S2X, AVS+,VCM/ACM/multi-stream/T2MI.2.Support BISS auto roll, Full PowerVu, DRE &Biss key.
3.Support Unicable,DiSEqC1.0/1.1/1.2/USALS Motor fully support.
4.Support Full speed USB 3/4G dongle and USB wifi dongle.
5.Support Online Movie(Youtube,Youporn).
6.Support Cccam, Newcam.
7.Technical support website : www.freesat.cn
CPU frequency | 550MHz Dual Core | ||||||||||
Flash Memory | 64MB SPI Flash | ||||||||||
DDR2 Memory | 512M RAM | ||||||||||
Demultiplexer | ISO/IEC 13818-1 | ||||||||||
Input Bit Rate | Max 100Mbit/s | ||||||||||
Video Decode | HEVC main profile@level 4.1 and main10 profile@L4.1,High tier MPEG-2 MP@ML H.264 BP,MP&HP@L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile@L5 VC1 SP@ML, MP@HL, AP@L0-3 H263 baseline profile JPEG decoder | ||||||||||
PAL/NTSC | Automatic PAL/NTSC conversion | ||||||||||
Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | ||||||||||
Video Resolution | 1080P, 1080I, 720P, 576P, 480P, 576I, 480I | ||||||||||
Audio Decode | MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA CH/5.1CH | ||||||||||
Sound Mode | LEFT/RIGHT/STEREO/MONO | ||||||||||
Sampling Frequency | 32KHz,44.1KHz,48KHz | ||||||||||
Panel display | 4-digit LED display | ||||||||||
LED Indicator | Power ON :Green; Standby :Red | ||||||||||
Button | NC | ||||||||||
Wifi | Support USB Wifi dongle (MTK7601/RT5370) | ||||||||||
IR | Exit IR for 38KHz,Infra Remote control | ||||||||||

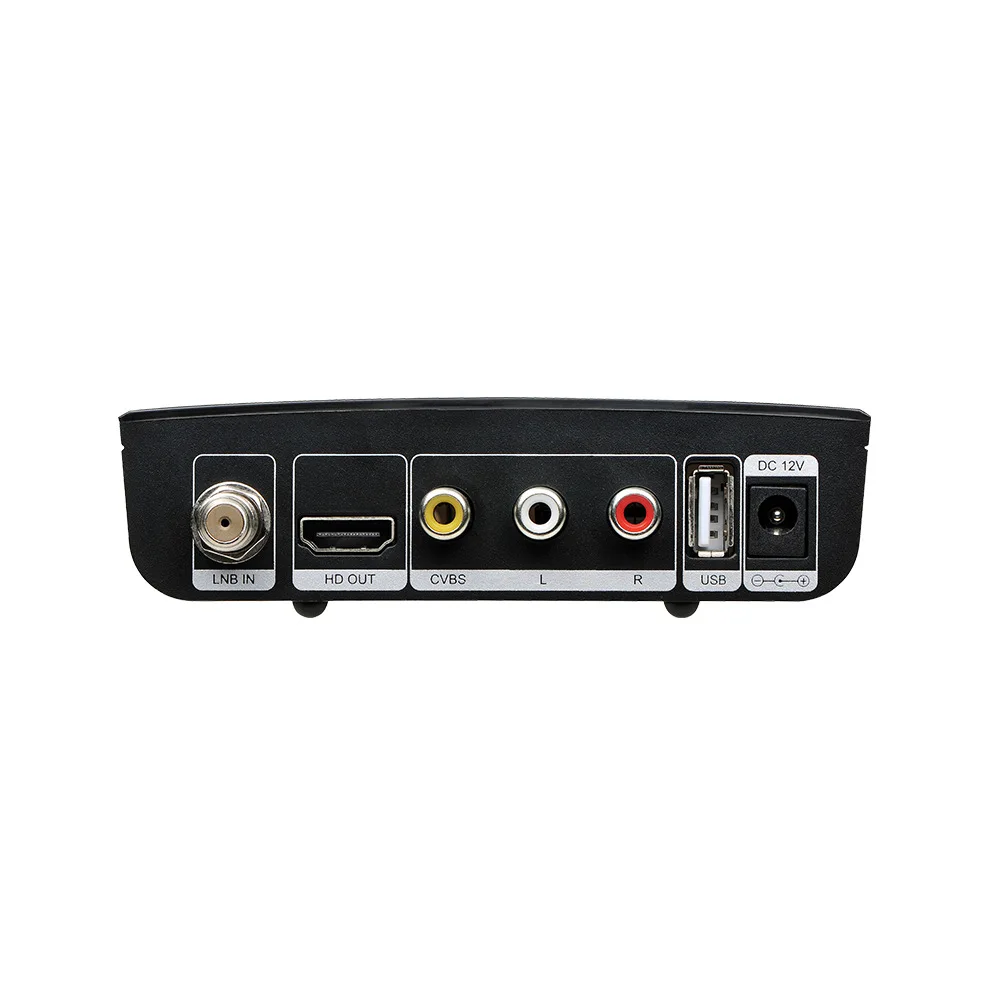

Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz DVB-S/S2/S2X) | ||||||||||
HD OUT (up to 1080P) | |||||||||||
RCA*3 (AV OUT) | |||||||||||
2*USB 2.0 HOST | |||||||||||
Power (DC 12V/1.2A) | |||||||||||
System standard | ETS 302 307 | ||||||||||
Frequency Range | 950~2150MHz for DVB-S/S2/S2X | ||||||||||
LNB Power and Polarization | DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection | ||||||||||
Input Level Range | -80dBm ~ -25dBm | ||||||||||
Symbol Rates | DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK | ||||||||||
Forward error correction rate | 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | ||||||||||
Carrier frequency acquisition range | ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | ||||||||||
Symbol Rates | 2 ~ 90MSPS(Code Rate 1/2) | ||||||||||
Code Rates | 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates | ||||||||||
ANT. Connector | Connector:IEC TYPE F Input Impedance:75 Ω | ||||||||||
Standard | Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite) | ||||||||||
Channels Number | 5000+ channels TV and Radio programmable | ||||||||||
Favorites | 16 different favorite groups selection | ||||||||||
OSD Language | OSD Multi-language for options(English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai) | ||||||||||
EPG | Fully support to 7 days Electronic Program Guide(EPG) | ||||||||||
OSD Color | 16-bit OSD with anti-flickering | ||||||||||
Channel Search | Supports Automatic network search for newly added transponders | ||||||||||
Channel Edit | Various channel editing function(favorite,move,lock,skip, delete,rename,find,sort) | ||||||||||
Parental Ctrl | Parental control for channels | ||||||||||
Easy Menu | Plug and Play installation, with an easy to use Menu System | ||||||||||
SoftUpgrade | Software upgrades through USB port upgrade. | ||||||||||
Channel | Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | ||||||||||
Subtitle | support DVB EN300743 and EBU | ||||||||||
Teletext | support DVB ETS300472 by VBI and OSD | ||||||||||
Time Set | Time set by GMT offset automatic and manual,Summer Time support | ||||||||||
Timer | 5 event timers,off/Once/Daily/Weekly Mode | ||||||||||
USB 2.0 | Support FAT/FAT32/NTFS big capacity hard disk | ||||||||||
PVR Option | USB 2.0 for PVR,TIMESHIFT,media files playback | ||||||||||
Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | ||||||||||
Audio Codec | WMA,MP3 | ||||||||||
Photo Codec | JPG, BMP, PNG, GIF | ||||||||||
