SS304 and SS316L metal seated electric triple offset butterfly valve





· Our Advantages ·



Advantages:

• Guangzhou Fols Valve Technology Co., Ltd. aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.



• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.



• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.



• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.



• OEM / ODM service available.





· Product Specification ·



 Electric flange triple offset hard seal butterfly valve is widely used high temperature medium (≤425°C) in metallurgy, electrical, petroleum, chemical industry, water supply and so on. This butterfly valve is triple offset design, and both the valve body and disc seal are made of cast steel and stainless steel, the wafer triple offset hard seal butterfly valve is characterized by good non-corrosibility, easy operation, good leakproofness, long service life, easy installation.



Feature

1. This valve adopts three eccentric sealing structure, seat and disc almost no wear.

2. The seal ring is made of stainless steel, with dual advantages for metal seal and elastomeric seal, both in the case of low and high temperatures with excellent sealing performance, corrosion resistance, long life and other characteristics.

3. The disc sealing surface using alloy, sealing surface long life.

4. No limited for flow rate, installed in any direction.



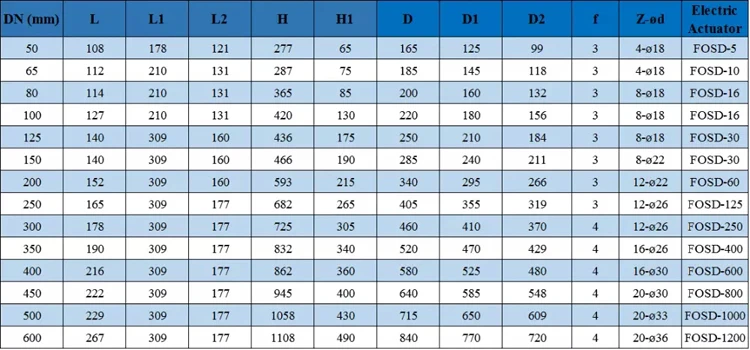

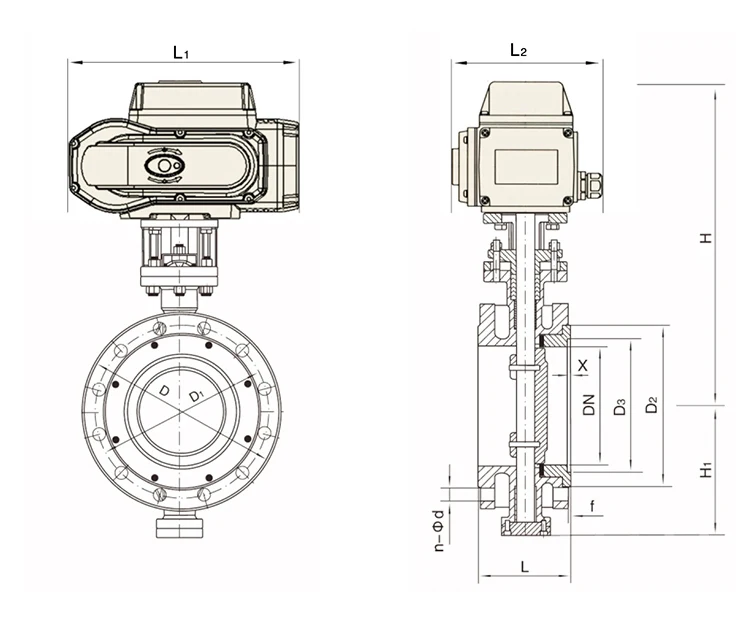

Design and Manufacturing Standards
Design and Manufacture: GB
Connection Standard: JB
Structure Length: GB
Pressure Testing: GB



Electric actuator ( Optional)

Type	Control type	Function
Electric actuator	ON-OFF type	Feedback: the active signal, passive contact signal, resistance
(optional)	Regulation type	Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
	Filed operation	The field, remote control switch regulation and  MODBUS, PROFIBUS field bus





Specification of Electric Actuator
Items Parameter	FOSD-05	FOSD-10	FOSD-16	FOSD-30	FOSD-60	FOSD-125	FOSD-250	FOSD-400
Output torque	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
Rated travel time	10S/20S	15S/30S			30S/60S	100S	100S	100S
Rotation angle	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°
Working current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting power	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Motor power	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Power	AC220V,       AC24V,     AC110V ,    AC220 ,       AC380,      DC24V (choose options)
Input signal	4-20mA (Modulating type)
Output signal	4-20mA (Modulating type)
Insulation resistance	100M/500VDC
Pressure withstanding	1500 VAC ,   one minutes
Inbreaking protection	IP65/IP67
Installation angle	360° any angle
Electrical Interperation	one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity	-30°C  to +60°C
Pilot circuit options	A:with limit position switch style (standard)
	B: with neutral position switch style ( passive contact)
	C:with potentiometer style
	D: both potentiometer and neutral position switch style
	E: with control module style ( Modulating Applications)
	F: DC motor control circuit style
	G:Three-phase current 380V control circuits style
	H:Three-phase current 380V, both neutral position switch and potentiometer style





· Wiring Diagram ·

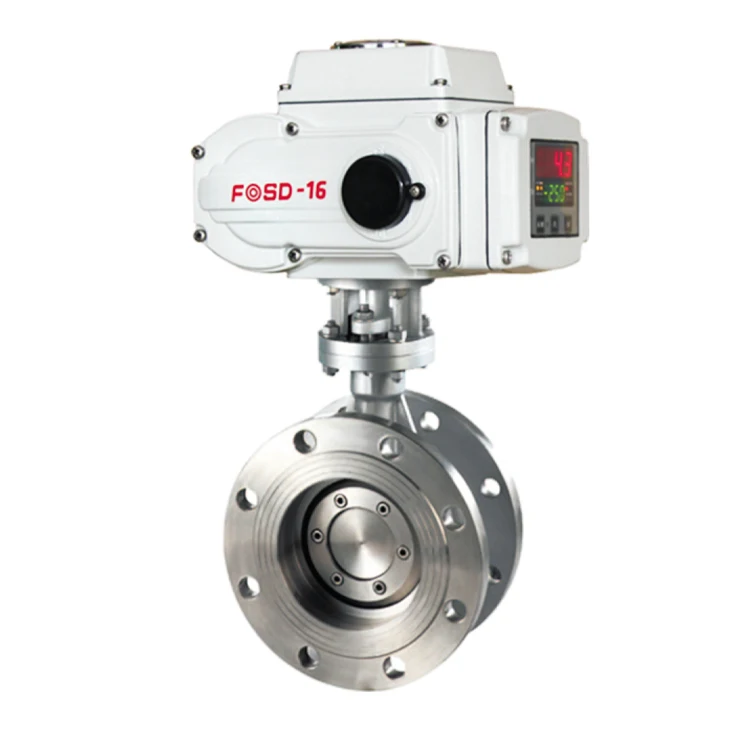

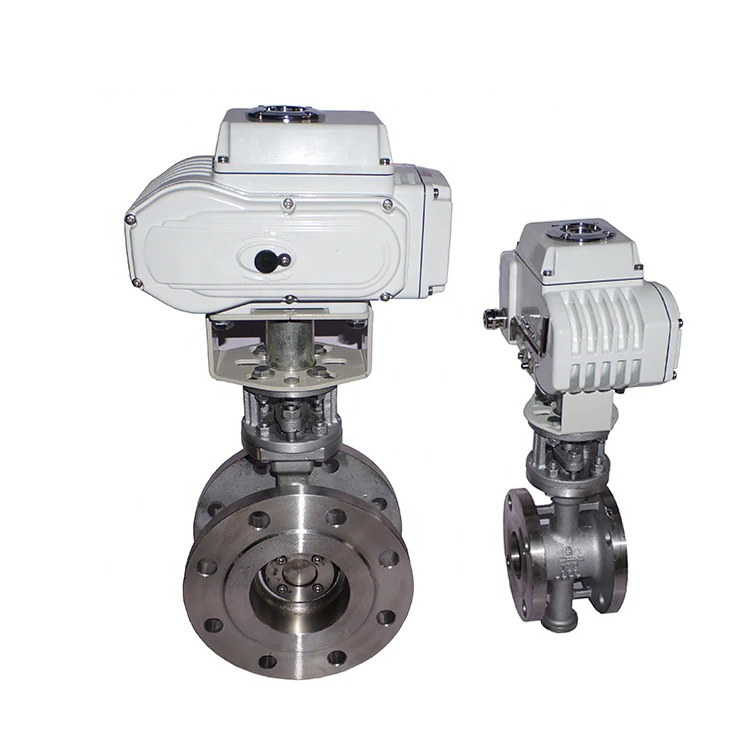

· Product Picture ·





· More type of electric actuator ·

Explosion-proof                        With handwheel                              Multiturn                           Small





ISO 5211 Mounting



More optional
