Hot sale Oil Drilling Tools cone bit 7 7/8 inches IADC 635 well drilling TCI Tricone Bit
TCI Teeth Tricone Bit for sale
Product Description
| Type | Tricone Bit (7 7/8"~200mm} |
| Application | oil field, water well, geothermal, underground foundation, quarry |
| Formation | sticky, soft, medium hard, hard formations |
| Bearing | open/sealed bearing, rubber/metel seal bearing |
| packing | wooden/steel box |
| MOQ | one piece |
| Delivery | within 25days for standard model, within 35days for customized |
Description of tricone bit
(1) Cutting Structure:
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.
(2) Gauge Structure:
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
(3)Bearing Structure:
High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.
(4)Seal and Lubrication:
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
IADC CODE SELECTION
| IADC | WOB | RPM |
| (KN/mm) | (r/min) | |
| 111/114/115 | 0.3-0.75 | 200-80 |
| 116/117 | 0.35-0.8 | 150-80 |
| 121 | 0.3-0.85 | 200-80 |
| 124/125 | 180-60 | |
| 131 | 0.3-0.95 | 180-80 |
| 136/137 | 0.35-1.0 | 120-60 |
| 211/241 | 0.3-0.95 | 180-80 |
| 216/217 | 0.4-1.0 | 100-60 |
| 246/247 | 0.4-1.0 | 80-50 |
| 321 | 0.4-1.0 | 150-70 |
| 324 | 0.4-1.0 | 120-50 |
| 437/447/435 | 0.35-0.9 | 240-70 |
| 517/527/515 | 0.35-1.0 | 220-60 |
| 537/547/535 | 0.45-1.0 | 220-50 |
| 617/615 | 0.45-1.1 | 200-50 |
| 637/635 | 0.5-1.1 | 180-40 |
| Note: Above limitts of WOB and RRPM should not be used simultaneously | ||
PIN SIZE
| Bit Diameter | API PIN | |
| (inch) | (mm) | |
| 3 7/8"~5 1/4" | 98~134 | 2 3/8", 2 7/8" |
| 5 5/8"~6 3/4" | 143~171 | 3 1/2" |
| 7 1/2"~9 1/2" | 190.5~241 | 4 1/2" |
| 9 5/8"~13 3/4" | 245~350 | 6 5/8" |
| 14 5/8"~26" | 371~660.4 | 7 5/8" |

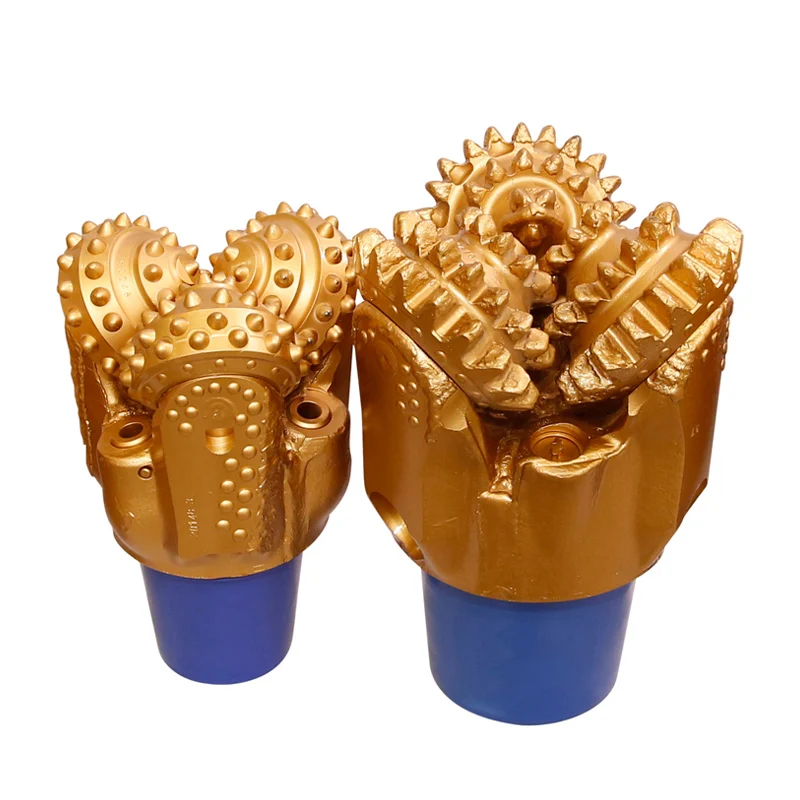

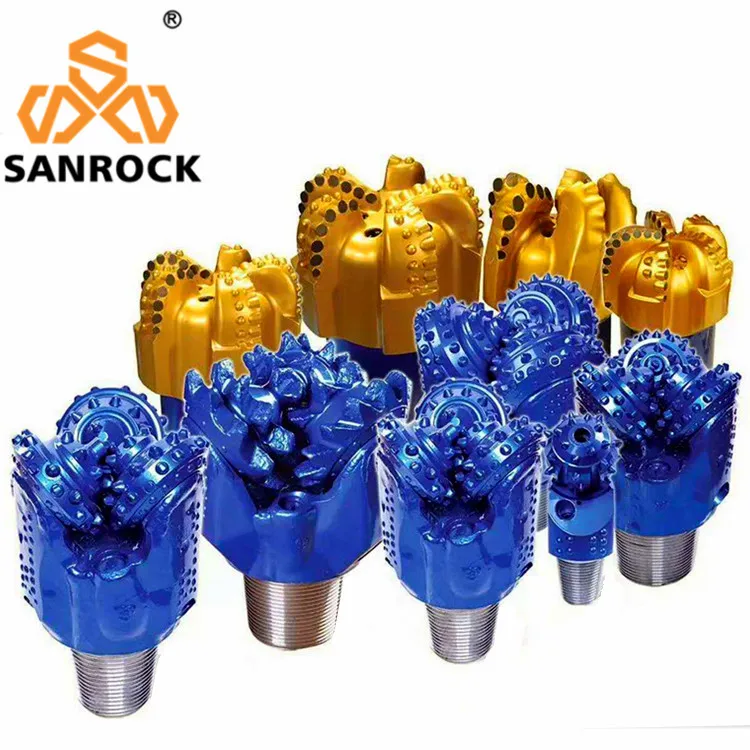

Product Pictures

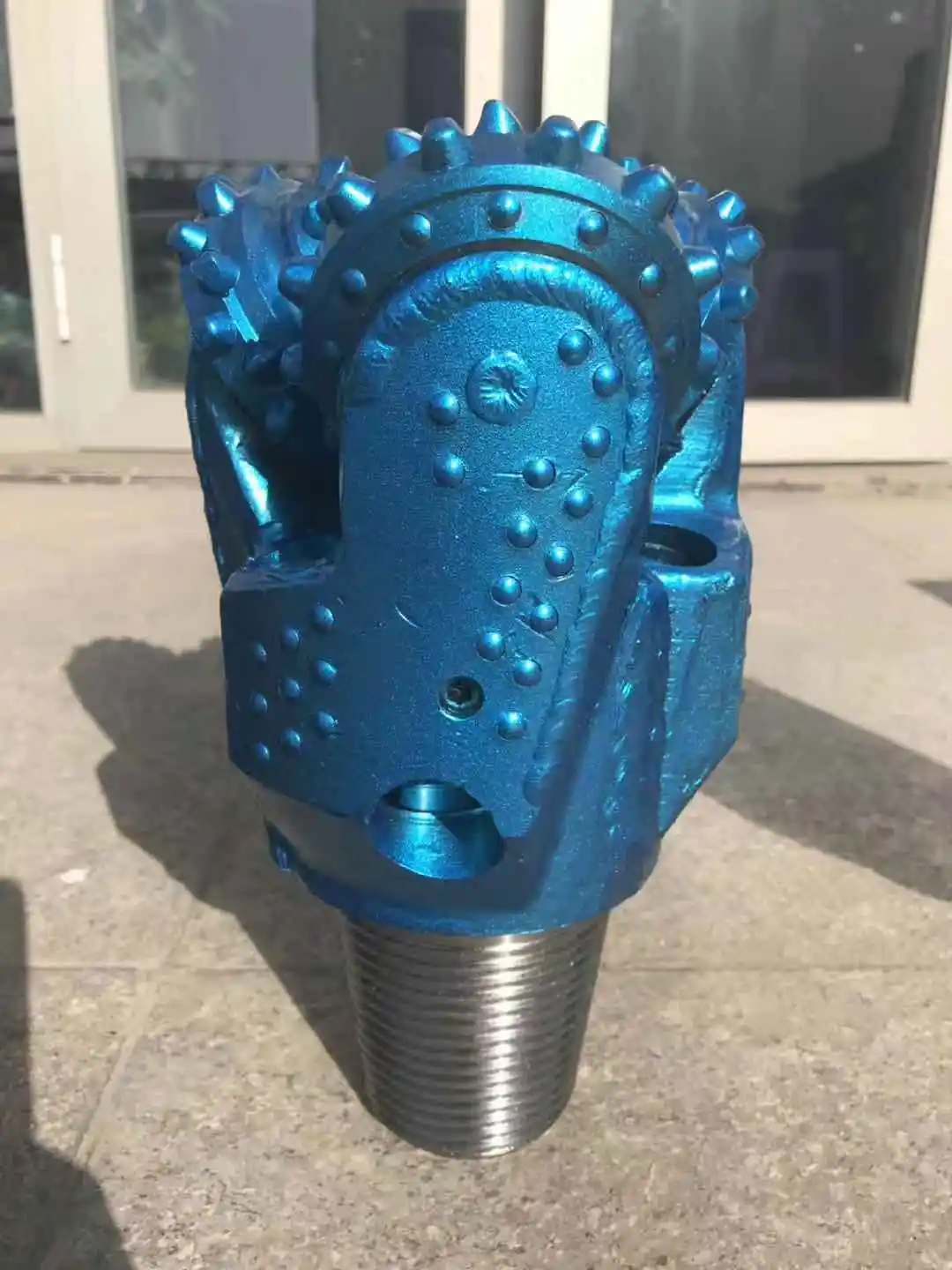

Product Details

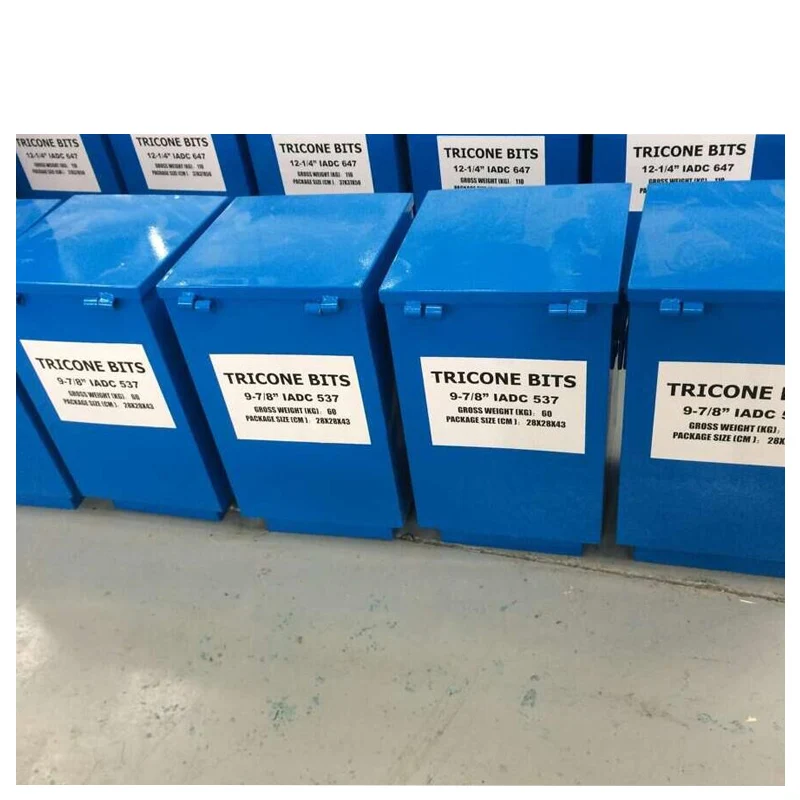

Product Package
Company Information
FAQ
1.what can you buy from us?
Air Compressor,Drilling Rig,Drill Bit,Spare Parts
2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before
we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
5.Do you have any certificate of authorization?
A: Our machinery is CE certified,
