Запчасти для автофургона HEYRV 14 дюймов сертификат CE 420 мм 12 В постоянного тока 6 скоростей ручное управление вентиляционный вентилятор крыши
- Категории: Другие автоматические электрические системы >>>
- Поставщик: Dongguan,Hejia,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Best Selling
Product Description
Product ID | 0100481 |
Dimensions | 420 x 420 x 182 mm |
Cut-out Dimensions | 340 x 340 mm(max: 380 x 380 mm) |
Installation thickness | 38-95 mm |
Voltage | 12V |
Current | 0.5-2.5A |
Power | 5-30W adjustable |
Air Flow Volume | 10-22 CBM/Min |
RMP | 1000-1800/Min |
Fan blade | 10 |

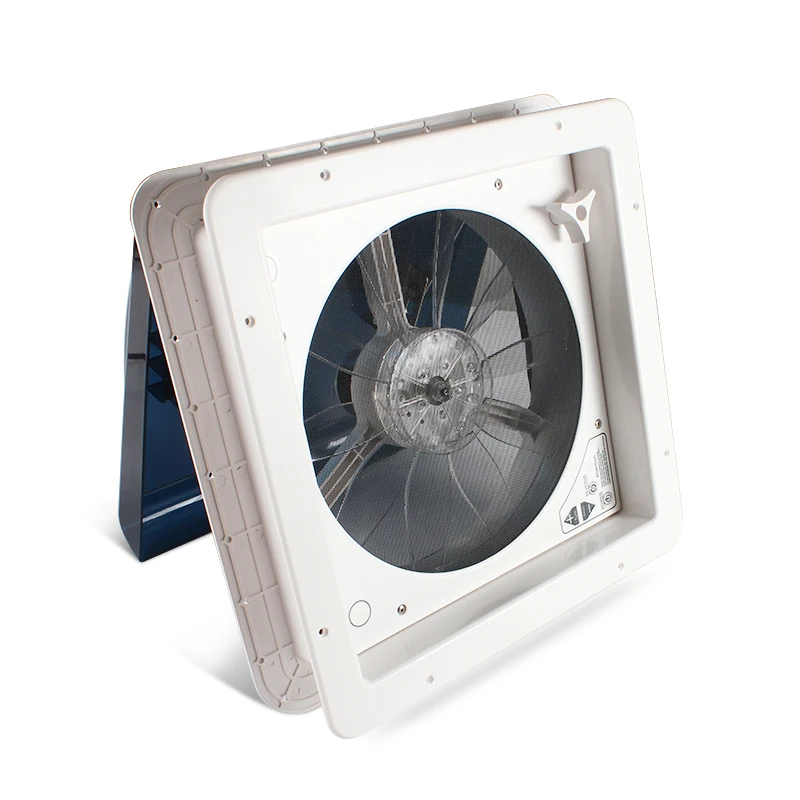

TYTXRV® roof vent fan is dedicated to high-class and smart RVs, with the functions of both supplying and exhausting air. The vent fan cover in gray black color allows the light to enter the van compartment. It brings your RV with light and fresh air.
FEATURES:
1. Casing made of imported plastic raw material, long-lasting and anti-yellowing
2. Motor made of pure copper core, reliable and highly efficient
3. Fan with 10 blades, running more stable and more quiet
4. Equipped with stainless steel / anti-rust insect screen
5. Intake and exhaust
WIRING:
1.5 m2 or above electric wires are required
Red wire connects the battery positive terminal
Black wire connects the battery negative terminal
Blue wire connects the brake line. When the parking brake lever is released, the sunroof is closed. When the parking brake lever
is engaged, the vent fan will exhaust air as soon as the temperature is high.
High voltage protection. When the voltage exceeds over 16V, beep sound every second and all keys disabled.
Low voltage protection. When the voltage is lower than 8V or not enough power, buzzer keeps ringing.
6-level speed adjustment. On Level 0, fan is not working. The fan will first stop still before switching to either air supply or
air exhaust mode
v Level 1, Power: 4W, quiet, suitable for night sleep
v Level 2, Power: 8W, quiet,
v Level 3, Power: 14W, Low noise
v Level 4, Power: 22W, Little noise
v Level 5, Power: 30W, Strong, fast air refreshing and cooling
v Level 6, Power: 40W, Super strong, fast cooling
FEATURES:
1. Casing made of imported plastic raw material, long-lasting and anti-yellowing
2. Motor made of pure copper core, reliable and highly efficient
3. Fan with 10 blades, running more stable and more quiet
4. Equipped with stainless steel / anti-rust insect screen
5. Intake and exhaust
WIRING:
1.5 m2 or above electric wires are required
Red wire connects the battery positive terminal
Black wire connects the battery negative terminal
Blue wire connects the brake line. When the parking brake lever is released, the sunroof is closed. When the parking brake lever
is engaged, the vent fan will exhaust air as soon as the temperature is high.
High voltage protection. When the voltage exceeds over 16V, beep sound every second and all keys disabled.
Low voltage protection. When the voltage is lower than 8V or not enough power, buzzer keeps ringing.
6-level speed adjustment. On Level 0, fan is not working. The fan will first stop still before switching to either air supply or
air exhaust mode
v Level 1, Power: 4W, quiet, suitable for night sleep
v Level 2, Power: 8W, quiet,
v Level 3, Power: 14W, Low noise
v Level 4, Power: 22W, Little noise
v Level 5, Power: 30W, Strong, fast air refreshing and cooling
v Level 6, Power: 40W, Super strong, fast cooling
Certificate
Company Introduction
TYTXRV Technology Co., Ltd.Established in 2012, TYTXRV is a professional manufacturer engaged in the research, development, production, sale and service of accessories and applications for recreational vehicles. We have our own production shops for molding, plastic injection, metal processing and electrics. We supply products to 98% China RV manufacturers and to over 86 countries around the world. Our RV accessories products can be customized to your specific requirements. We own more than 30 patents and got certified with ISO90001 and ISO/TS16949. In 2018, the 60 thousands square meters factory was put in operation with the monthly production capacity of 1.5 million pieces.
