Экструдер для пластиковых нитей с маленькой 3D печатью
US $400.00-$700.00
Лидер продаж профессиональные фитинги из ПВХ для труб производство пленочного
- Категории: Экструдеры для пластика >>>
- Поставщик: Suzhou,ACC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
our service
1. We not only provide machines but also offer technical guide and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.
Pipe diameter range :
16 ~ 63 mm / 0.75 inch to 2.5 inch
75 ~ 160 mm / 3 inch to 6.3 inch
110 ~ 250 mm / 4.3 inch to 10 inch
200 ~ 400 mm / 8 inch to 16 inch
450 ~ 630 mm / 18 inch to 25 inch
630 ~ 800 mm / 25 inch to 32 inch
( If the above pipe diameter range can not match your requirements , please send your required ones to us. We will provide best
solutions for your project. )
16 ~ 63 mm / 0.75 inch to 2.5 inch
75 ~ 160 mm / 3 inch to 6.3 inch
110 ~ 250 mm / 4.3 inch to 10 inch
200 ~ 400 mm / 8 inch to 16 inch
450 ~ 630 mm / 18 inch to 25 inch
630 ~ 800 mm / 25 inch to 32 inch
( If the above pipe diameter range can not match your requirements , please send your required ones to us. We will provide best
solutions for your project. )
Working flow:
Mixing Machine → Material Feeder → Conical Twin-screw Extruder → Vacuum Calibration Tank→ Haul-off Machine → Cutting Machine →Stacker →Waste Pipe Recycling Machine(Crusher&Milling Machine)
Materials and application:
•Pressure Pipe
- water distribution system
- water supply
•Non Pressure Pipe
- sewer systems/drain water
- waters discharge systems for civil
and industrial building
- meteoric waters discharge
- venting system
•Industrial Application
•Cable Conduit
•Flexible Pipe
- gardening hose
- protection sheathing for electric cable
Main technical parameter:
Mixing Machine → Material Feeder → Conical Twin-screw Extruder → Vacuum Calibration Tank→ Haul-off Machine → Cutting Machine →Stacker →Waste Pipe Recycling Machine(Crusher&Milling Machine)
Materials and application:
•Pressure Pipe
- water distribution system
- water supply
•Non Pressure Pipe
- sewer systems/drain water
- waters discharge systems for civil
and industrial building
- meteoric waters discharge
- venting system
•Industrial Application
•Cable Conduit
•Flexible Pipe
- gardening hose
- protection sheathing for electric cable
Main technical parameter:
No | Equipment | Quantity | ||

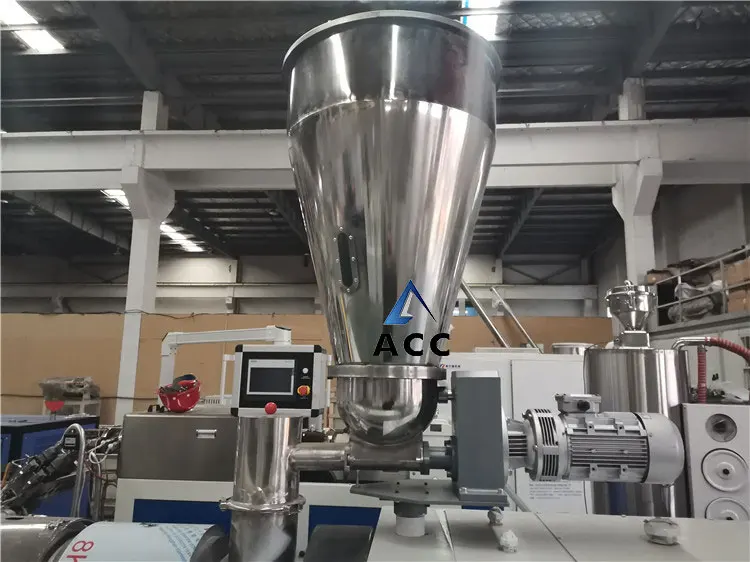

1 | Automatic material feeder | 1set | ||

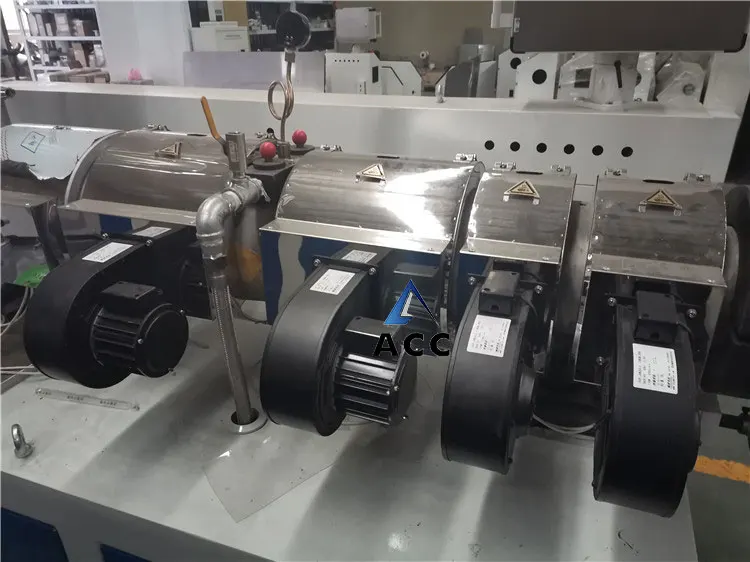

2 | Conical double screw extruder | 1set | ||
3 | Die-head | 1set | ||
4 | Vacuum calibration & cooling tank | 1set | ||
5 | Hauling machine | 1set | ||
6 | Cutting machine | 1set | ||
7 | Pipe stacker | 1set | ||

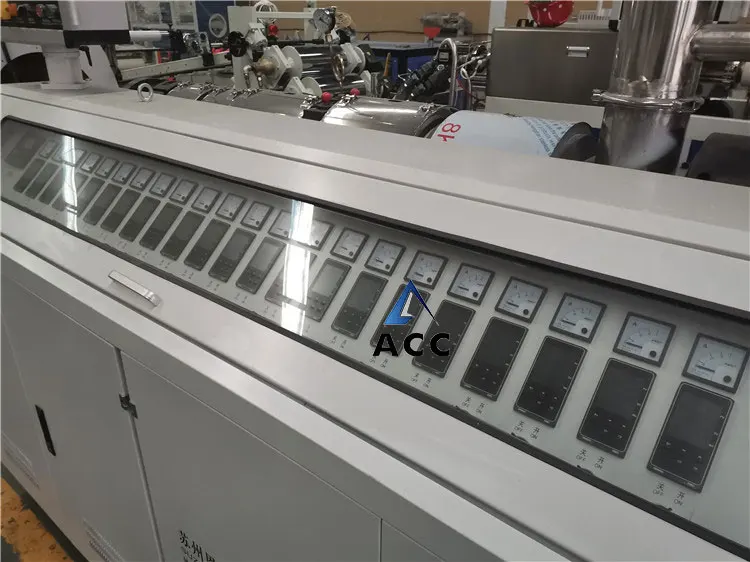

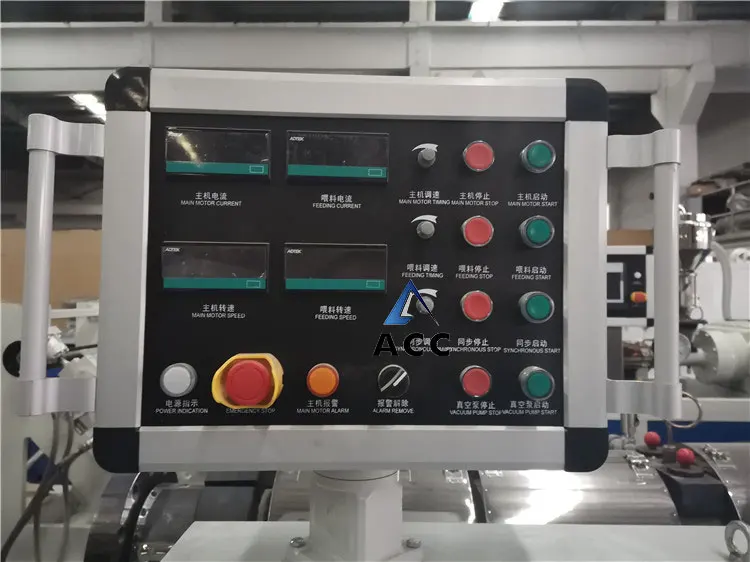

8 | Electric control cabinet | 1set | ||
Auxiliary machines for your choice | ||||
9 | Printer | 1set | ||
10 | Mixer | 1set | ||
11 | Crusher | 1set | ||
12 | Milling machine | 1set | ||
13 | PVC pipe belling machine | 1set | ||

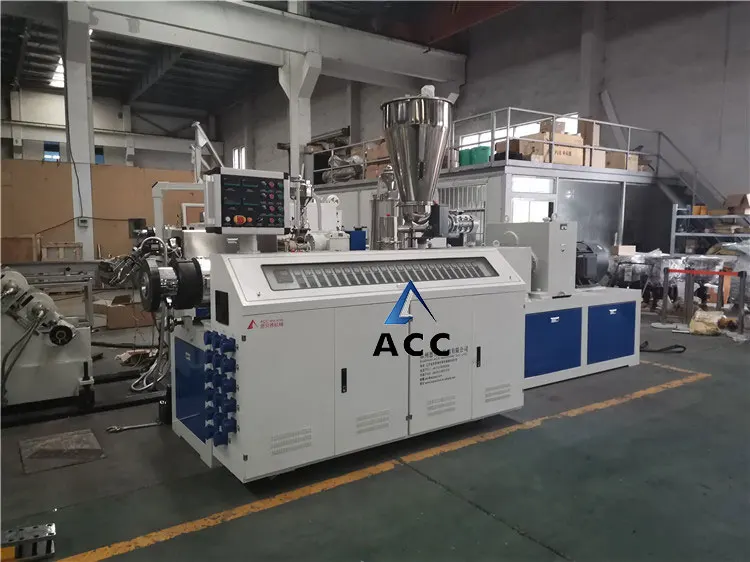

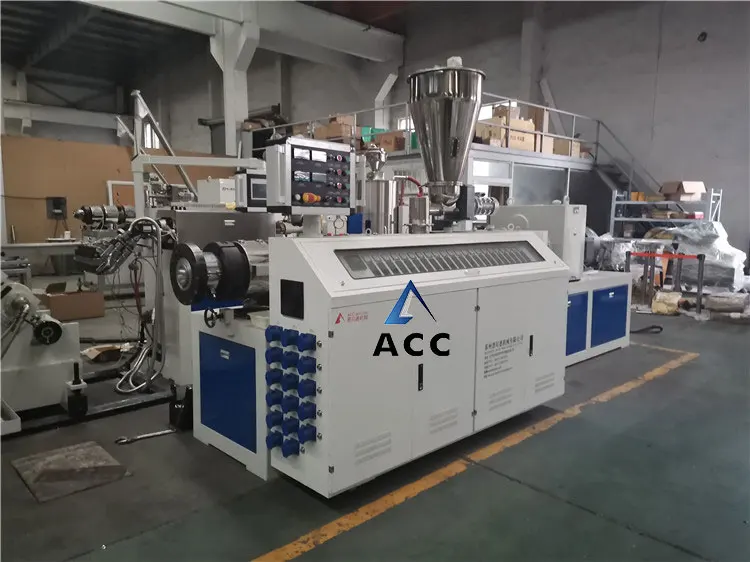

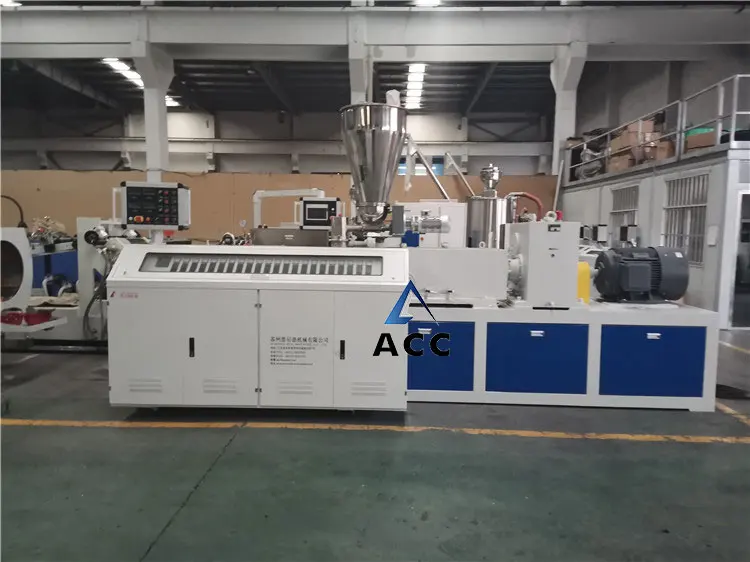

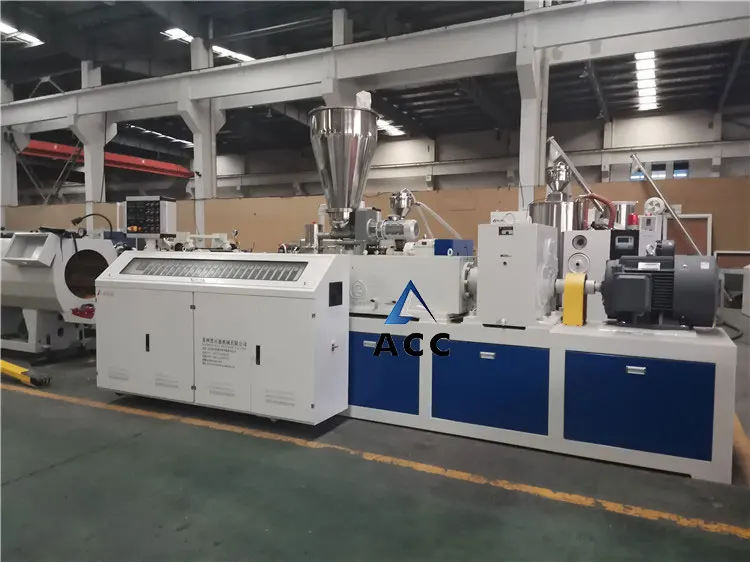

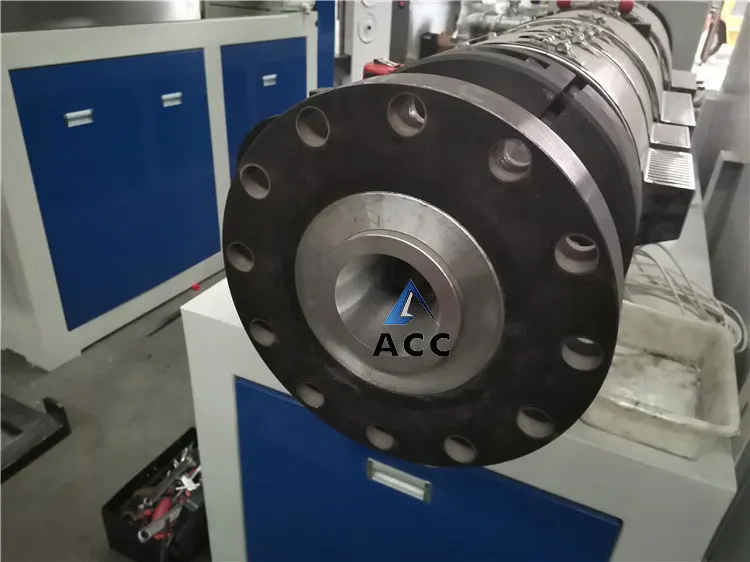

PVC pipe extruder machine
Raw material: PVC, Additives
Model number: SJSZ-45/90, SJSZ-51/105, SJSZ-55/110, SJSZ-65/132, SJSZ-80/156, SJSZ-92/188

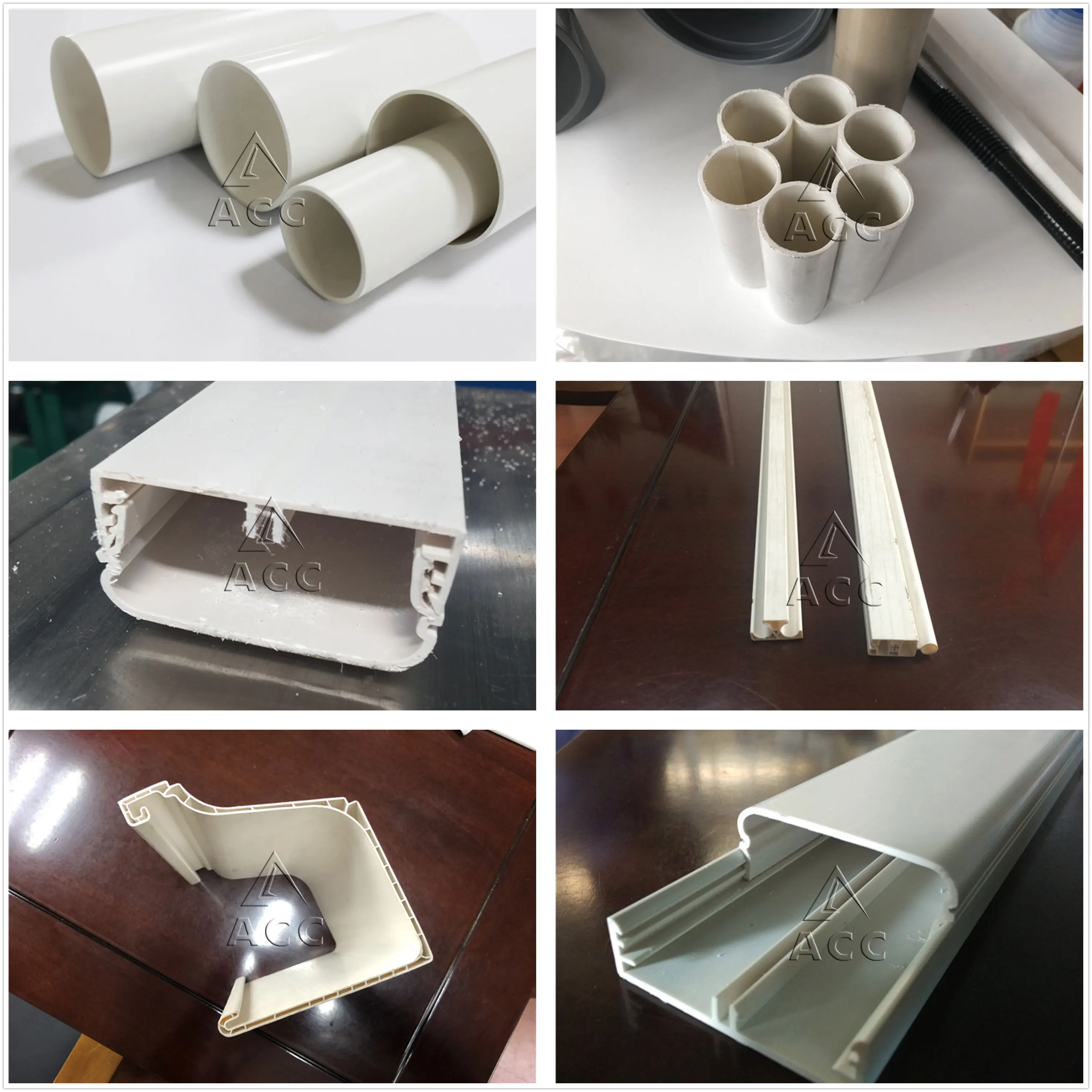

Application:

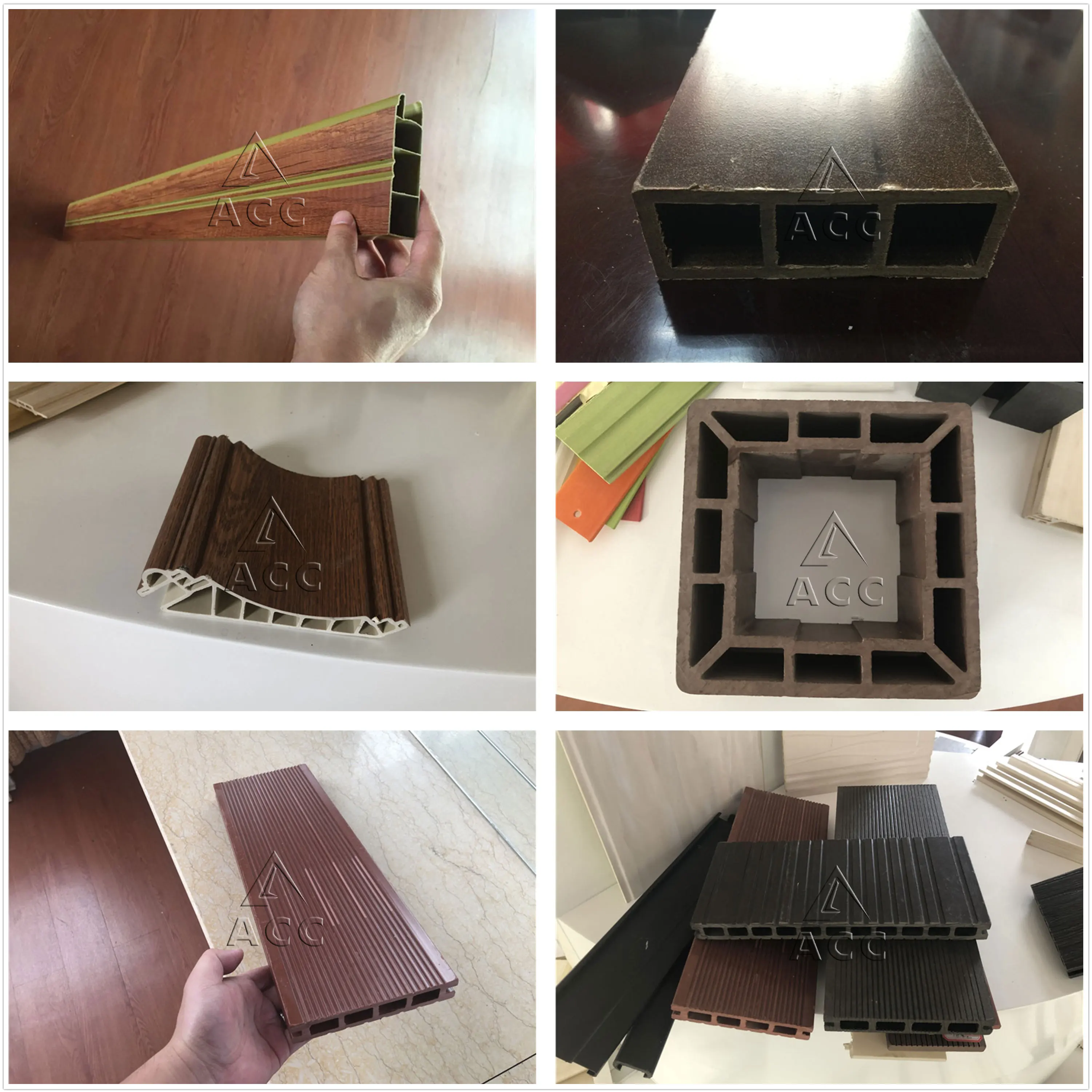

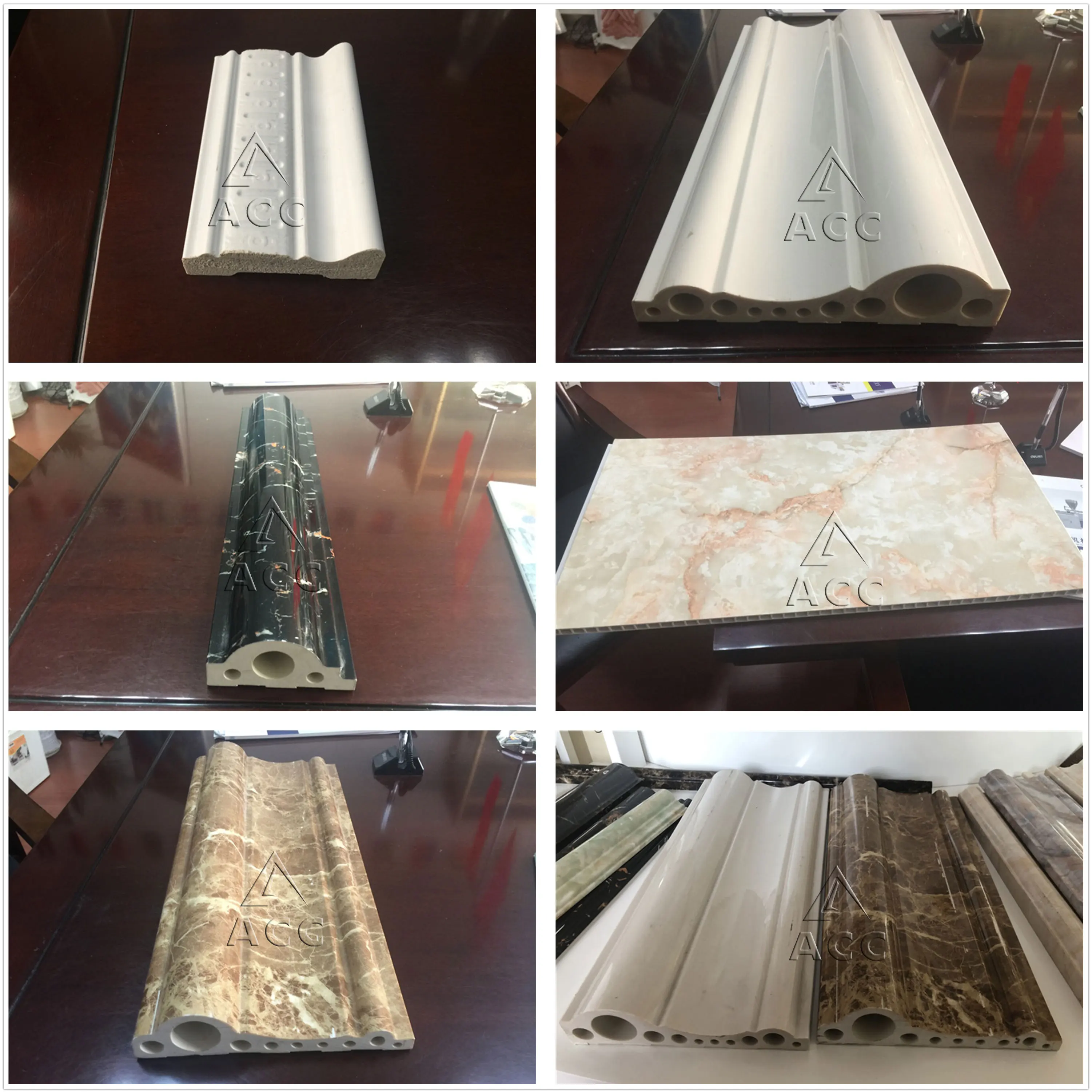

PVC pipe, PVC/WPC profile,
PVC sheet, PVC/WPC board etc.
Model | SJSZ45 | SJSZ55 | SJSZ65 | SJSZ80 | SJSZ92 |
Screw diameter(mm) | 45／90 | 55／110 | 65／132 | 80／156 | 92／188 |
Screw speed(r／min) | 1-45.5 | 1-40 | 1-38 | 1-36.9 | 1-34.7 |
Screw effective length(mm) | 989 | 1200 | 1440 | 1800 | 2500 |
Motor power(KW) | 15 | 18.5 | 37 | 55 | 110 |
Heating power(KW) | 11.5 | 18 | 24 | 36 | 88 |
Capacity(kg/h) | 80 | 150 | 250 | 360 | 1000 |
Q1: If I need more information, how to contact you?
A: Send me your demands, we will send back detailed machine specifications with working video.
Q2: How to buy your machine？
A: We send detailed machine quotation to you, if you are satisfied, we will make PROFORMA INVOICE for you.
Payment terms: T/T, L/C, TRADE ASSURANCE
Q3: What about the machine warranty?
A: In some countries, we have agent. We have one-year warranty.
Q4: How can I believe your factory and company?
A: You are welcomed to ask authority agency to visit our factory and machine, we are real factory.
Q5: Do you have other service?
We can send engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.
Q6: Where is your factory located?
Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.
A: Send me your demands, we will send back detailed machine specifications with working video.
Q2: How to buy your machine？
A: We send detailed machine quotation to you, if you are satisfied, we will make PROFORMA INVOICE for you.
Payment terms: T/T, L/C, TRADE ASSURANCE
Q3: What about the machine warranty?
A: In some countries, we have agent. We have one-year warranty.
Q4: How can I believe your factory and company?
A: You are welcomed to ask authority agency to visit our factory and machine, we are real factory.
Q5: Do you have other service?
We can send engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.
Q6: Where is your factory located?
Our factory is located in Zhangjiagang city which is nearby Shanghai port, about 2.5 hours car driving. If you want to visit our factory, we can come to pick you up.
