Radiolink мини GPS модуль M8N SE100 для Pixhawk игровые джойстики UBX-M8030 M8 чип скоростного радиоуправляемого дрона мультироторный

Описание и отзывы

Характеристики

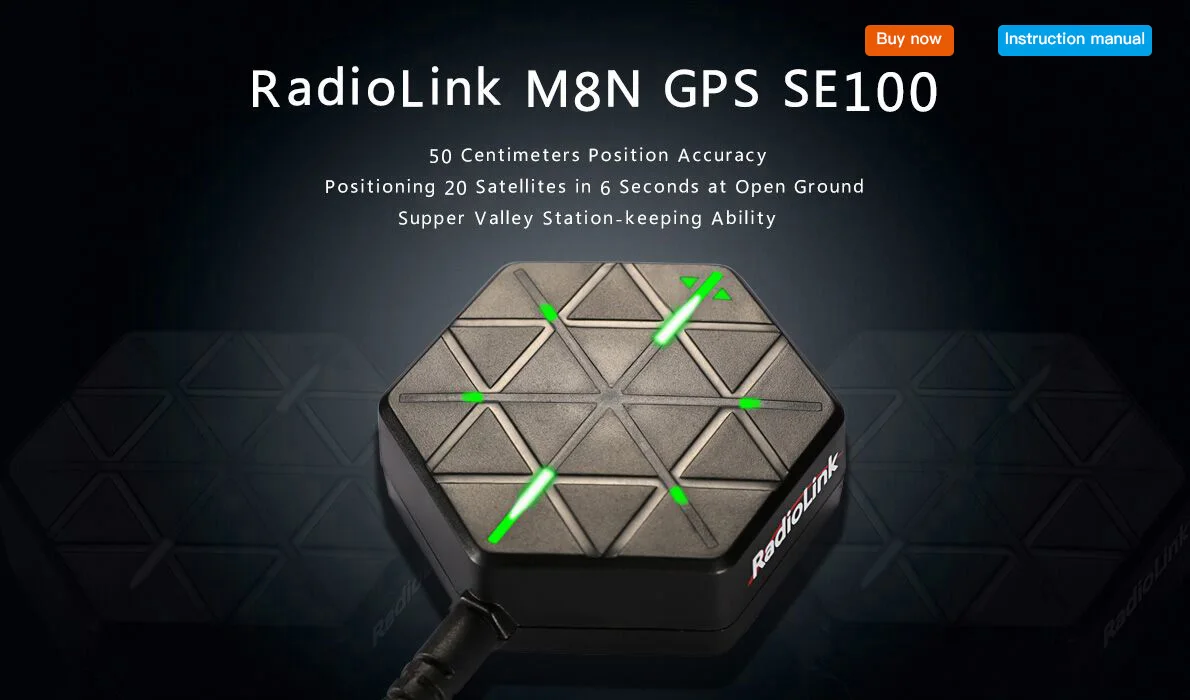

Radiolink SE100 GPS Module

SE100 GPS Features:

[Mini Size]: This mini GPS for Radiolink Pixhawk Flight Controller, only 1.89*1.6*0.59in, it’s perfect for you racing drone and quadcopter.[Excellent Stable]: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.Double Filter:SAWF(Surface acoustic wave filter)form Murata,Independent dual filtering technology, stronger anti-interference ability.

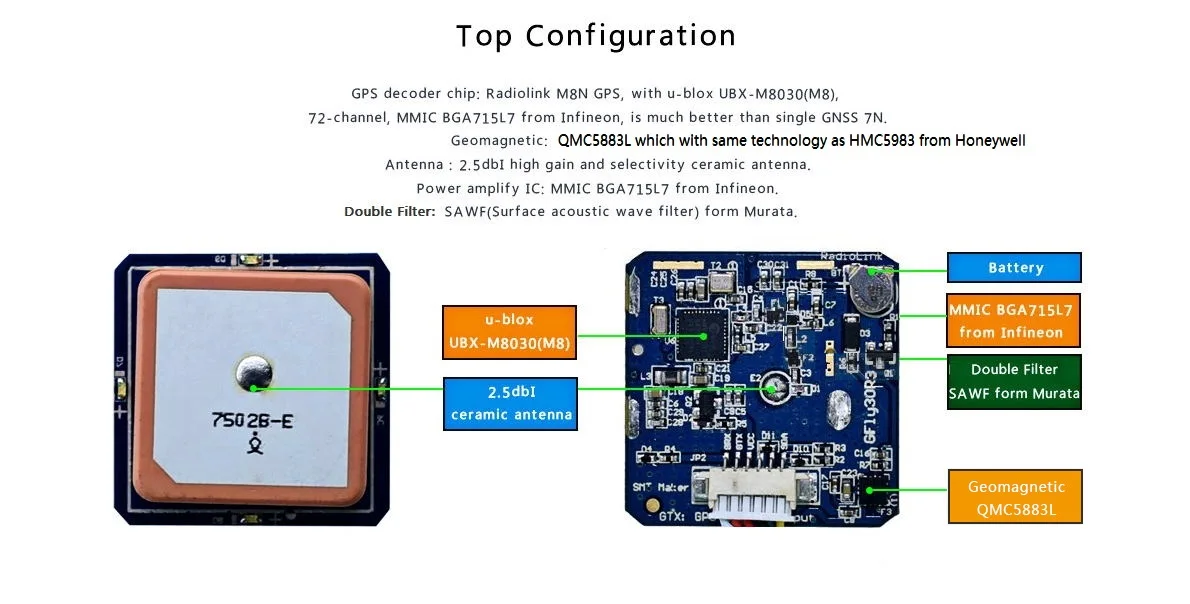

[Top Configuration]: Design with U-box UBX-M8030(M8), 72-channel, is better than GNSS 7N. 2.5dbl Ceramic Antenna and HMC5983 from Honeywell.

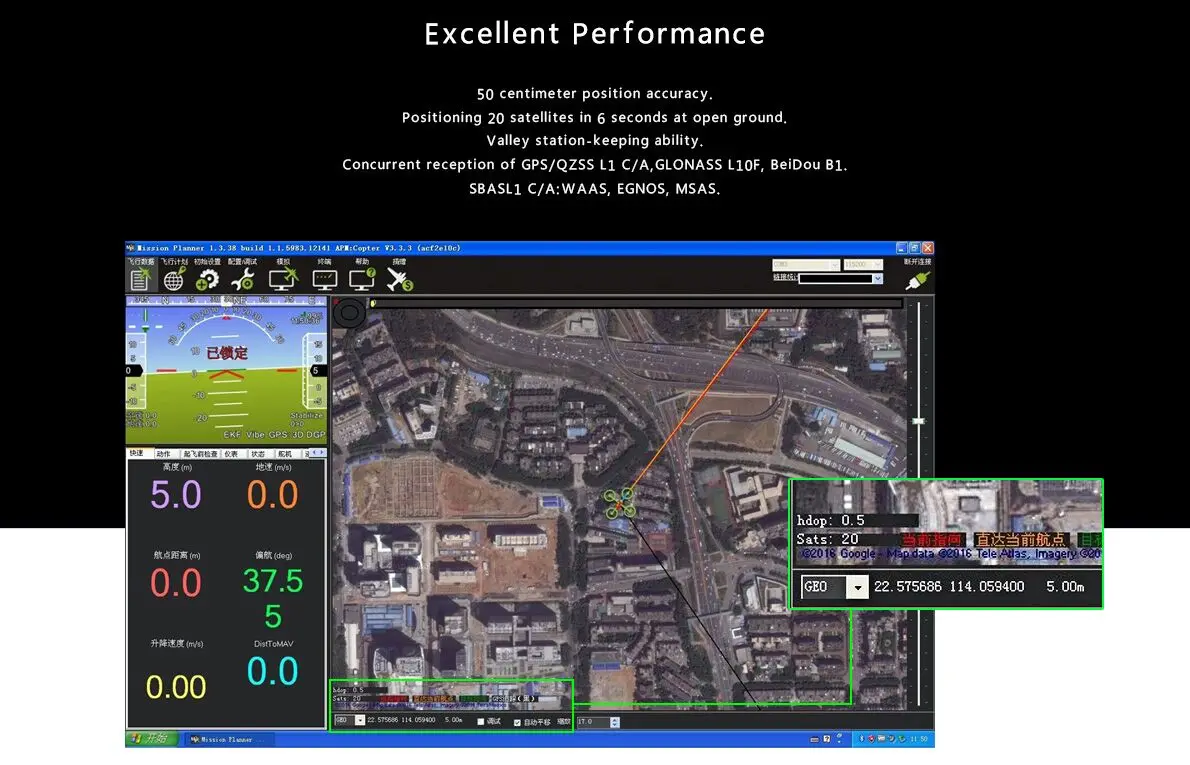

[Positional Accuracy and Quick]: 50 centimeter precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support Reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1.

[High-performance]: Added GPS signal search satellite indicator function, and obtained exclusive patent, achieving high configuration, low price, giving the model friend a very cost-effective product.

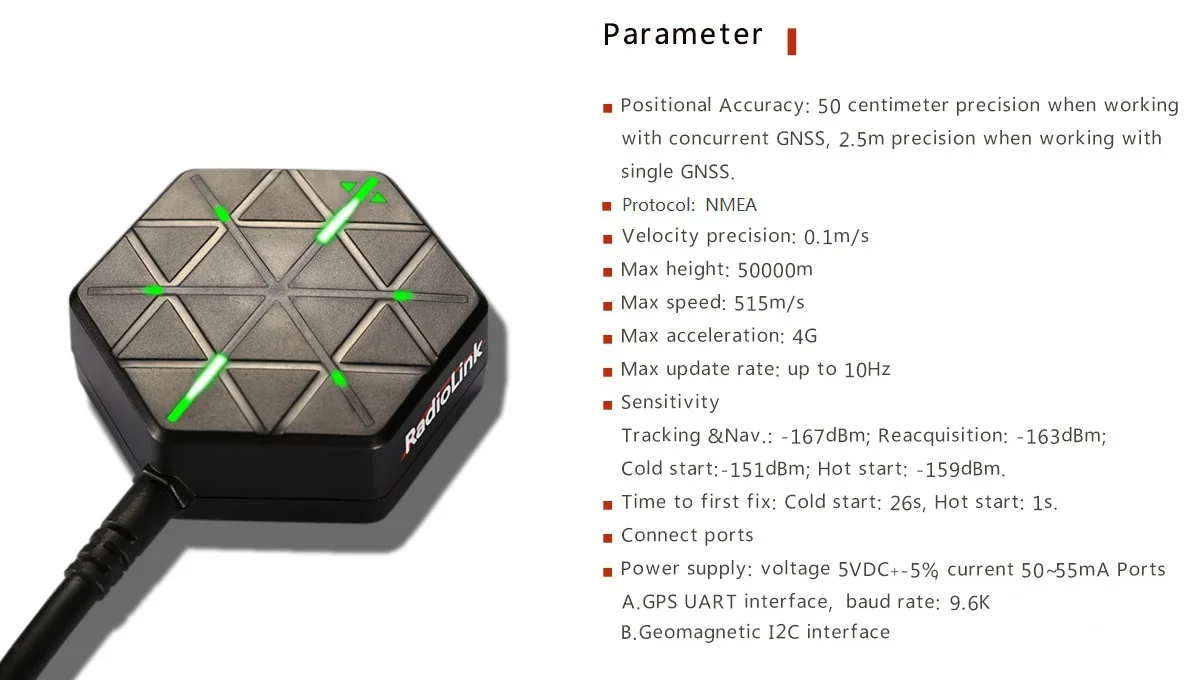

SE100 GPS Module Specification:

Velocity Precision: 0.1m/s

Max Height: 50000m

Max Speed: 515m/s

Max Acceleration: 4G

Update Rate: 10Hz

Time to First Fix: Cold start: 26s, Hot start: 1s

Power Supply: voltage 5VDC±5%

Size: 1.89*1.6*0.59in

Current: 50~55mA

•








•


  GPS Connect Ports:





•


  A.GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K





•


  B.Geomagnetic I2C interface





•


  Current: 50~55mA





•


  Sensitivity Tracking&Nav: -167dBm; Reacquisition: -163dBm





•


  Sensitivity Cold Start: -151dBm; Hot start: -159dBm





•








•

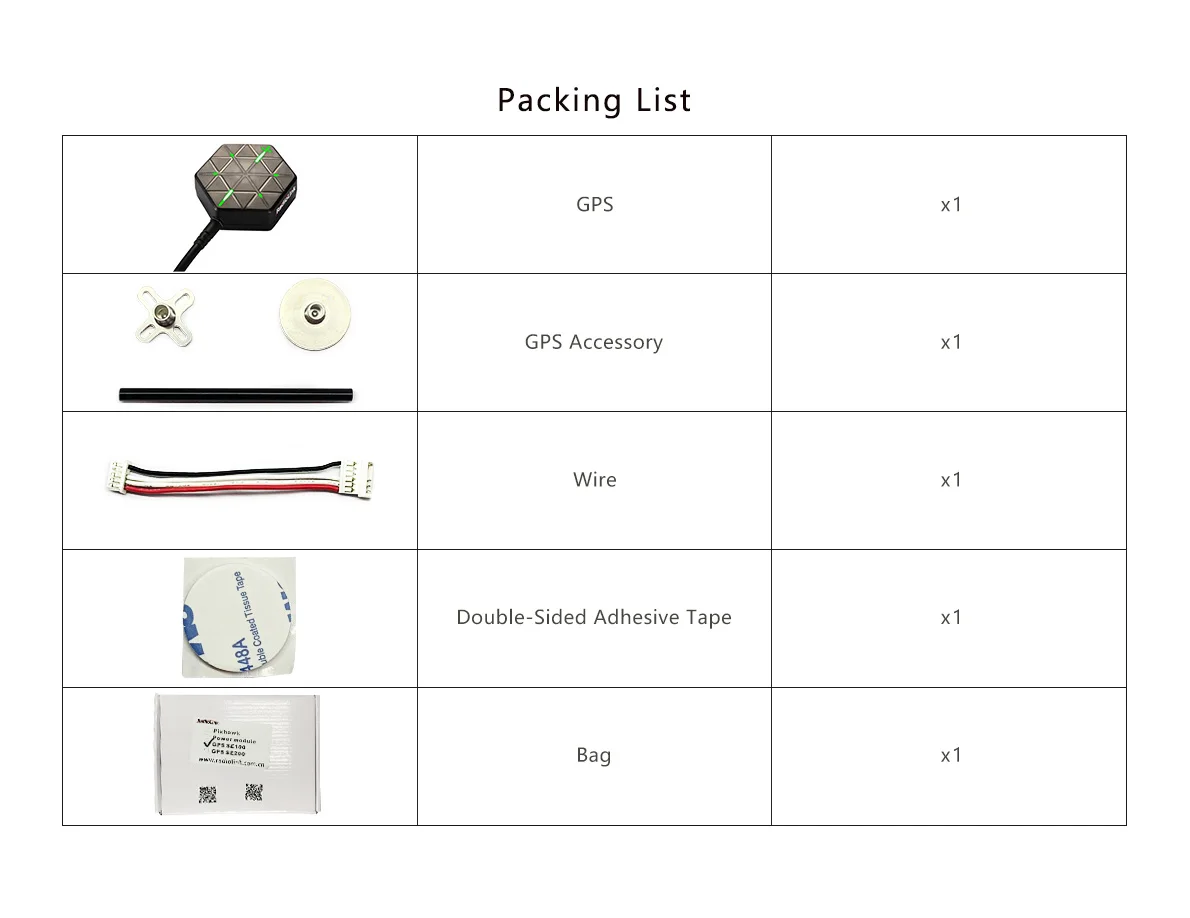

  Package Include (Separately Purchase):





•


  M8N SE100 GPS x 1





•


  Metal rod bracket x 1





•


  Connecting cable x 1





•


  Metal fixing gasket x 2





•


  Foam fixed sticker x 1
