Product Introduction
GL-HX-D002-RFBK

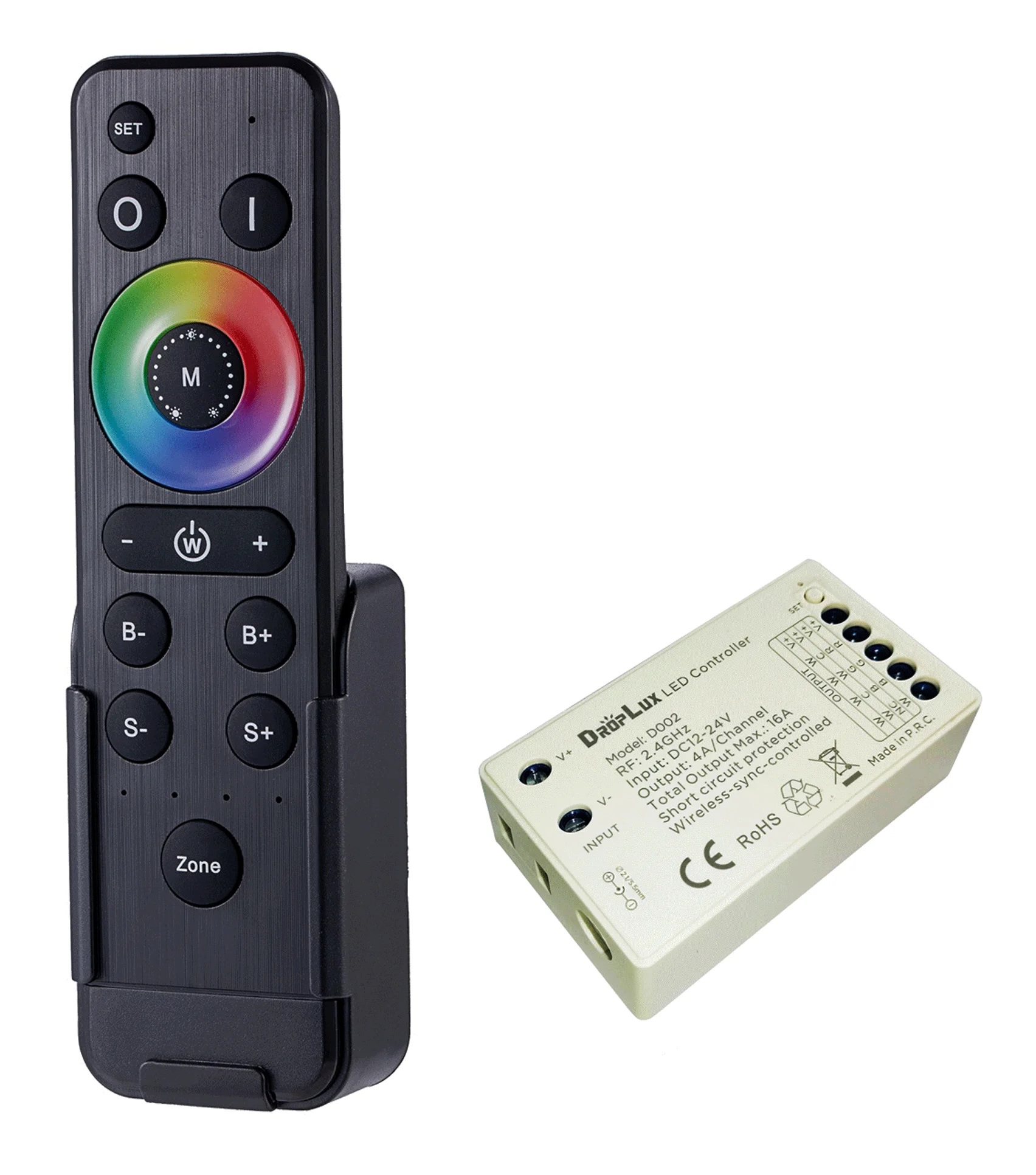

D002 wireless-sync-control led controller for DIM/CCT/RGB/RGBW with RFBK remote
Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used
for controlling constant voltage LED lamps. For instance, point source of light, flexible light strip, led
modules, led strings and so on; especially, it is integrated 4 optional programs for different color type LEDs,
contains single color/CW+WW/RGB/RGBW. It means only one item stock for 4 types applications
Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used
for controlling constant voltage LED lamps. For instance, point source of light, flexible light strip, led
modules, led strings and so on; especially, it is integrated 4 optional programs for different color type LEDs,
contains single color/CW+WW/RGB/RGBW. It means only one item stock for 4 types applications
Product Features
Designed for DIM/CCT/RGB/RGBW constant voltage LED lights.
DC12-24V, four channels output, Max. load current: 4CH*4A; Max. load power: 192W/12V; 384W/24V.
Adopts RF remote control, no need line-of-sight. 4 zones separately control or all-control.
Wireless-sync-control in both static color and dynamic modes, unlimited by remote control distance.
Batch-operation is available for RF code matching/clearing between remote control and receivers.
Memory function, each time power-on reserve the mode which stop in the last power-off.
Perfect control effect, including 1024 static colors(RGB/RGBW) and soft dim function.
The brightness of static color is adjustable, 1024 levels in total; the speed of dynamic changes is
adjustable, 100 levels in total.
Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
Warranty of this product is three years, exclude the artificial situation of damaged or overload working.
DC12-24V, four channels output, Max. load current: 4CH*4A; Max. load power: 192W/12V; 384W/24V.
Adopts RF remote control, no need line-of-sight. 4 zones separately control or all-control.
Wireless-sync-control in both static color and dynamic modes, unlimited by remote control distance.
Batch-operation is available for RF code matching/clearing between remote control and receivers.
Memory function, each time power-on reserve the mode which stop in the last power-off.
Perfect control effect, including 1024 static colors(RGB/RGBW) and soft dim function.
The brightness of static color is adjustable, 1024 levels in total; the speed of dynamic changes is
adjustable, 100 levels in total.
Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
Warranty of this product is three years, exclude the artificial situation of damaged or overload working.
Product Paramenters
Supply voltage | DC12V-24V |
Static power consumption | <1W |
Connecting mode | Common anode |
Grayscale | 1024 levels |
Speed stage | 1024 levels |
PWM frequency | 1.95KHz |
Max. Output power | 12V<192w;24v<384w |
Output | 4 channels |
Output current | ≤4A(each channel) |
RF frequency | 2.4GHz |
RF distance | ≤20m |
Short circuit protection | Yes |
Memory function | Yes |
Supply voltage | DC3V（AAA*2） |
Standby current | <18uA |
Working current | <25mA |
Standby power | 54uW |
Working power | 75mW |
RF frequency | 2.4GHz |
External dimension | L150*W40*H20 mm |
RF distance | ≤20m |
Net weight | 95g |
