Цена:124,00 $ - 139,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description


Product Name
5 Channel Car Amplifier
Output
5 channels full frequency
Type
Class D
Input sentivity
0.2~6v
SNR(signalto noise Ratio)
＞92DB
(RMS)Power(THD=1%)
4*120W+1*500W/4Ω 4*220W+1*650W/2Ω 2*450W/Bridged 4Ω
Frequency Response(-3DB)
13HZ~33KHZ
Low-pass Frequency(-3DB)
14HZ~8KHZ
High-pass Frequency(-3DB)
16HZ~7.6KHZ
Bass boost(-3DB)
49Hz
THD(total harmonic distortion)
<0.01%
Fuse
1*100A
Power supply
14.4V(9V~15V) NEGATIVE CONNECTIVE THE GROUND OF THE CAR
Size(mm)
363*240*60MM
Weight(Kg)
4KG

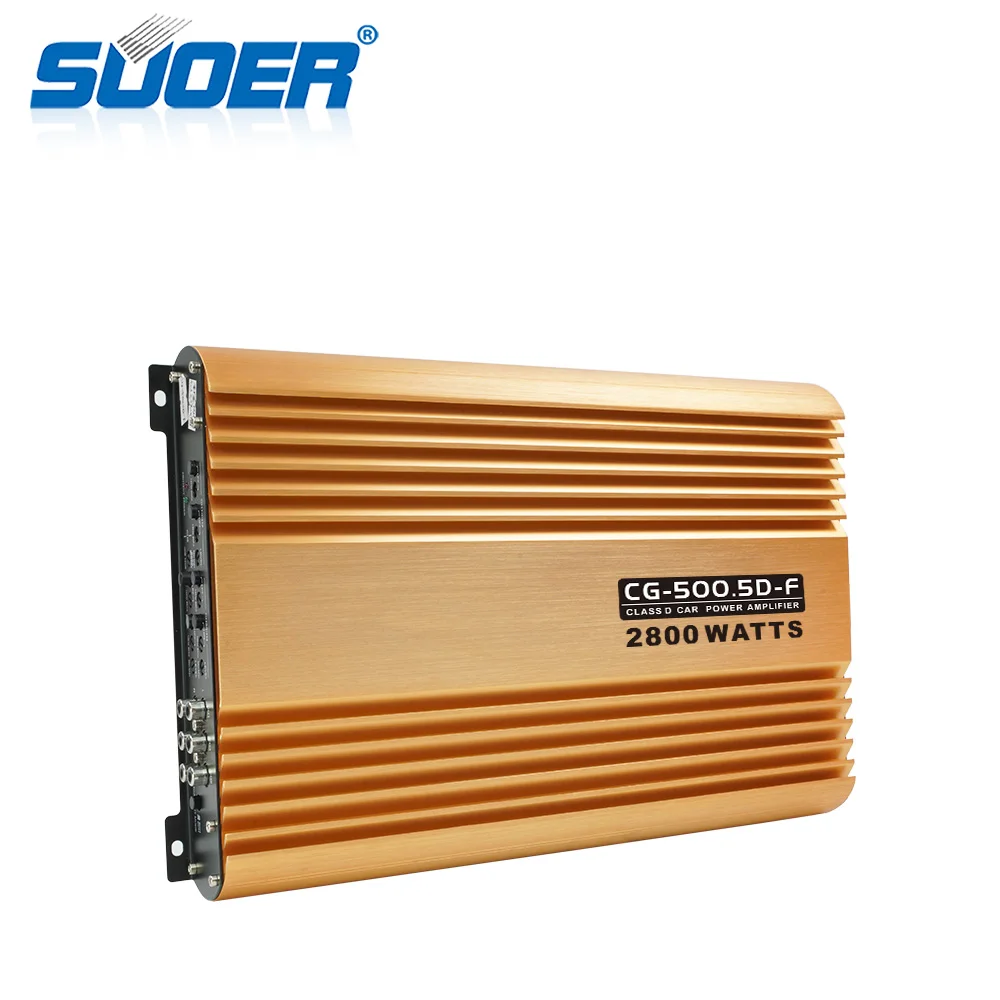

  • Suoer CG-500.5D-F 5 channel full range 2800w class D car amplifier


Thank you for purchasing our car audio amplifier.These power amplifiers have been
designed to provide high quality performance with minimum maintenance.However,it
will get good performance only when the components well installed and match with
speakers/subwoofers.We therefore advise you to read these instructions carefully to
familiarize yourself with the product features.
The installation and connection instructions must be strictly followed. If necessary,
please consult the service center of factory.
All connections of DC power supply, signal input and speaker output can be easily
and safely connected via RCA and screw terminals.



* This amplifier can only be used in connection with a 12V/24V power system with grounding.
* In order to get a good heat dissipation, installation place with good air circulation is

necessary.
* Please pay attention to keep enough distance between the input/output signal wires and the

power cables, otherwise it will cause interference and noise.
* The quality of the installation determines the performance and the stability of the product, so

it is better to ask professionals to install.


Product Usage

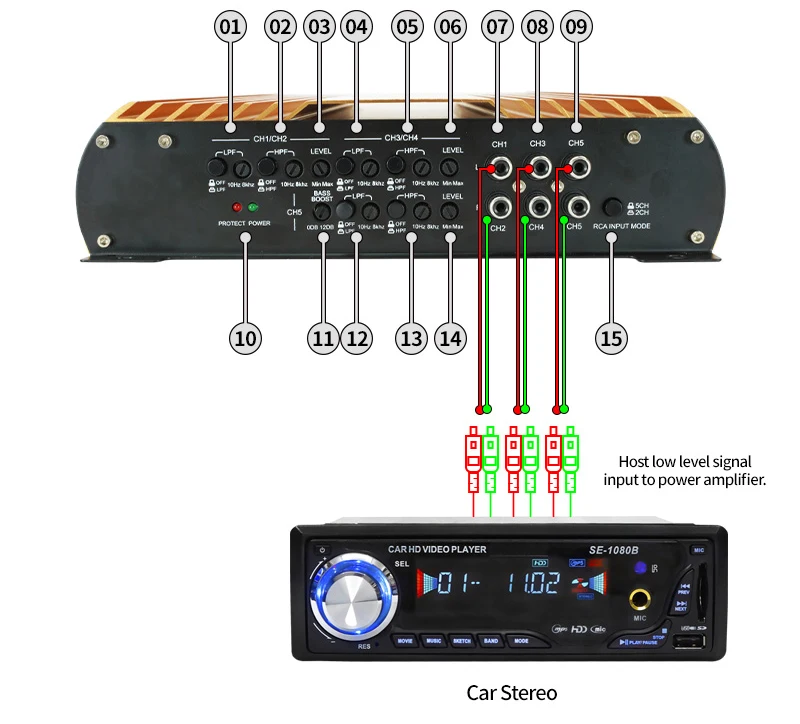

    • Product usage introduction

1.CH1/CH2 Low Pass Frequency
Range Regulation
2.CH1/CH2 High Pass Frequency
Range Regulation
3.Volume Regulator( CH1/CH2)
4.CH3/CH4 Low Pass Frequency
Range Regulation
5.CH3/CH4 High Pass Frequency
Range Regulation
6.Volume Regulator( CH3/CH4)
7.8.9.Signal input
10.The power amplier works normally
when the green light is on, and the
power amplier fails to protect when
the red light is on.



  • Product usage introduction

11.Bass Boost Regulator
12.CH 5 Low Pass Frequency
Range Regulation
13.CH 5 High Pass Frequency
Range Regulation
14.Volume Regulator( CH 5)
15.2CH/5CHMode Selection Switch

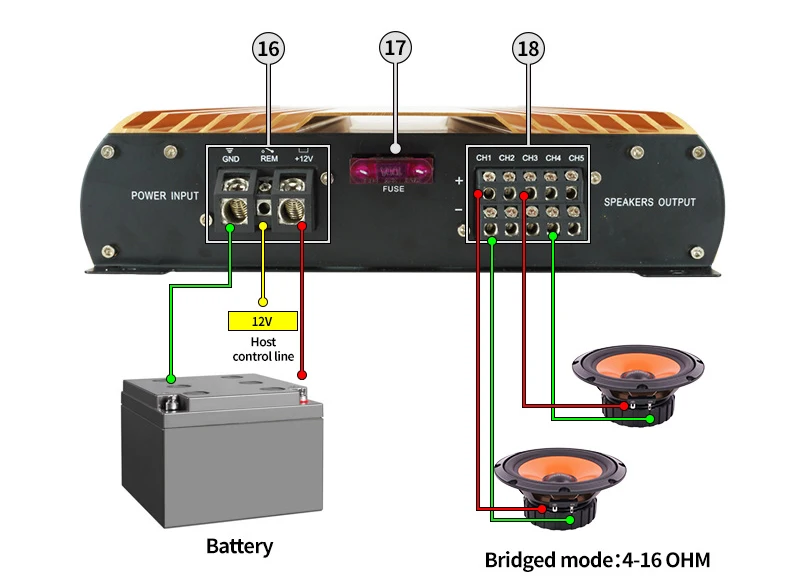

16.Power Input Terminal
17.Fuse
18.Horn Output Terminal
