LZZG DS Multi Function Modular Washing Plant Is The Best Machine In China !
The First Brand Of Sand Washer In China —— LZZG !
Products Description
DS Multi Function Modular Washing Plant
LZZG multi function modular washing plants are designed for maximum washing sand and recover the most part of the fine sand that mixed in water during the process.
LZZG multi function modular sand washing plant equiped with hydrocyclones and could remove -63 micron material from the washed sand product. This effectively eliminating the loss of quality fines to waste water treatment phase, and the modular sand washing plants are widely used in mineral washing, recycling, rivers and lakes sand purification.
LZZG multi function modular sand washing plant equiped with hydrocyclones and could remove -63 micron material from the washed sand product. This effectively eliminating the loss of quality fines to waste water treatment phase, and the modular sand washing plants are widely used in mineral washing, recycling, rivers and lakes sand purification.
Working Principle
The quality sand after screening are fed into spiral washing tank through chute for primary washing, the spiral sitter tumbling and grinds to remove impurities covering the surface of sand. The washed sand is taken away by the blades to feed into bucket sand washer. The muddy water and small specific gravity is taken away and pumped to desander cyclone for recycling, then also fed into bucket sand washer. When the bucket moves, the sand is washed by bucket sand washer, then the clean sand fed onto polyurethane screen for dewatering. At the same time, muddy water and fine particles mixture is extracted to secondary desander cyclone for recycling fine sand, then also fed onto polyurethane screen for dewatering. Then the finished product which is fully dehydrated by high frequency vibrating screen, will be transported into stock pile by belt conveyor.
Technical Parameters
Model | Capacity (t/h) | Spiral Diameter (mm) | Impeller (mm) | Screen Panel (mm) | Hydrocyclone (mm) | Power (kw) | Weight (kg) | Overall Size (mm) |
LX07-18-1224 | 20-40 | 760 | 1800*800 | 1200*2400 | 300*2 | 48.4 | 9800 | 11900*5250*3880 |
LX09-26-1530 | 30-60 | 920 | 2600*1200 | 1500*3000 | 300*2 | 55 | 11600 | 14550*5560*4150 |
LX11-30-1842 | 40-80 | 1120 | 3000*1600 | 1800*4200 | 300*4 | 95 | 18450 | 16250*6200*3700 |
2LX09-30-1842J | 60-100 | 920*2 | 3000*1600 | 1800*4200 | 300*4 | 110.5 | 20960 | 16250*6200*3700 |
2LX11-36-2442J | 100-150 | 1120*2 | 3600*2000 | 2400*4200 | 350*4 | 140.5 | 25100 | 17450*6800*3700 |
2LX11-36-3048J | 100-160 | 1120*2 | 3600*2400 | 3000*4800 | 300*6 | 168 | 35800 | 18000*7400*4260 |
2LX15-36-3048J | 120-200 | 1500*2 | 3600*2400 | 3000*4800 | 350*6 | 196 | 40200 | 18000*7400*4600 |
2LX15-42-3660J | 160-250 | 1500*2 | 4200*3000 | 3600*6000 | 350*6 | 214 | 47150 | 18580*8000*5200 |

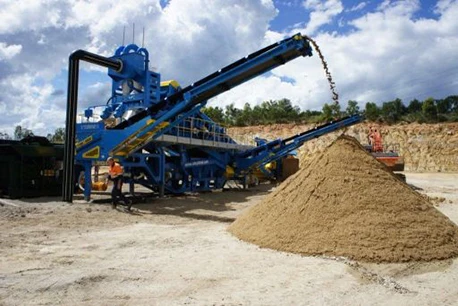

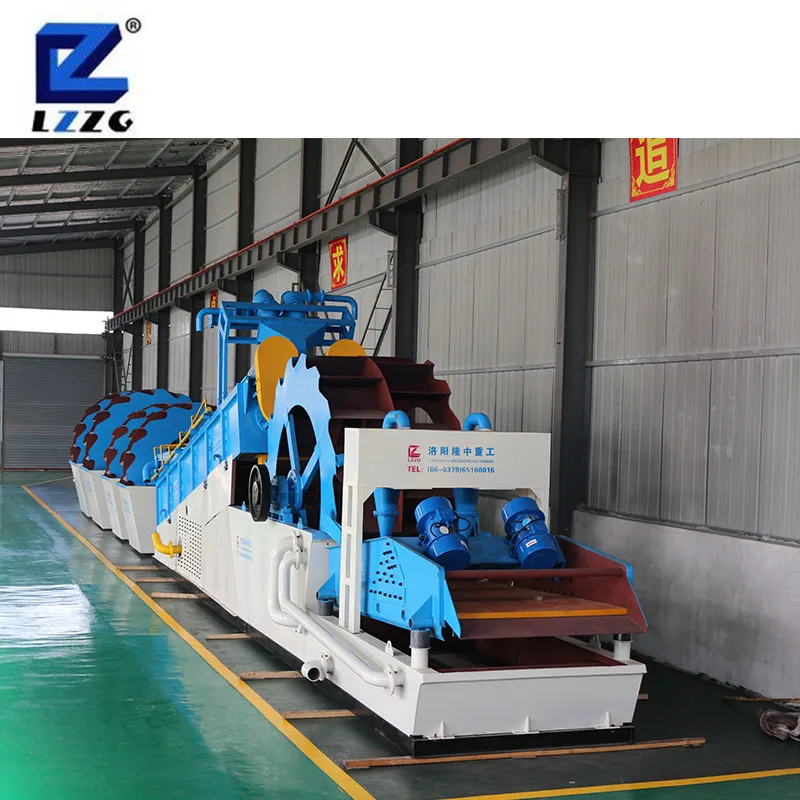

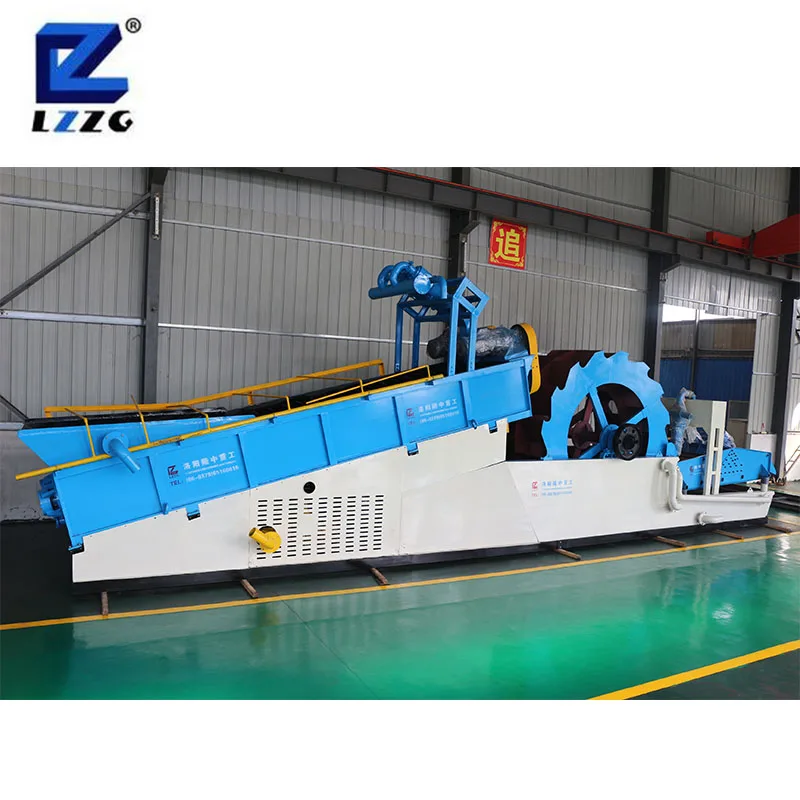

Product Display
Features & Benefits
1. Combine spiral sand washer, wheel sand washer in one for twice cleaning.
2. Efficient, energy saving, environmental protection.
3. Can be customized for different models, multi-layer screen.
4. Installation is simple, low maintenance costs.
5. Finished sand moisture content of less than 15%, mud content of less than 2%.
2. Efficient, energy saving, environmental protection.
3. Can be customized for different models, multi-layer screen.
4. Installation is simple, low maintenance costs.
5. Finished sand moisture content of less than 15%, mud content of less than 2%.
Packing & Delivery

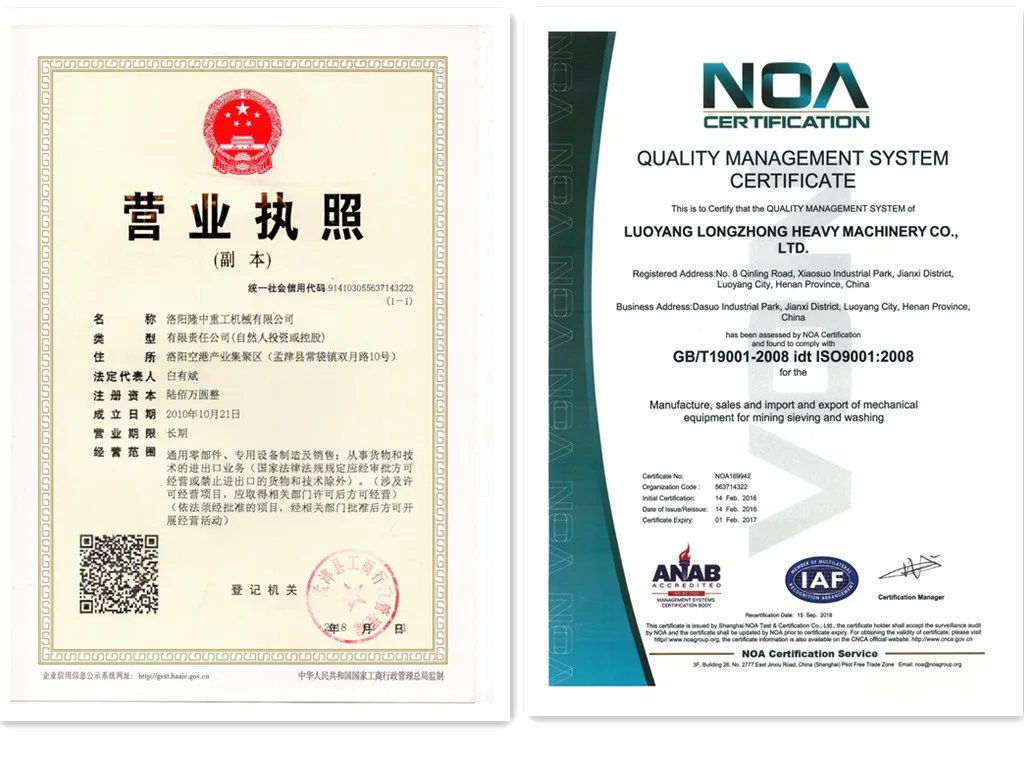

Certifications

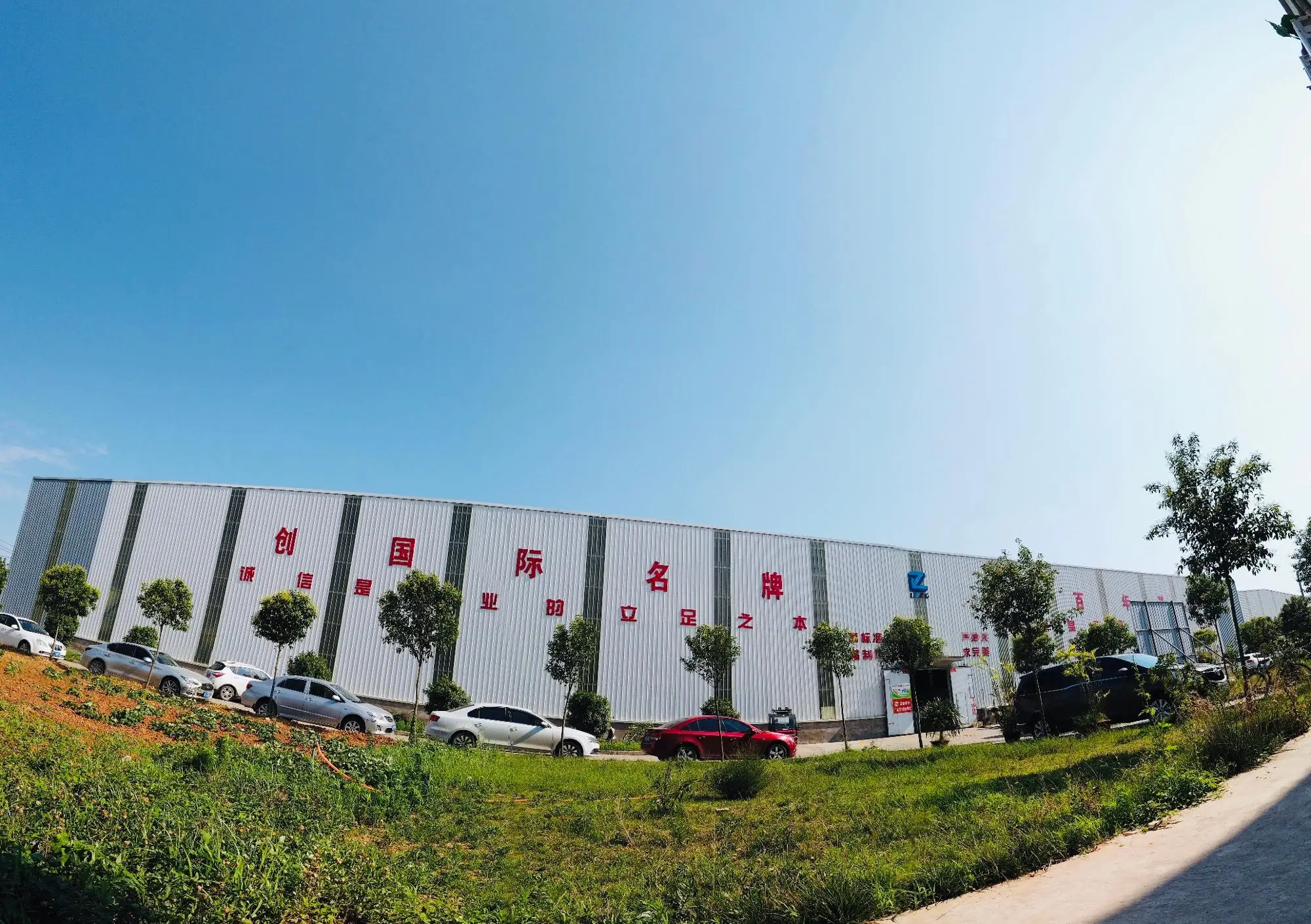

Company Profile
LZZG has a proud history of serving the sandstone and aggregates equipment industries since 2010. We provide a wide range of rugged and reliable washing, screening, dewatering, recycling & waste management equipment along with all kinds of mobile, fixed, and compact sand plants. We aims to improve our equipment quality, designs and solutions with the latest technologies. We strive to utilize our experience help our customers be more efficient and profitable.
Our Team
Our Service
Pre-sale Service:
1. Choice of model
2. Designing and manufacturing product according to customer's special requirement
3. Company will arrange engineer to customer's site,designing site and discussing project
On service:
1. Product inspection
2. Help customer to formulate the construction plan
After-sale Service:
1. Assign special after sale service team to site guiding customer to install and adjust machines
2. Training operator on site
1. Choice of model
2. Designing and manufacturing product according to customer's special requirement
3. Company will arrange engineer to customer's site,designing site and discussing project
On service:
1. Product inspection
2. Help customer to formulate the construction plan
After-sale Service:
1. Assign special after sale service team to site guiding customer to install and adjust machines
2. Training operator on site
Exhibition
FAQ
1.Does your product in stock?
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintenance and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintenance and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
