DPM Semi-Finishing chip-breaker for steel machining and slight interrupted cutting ISO P material.
Negative chamfer designation gives inserts good strength .The blade intensity and impact-resistance are increased ,it can efficiently break chip and extend chip breaker filed.
DMA
Semi-Finishing
DMA special chip breaker designed to keep both sharp cutting edge and good impact resistance ,which can efficiently avoid accumulate and suitable for semi-finishing ISO M and ISO P material.
DPMK
Semi-Finishing
DPMK Negative insert chipbreaker,the special three-dimensional groove design of double rake angle and variable edge width makes the c
utting force small, the chip breaking range is wide, and the edge edge is sharper than epmk. Therefore,even when cutting alloy steel with high viscosity, it can obtain good surface quality; it also has good performance in the case of uneven processing of blank.
DTM
Semi-Finishing
DTM Special chip breaker design to keep both sharp cutting edge and good impact resistance, which can efficiently avoid accumulated and suited for semi-finishing ISO M meterial.
Dodel Name
Suitable
Chipbreaker characteristic
TM
P-General
Designed special for steel .Its variable front Angle, variable cutting depth and large range of width,suitable for steel hard cutting.

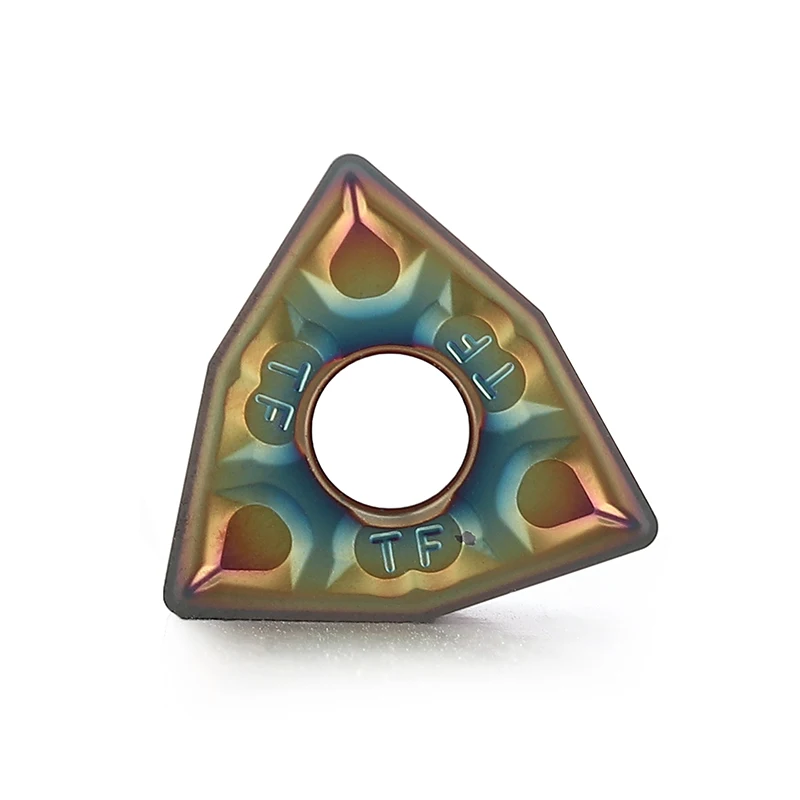

TF
P(Hardness Steel) - General
Double-sided trigon insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering.
MA
M /P - General
General chip breaker,suitable for ISO M materials
MS
M-General
General chip breaker,suitable for ISO M materials
Packaging & Shipping
ery
Delivery Time
3-7 days
Shipment way
DHL,TNT,EMS,Fedex,UPS,and other way customer named
Payment
Payment method
T/T, Paypal,Western Union
Application cases-P
Steel cutting application cases
Negative chamfer designed on sharp blade, blade intensity and impact-resistance are increased, it can efficiently break chip and extend chip break filed. DPM is suitable for semi-finishing and slight interrupted cutting ISO P material.
Steel
Steel
Customer:
XX company
Customer:
XX company
Workpiece:
outer bearing
Workpiece:
outer bearing
Workpiece material:
Gcr15
Workpiece material:
65# forge steel
Lathe type:
SK50P
Lathe type:
Horizontal steel
Dohre Insert:
WNMG080408
Dohre Insert:
WNMG060412-DPM
Compare Insert:
well-known manufacturer
Compare Insert:
well-known manufacturer
Cooling type:
Fluid cooling
Cooling type:
No
Processing type:
External semi-finishing turning
Processing type:
End face and external
Cutting parameter
VC=393m/min,Fn=0.18mm/r,AP=1.0mm
Cutting parameter
VC=160m-220/min,Fn=0.2-0.28mm/r,AP=1.0mm
Test conclusion (Life-time)
Test conclusion (Life-time)
Well-known manufacturer
70pcs
Well-known manufacturer
40pcs
Dohre
109pcs
Dohre
70pcs
Certifications
Company History
DohreCNC Tool Co.,Ltd was founded in 2002 which is located in DongGuan GuangDong province , a professional manufacturer and technique service in CNC tools more than 10 years ,With 60 employees and 15 engineers ,Dohre mainly service for the users of CNC machines ,factory price ,delivery on time and completed technology supports. Dohre have always been specializing in carbide drilling tools and non-standard tools, The major products are widely used on industrial field ,involved automobile,motorcycle engine,machinery,electronic. The non-standard series products developed the solutions for Auto,Aviation ,Aerospace,glasses industry etc.Accept OEM&ODM.We offer the products for the major industrial field, Certificate the ISO9001, SGS.CE.
