Запчасти для машин сварочный стол и приспособления болты быстрой фиксации сделано в

Описание и отзывы

Характеристики

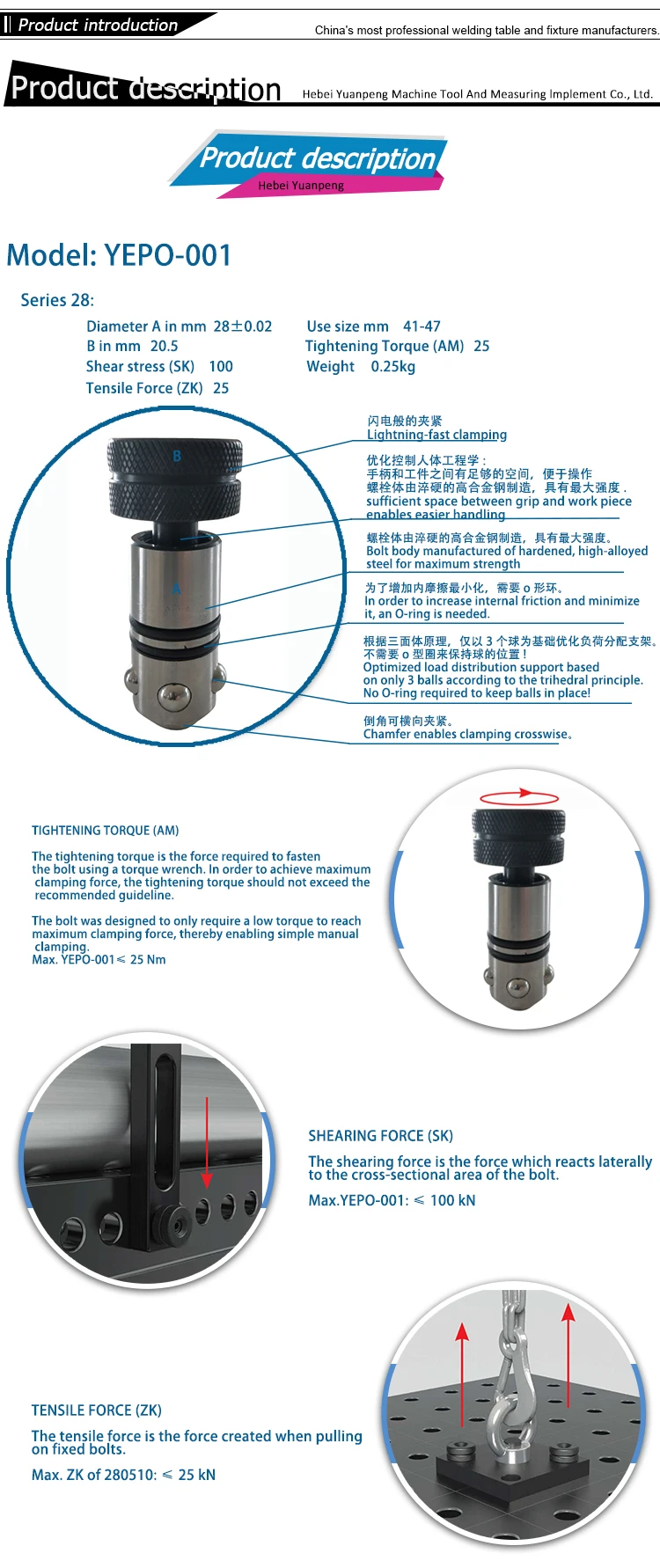

Fast locking pin/S=50+5mm; Material: 45 # steel.



Fast locking pin/S=75+5mm; Material: 45 # steel.



Quick lock pin of countersunk head/S=50+5mm; Material: 45 # steel.



Quick lock pin of countersunk head/S=75 +5mm; Material: 45 # steel.



The countersunk locking pin/S=50+5mm; Material: 45 # steel.



The countersunk locking pin/S=75+5mm; Material: 45 # steel.



8.2. Outer diameter: A = 27.979 - 28.000mm.



8.3. Surface roughness: Ra0.8



Hardness: HRC28-32.

. Name/Specification (S) and Material:

Fast locking pin/S=24 +2mm; Material: 45 # steel.

Fast locking pin/S=36 +2mm; Material: 45 # steel.

Quick locking pin of countersunk head/S=24+2mm; Material: 45 # steel.

Quick locking pin of countersunk head/S=36+2mm; Material: 45 # steel.

Countersunk locking pin/S=24 +2mm; Material: 45 # steel.

Countersunk locking pin/S=36 +2mm; Material: 45 # steel.

8.2. Outer diameter: A = 15.979 - 16.000mm.

8.3. Surface roughness: Ra0.8

Hardness: HRC28-32.
