Product Description
Moko New Product Bluetooth Wearable Beacon Fall Down Motion Sensor SOS button ibeacon
Features
Firmware and chipset
* Programmed MOKO standard MkBeaconX firmware;
* Ultra-low power consumption chipset NORDIC® nRF52 series with 32 bit ARM® Cortex-M4 CPU.
Compatibility
* Compatible with Apple iBeacon and Google Eddystone;
* Compatible with standard Eddystone Configuration GATT Service;
* Compatible with all Bluetooth® Low Energy devices.
High quality Battery and long lifetime
* High quality rechargeable lithium battery (180mAH 3.7V);
* Easily get real-time battery notifications.
* Programmed MOKO standard MkBeaconX firmware;
* Ultra-low power consumption chipset NORDIC® nRF52 series with 32 bit ARM® Cortex-M4 CPU.
Compatibility
* Compatible with Apple iBeacon and Google Eddystone;
* Compatible with standard Eddystone Configuration GATT Service;
* Compatible with all Bluetooth® Low Energy devices.
High quality Battery and long lifetime
* High quality rechargeable lithium battery (180mAH 3.7V);
* Easily get real-time battery notifications.
Features
Configurable SLOTs and parameters
* Up to 6 configurable SLOTs;
* Each SLOT can be set to iBeacon，UID，URL，TLM，Device Info and 3-axis Sensor data;
* Device Name, Password, Connection Mode, Advertising Interval, Tx Power and 3-axis Sensor Parameters all are configurable;
Flexible sensor function
* 3-axis accelerometer has dynamically user-selectable full scales of ±2g/±4g/±8g/±16g and the paremeter is configurable ；
* 3-axis accelerometer is capable of measuring accelerations with output data rates from 1 Hz to 100 Hz and the paremeter is
configurable；
* User can get the raw data of the 3-axis sensor sampling data from the device in real time；
* Up to 6 configurable SLOTs;
* Each SLOT can be set to iBeacon，UID，URL，TLM，Device Info and 3-axis Sensor data;
* Device Name, Password, Connection Mode, Advertising Interval, Tx Power and 3-axis Sensor Parameters all are configurable;
Flexible sensor function
* 3-axis accelerometer has dynamically user-selectable full scales of ±2g/±4g/±8g/±16g and the paremeter is configurable ；
* 3-axis accelerometer is capable of measuring accelerations with output data rates from 1 Hz to 100 Hz and the paremeter is
configurable；
* User can get the raw data of the 3-axis sensor sampling data from the device in real time；
Specification
How to use it
Load the URL onto beacon
If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Download the beacon configuration app MokobeaconX from Google Play or Apple store;
2. Open beaconX Pro, and connect the beacon.

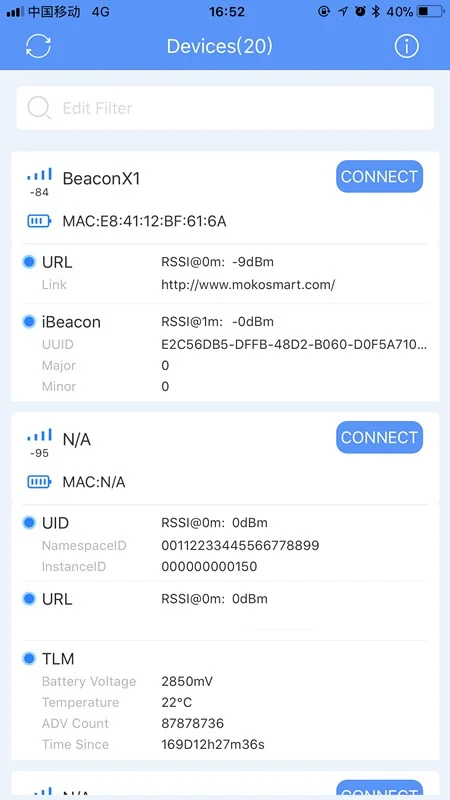

3. Click the device icon, select the SLOT 3 (URL), and enter the URL slot, then Click'Save' to save the changes as below image.
If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Download the beacon configuration app MokobeaconX from Google Play or Apple store;
2. Open beaconX Pro, and connect the beacon.
3. Click the device icon, select the SLOT 3 (URL), and enter the URL slot, then Click'Save' to save the changes as below image.
item | value |
Chipset | nRF52 |
Brand | moko |
Model Number | w5 |
Application | SOS |
Country of Origin | china |
Case Color | Black |
Main Material | TPU+PC |
Battery Model | Lithium polymer battery |
Battery Lifetime | About 5 months |
Operation Voltage | 3.3V |
Waterproof Level | IP68 |
Static Current | 14.7 uA |
Average Current | 50 uA |
Transmission Range | >120m |
Size | Body size: 47.8x35.7x11.7mm Wearable range: 13cm~25cm |
Packing & Delivery
32pcs for each box
10 boxes for each carton (320pcs)
About 8KG for each carton
10 boxes for each carton (320pcs)
About 8KG for each carton

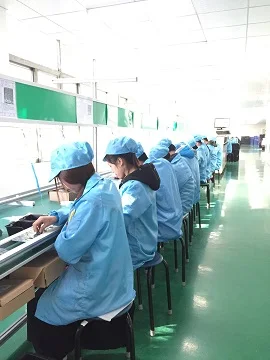

Company Profile
MOKO Founded in 2007,has been engaged in IoT (Internet of Things) field for many years.
We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products. our main products including BLE iBeacon, Eddystone beacon, beacon with sensors, bluetooth modules, WIFI module and OEM&ODM services.
MOKO R&D team focus on designing and manufacturing many different high quality and low cost bluetooth hardware , offering one-stop services include:
1. Schematic design; 2. Mold design;
3. PCB layout; 4. Firmware design;
5. Production and assembling.
Moko will keep straight ahead in IoT industry. The better service, solution, products and price is our core target .
We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products. our main products including BLE iBeacon, Eddystone beacon, beacon with sensors, bluetooth modules, WIFI module and OEM&ODM services.
MOKO R&D team focus on designing and manufacturing many different high quality and low cost bluetooth hardware , offering one-stop services include:
1. Schematic design; 2. Mold design;
3. PCB layout; 4. Firmware design;
5. Production and assembling.
Moko will keep straight ahead in IoT industry. The better service, solution, products and price is our core target .
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to North America(43.00%),Western Europe(10.00%),Southern Europe(10.00%),Eastern Europe(10.00%),Northern Europe(10.00%),South America(7.00%),Domestic Market(5.00%),Mid East(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ibeacon/beacon,eddystone beacon,bluetooth beacon,ble beacon,iot
4. why should you buy from us not from other suppliers?
We have an professional R&D department with 30 engineers to support design service.And we have our own supply chain and factory to provide one-stop service,from your idea to final product production.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2011,sell to North America(43.00%),Western Europe(10.00%),Southern Europe(10.00%),Eastern Europe(10.00%),Northern Europe(10.00%),South America(7.00%),Domestic Market(5.00%),Mid East(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ibeacon/beacon,eddystone beacon,bluetooth beacon,ble beacon,iot
4. why should you buy from us not from other suppliers?
We have an professional R&D department with 30 engineers to support design service.And we have our own supply chain and factory to provide one-stop service,from your idea to final product production.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
