Product Introduction
Electrical steel, also known as silicon steel, is a ferrosilicon soft magnetic alloy steel with very low carbon content, usually containing 0.5% to 4.5% silicon. The addition of silicon can increase the resistivity and maximum permeability of iron, and reduce the coercivity, iron loss and magnetic aging.
Specifications
Product Name | Electrical Steel, Lamination Steel, Silicon Electrical Steel, Silicon Steel, Relay Steel, Transformer Steel |
Standard | AISI, ASTM, BS, DIN, GB, JIS, EN |
Thickness | 0.27- 0.50 mm |
Width | 900-1230 mm |
Brand | AIYIA |
Origin | China |
Product Details

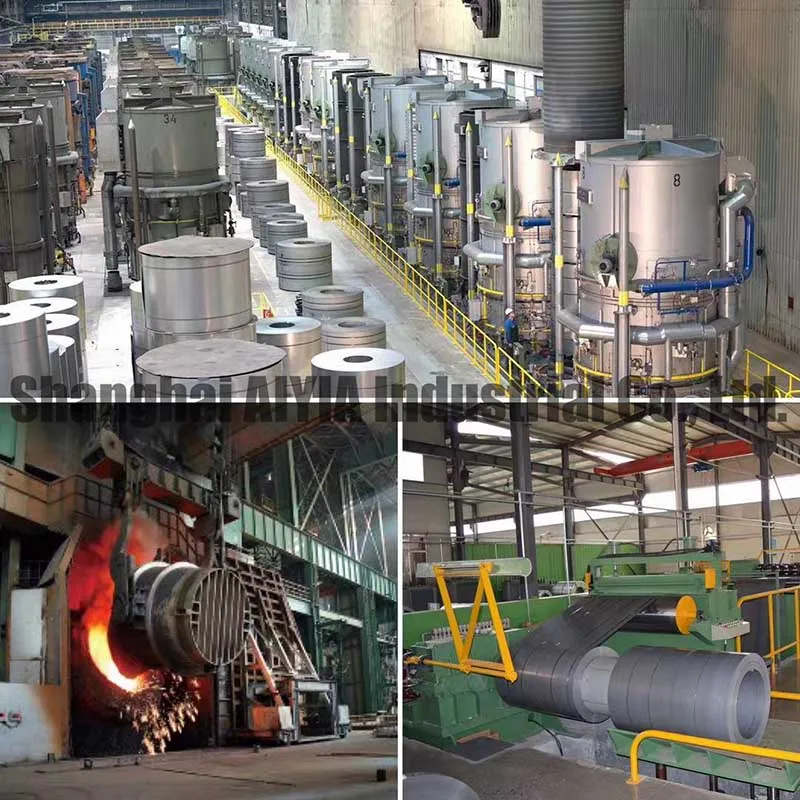

Production Line
Product Advantages
1.Stable performance
2.Excellent processing performance: High precision dimension and excellent mechanical properties make it easy to be sheared, punched and stacked by high speed punch machine. It also have good welding performance.
3.Excellent performance of Insulating coating: Uniform color, good insulation, high adhesion, excellent heat resistance and excellent processing performance

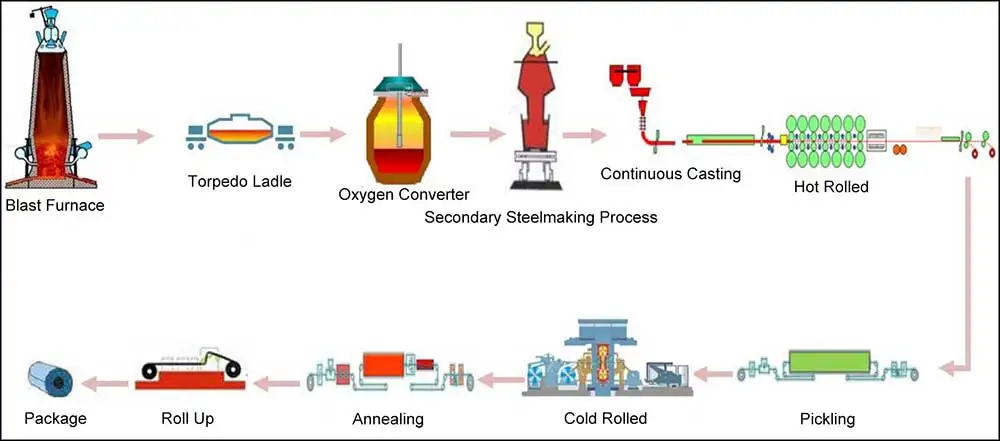

Manufacturing Process
Mechanical Property
Grade | Yeild Strength (N/mm2) | Ultra -Tension Strength (N/mm2) | Ductility (%) | Hardness (HV1 |
M35W230 | 430 | 560 | 20.0 | 225 |
M35W250 | 415 | 550 | 20.5 | 220 |
M35W270 | 400 | 515 | 20.5 | 215 |
M35W300 | 360 | 480 | 21.5 | 195 |
M35W360 | 350 | 480 | 23.5 | 190 |
M35W440 | 275 | 420 | 27.5 | 165 |
M35W550 | 265 | 415 | 33.5 | 160 |
M50W250 | 430 | 560 | 19.0 | 230 |
M50W270 | 410 | 550 | 21.5 | 225 |
M50W290 | 395 | 545 | 22.5 | 220 |
M50W310 | 385 | 510 | 24.5 | 210 |
M50W350 | 350 | 475 | 26.5 | 190 |
M50W400 | 320 | 460 | 36.0 | 170 |
M50W470 | 295 | 425 | 35.0 | 160 |
M50W600 | 280 | 410 | 37.0 | 140 |
M50W800 | 285 | 405 | 38.5 | 135 |
M50W1300(D) | 250 | 360 | 40.0 | 115 |
Insulating Coating
Coating types | M11 | M21 |
Component | Chromium containing , semi organic coating | Chromium free, semi organic coating |
Coating thickness (μm) | 0.7~1.5 | 0.8~5.0 |
Interlayer resistance (Ω•mm2 /slice) | ≥100 | ≥100 |
Adhesive property | Class A or class B | Class A or class B |
Punching property | Excellent | Excellent |
Antirust property | Excellent | Excellent |
Heat resisting property | Resistant annealing at 750 C, N2 protection, for 2h | Annealing resistance in general |
Product Application
Field | Purpose |
Rotary machine | Large motor Medium motor Compressor motor General Motors Small precision motor Motor for electric vehicle |
The Immobilizer | High frequency working motor Miniature power supply transformer Instrument use transformer Reactor Welding machine use transformer Power switch Manostat Magnetic sealing unit Electromagnet for accelerator |

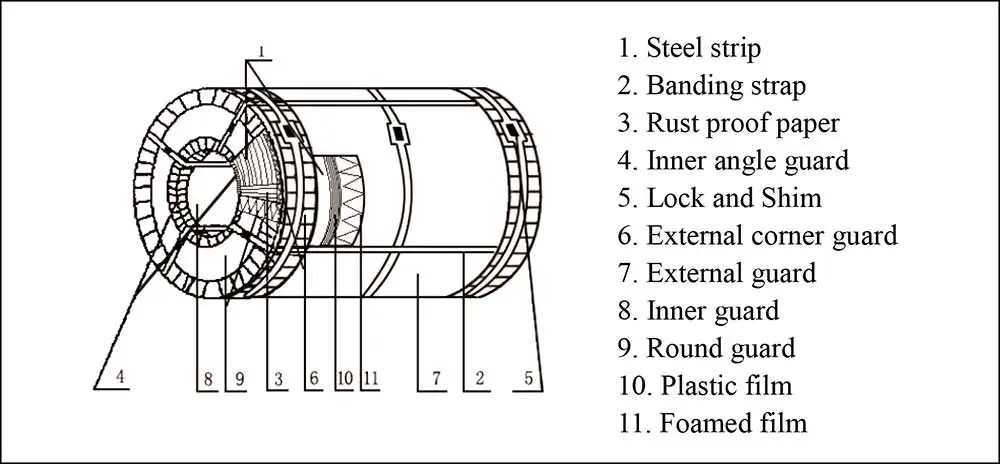

Packaging Methods
Quality Certification
Product Transportation
We offer different modes of transport depending on the customer's destination: rail transport and ship transport.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards, Specifications, Package No., Contract No., Heat No., Weight of zinc film, Color, Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
Global Market
We are committed to exploring the international market. Our customers come from all over the world, such as Africa, Latin
America,Middle East, Southeast Asia, Europe, etc. Our high quality and low price products have won their recognition.
Customer Friends From All Over The World
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
