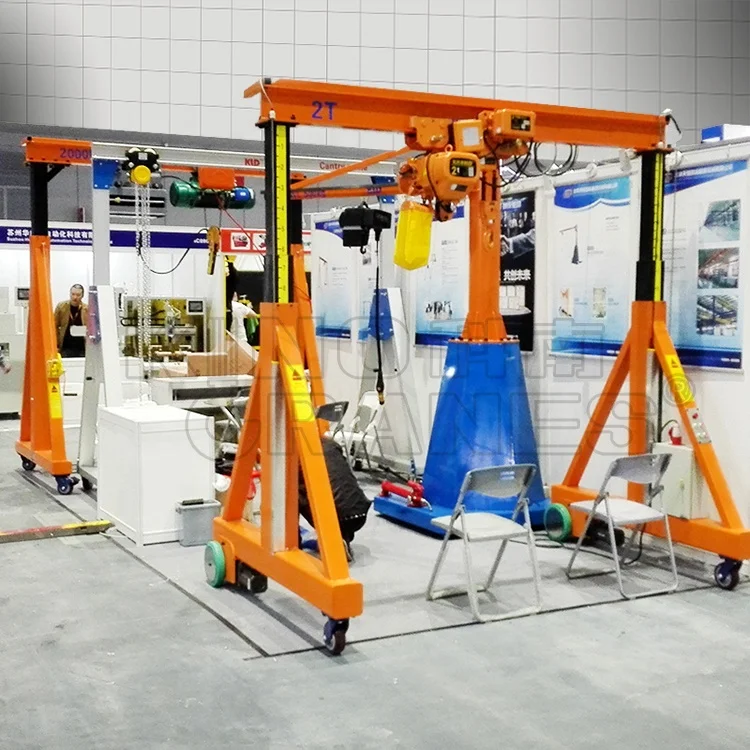

2021 New Customized CE approval Adjustable height Portable Gantry crane with Electric Chain hoist for workshop warehouse
Product Discription

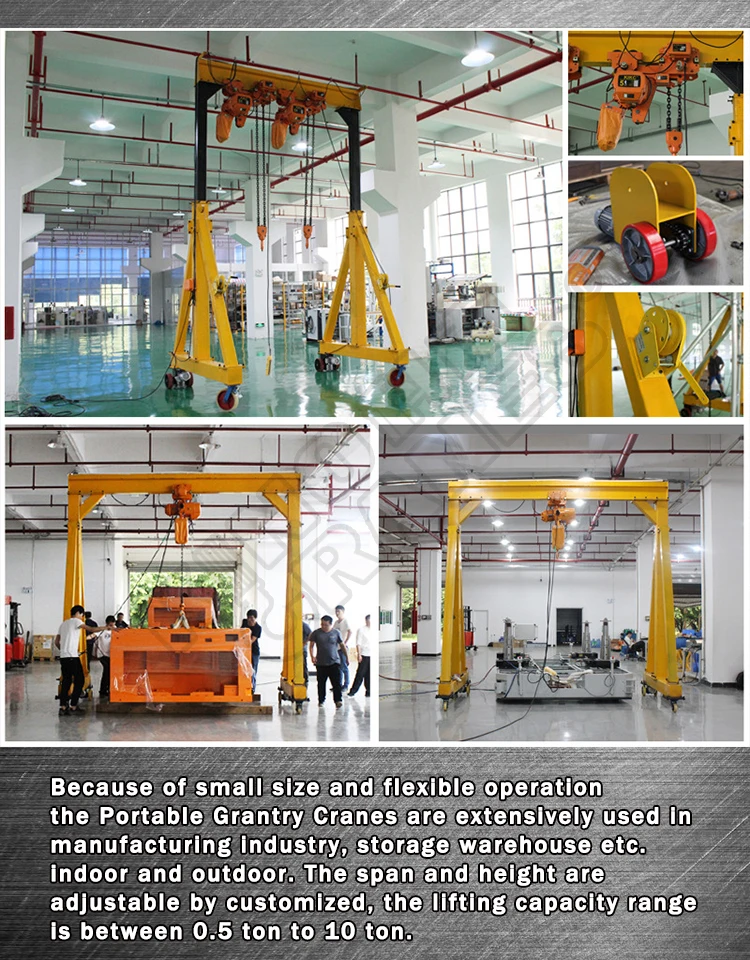

Adjustable height Portable Gantry crane with Electric Chain hoist1 2 3 5 10 15 20 ton is most popular type material lifting equipment for workshop, warehouse material delivery, outdoor, construction, etc.
It consists of gantry frame, main beam, hoist, electric driven, universal and electrical box, etc. 0.5-20 Ton be complete designed and customized as per customer demands.
It consists of gantry frame, main beam, hoist, electric driven, universal and electrical box, etc. 0.5-20 Ton be complete designed and customized as per customer demands.
Features of Adjustable height Portable Gantry crane with Electric Chain hoist:
1.Beautiful appearance, made of thicker steel plate, stronger bearing capacity;
2.The base adopts a triangular stable structure design, which is more stable and pressure resistant;
3.Simple installation, easy operation and maintenance, stable operation, low noise;
4.Widely used in factory workshop, warehouse, stock yard yard, open goods yard etc.
2.The base adopts a triangular stable structure design, which is more stable and pressure resistant;
3.Simple installation, easy operation and maintenance, stable operation, low noise;
4.Widely used in factory workshop, warehouse, stock yard yard, open goods yard etc.
Why choose kinocranes brand portable gantry crane
Safety is the most important issue for crane. To ensure the safety, the following safety devices are equiped in Kinocranes.
* Crane traveling limit switch.
* Weight overload protection device.
* Lifting height limit device.
* Voltage lower protection function.
* Phase sequence protection function.
* Emergency stop function.
* Rain cover for outside hoist, driving units, electric cubicle.
* Warning indicator: flashing lights and warning sounds.
* Wireless infra-detector for anti-collusion.
* Weight overload protection device.
* Lifting height limit device.
* Voltage lower protection function.
* Phase sequence protection function.
* Emergency stop function.
* Rain cover for outside hoist, driving units, electric cubicle.
* Warning indicator: flashing lights and warning sounds.
* Wireless infra-detector for anti-collusion.
Loading capacity | 0.5 ~ 20t |
Lifting height | 3 ~ 10 m |
Travel speed | 0 ~ 8m/min or customized stepless control |
Span | 3 ~ 15 m |
Lifting mechanism | Electric chain hoist |
Working class | M3 |
Working temperature | -20 ~ 40 ℃ or as require |
Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
Control voltage | DC -36 / 48V |
Motor protection class | IP54, IP55 or up to IP65 |
Control way | Wireless remote, pendant push button. |
Rotation angle | 360 degrees |
Application area | Factory,workshop,warehouse,shipping yard, goods yard,etc. |
Painting color | Yellow,red or customized |
Most Suitable Solutions for Different Workshop Conditions
