Diamond penetrating glass cutting wheel Micro penetration diamond PCD penett scribing wheel for glass tube flat mirror
Product Description

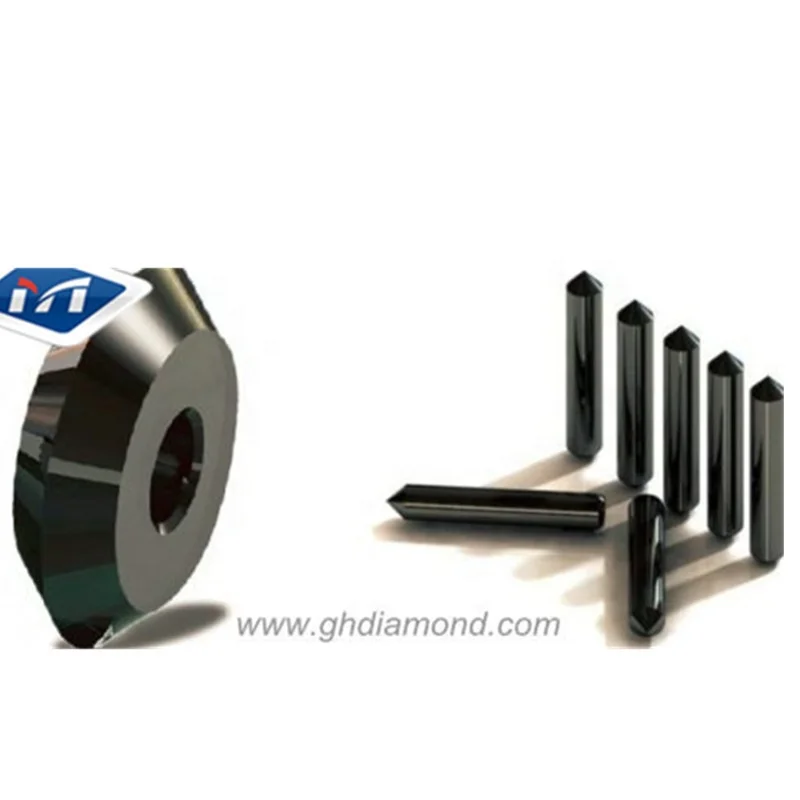

![1wheel_axeld[1]__.jpg](http://sc02.alicdn.com/kf/HTB11HopaovrK1RjSszfq6xJNVXag/229990459/HTB11HopaovrK1RjSszfq6xJNVXag.jpg)

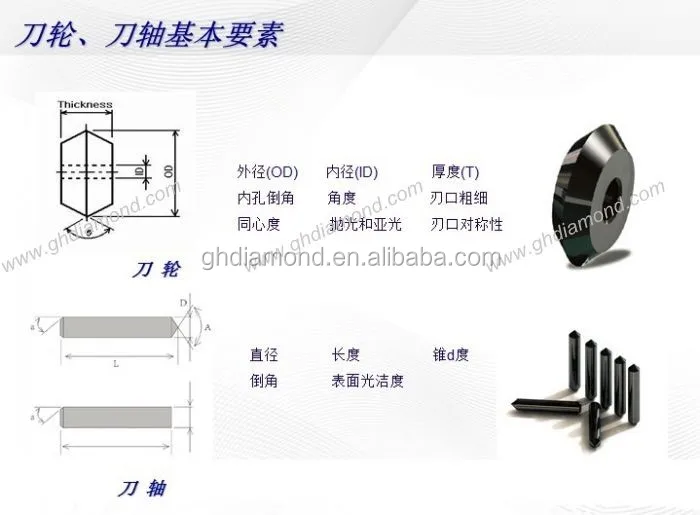

| Description | Specification | Applications | |||
| OD(mm) | ID(mm) | T(mm) | V(°) | ||
| Diamond Scribing Wheels | 2 | 0.8 | 0.65 | 80-150 | TFT-LCD, CSTN-LCD, |
| 2.5 | 0.8 | 0.65 | STN-LCD, LCD Displayer,Float Glass | ||
| 3 | 0.8 | 0.65 | Float Glass,LCD touch panel, auto, | ||
| 3 | 1.2 | 1 | medical and optical glass,,Float Glass | ||
| Diamond Axle | Diameter (mm) | Length (mm) | |||
| 0.8 | 4&6 | ||||

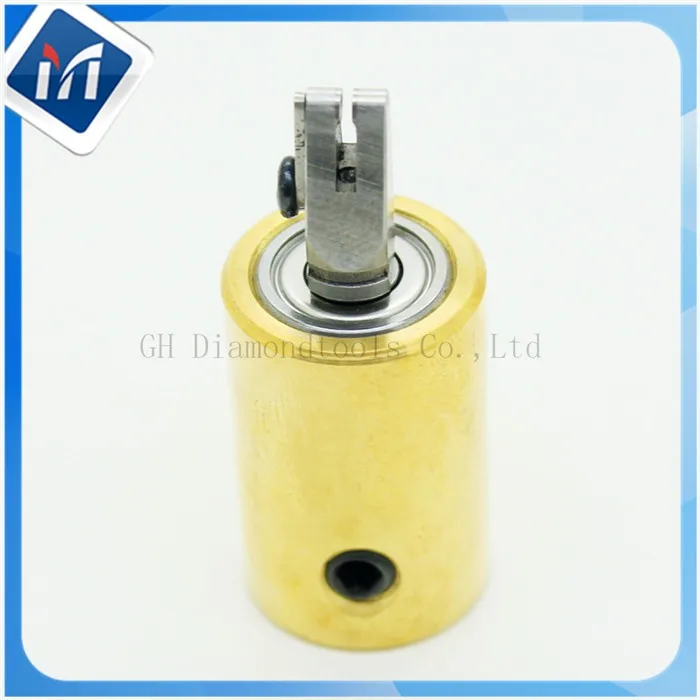

We could supply diamond scribing wheels, micro teeth diamond scribing wheels, standard diamond scribing wheels, hybrid diamond scribing wheels, PCD axles, wheel holders, etc.
With excellentabrasive resistance and long service life

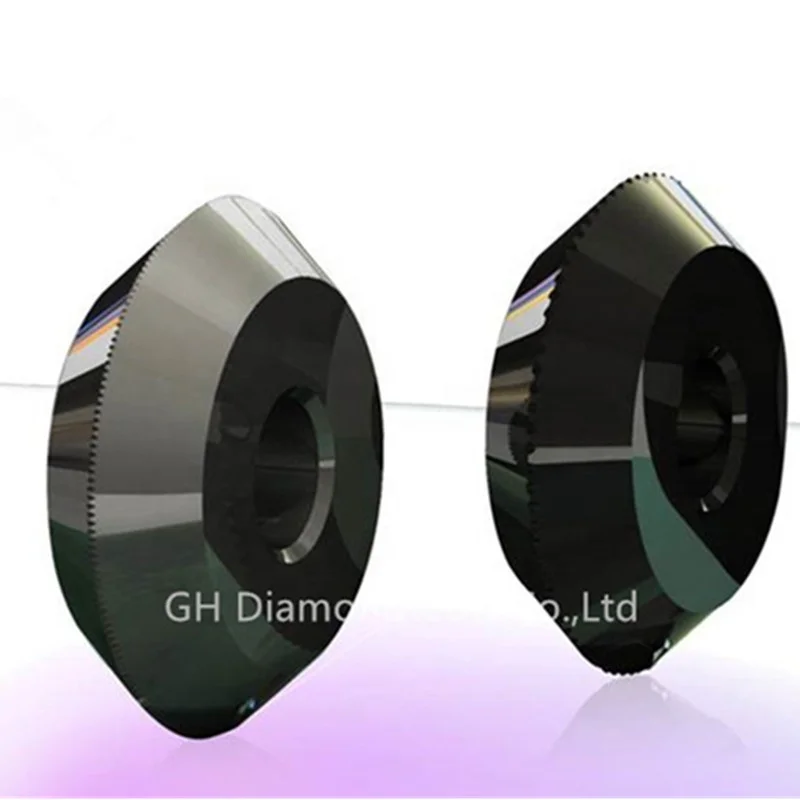

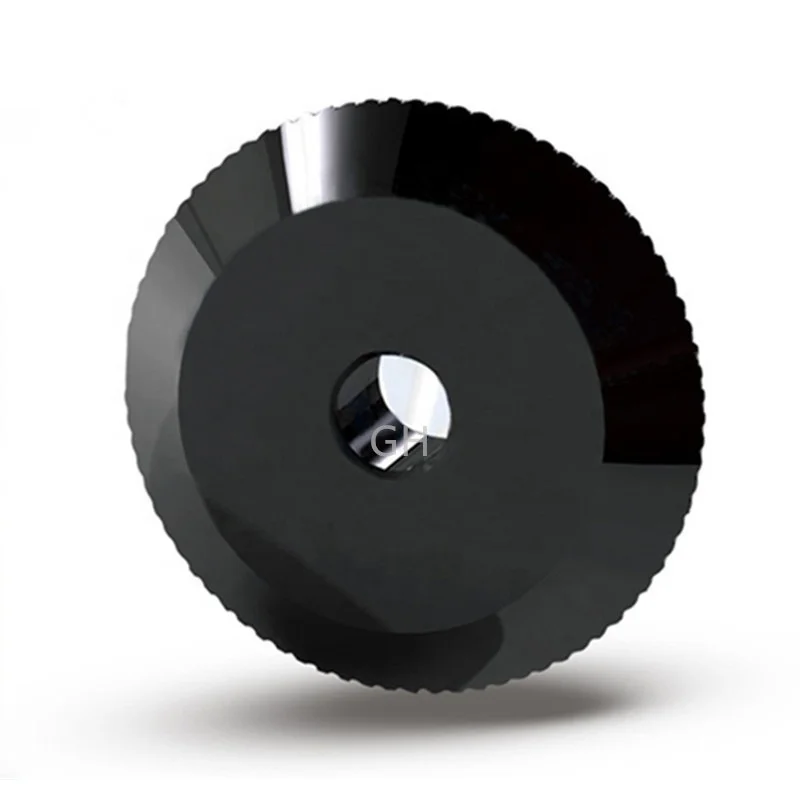

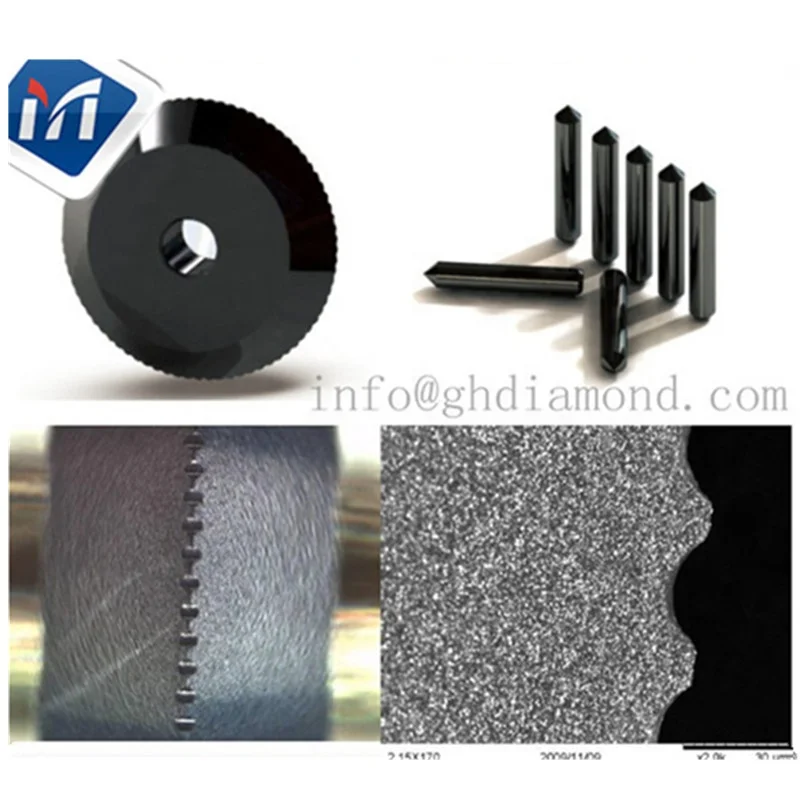

Our diamond scribing wheel make of high quality Polycrystalline Diamond (PCD) material, it has excellentabrasive resistance and long service life. And not cause chips of glass when cutting because of the vertical andsmooth sections. The diamond scribing wheel is the ideal substitute for the tungsten carbide scribing wheel as
its service life is three times that of the tungsten carbide scribing wheel.

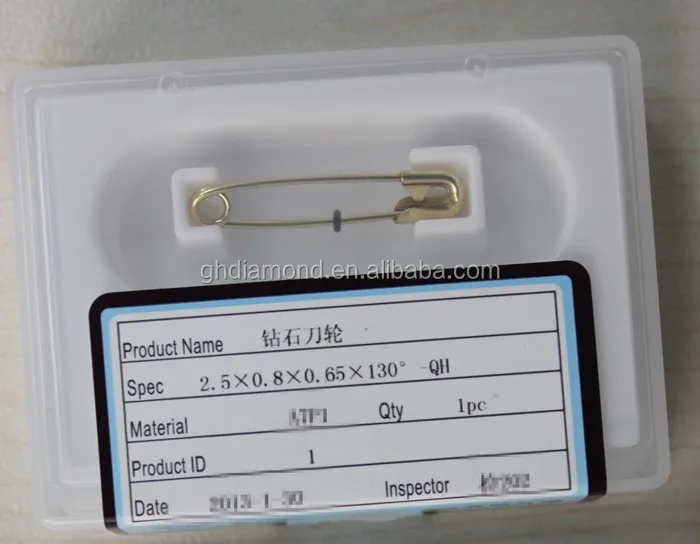

Packaging & Shipping
