Машина для производства пластин из пенополистирола
US $80000-$290000
Полностью автоматический дозатор клея от производителя автоматическая машина для производства прокладок пены новая изготовления из полиуретана полностью автоматическое
- Категории: Оборудование для пенопласта >>>
- Поставщик: Shanghai,Kaiwei,Intelligent,Technology,(Group),Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики

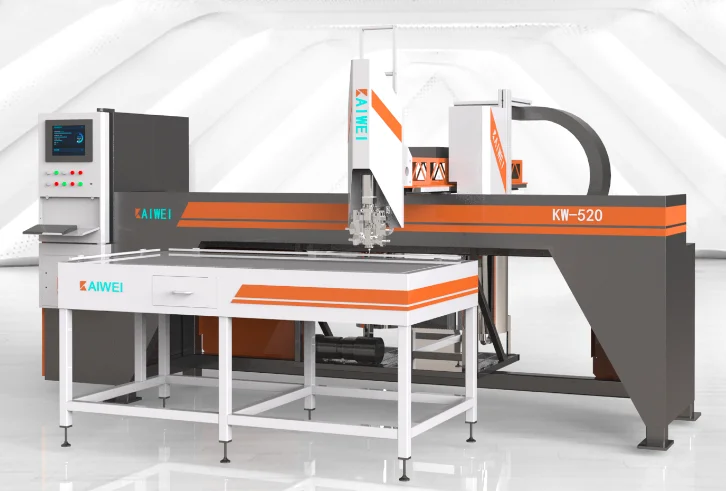

Automatic Dispensing Production Line Dispenser equipment Electrical cabinet sealing foaming machine KW-520
Application
KW-520(standard) is widely applied for car, cabinet/box, air filter, air-conditioning puring equipment, packing, electrical element, light, new energy, etc.
Feature
Raw Material: PU
Effective working range:2250X1250X200mm(X*Y*Z)
Working table:2000*1000*900mm(L*W*H)
Mixing head: KW-700
Finished gasket width 5-30mm.
KW-520(standard) is widely applied for car, cabinet/box, air filter, air-conditioning puring equipment, packing, electrical element, light, new energy, etc.
Feature
Raw Material: PU
Effective working range:2250X1250X200mm(X*Y*Z)
Working table:2000*1000*900mm(L*W*H)
Mixing head: KW-700
Finished gasket width 5-30mm.
Item | KAIWEI | |
Model | Model | KW-510(standard) |
Component | component | PU |
component option | 2-component | |
System/Control | operating system | KW510 based onWindows7/Win10 |
interface | touch screen | |
operating method | touch screen/keyboard/button | |
controller | INVT | |
sreen size | 12.1'' | |
mixing head | mixing head model | KW-700 |
gasket width | 6-10mm | |
Clean method | high pressure water | |
mixing ratio(A:B) | 1:10~10:1 | |
pump | pump | Barmag |
pump size | A0.6cc/r B0.1cc/r | |
Item | KAIWEI | |
Material tank | tank type | air pressure tank |
volume | A: 40L B: 40L | |
tank stirring | A: Yes B: No | |
Tank refill | manual/auto | |
material-refill station | optional | |
air-refill method | manual/auto | |
Mechanical frame | mechanical frame | 4 axis linear mechanical arm |
speed | 0-250mm/s | |
rail | HIWIN(Taiwan) | |
gear-rack | HIWIN(Taiwan) | |
servo motor | Panasonic | |
speed reducer | -- | |
Working table | type | Welded square pipes |
size | 2000X1000mm(L*W) | |
Electrical power | voltage | 3X220V/380V/415V |
power | 5.5kw | |
Air | dry compressed air | ≥6bar |
Water | clean tap water | tap water |
Raw Material-PU
PU is a product of 2-component Polyurethane. It adopts FIPFG (foamed-in-place foam gasket) technology which can foam on the workpiece directly. The finished product is a soft and elastic foamed gasket. This gasket is made from component A and component B.
Component A is mainly polybasic alcohol, Component B is a hardener-isocyanate. After mixing A and B according to a certain proportion and completely foaming, the mixture will become a soft foamed sealing strip.
• Mixing time: time for mixing component A and component B
• Reaction time: time for the mixture to react( about15-60 seconds after mixing)
• Foam time: time from reaction to finish (about 15-180 seconds)
• Dry time: time for no viscosity on the suface, and no damage with touch under room temperature 25 ºC(about 2-20 minitues later)
• Available time:time for the availability of gasket to be pressed or assembled (about 20 minitues-12 hours later)
Shanghai Kaiwei Electric Equipment Co.,Ltd.
Website :www.kaiwei-sh.com
Add: Room 618B, East Yinggang Road, Qingpu District, Shanghai, China
