Factory Sale UHP600 Graphite Electrodes 600mm 2400mm Length Electrode
- Категории: Графитовые электроды >>>
- Поставщик: Henan,Rongxing,Carbon,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Item | Unit | Graphite Electrode | ||||||||
RP | HP | UHP | ||||||||
φ100-600 mm | φ100-700 mm | φ200-500 mm | φ550-700 mm | |||||||
Electrode | uΩm | 7.0-10.0 | 5.8-6.6 | 4.8-5.8 | 4.6-5.8 | |||||
Nipple | 4.0-4.5 | 3.5-4.0 | 3.5-4.0 | 3.5-4.0 | ||||||
Electrode | Mpa | 8.0-10.0 | 10.0-13.0 | 10.0-14.0 | 10.0-14.0 | |||||
Nipple | 19.0-22.0 | 20.0-23.0 | 20.0-24.0 | 22.0-26.0 | ||||||
Electrode | GPa | 7.0-9.3 | 8.0-12.0 | 9.0-13.0 | 10.0-14.0 | |||||
Nipple | 12.0-14.0 | 14.0-16.0 | 15.0-18.0 | 16.0-19.0 | ||||||
Electrode | g/cm3 | 1.53-1.56 | 1.64-1.68 | 1.68-1.74 | 1.68-1.74 | |||||
Nipple | 1.70-1.74 | 1.75-1.80 | 1.78-1.82 | 1.75-1.84 | ||||||
CTE (100-600℃) | Electrode | 10-6 ℃ | 2.2-2.6 | 1.6-1.9 | 1.1-1.4 | 1.1-1.4 | ||||
Nipple | 2.0-2.5 | 1.1-1.4 | 0.9-1.2 | 0.9-1.2 | ||||||
Ash | 0.5% | 0.3% | 0.3% | 0.3% | ||||||
Different size of Nipple | Different Nipple size for option | |||
Model | 177T4N Taper | 177T3N Taper | ||
Nipple Length | 215.90mm | 270.90mm | ||
Nipple socket-depth | 114.00mm | 141.50mm | ||
Buckle Length | 110.00mm | 137.50mm | ||
Nipple socket average diameter | 174.64mm | 172.95mm | ||
Max.Dia of Nipple | 177.80mm | 177.16mm | ||
Remarks: Cylinder Nipple can be custom-made. | ||||
Product Description
Graphite Electrode
Using coal pitch as binder, the graphite electrode which is mainly made of petroleum coke and needle coke is being made through the process of calcination, compounding, kneading, pressing, baking, impregnation, graphitization and machining. It is a conductor that release electrical energy to heat and melt the charge in the form of an electric arc in an electric arc furnace, and has the characteristics of low electrical resistivity, good electrical conductivity, low ash content, uniform structure, good oxidation resistance and high mechanical strength.
Advantages

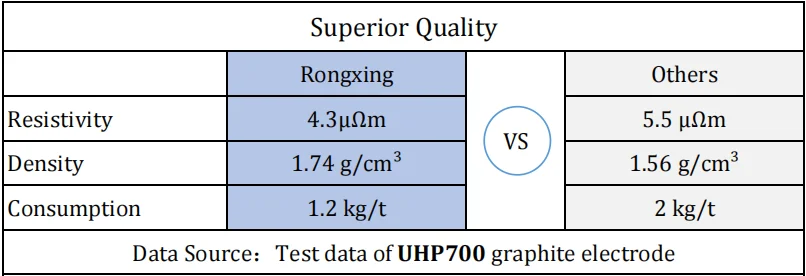

Contrast Superiority of Graphite Electrode

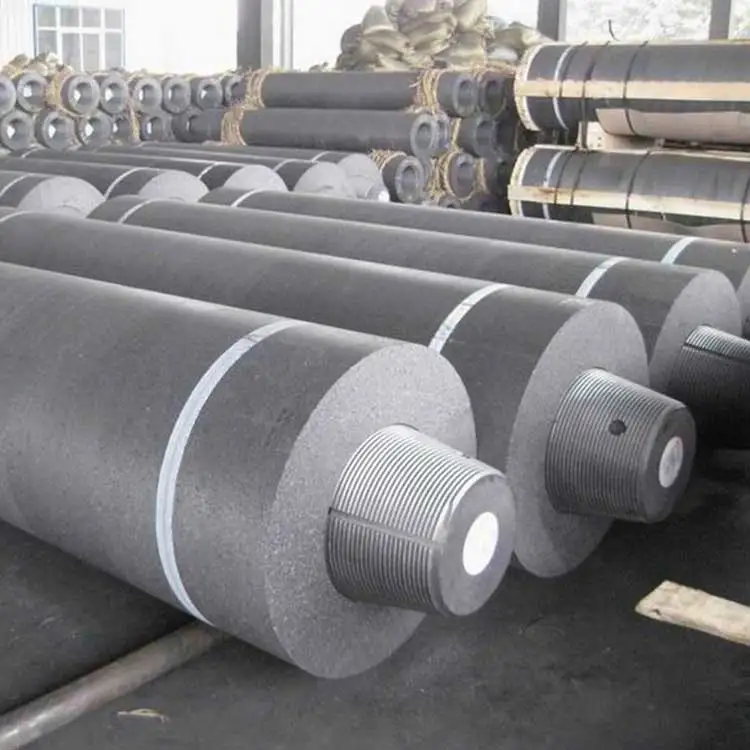

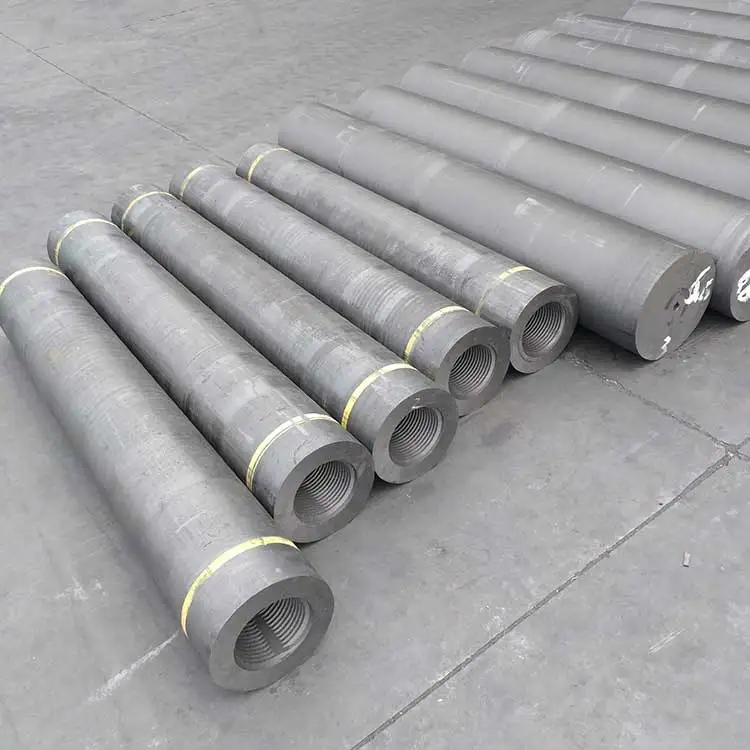

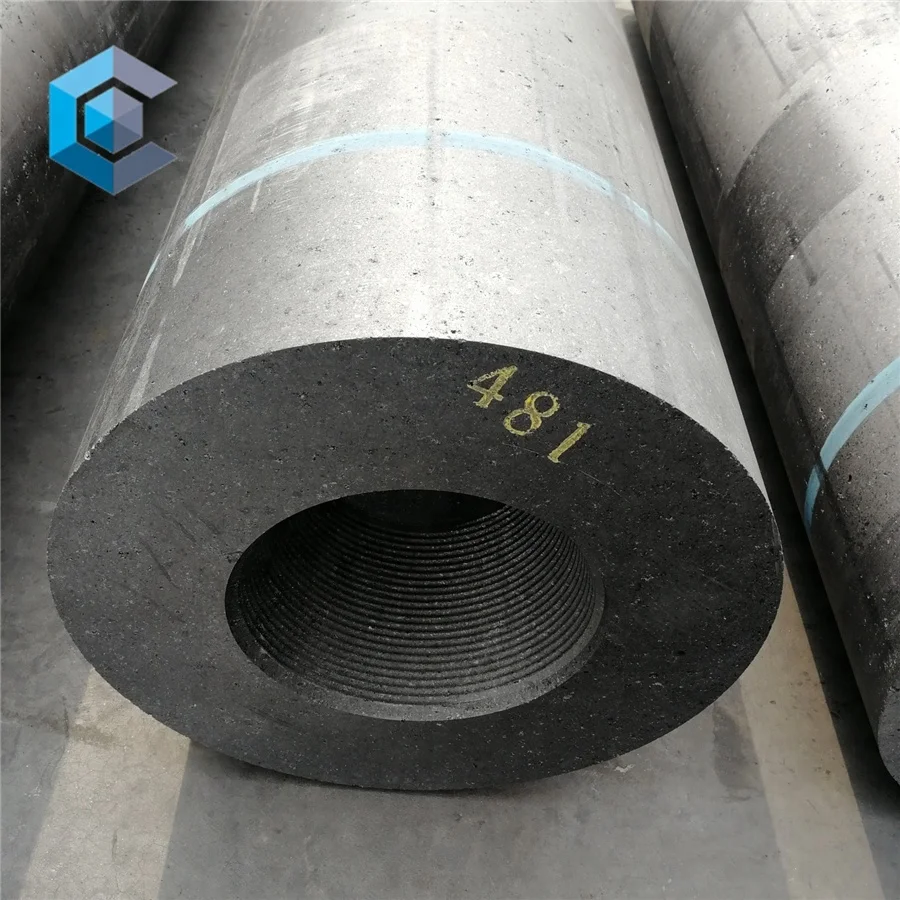

Graphite Electrode

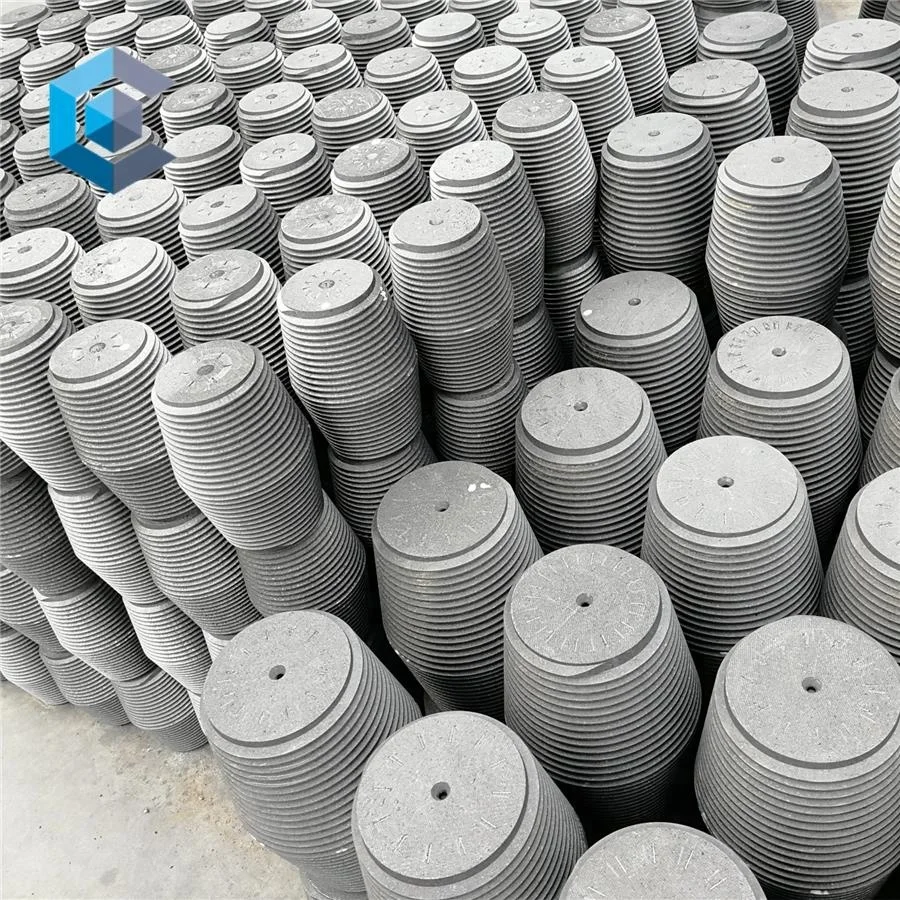

Nipple of Graphite Electrode

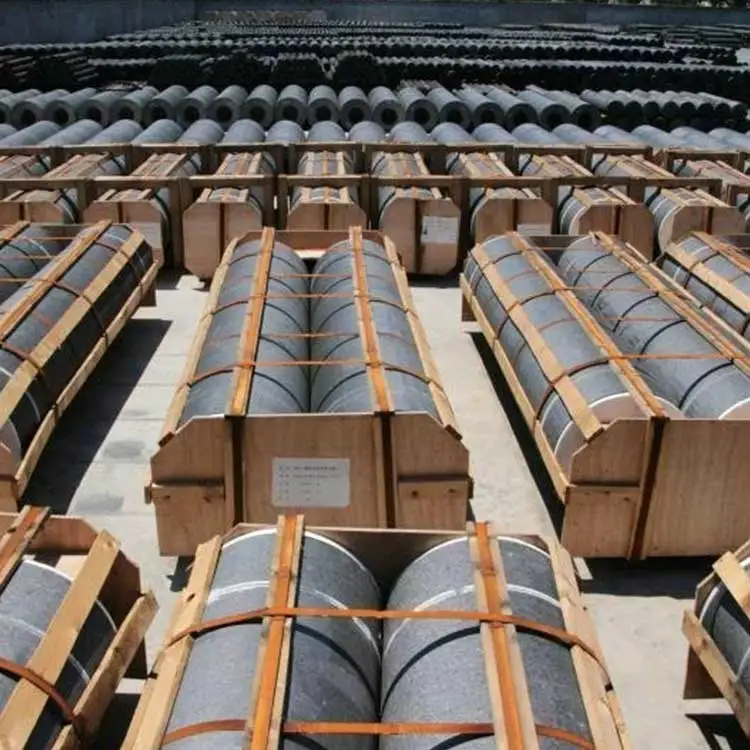

Graphite Electrode Packaging
Product advantages
* Full range of carbon materials, graphite materials, refactories and water treatment materials products and solutions;
* High output, with an annual output of 80,000 tons, timely delivery; guarantee delivery date
* Low resistivity
* High temperature strength
* Good thermal conductivity and electrical conductivity
* Low thermal expansion coefficient
* Low ash,Its ash content is controlled within 3%.
* Dense and equal structure,Low graphite electrode consumption.
* Good oxidation resistance
* High mechanical strength
* Needle coke content accounts for 80%, raw materials imported from Japan and South Korea
* Low resistivity
* High temperature strength
* Good thermal conductivity and electrical conductivity
* Low thermal expansion coefficient
* Low ash,Its ash content is controlled within 3%.
* Dense and equal structure,Low graphite electrode consumption.
* Good oxidation resistance
* High mechanical strength
* Needle coke content accounts for 80%, raw materials imported from Japan and South Korea

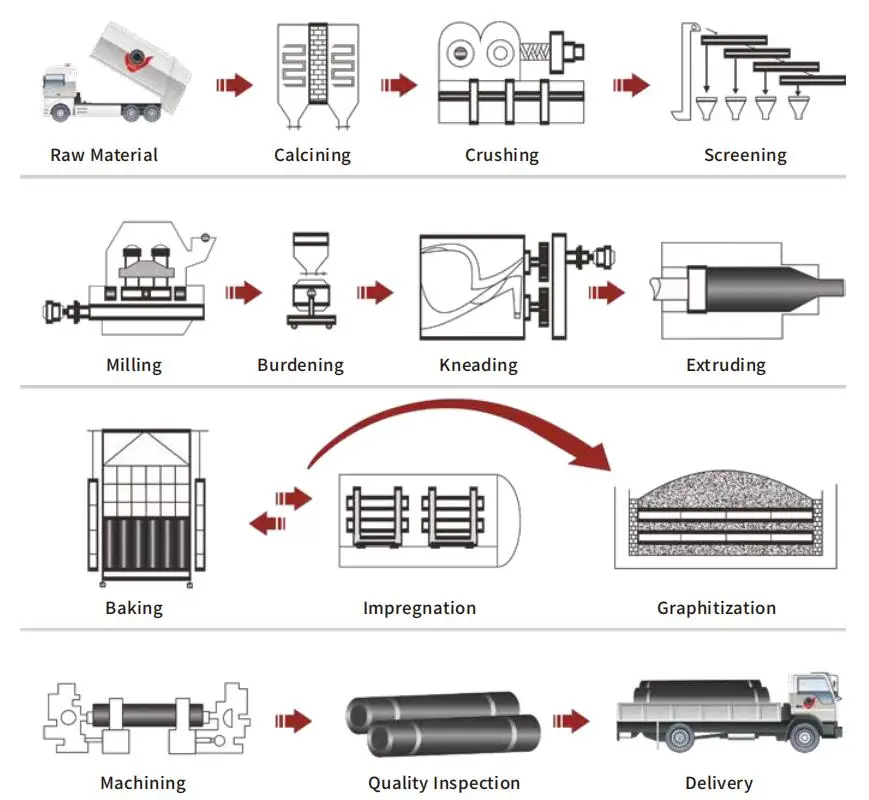

Production Process
Customer & Application

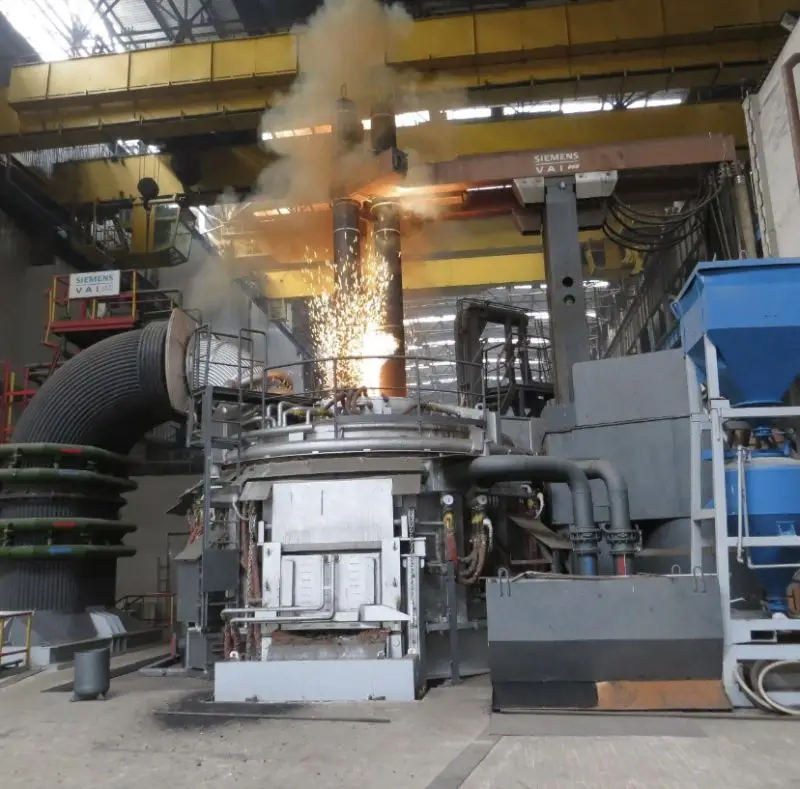

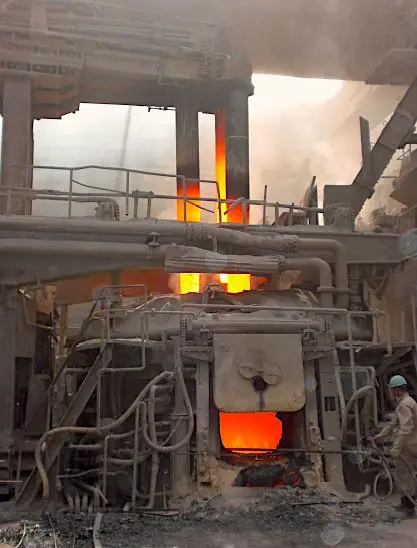

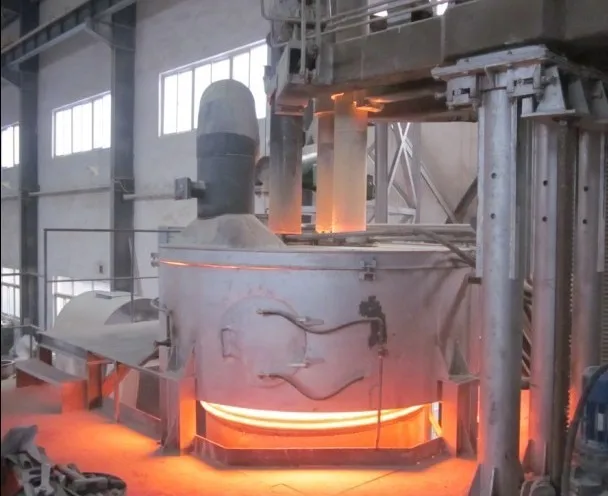

1. Used in electric arc steelmaking furnace.

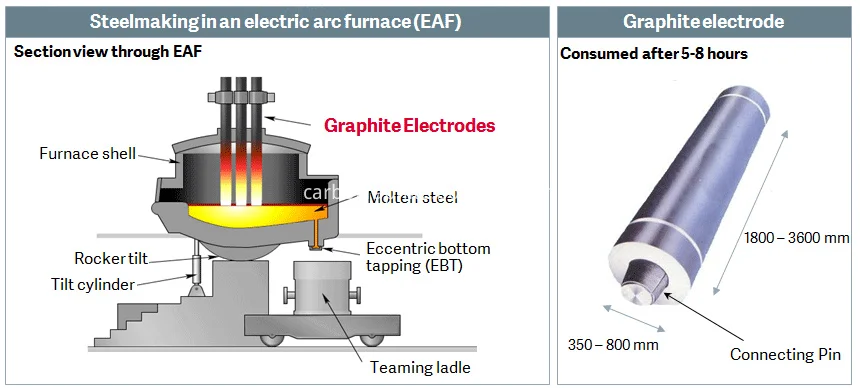

Graphite electrode is mainly used in electric furnace steelmaking. Electric furnace steelmaking uses graphite electrodes to introduce current into the furnace. A strong current generates an arc discharge through the gas at the lower end of the electrode, and uses the heat generated by the arc to smelt.
2. Used in ore-heating furnaces.
2. Used in ore-heating furnaces.
Graphite electrode ore-heating furnaces are mainly used to produce ferroalloys, pure silicon, yellow phosphorus, matte and calcium carbide, etc., which is characterized by electrical conductivity...
3. For resistance furnaces.
3. For resistance furnaces.
Graphitization furnaces for producing graphite products, melting furnaces for melting glass, and electric furnaces for producing silicon carbide are all resistance furnaces.
4. Used for processing.
4. Used for processing.
A large number of graphite electrode blanks; also used for processing into various crucibles, graphite boats, hot die casting molds and heating elements for vacuum electric furnaces, etc...

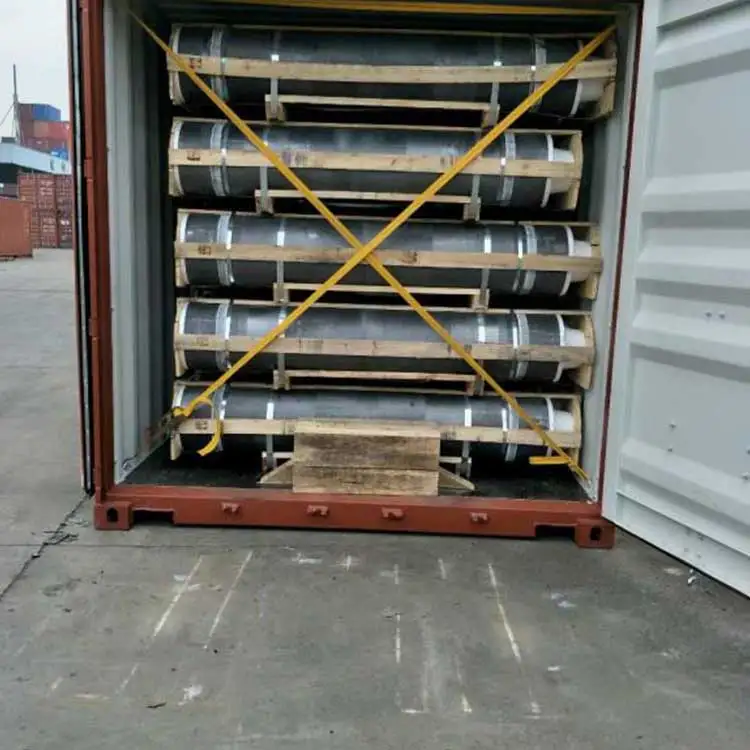

Packing & Delivery

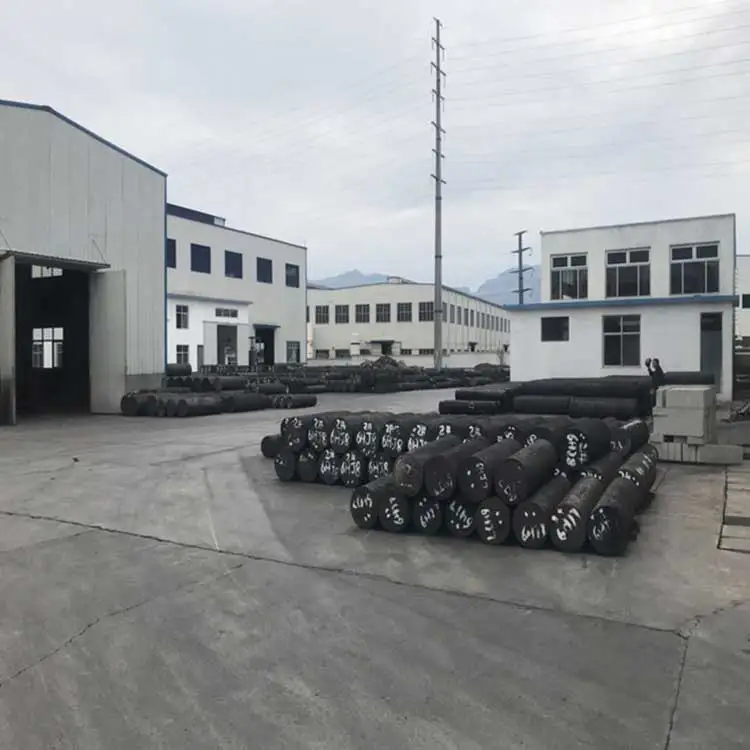

Company Profile
Rongxing’s corporate headquarters is currently located in the Zhengzhou in central part of China. Possessing sophisticated production lines and inspection equipments, providing diverse lines of carbon metallurgical products backed by expert R&D technical support, we develop closer customer relationships and taking on a larger role in the total supply and manufacturing chain.
As an experienced manufacturer, we now offer everything from RP, HP to UHP graphite electrode and trapezodial, oval, cylinder electrode paste in the world. The diverse products include carbon materials and graphite materials.Our products have been exported to Europe, Asia, Africa, South America and Middle Eastern countries, which enjoys good reputation.
As an experienced manufacturer, we now offer everything from RP, HP to UHP graphite electrode and trapezodial, oval, cylinder electrode paste in the world. The diverse products include carbon materials and graphite materials.Our products have been exported to Europe, Asia, Africa, South America and Middle Eastern countries, which enjoys good reputation.
FAQ
1. Are you Factory or Trading?
We are factory with ISO 9001:2015 certified
6. What is your payment service?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
We are factory with ISO 9001:2015 certified
2. How about the Capacity?
High output, with an annual output of 80,000 tons, timely delivery; guarantee delivery date.
High output, with an annual output of 80,000 tons, timely delivery; guarantee delivery date.
3. How to guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can we buy from you?
Graphite electrode,electrode paste,carbon raiser,carbon product, and other graphite products.
5. How to confirm the grade of graphite electrode?
Please send inquiry to us, our sales manager will confirm the details and price for you.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can we buy from you?
Graphite electrode,electrode paste,carbon raiser,carbon product, and other graphite products.
5. How to confirm the grade of graphite electrode?
Please send inquiry to us, our sales manager will confirm the details and price for you.
Customers will be asked to provide electric arc furnace parameters and specifications and sizes of electrode.
6. What is your payment service?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
